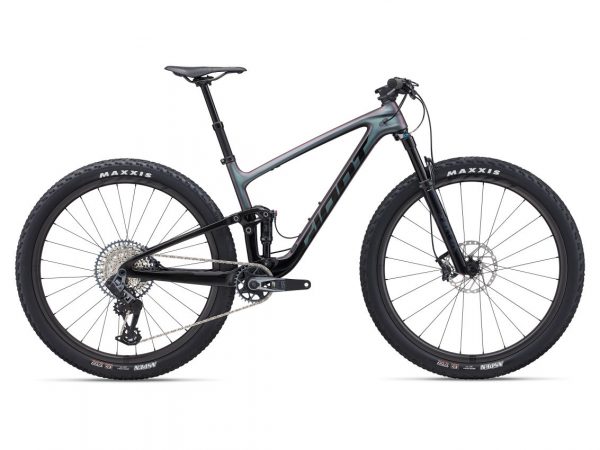

Anthem Advanced 29 1 (2024) | bike
€7,999.00
Features:
Specifications
Built for modern XC racing, this full-composite flyer tackles steep singletrack climbs and technical descents with speed and control. With FlexPoint Pro rear suspension and race-ready geometry, it puts you at the front of the pack.
Key Performance Factors
Ultra-efficient
Advanced composite frameset is 241g lighter than previous generation. The bottom bracket area is stiffer for faster acceleration, and a steeper seat tube puts the rider in an efficient climbing position.
Superior control
FlexPoint Pro suspension delivers 100mm of smooth, active rear travel. The frameset features modern XC geometry including a slacker 67.5-degree head tube and 110mm suspension fork for technical descents.
29er stability and speed
Frame geometry and suspension are optimized for fast and stable 29-inch wheels. A longer reach and modified cockpit including a 35mm composite handlebar and alloy stem further boost balance and stability on XC terrain.
| Sizes | S, M, L, XL |
|---|---|
| Colours | Gloss Carbon Smoke/Matte Dark Iridescent |
| Frame | Advanced-grade composite front and rear triangles, 100mm FlexPoint Pro suspension, 12x148mm thru-axle |
| Fork | Fox 34 Float SC Performance Elite remote, 110mm, FIT4 damper, Boost 15×110 Kabolt, 44mm offset, custom tuned for Giant |
| Shock | Fox Float SL Performance Elite, three-position remote, 165/45, custom tuned for Giant |
| Handlebar | Giant Contact SLR XC Flat, composite, 760x35mm |
| Grips | Giant XC Pro S:32mm, M:32mm, L:34mm, XL:34mm |
| Stem | Giant Contact SL XC, 35mm S:60mm, M:70mm, L:70mm, XL:70mm |
| Seatpost | Giant Contact Switch Adjustable dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 110-140mm travel / 30.9 x 395mm L: 110-140mm travel / 30.9 x 395mm XL: 110-140mm travel / 30.9 x 395mm |
| Saddle | Fi’zi:k Antares R5 with K:ium rails |
| Pedals | PEDALS NOT SUPPLIED |
| Shifters | SRAM AXS Pod, discrete clamp, 1×12 |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM GX Eagle Transmission |
| Brakes | Shimano Deore XT BR-M8100, hydraulic, Shimano RT-64 rotors [F]180mm, [R]160mm |
| Brake Levers | Shimano Deore XT BL-M8100 |
| Cassette | SRAM GX Eagle Transmission, 10×52 |
| Chain | SRAM GX Eagle Transmission |
| Crankset | SRAM XO Eagle Transmission with power meter, 32t, 55mm chainline S:170mm, M:175mm, L:175mm, XL:175mm |
| Bottom Bracket | SRAM DUB, press fit |
| Rims | Giant XCR 1 30 Carbon WheelSystem, 30mm inner width |
| Hubs | [F] Giant XC alloy, CenterLock, [R] Giant XC alloy, DT350 54t ratchet driver, CenterLock |
| Spokes | Sapim Laser |
| Tyres | Maxxis Aspen 29×2.4, foldable, 120tpi, TLR, EXO, tubeless |
| Extras | Factory tubeless set up, 2.4″ max tyre size, 34t max chainring size, Giant/MRP CS chain guide |
Geometry
| S | L | XL | M | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 390 | 465 | 495 | 420 |
| B | SEAT TUBE ANGLE | 75.5 | 75.5 | 75.5 | 75.5 |
| C | TOP TUBE LENGTH | 572 | 626 | 653 | 604 |
| D | HEAD TUBE LENGTH | 90 | 105 | 115 | 95 |
| E | HEAD TUBE ANGLE | 67.5 | 67.5 | 67.5 | 67.5 |
| F | FORK RAKE | 44 | 44 | 44 | 44 |
| G | TRAIL | 109 | 109 | 109 | 109 |
| H | WHEEL BASE | 1127 | 1183 | 1212 | 1159 |
| I | CHAIN STAY LENGTH | 435 | 435 | 435 | 435 |
| J | BOTTOM BRACKET DROP | 42 | 42 | 42 | 42 |
| K | STACK | 589 | 603 | 612 | 593 |
| L | REACH | 420 | 470 | 495 | 450 |
| M | STAND OVER HEIGHT | 745 | 777 | 800 | 750 |
| N | HANDLERBAR WIDTH | 760 | 760 | 760 | 760 |
| O | STEM LENGTH | 60 | 70 | 70 | 70 |
| P | CRANK LENGTH DEC | 170 | 175 | 175 | 175 |
| Q | WHEEL SIZE ALT | 29″ | 29″ | 29″ | 29″ |
