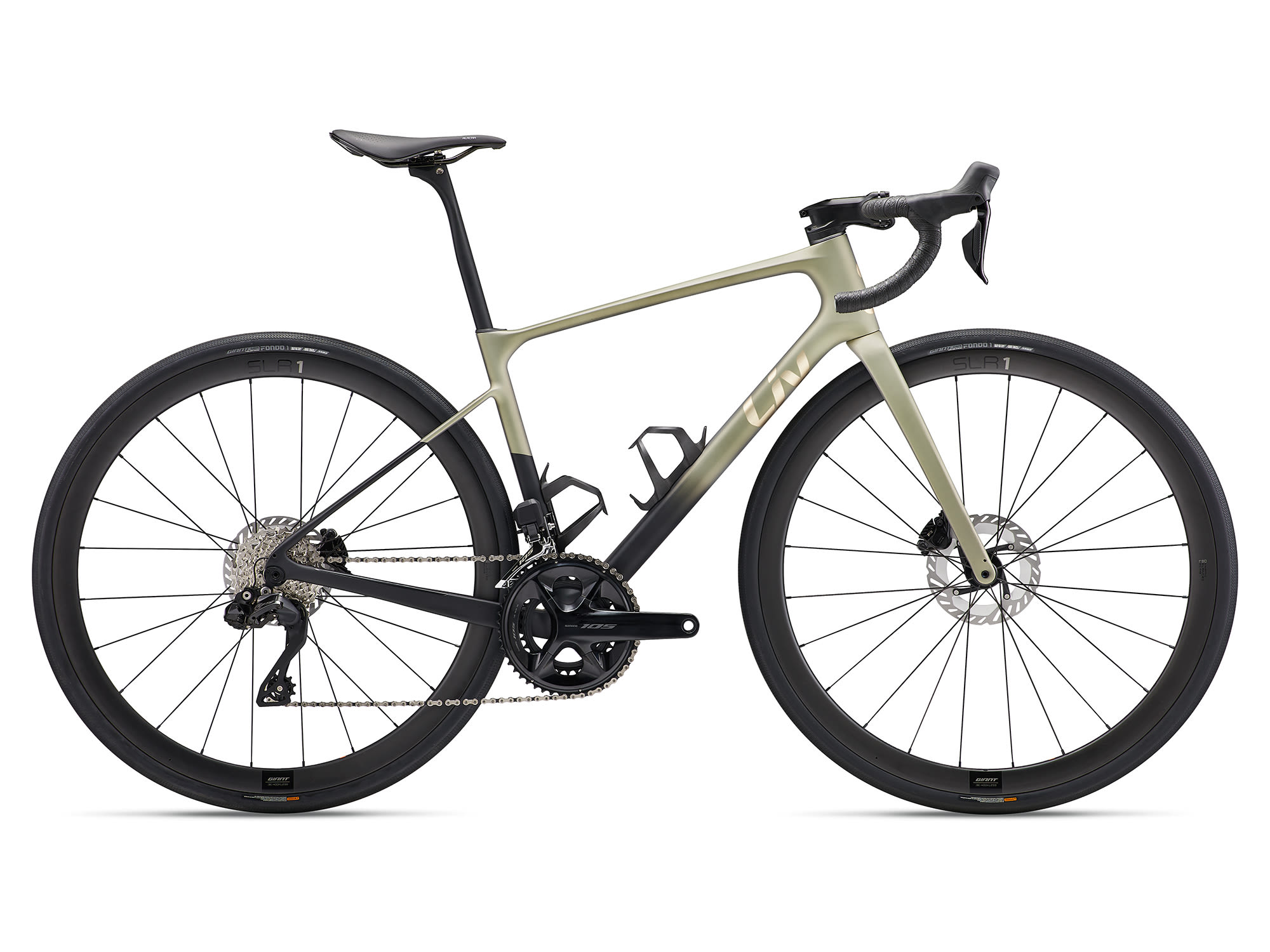

Avail Advanced Pro 1 (2024) | Women bike
€5,299.00
Features:
Specifications
The Avail Advanced Pro is that riding partner who’s up for any challenge on the road—from long winding ascents to short gravel sections, and from solo endurance training rides to the “friendly” competition of a Gran Fondo. Designed for performance and built without compromise, this road warrior is ready to take you as far as you can go, which is always farther than you think.
Key Performance Factors
Lightweight Advantage
The Avail Advanced Pro is the ultimate in lightweight efficiency, thanks to an all-new Advanced-grade composite frame and an Advanced SL-grade composite fork, which boosts your climbing abilities and makes you virtually uncatchable over long distances.
Superior Compliance
Ride longer without riding harder, with the reengineered frame and fork, optimized for the smoothest, most efficient riding experience. The innovative Liv Contact D-Fuse handlebar and D-Fuse seatpost absorb more road vibrations than round-shaped tubing, without sacrificing efficiency on corners and climbs.
Maximum Control
The Liv Contact D-Fuse handlebar features an ergonomic shape and 8-degree flare drop, for total control on those all-day rides. Wide, hookless carbon rims are designed for high-volume tubeless tires (up to 38mm) and a 36mm rim depth, providing predictable handling and stability from asphalt to pavé.
| Sizes | XS, S, M, L |
|---|---|
| Colours | Golden Haze/Carbon/Chrome |
| Frame | Advanced-grade composite, 12x142mm thru-axle, disc |
| Fork | Advanced SL-grade composite, full-composite OverDrive Aero steerer, stainless steel bearings 12x100mm, disc |
| Shock | N/A |
| Handlebar | Liv Contact SL D-Fuse, 31.8mm, 8-degree flare drop XS: 410/380mm, S: 430/400mm, M: 430/400mm, L: 450/420mm |
| Grips | Liv All Condition |
| Stem | Giant Contact SL AeroLight XS: 70mm, S: 80mm, M: 90mm, L: 90mm |
| Seatpost | Giant D-Fuse SL, composite, -5/+15mm offset XS: 350mm, S: 350mm, M: 350mm, L: 350mm |
| Saddle | Liv Alacra SL |
| Pedals | PEDALS NOT SUPPLIED |
| Shifters | Shimano 105 Di2 2×12 |
| Front Derailleur | Shimano 105 Di2 |
| Rear Derailleur | Shimano 105 Di2 |
| Brakes | Shimano 105 Di2 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm |
| Brake Levers | Shimano 105 Di2 hydraulic |
| Cassette | Shimano 105, 12-speed, 11×36 |
| Chain | KMC X12 |
| Crankset | Shimano 105, 34/50 XS: 165mm, S: 170mm, M: 170mm, L: 172.5mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant SLR 1 36 Carbon Disc WheelSystem, [F] 36mm, [R] 36mm |
| Hubs | [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle |
| Spokes | Sapim |
| Tyres | Giant Gavia Fondo 1, tubeless, 700x32c (33.5mm), folding |
| Extras | Factory tubeless set up, two bottle cages, 38mm max tyre size, fender mount, computer mount |
Geometry
| XS | S | M | L | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 405 | 435 | 465 | 495 |
| B | SEAT TUBE ANGLE | 74.5 | 74.5 | 74 | 74 |
| C | TOP TUBE LENGTH | 520 | 525 | 535 | 555 |
| D | HEAD TUBE LENGTH | 125 | 145 | 165 | 185 |
| E | HEAD TUBE ANGLE | 71 | 71 | 71 | 72 |
| F | FORK RAKE | 50 | 50 | 50 | 50 |
| G | TRAIL | 68 | 68 | 68 | 61 |
| H | WHEEL BASE | 995 | 1002 | 1007 | 1013 |
| I | CHAIN STAY LENGTH | 420 | 420 | 420 | 420 |
| J | BOTTOM BRACKET DROP | 75 | 73 | 73 | 73 |
| K | STACK | 528 | 547 | 566 | 589 |
| L | REACH | 373 | 373 | 373 | 381 |
| M | STAND OVER HEIGHT | 712 | 737 | 762 | 789 |
| N | HANDLERBAR WIDTH | 380 | 400 | 400 | 420 |
| O | STEM LENGTH | 70 | 80 | 90 | 90 |
| P | CRANK LENGTH DEC | 165 | 170 | 170 | 172.5 |
| Q | WHEEL SIZE ALT | 700C | 700C | 700C | 700C |
Technology and Features
