Additional information
Colour | |
---|---|
Size |
€949.00
Features:

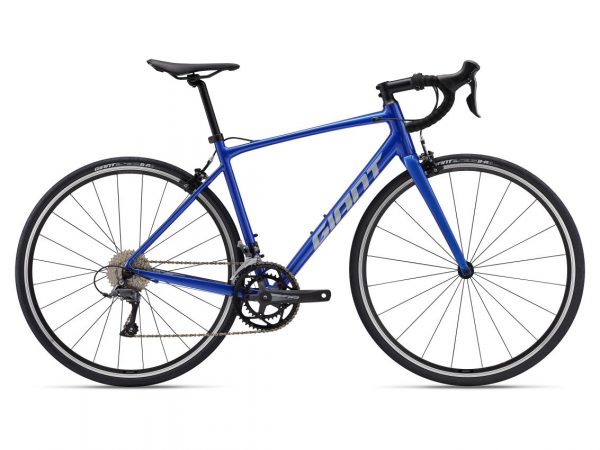

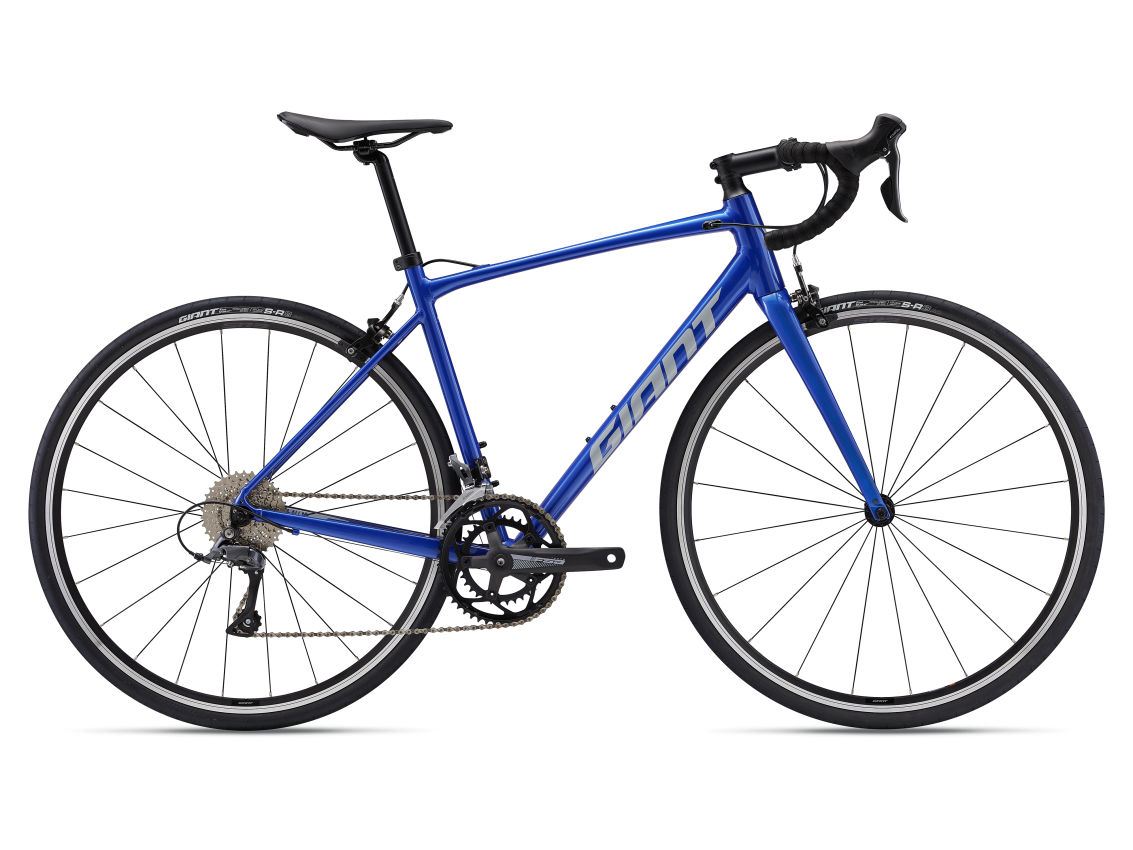

Smooth, fast and fun. This versatile aluminum road bike helps you push the pace, ride more miles, and expand your road riding experience.
Balanced road geometry
Frame is specifically engineered to produce a balanced, all-rounder feel that blends confident rider positioning with agile cornering and acceleration.
Smooth ride quality
Innovative D-Fuse seatpost design reduces road shocks and vibrations, and a Giant WheelSystem lets you run tubeless tires up to 32c for a smoother ride quality and reduced risk of flats.
Lightweight efficiency
ALUXX aluminum frame delivers efficient climbing and snappy acceleration.
Sizes | XS, S, M, M/L, L, XL |
---|---|
Colours | Gloss Cobalt/Good Gray |
Frame | ALUXX-grade aluminium |
Fork | Advanced-grade composite, full-composite OverDrive steerer |
Shock | N/A |
Handlebar | Giant Connect |
Grips | Velo cork tape |
Stem | Giant Sport |
Seatpost | Giant D-Fuse, alloy, 14mm offset |
Saddle | Giant Approach |
Pedals | Pedal with toe clips/straps |
Shifters | Shimano Claris 2×8 |
Front Derailleur | Shimano Claris |
Rear Derailleur | Shimano Claris |
Brakes | Tektro TK-B177 |
Brake Levers | Shimano Claris |
Cassette | Shimano CS-HG50, 11×34 |
Chain | KMC Z72 |
Crankset | FSA Tempo, 34/50 |
Bottom Bracket | cartridge |
Rims | Giant S-R3 wheelset, alloy |
Hubs | Giant alloy QR |
Spokes | Stainless steel |
Tyres | Giant S-R3-AC, 700x28c (30mm) |
Extras | Fender mount, 28mm max tyre size |
ML | XL | S | L | XS | M | ||
---|---|---|---|---|---|---|---|
A | SEAT TUBE LENGTH | 535 | 585 | 465 | 555 | 430 | 500 |
B | SEAT TUBE ANGLE | 73 | 72.5 | 74 | 73 | 74.8 | 73.5 |
C | TOP TUBE LENGTH | 560 | 595 | 530 | 575 | 515 | 545 |
D | HEAD TUBE LENGTH | 178 | 218 | 138 | 198 | 123 | 158 |
E | HEAD TUBE ANGLE | 72.5 | 72.5 | 71.8 | 72.5 | 71 | 72.5 |
F | FORK RAKE | 50 | 50 | 50 | 50 | 50 | 50 |
G | TRAIL | 57.1 | 57.1 | 61.9 | 57.1 | 66.8 | 57.1 |
H | WHEEL BASE | 1002 | 1031 | 986 | 1017 | 985 | 990 |
I | CHAIN STAY LENGTH | 412 | 412 | 412 | 412 | 412 | 412 |
J | BOTTOM BRACKET DROP | 70 | 70 | 75 | 70 | 75 | 75 |
K | STACK | 577 | 615 | 541 | 596 | 524 | 563 |
L | REACH | 384 | 401 | 375 | 393 | 372 | 378 |
M | STAND OVER HEIGHT | 803 | 844 | 746 | 821 | 720 | 774 |
N | HANDLERBAR WIDTH | 420 | 440 | 400 | 440 | 400 | 420 |
O | STEM LENGTH | 100 | 110 | 90 | 110 | 80 | 100 |
P | CRANK LENGTH DEC | 172.5 | 175 | 170 | 175 | 170 | 172.5 |
Q | WHEEL SIZE ALT | 700C | 700C | 700C | 700C | 700C | 700C |
