A hardtail is a versatile beast, so it helps to have the right kit to get the most out of that versatility. With the Analog we started by choosing Sram’s Eagle 1×12 transmission. With its huge range, ease of use and reliable performance, it’s the go-to for many keen riders. Paired with powerful hydraulic disc brakes and a smooth RockShox suspension fork, it puts you firmly in control. Grippy 2.25in tyres, perfect sizing from our SizeSplit system and the option of a future dropper post upgrade complete the package.

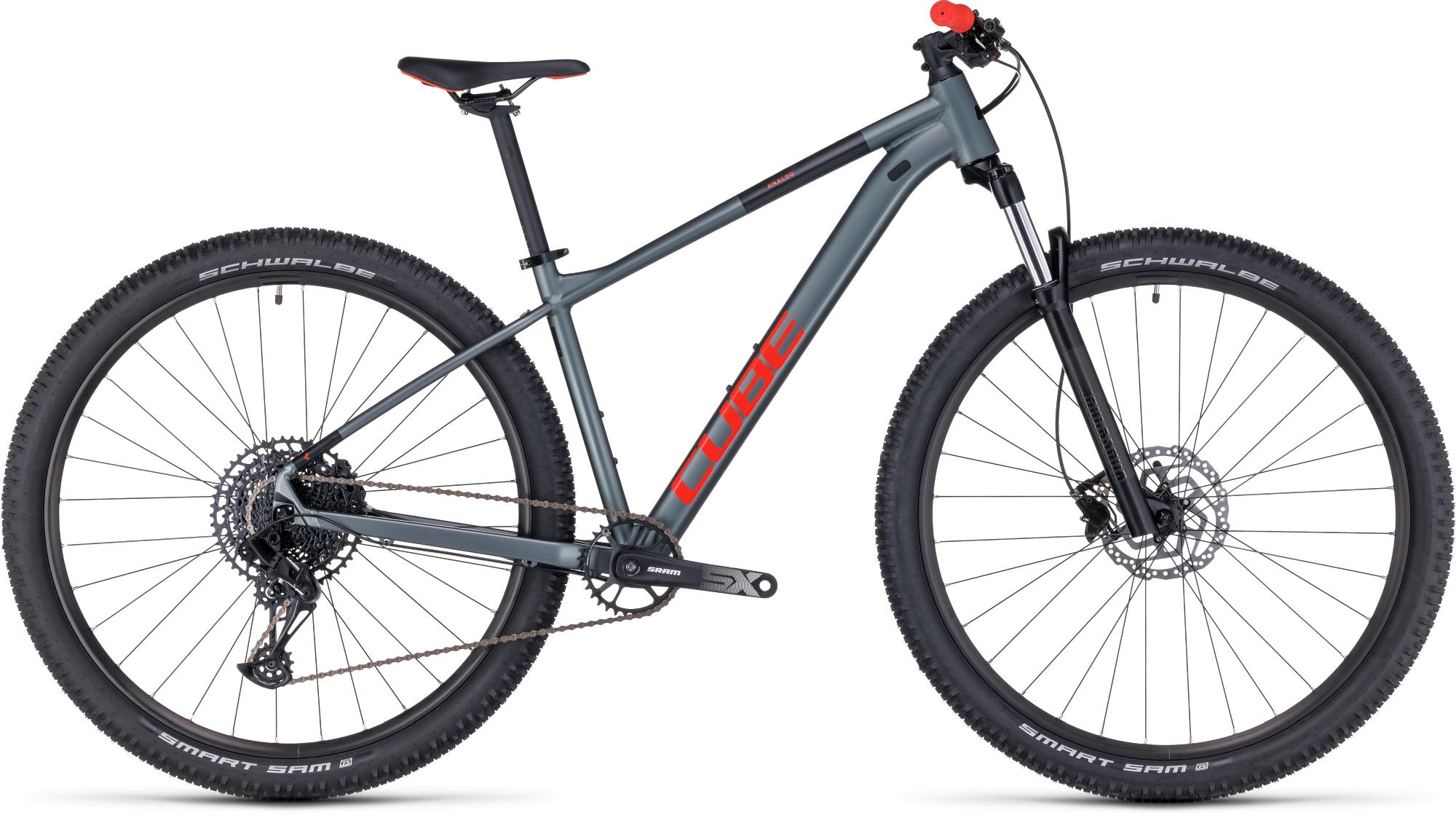

CUBE ANALOG FLASHGREY/RED 2024
€949.00
Additional information
| Weight | 13.9 kg |
|---|---|
| color | flashgrey/red |
| size | L, M, S, XL, XS, XXL |
Specifications
| Sizes | L,M,S,XL,XS,XXL |
|---|---|
| Colours | flashgrey/red |
| Frame | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
| Fork | RockShox Judy Silver TK Coil, 100mm, Lockout |
| Shock | N/A |
| Handlebar | CUBE Rise Trail Bar, 680mm |
| Grips | ACID React |
| Stem | CUBE Performance Stem SLX, 31.8mm |
| Seatpost | CUBE Performance Post, 27.2mm |
| Saddle | Natural Fit Venec Lite |
| Pedals | ACID PP MTB |
| Shifters | Sram SX Eagle™ Trigger |
| Front Derailleur | N/A |
| Rear Derailleur | Sram SX Eagle™, 12-Speed |
| Brakes | Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (180/160) |
| Brake Levers | N/A |
| Cassette | Sram PG-1210 Eagle™, 11-50T |
| Chain | Sram SX Eagle™ |
| Crankset | Sram SX Eagle™ Powerspline, 32T, 175mm |
| Bottom Bracket | Sram Power Spline, 73mm BSA |
| Rims | CUBE ZX20, 32H, Disc |
| Hubs | Shimano HB-TX505, QR, Centerlock | Tyres | Schwalbe Smart Sam, Active, 2.25 |
| Shock hardware | N/A |
| Headset | CUBE FPH868, Semi-Integrated |
| Bar extensions | N/A |
| Handlebar tape | N/A |
| Number of gears | 12 | Rear hub | Shimano FH-TX505, QR, Centerlock |
| Seat post clamp | CUBE Varioclose, 31.8mm |
| Front light | N/A |
| Rear light | N/A |
| Kickstand | N/A |
| Mudguard | N/A |
| Chain protection | N/A |
| Bell | N/A |
| Carrier | N/A |
| Engine | N/A |
| Battery | N/A |
| Charger | N/A |
| Display | N/A |
| Integratedbar/stem | N/A |
| Chain guide | N/A |
| Integrated shifters/brakelevers | N/A |
| Brake system | Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (180/160) |
| Crankset chainring sizes | 32T |
| Gear Teeth | N/A |
| Wheelset (system wheels) | N/A |
| Front tire | N/A |
| Rear tire | N/A |
| Net weight (kg) | 13.9 |
