Ushering in a new era of safe cycling, the Kathmandu Hybrid ABS 750 is the Bosch-powered hybrid that’s got your back – literally. Featuring Bosch’s second-generation anti-lock brake system, you can ride in all weathers assured that the sophisticated electronics and powerful Magura hydraulic disc brakes will always ensure you can stop quickly and safely. The fourth-generation Bosch CX drive system and high-capacity 750Wh battery work seamlessly with Shimano’s reliable 12-speed Deore gears to make light work of any journey. And the Integrated Carrier 3.0, with its versatile cargo-carrying options, plus mudguards, kickstand and lighting set, mean you’re all set for work, for touring, for shopping… for whatever you want to do. The only question is: which frame style will you choose?

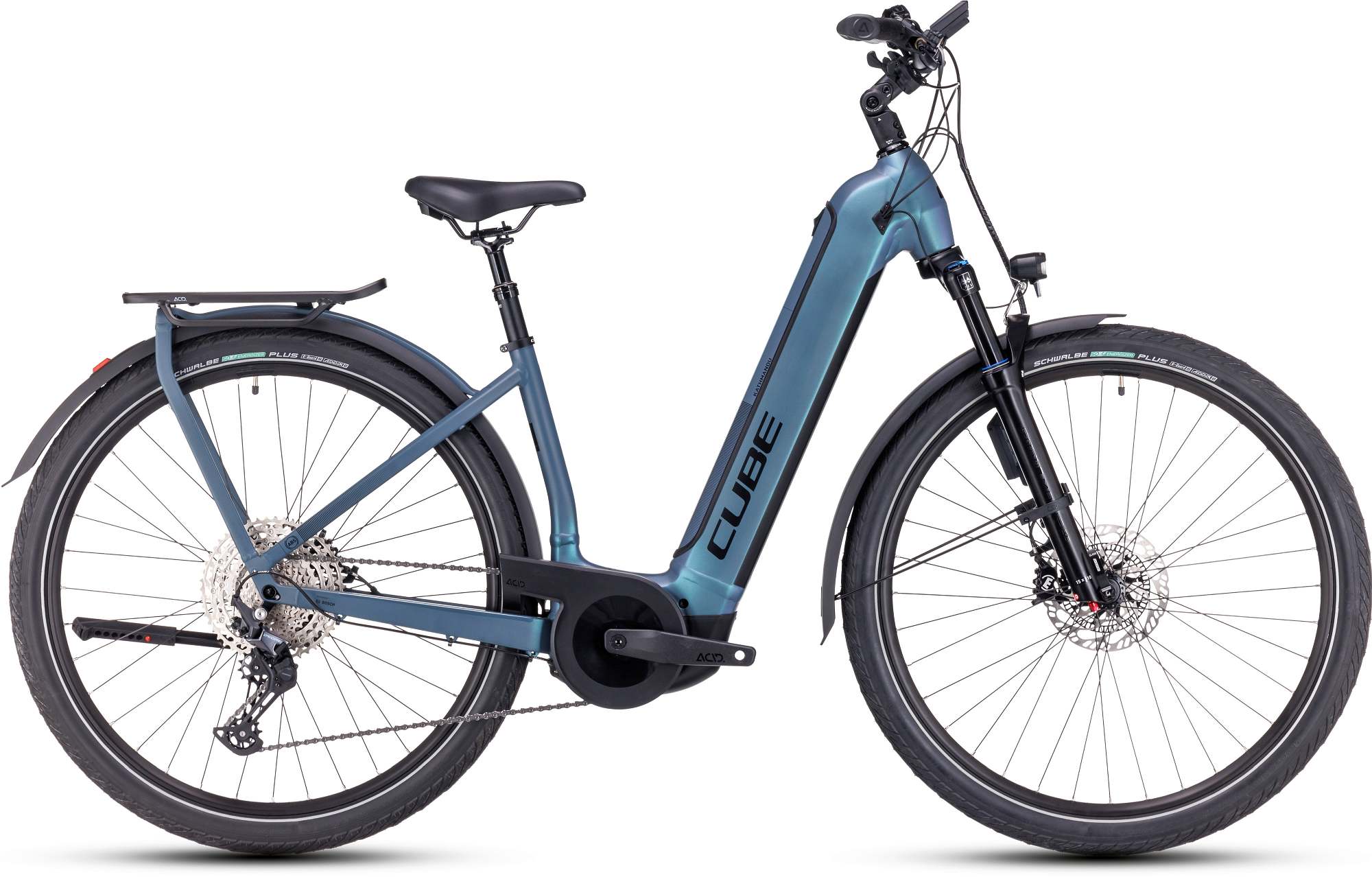

CUBE KATHMANDU HYBRID ABS 750 SMARAGDGREY/BLU 2024
€4,799.00
Additional information
| Weight | 27.6 kg |
|---|---|
| color | smaragdgrey/blue |
| size | EEL, EEM, EES, EEXS, L, M, S, TM, TS, XL |
Specifications
| Sizes | EEL,EEM,EES,EEXS,L,M,S,TM,TS,XL |
|---|---|
| Colours | smaragdgrey/blue |
| Frame | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube) |
| Fork | SR Suntour Mobie 35 EQ Air, ABS, Tapered, 15x110mm, 100mm |
| Shock | N/A |
| Handlebar | CUBE Comfort Trail Bar, 700mm |
| Grips | ACID Travel Comfort |
| Stem | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
| Seatpost | CUBE Suspension Seatpost HD, 30.9mm |
| Saddle | Natural Fit Sequence Comfort |
| Pedals | ACID PP Trekking |
| Shifters | Shimano Deore SL-M6100-IR, Direct Attach |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed |
| Brakes | Magura MT C ABS, Hydr. Disc Brake (180/180) |
| Brake Levers | N/A |
| Cassette | Shimano Deore CS-M6100, 10-51T |
| Chain | Shimano CN-M6100 |
| Crankset | ACID E-Crank, 40T, 175mm (EE: 170mm) |
| Bottom Bracket | N/A |
| Rims | CUBE EX23, 36H, Disc, Tubeless Ready |
| Hubs | Shimano HB-MT400-B, 15mm, Boost, Centerlock | Tyres | Schwalbe Energizer Plus, Performance, Green Guard, 55-622 |
| Shock hardware | N/A |
| Headset | M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8″ (ZS 44mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm) |
| Bar extensions | N/A |
| Handlebar tape | N/A |
| Number of gears | 12 | Rear hub | Shimano FH-MT410-B, 12mm, Boost, Centerlock |
| Seat post clamp | CUBE Screwlock Semi Integrated w/ Hidden Tool, 36mm (EE: CUBE Screwlock Semi Integrated, 36mm) |
| Front light | CUBE Shiny 50 Lux, 12V, DC |
| Rear light | CUBE Shiny 50 Lux, 12V, DC |
| Kickstand | ACID FM Pure Kickstand |
| Mudguard | ACID 65 Integrated Carrier 3.0 |
| Chain protection | N/A |
| Bell | Ring Bell |
| Carrier | ACID Integrated Carrier 3.0, CUBE Adapter Compatible |
| Engine | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
| Battery | Bosch PowerTube 750 |
| Charger | Bosch 4A |
| Display | Bosch Kiox 300 |
| Integratedbar/stem | N/A |
| Chain guide | N/A |
| Integrated shifters/brakelevers | N/A |
| Brake system | Magura MT C ABS, Hydr. Disc Brake (180/180) |
| Crankset chainring sizes | 40T |
| Gear Teeth | N/A |
| Wheelset (system wheels) | N/A |
| Front tire | N/A |
| Rear tire | N/A |
| Net weight (kg) | 27.6 |
