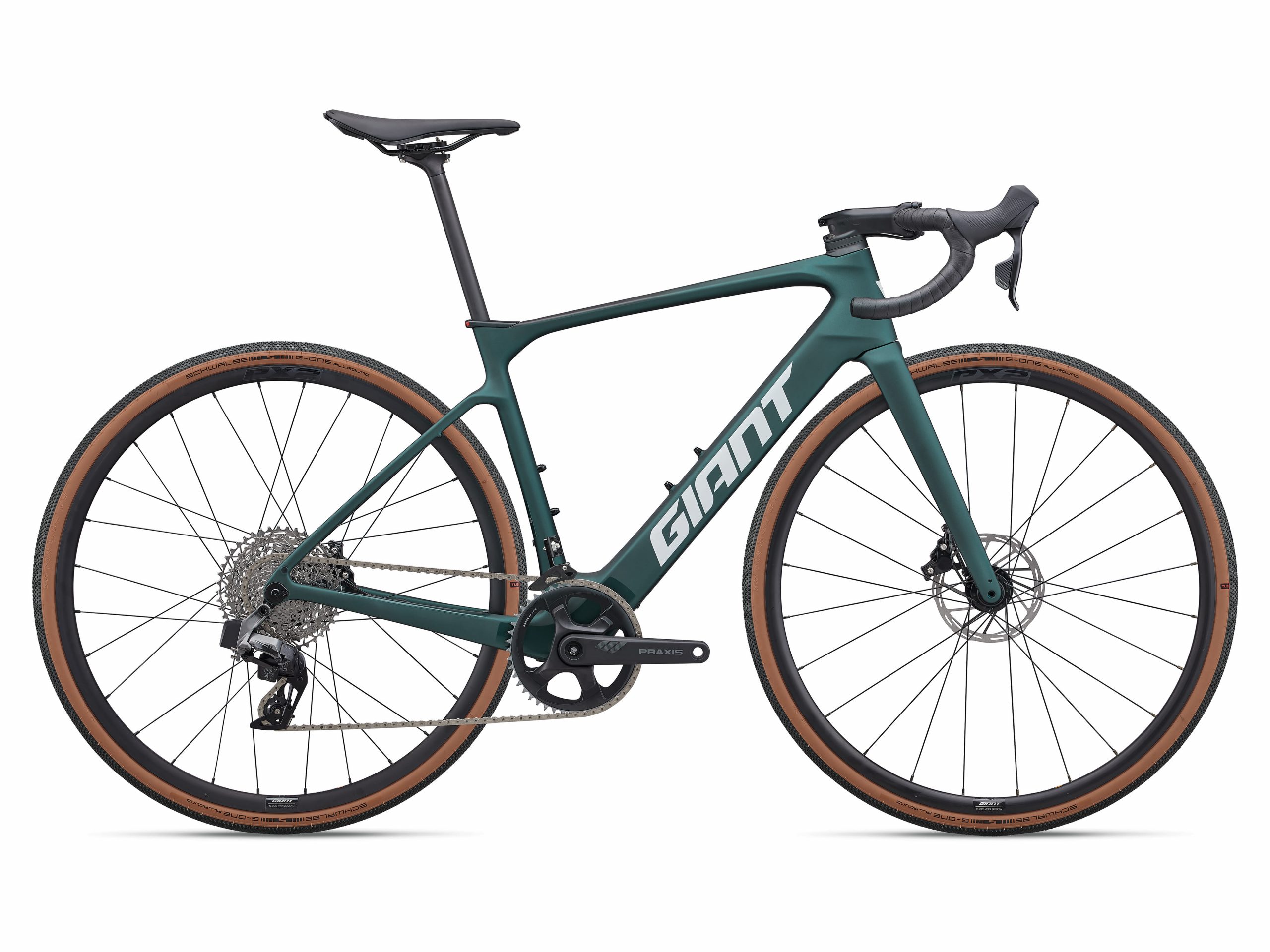

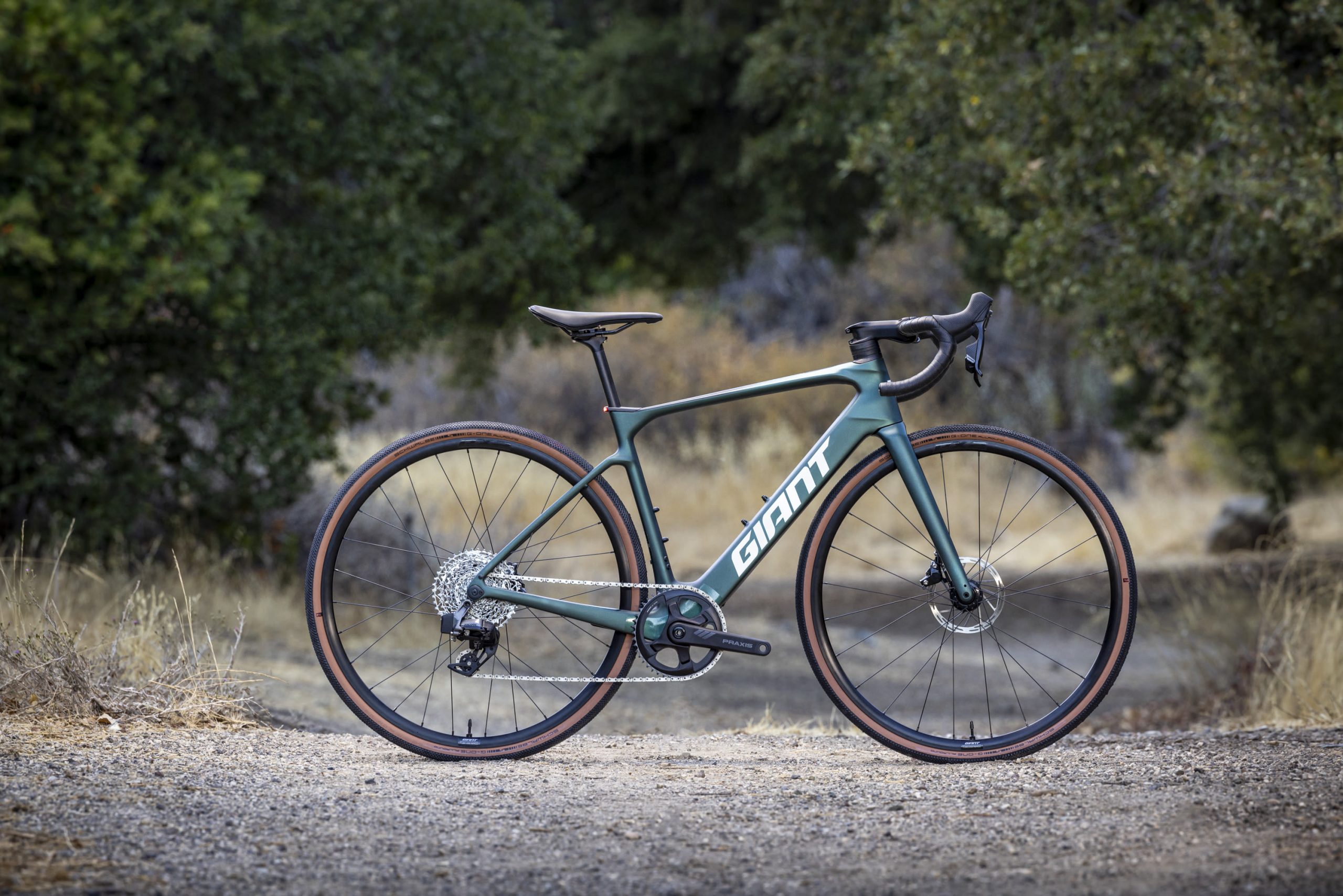

Defy Advanced E+ Elite AR (2025) | Endurance bike
€6,899.00
Features:
Specifications

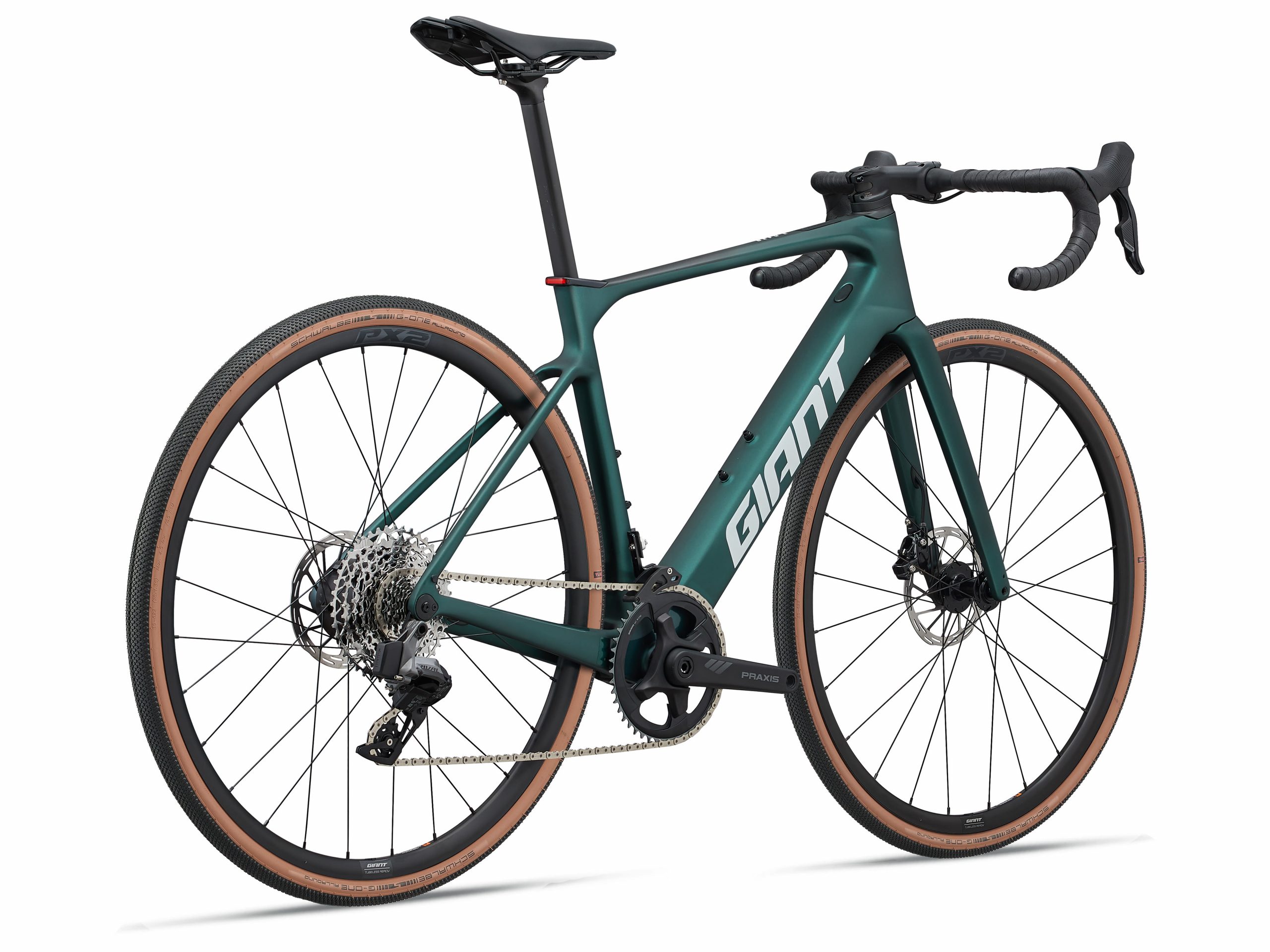

With its smooth-riding composite frame, lightweight battery, new SyncDrive Move Plus integrated rear hub motor and all-road ready 38mm tires, the Defy Advanced E+ AR is the ideal choice for performance-minded road riders who want to tackle steep hills, maintain higher speeds, and experience road riding with no limitations.
Key Performance Factors
SEAMLESS POWER

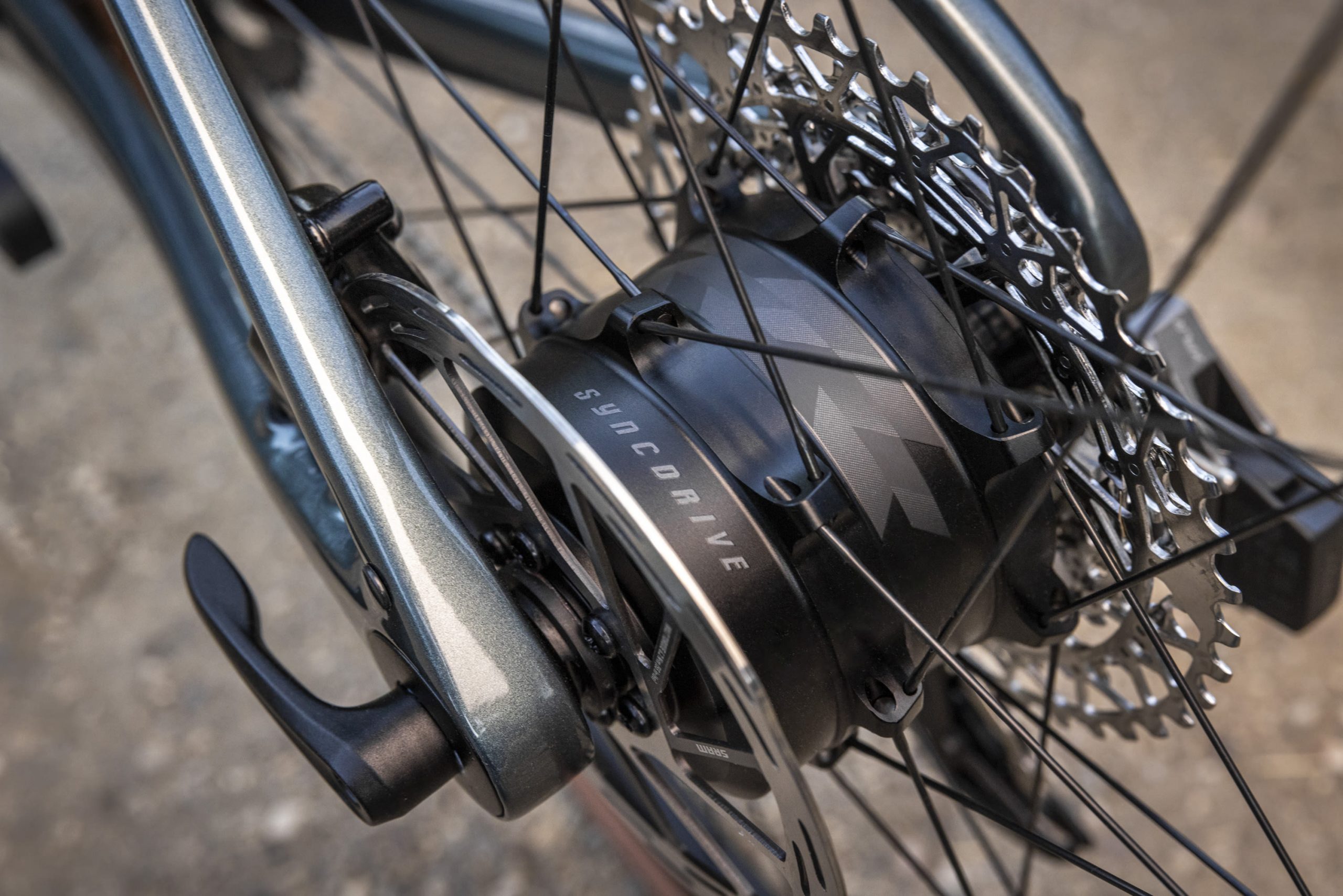

The SyncDrive Move Plus motor is integrated into the rear hub and delivers 30Nm of power (equivalent to 75Nm with a mid-drive motor) directly to the rear wheel. Weighing just 1.7kg, it’s specially tuned for the pedaling pattern of performance road riding, with minimal energy loss and more torque at higher speeds. The result is a natural feel when accelerating or maintaining steady power at speed, and no motor drag while freewheeling or coasting.
SYSTEM INTEGRATION

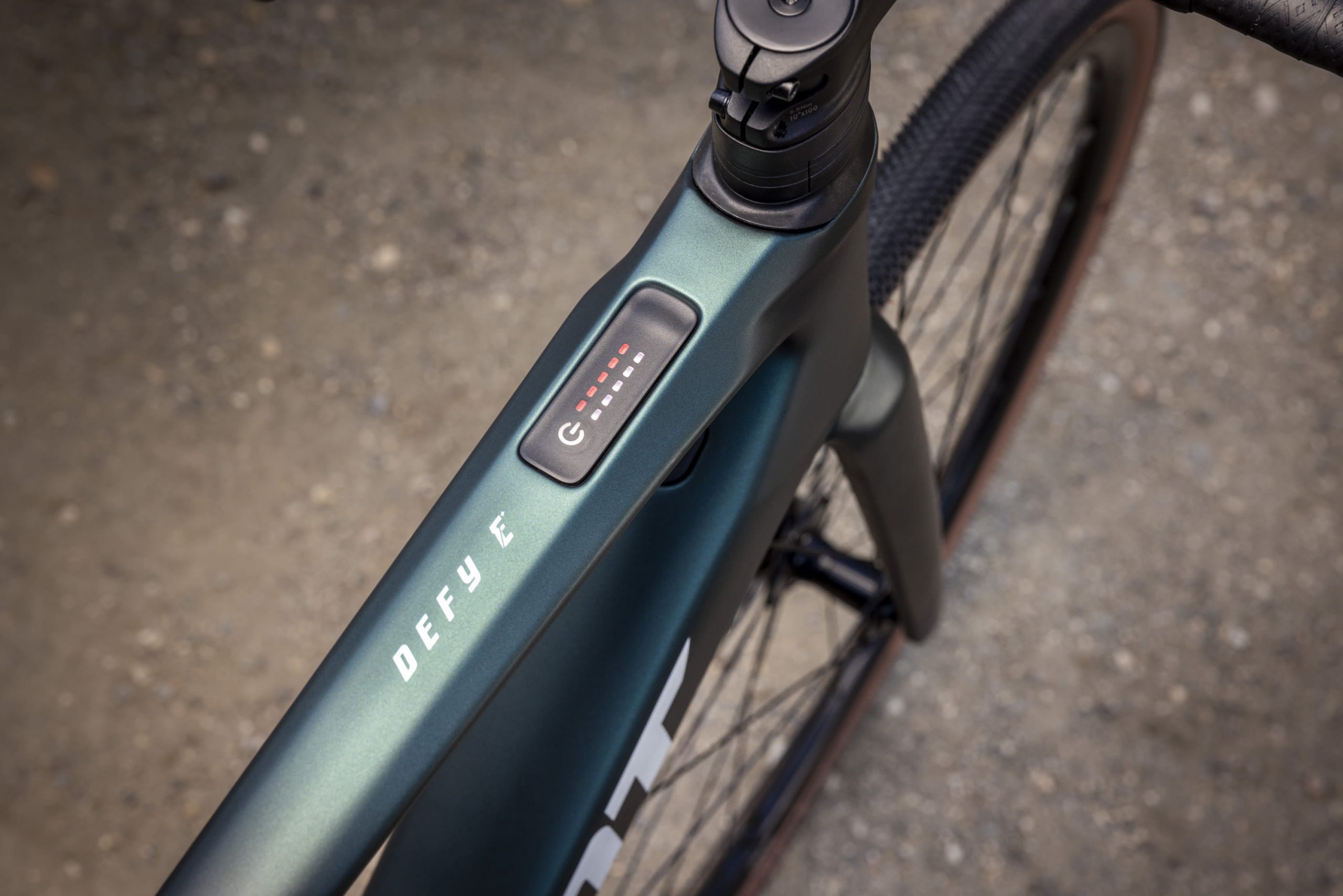

The down tube integrated EnergyPak 400 battery system weighs just 2.3kg and is purpose-built for the specific needs of E-bikes. A top tube mounted RideControl Go button makes it quick and easy to turn the E-bike on or off and change power modes. Smart Assist technology uses three sensors to precisely measure the power being applied to the pedals and produce just the right amount of support for a smooth, natural ride experience. All models feature SRAM wireless electronic shifters and an integrated taillight.
PURE ROAD PERFORMANCE
A lightweight composite frameset and high-performance components including a D-Fuse seatpost and handlebars for compliance, integrated WheelSystems with all-road ready 35mm tubeless tires, and a wireless electronic drivetrain all add up to a smooth, efficient ride quality that mirrors the award-winning performance of the Defy endurance road bike range.
| Motor | SyncDriveMove Plus Hub drive 75Nm max |
|---|---|
| Controller | Mode support switch from SRAM Blips |

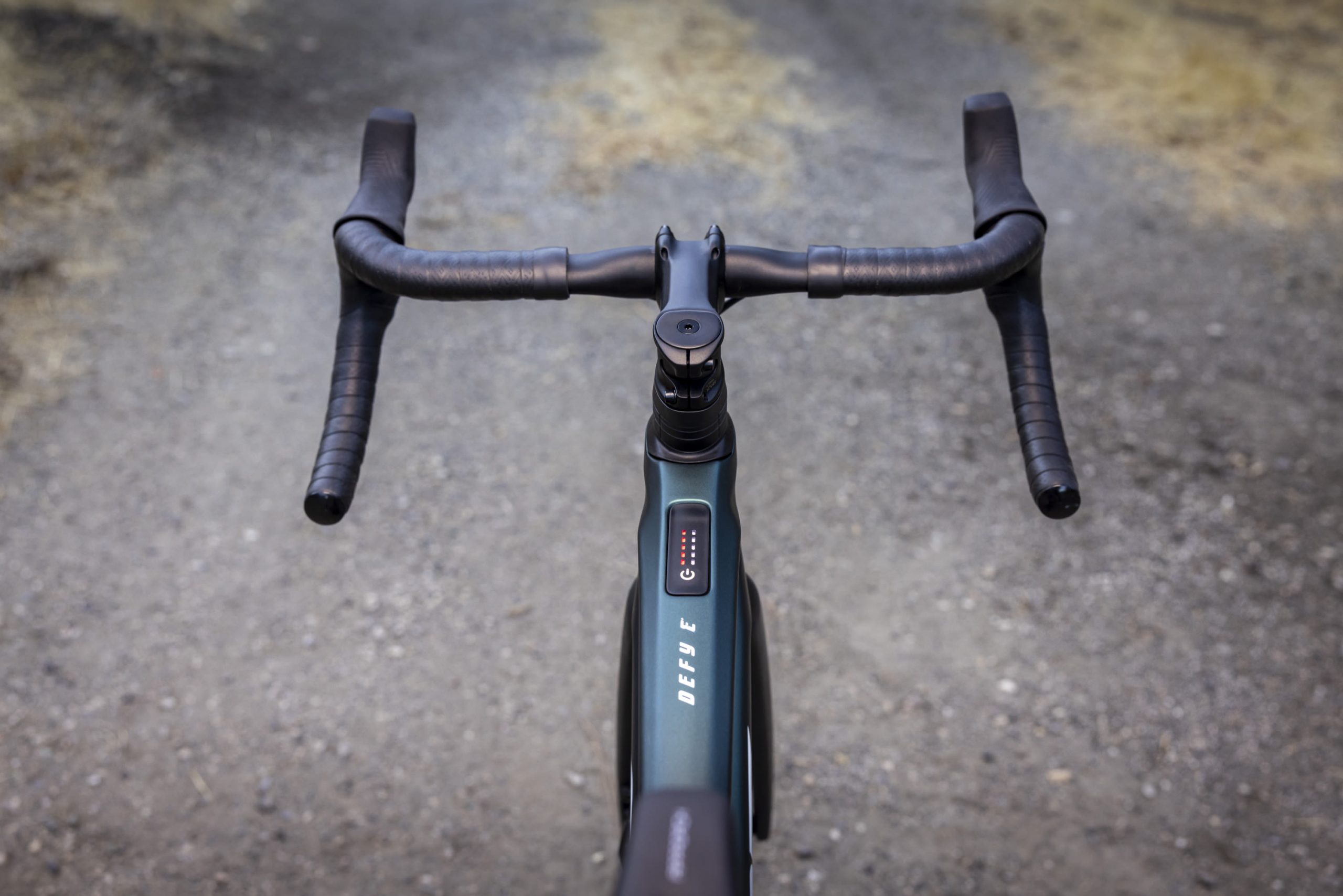

| Display | Giant RideControl GO, frame-integrated LED console Optional wireless ANT+ display |
| Battery | EnergyPak Smart 400Wh by Panasonic, Aluminium casing with highest safety standard (UL2271, EN50604), CO2 Neutral production, 2300 charging cycles. EnergyPak Plus 200 range extender compatible |
| Charger | Giant EnergyPak 4A smart charger, 60% in 1:45 |
| Connectivity | Giant RideControl App enabled ANT+ wireless display signal with e-bike profile |
| Sizes | S, M, ML, L, XL |
| Colours | Matte Kelp Forest / Black |

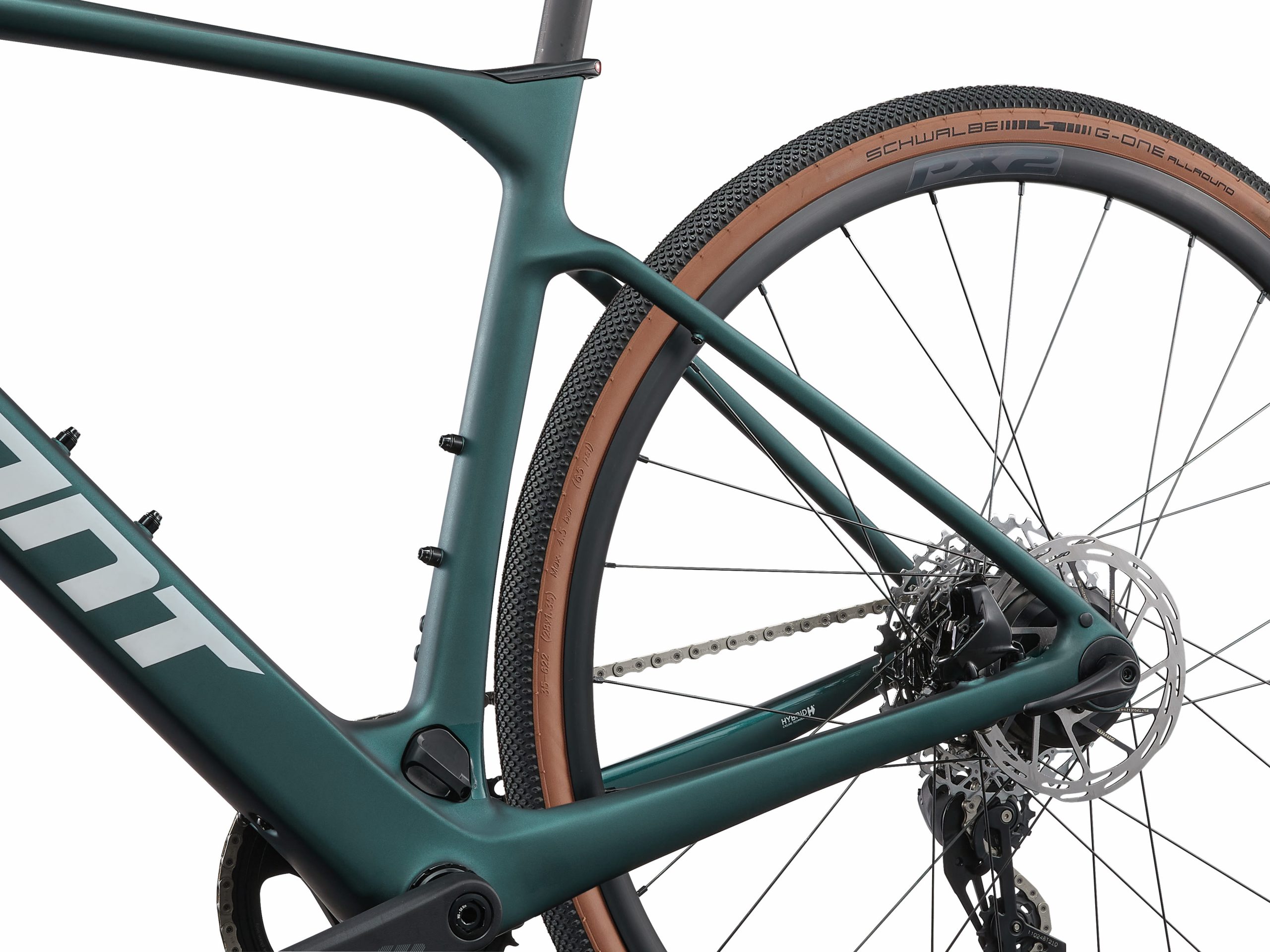

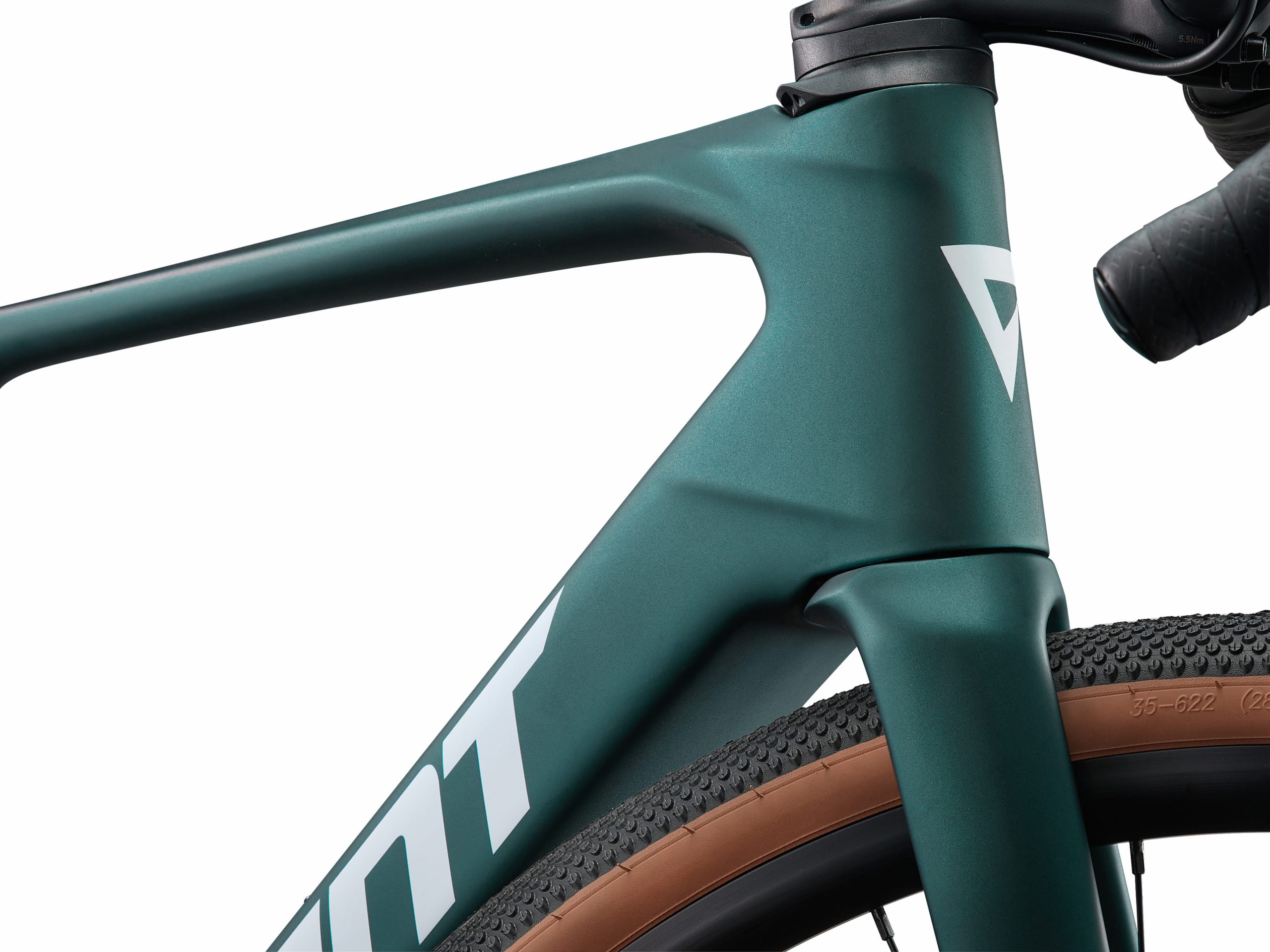

| Frame | Advanced-grade composite,12×145 thru-axle |
| Fork | Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc |
| Shock | – |

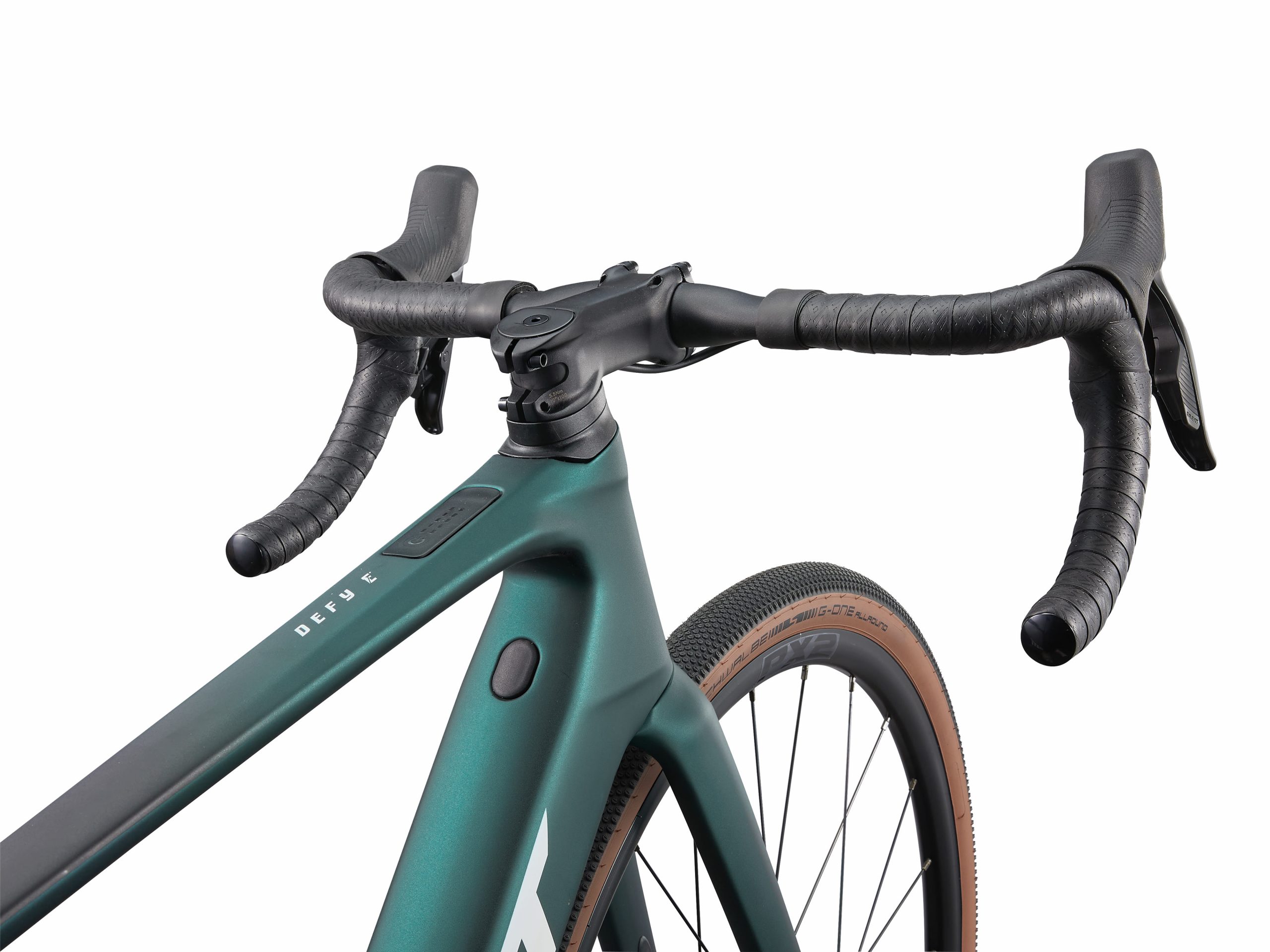

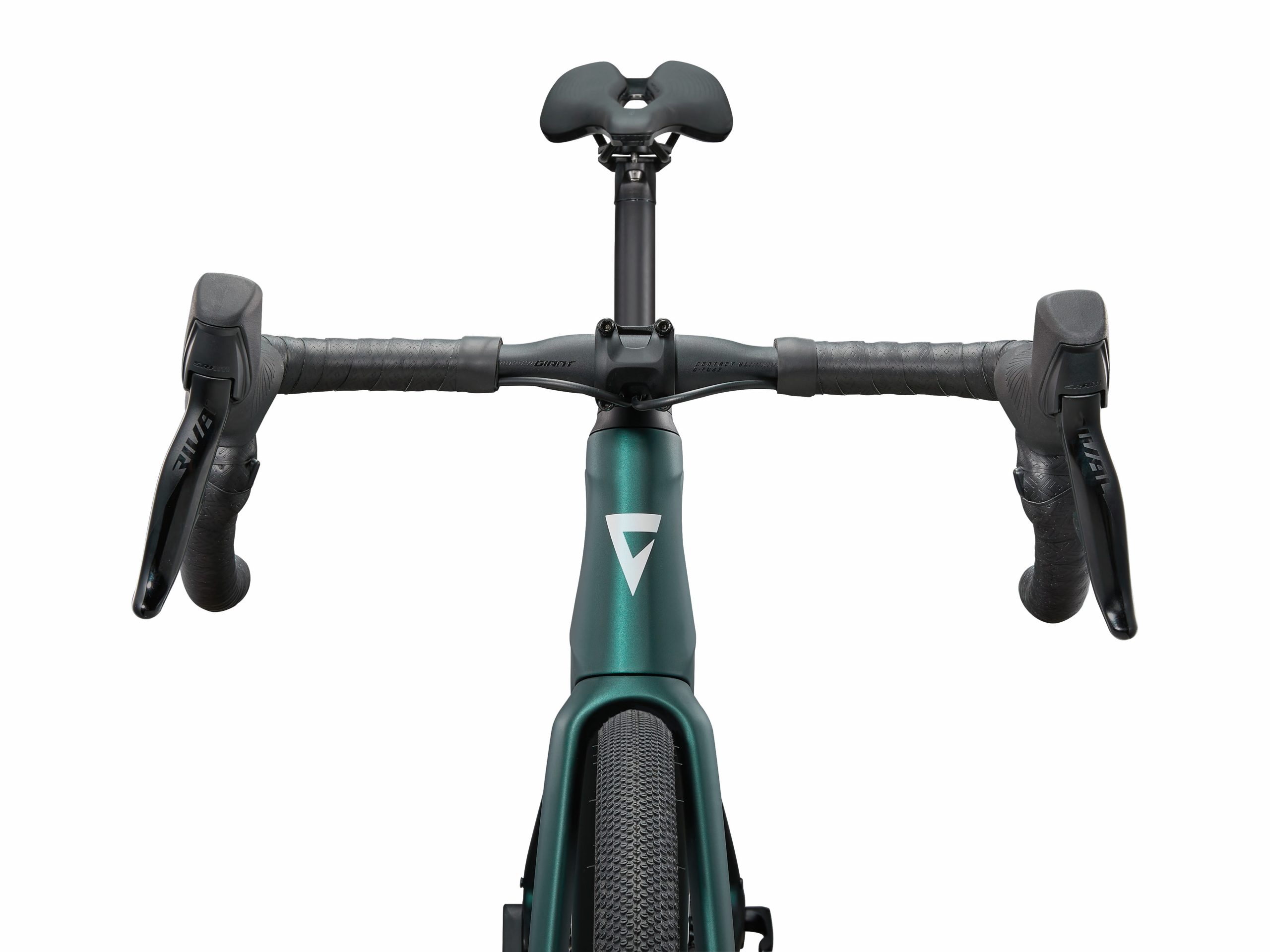

| Handlebar | Giant Contact SL D-Fuse 31.8 alloy |
| Stem | Contact SL Aerolight 31.8 alloy |
| Seatpost | Giant D-Fuse, Composite, 14mm offset |
| Saddle | Giant Approach |
| Pedals | PEDALS NOT SUPPLIED |
| Shifters | Sram Rival eTap AXS 1×12 |
| Front Derailleur | – |
| Rear Derailleur | Sram Rival XPLR eTap AXS |
| Brakes | Sram Rival eTap HRD, Paceline 160mm center-lock [F] 160mm 6-bols [R] |

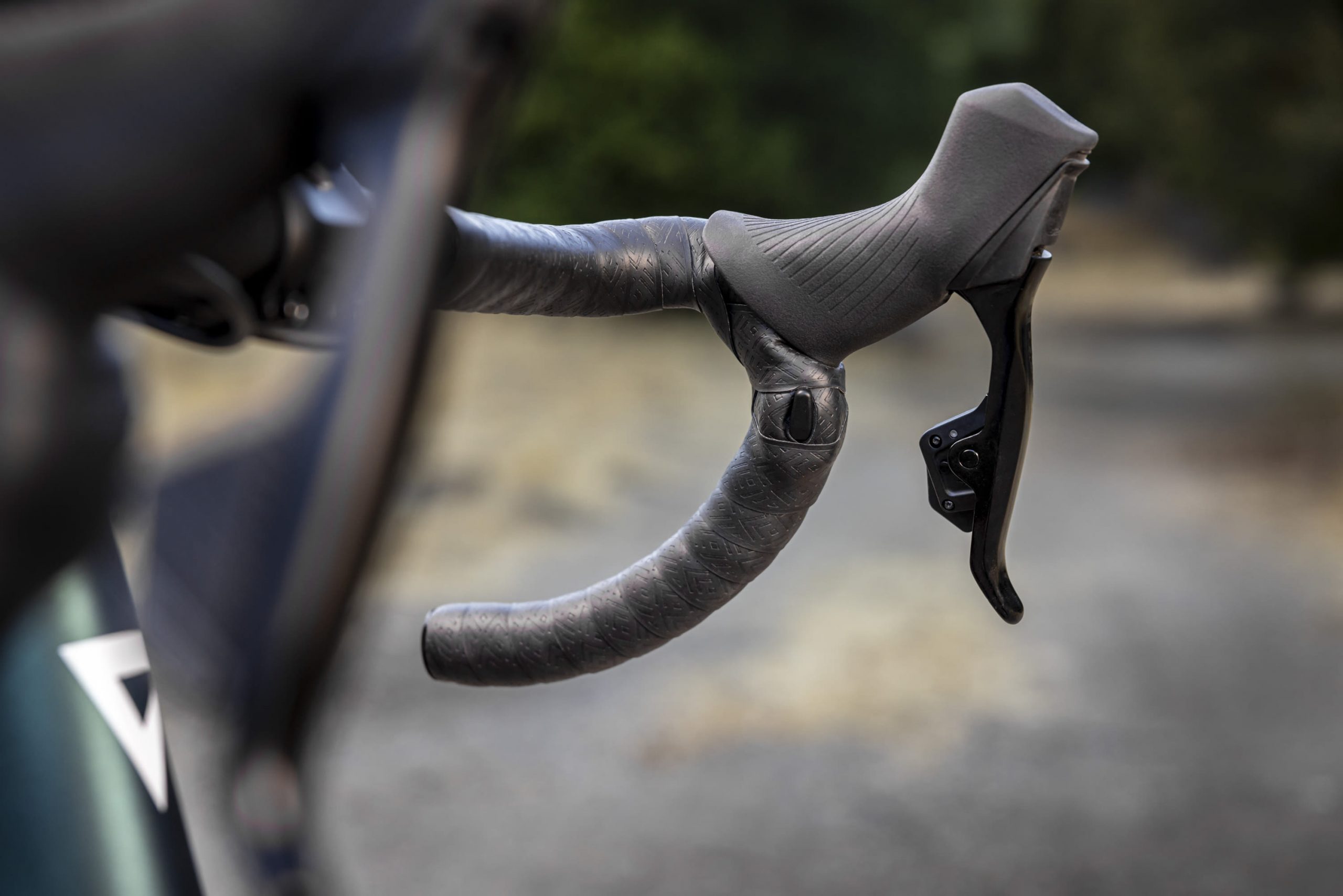

| Brake Levers | Sram Rival eTap AXS HRD |
| Cassette | Sram Apex XPLR XG-1251, 10x44T, 12-speed |
| Chain | Sram Rival 12-speed |

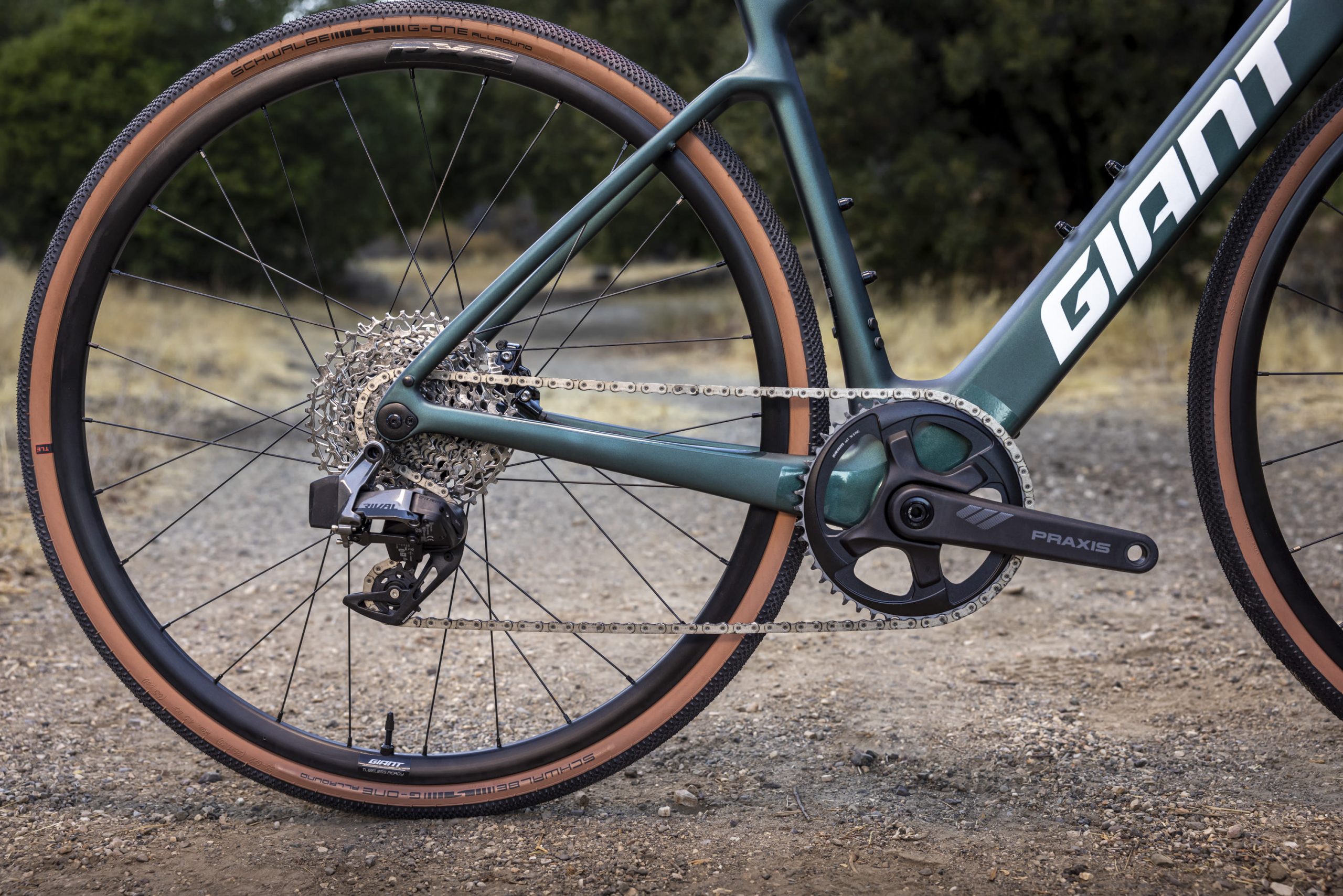

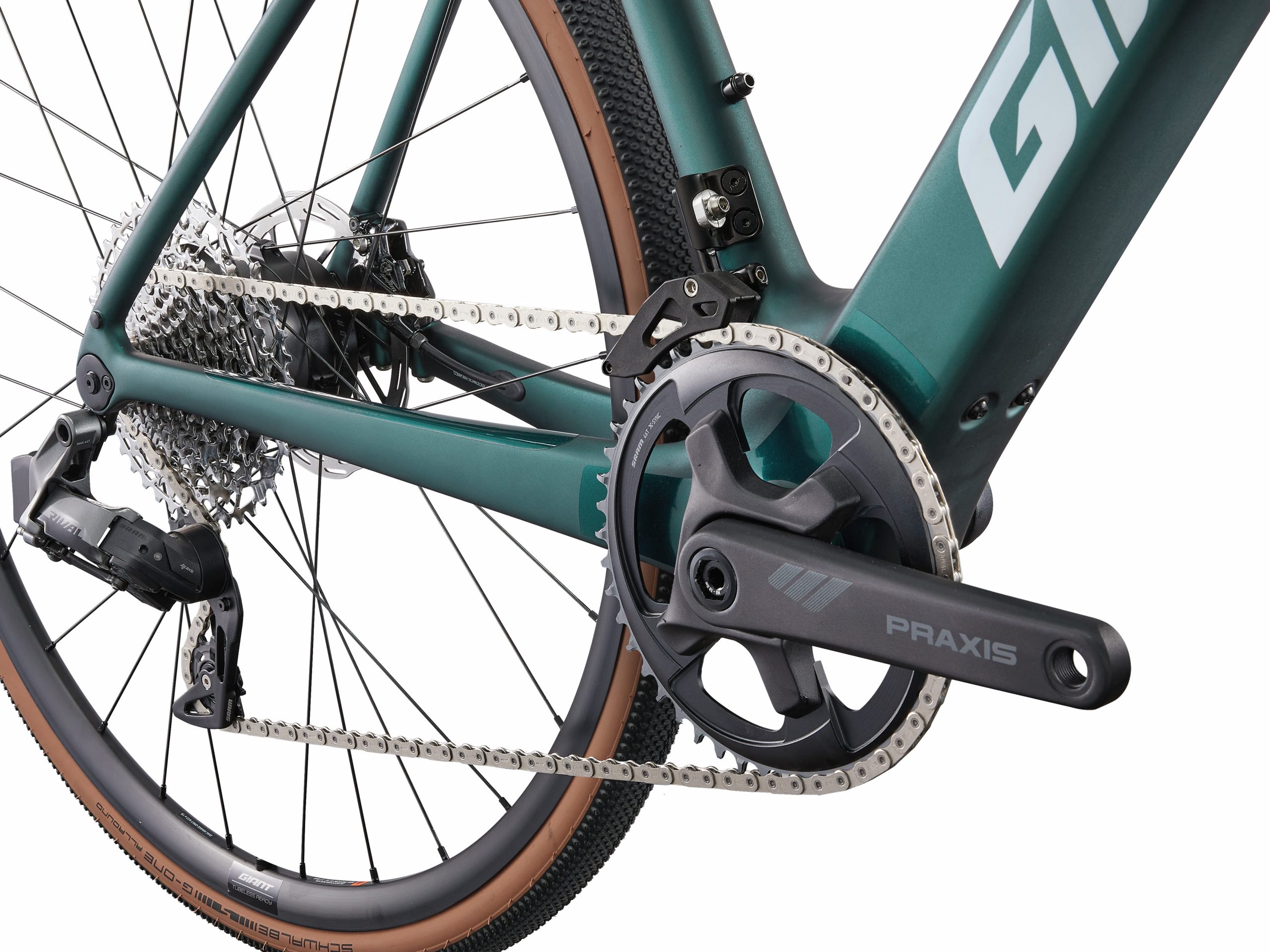

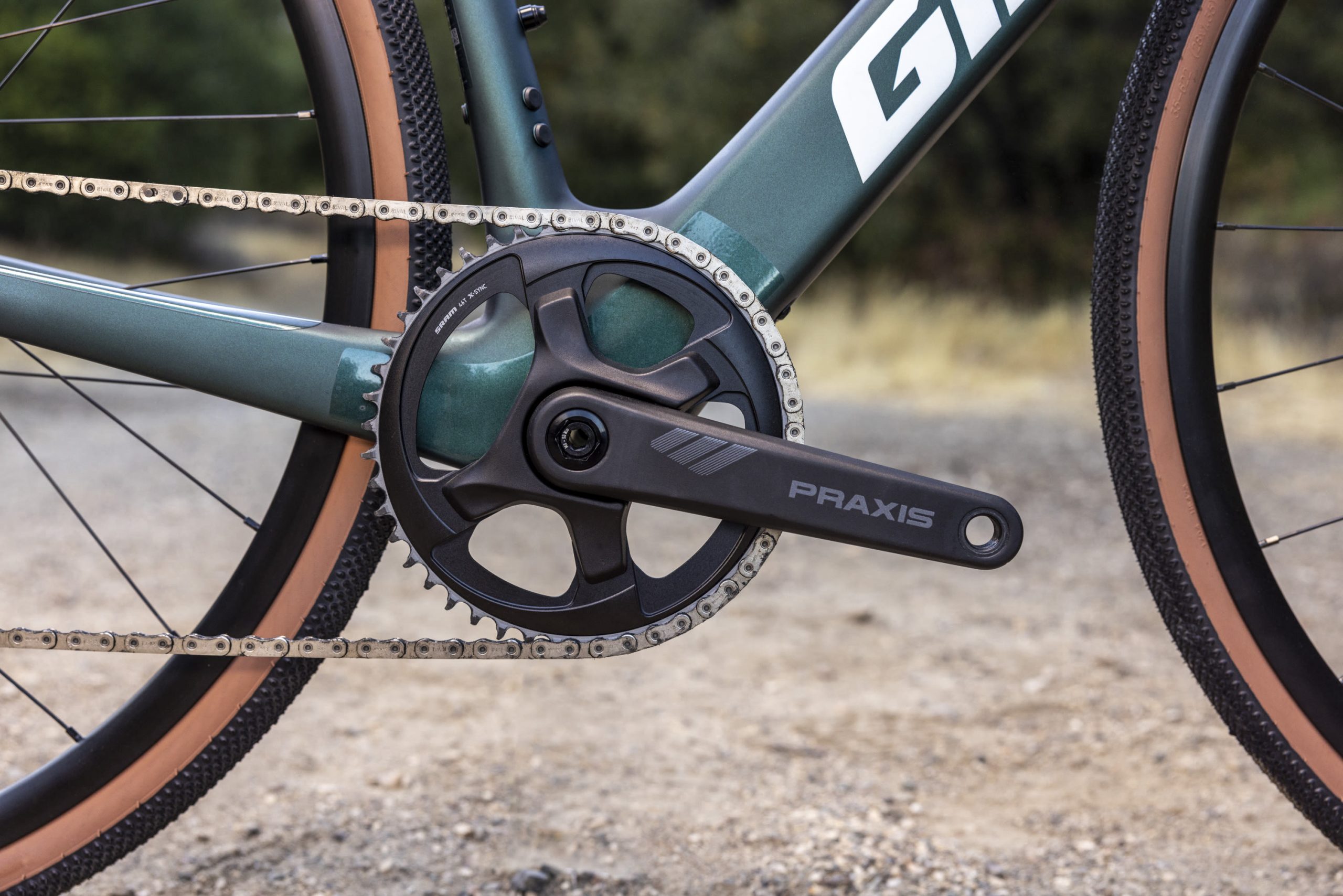

| Crankset | Sram X-SYNC 46T BCD107 chain ring Praxis E Crank Carbon ISIS |
| Bottom Bracket | Giant E+ System BBSS |

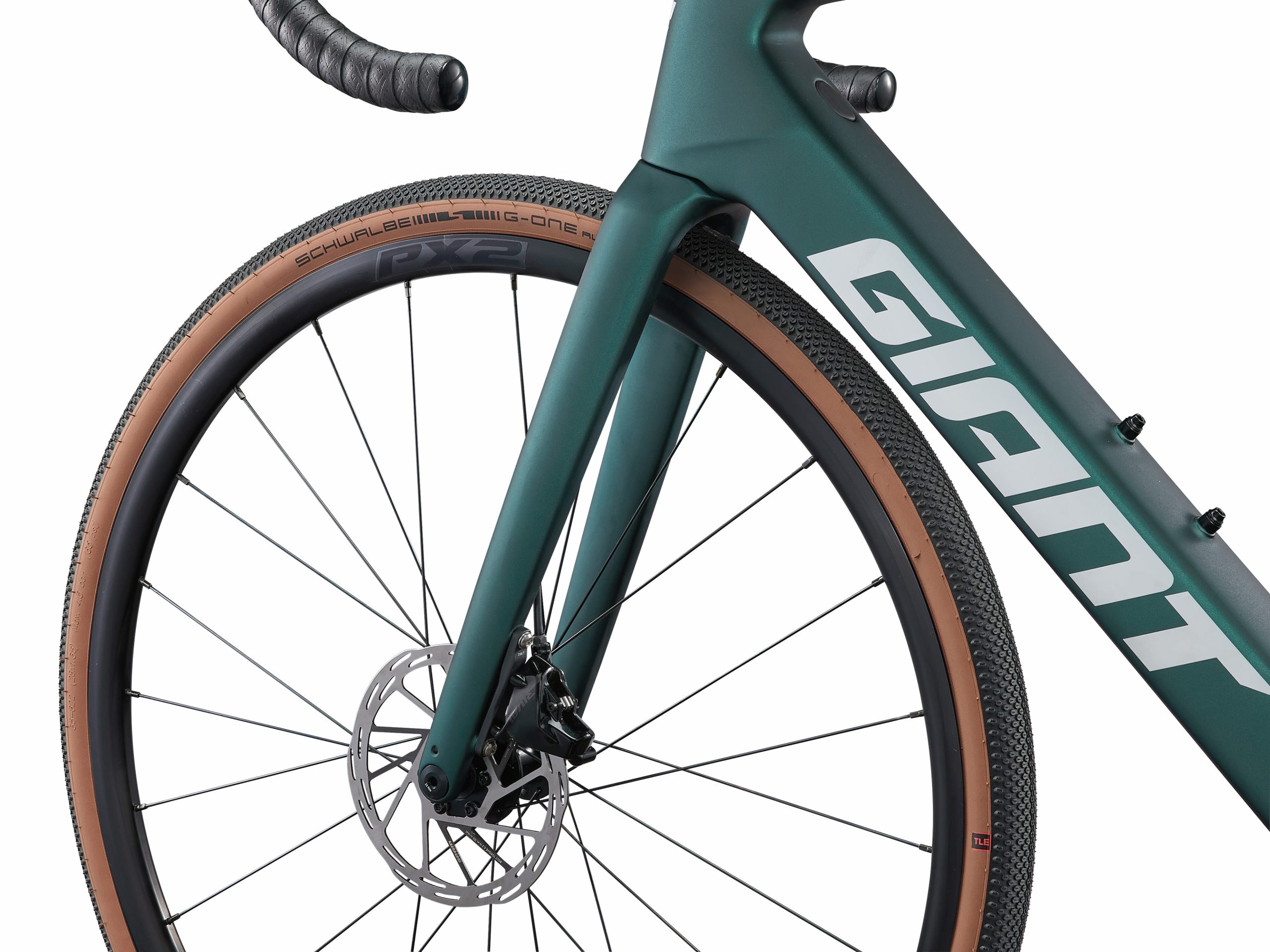

| Rims | Giant P-X2 Alloy Disc Wheel System, Tubeless Ready, 19mm inner width, 12mm thru-axle, w/ Sapim spoke E-Light [R] Race [F], e-bike optimised |
| Spokes | Sapim spoke E-Light [R] Race [F], e-bike optimised |
| Tyres | SCHWALBE G-ONE ALLROUND Perf, RaceGuard, Brown side-wall 700x35C 67EPI Tubeless |

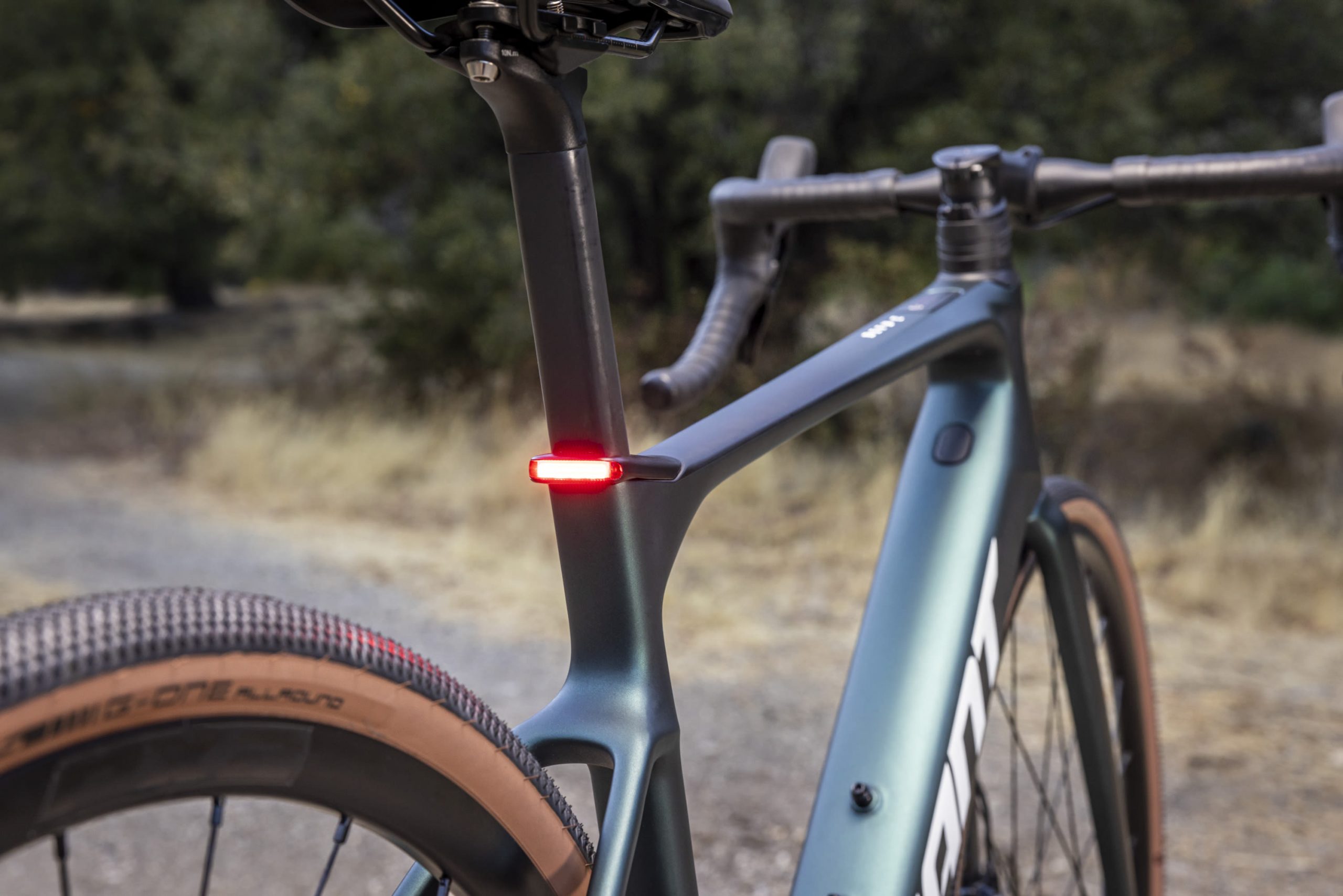

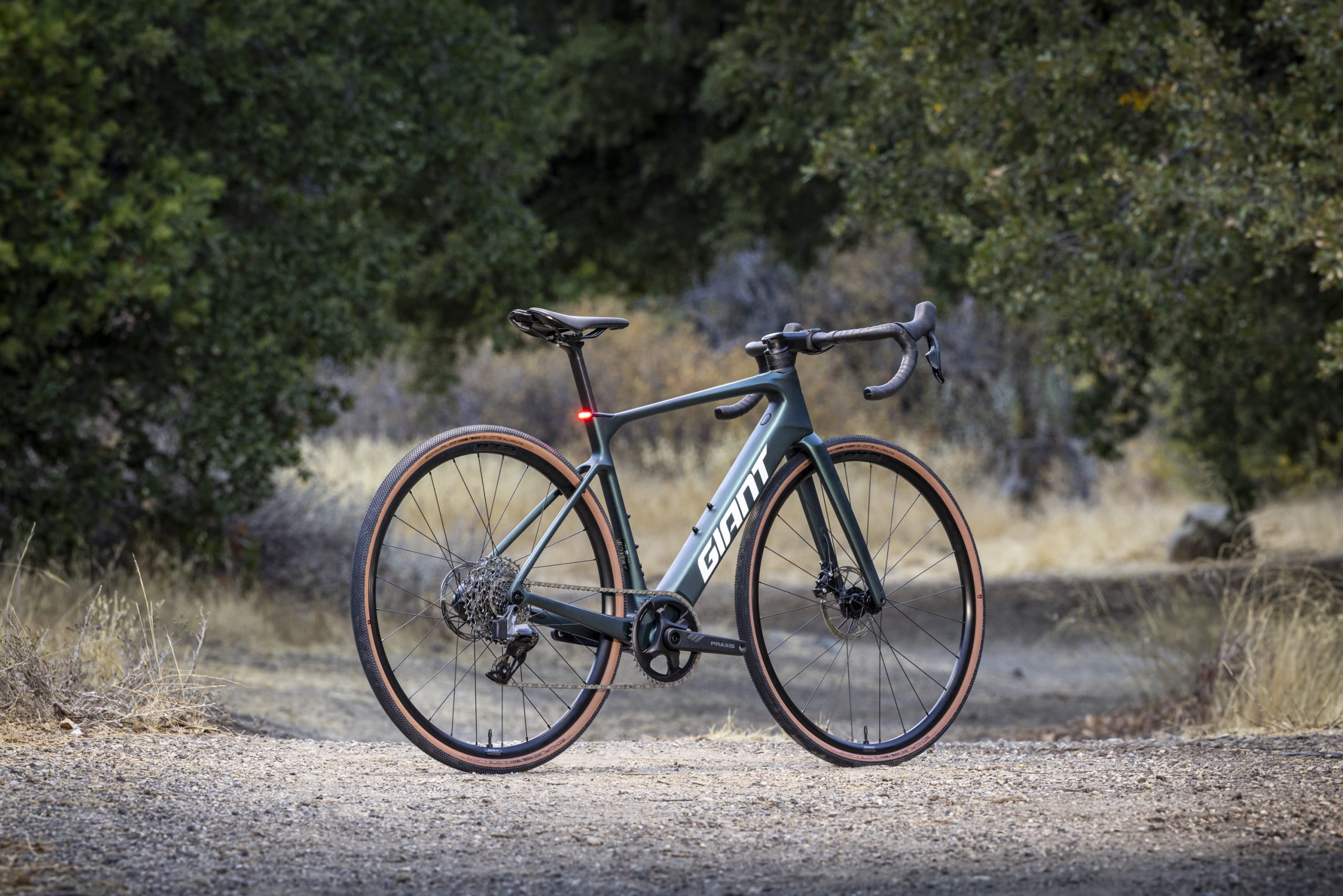

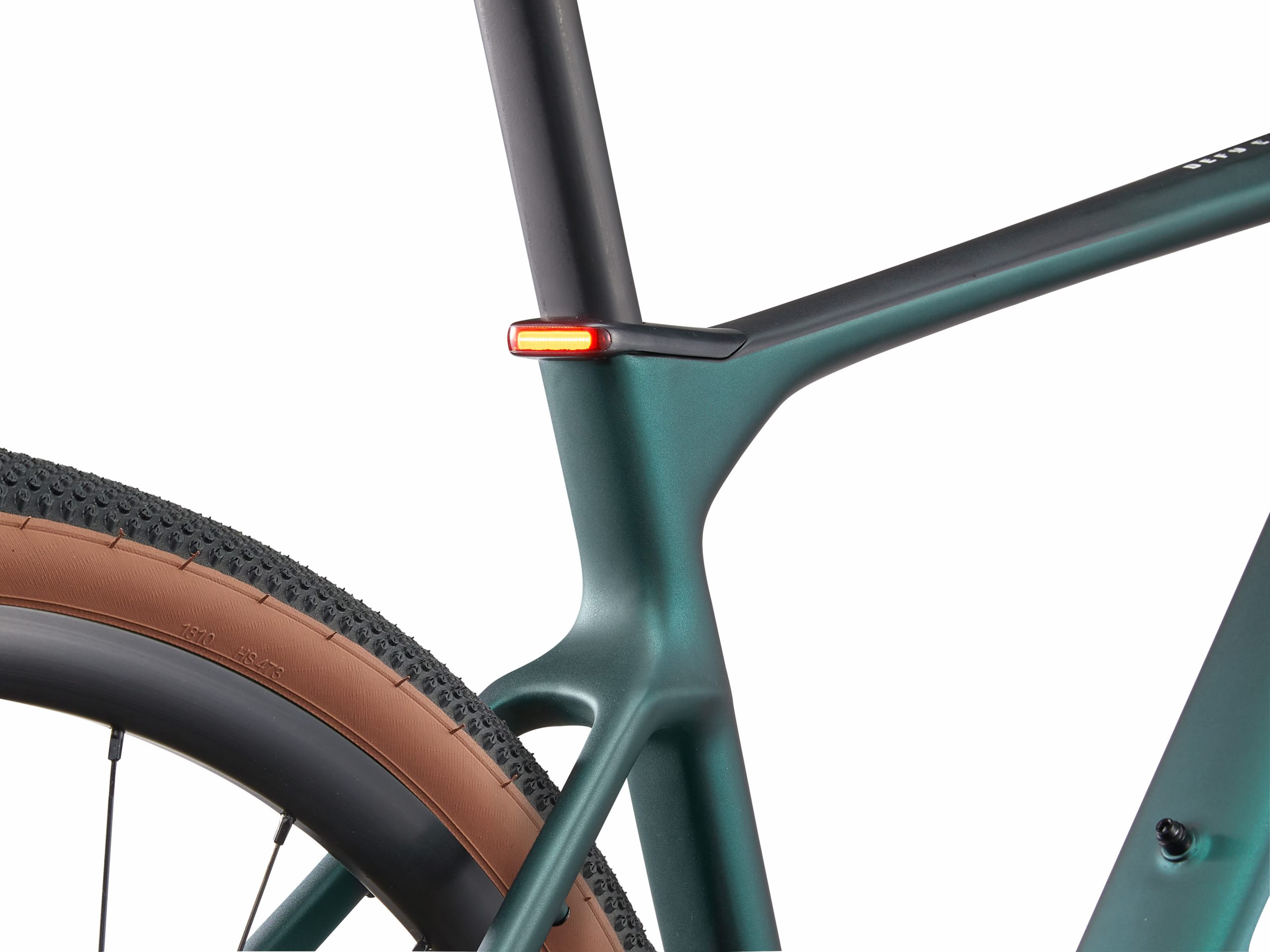

| Lighting | Seatpost clamp integrated tail light |
Geometry
| S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 445 | 480 | 515 | 535 | 565 |
| B | SEAT TUBE ANGLE | 74 | 73.5 | 73 | 73 | 73 |
| C | TOP TUBE LENGTH | 530 | 545 | 560 | 575 | 590 |
| D | HEAD TUBE LENGTH | 130 | 145 | 167 | 187 | 205 |
| E | HEAD TUBE ANGLE | 71.5 | 72.5 | 72.5 | 72.5 | 72.5 |
| F | FORK RAKE | 50 | 50 | 50 | 50 | 50 |
| G | TRAIL | 65.1 | 58.6 | 58.6 | 58.6 | 58.6 |
| H | WHEEL BASE | 994.3 | 995.2 | 1007.5 | 1022.7 | 1037.9 |
| I | CHAIN STAY LENGTH | 420 | 420 | 420 | 420 | 420 |
| J | BOTTOM BRACKET DROP | 80 | 80 | 75 | 75 | 75 |
| K | STACK | 542.2 | 560.2 | 576.1 | 595.2 | 612.4 |
| L | REACH | 374.3 | 378.9 | 383.6 | 392.8 | 402.6 |
| M | STAND OVER HEIGHT | 716 | 745.5 | 779 | 799 | 824 |
| N | HANDLERBAR WIDTH | 400 | 420 | 420 | 440 | 440 |
| O | STEM LENGTH | 90 | 100 | 110 | 110 | 120 |
| P | CRANK LENGTH DEC | 170 | 172.5 | 172.5 | 175 | 175 |
| Q | WHEEL SIZE ALT | 700C | 700C | 700C | 700C | 700C |
