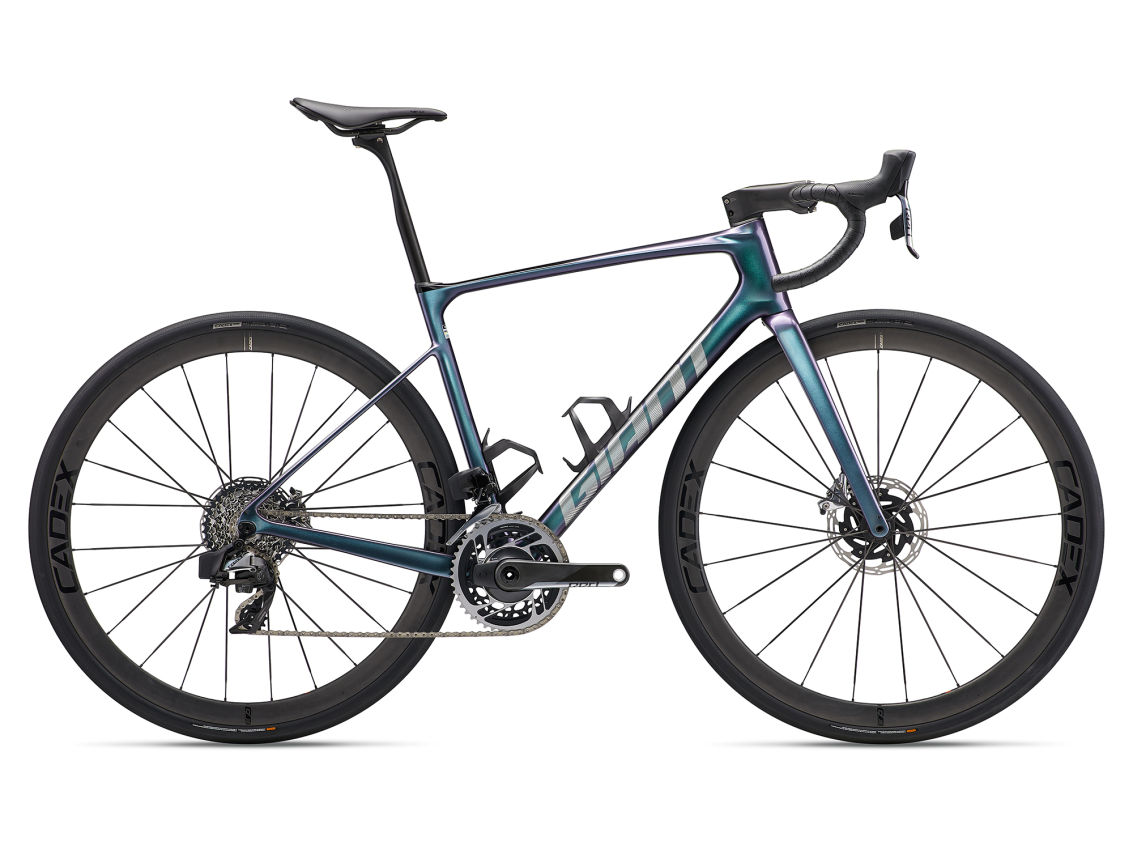

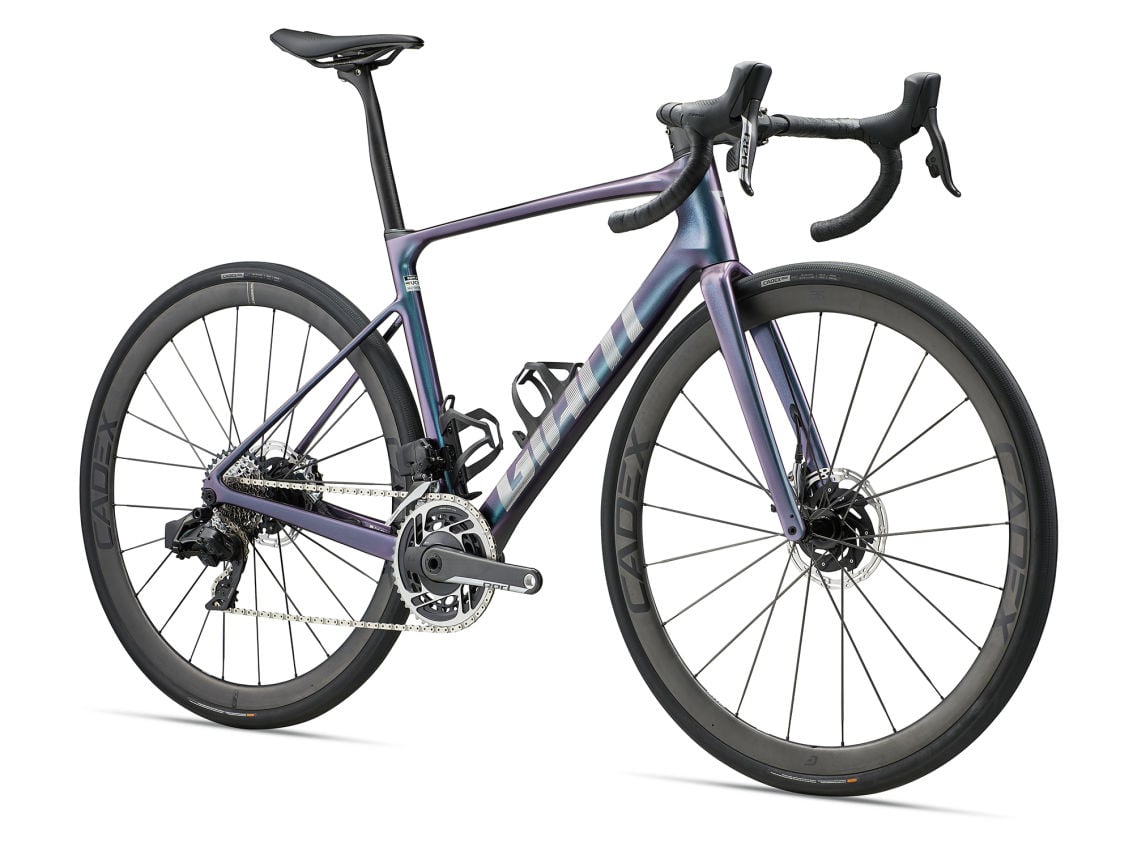

Defy Advanced SL 0 (2024) | bike
€12,999.00
Features: Defy Advanced SL 0 (2024) | bike
Specifications
Go long. Go fast. Superlight and silky smooth, the flagship series of the new Defy range is back to reclaim its title as the pinnacle of endurance road. It’s the perfect choice for the sportive or gran fondo that’s circled on your calendar.
Key Performance Factors
Functional simplicity
Free of cumbersome gimmickry, the frameset is one of the lightest in its category. With a perfect balance of high-performance reactivity and all-day comfort, it offers a “less is more” experience for modern endurance road riding.
Engineered compliance

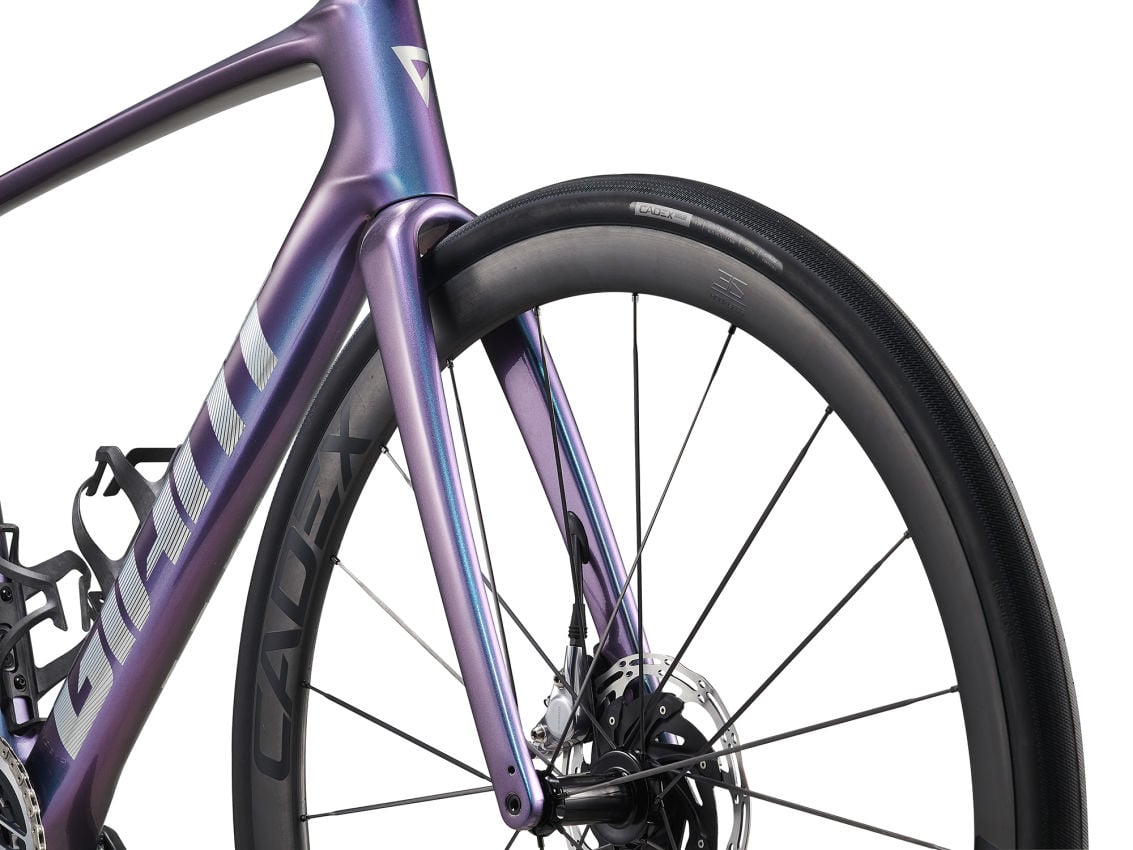

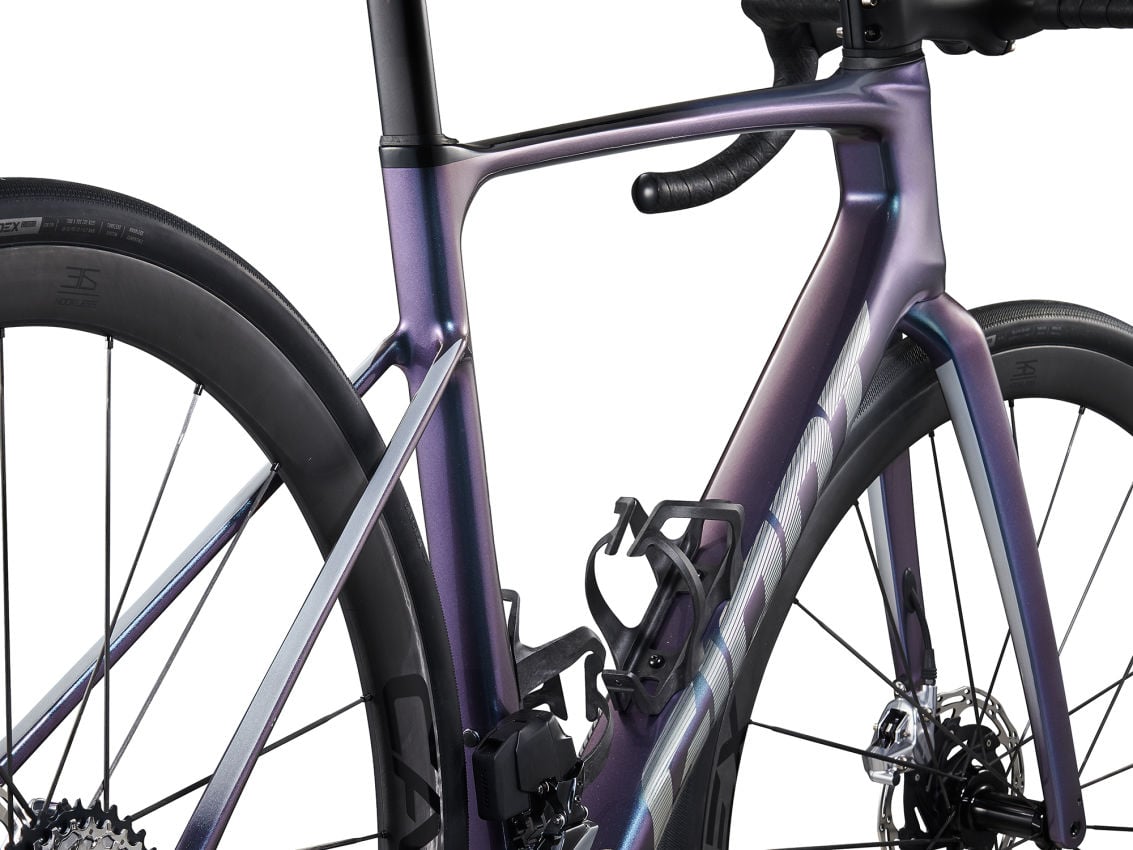

Advanced SL-grade composite frame and fork are specifically engineered for endurance road riding, delivering a smooth and efficient ride quality that minimizes fatigue on long rides. The new D-Fuse components work together to further absorb road shocks and vibrations.
Total control

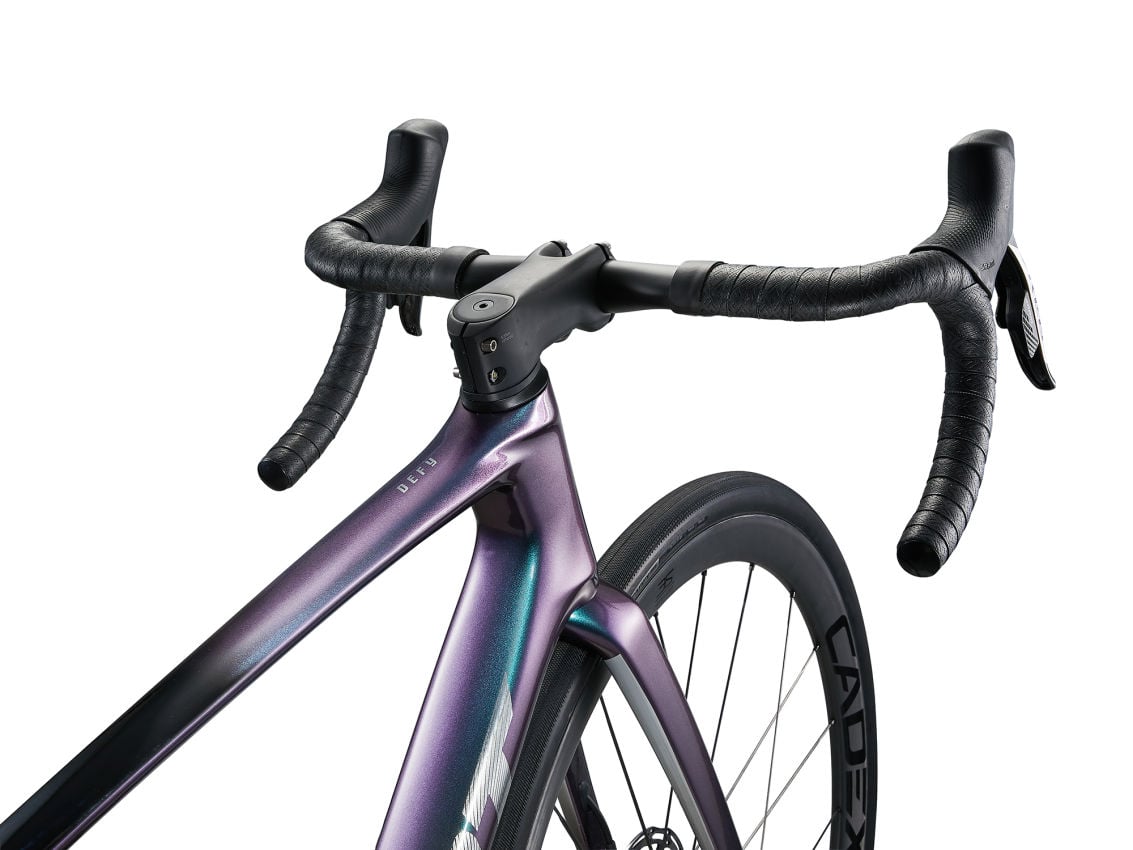

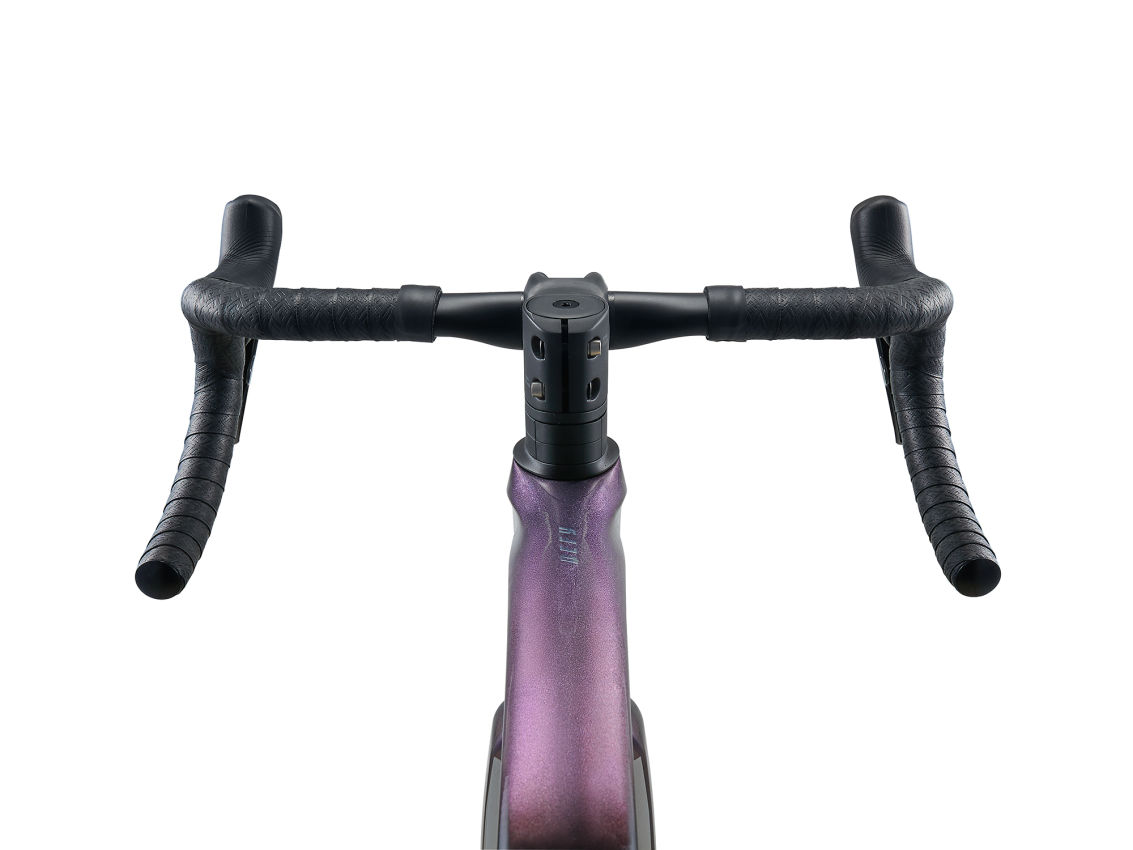

A new Contact D-Fuse handlebar features ergonomic shaping and an 8-degree flare for comfort and control on all-day rides. Wide, hookless carbon rims (22.4mm inner width) are optimized for high-volume tubeless tires (up to 38mm), and a 36mm rim depth offers stable, predictable handling in crosswinds.
| Sizes | S, M, M/L, L |
|---|---|
| Colours | Blue Dragonfly/Black/Chrome |

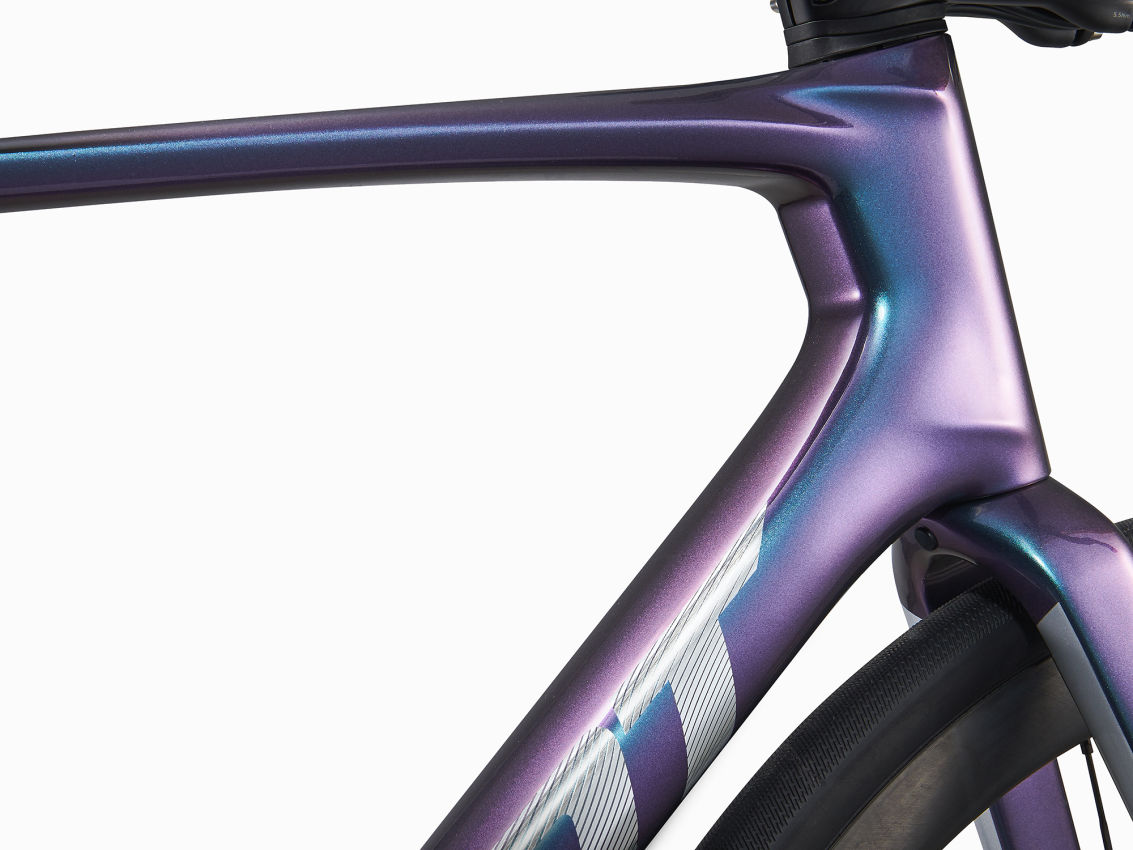

| Frame | Advanced SL-grade composite, disc |
| Fork | Advanced SL-grade composite, full-composite OverDrive Aero steerer, disc |
| Shock | N/A |

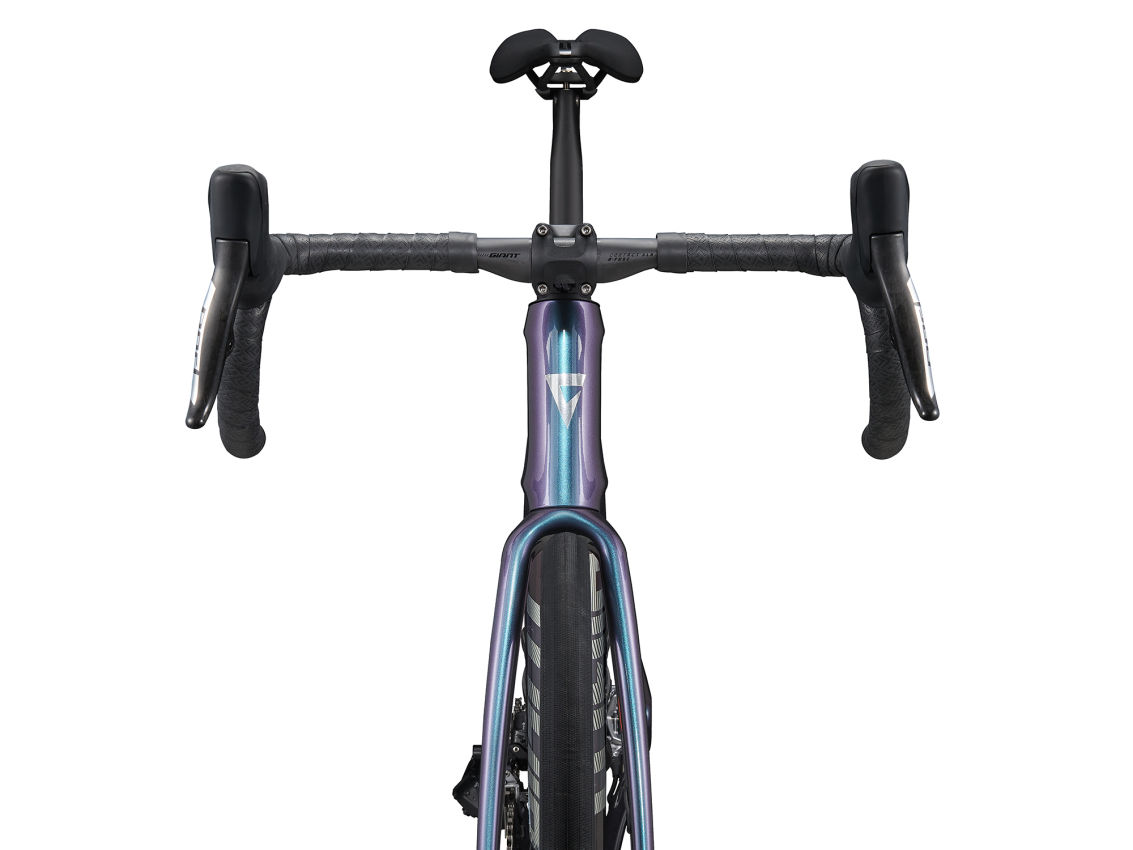

| Handlebar | Giant Contact SLR D-Fuse S:40cm, M:42cm, M/L:42cm, L:44cm |
| Grips | Stratus Lite 3.0 |
| Stem | Giant Contact SLR AeroLight S:90mm, M:100mm, M/L:100mm, L:110mm |

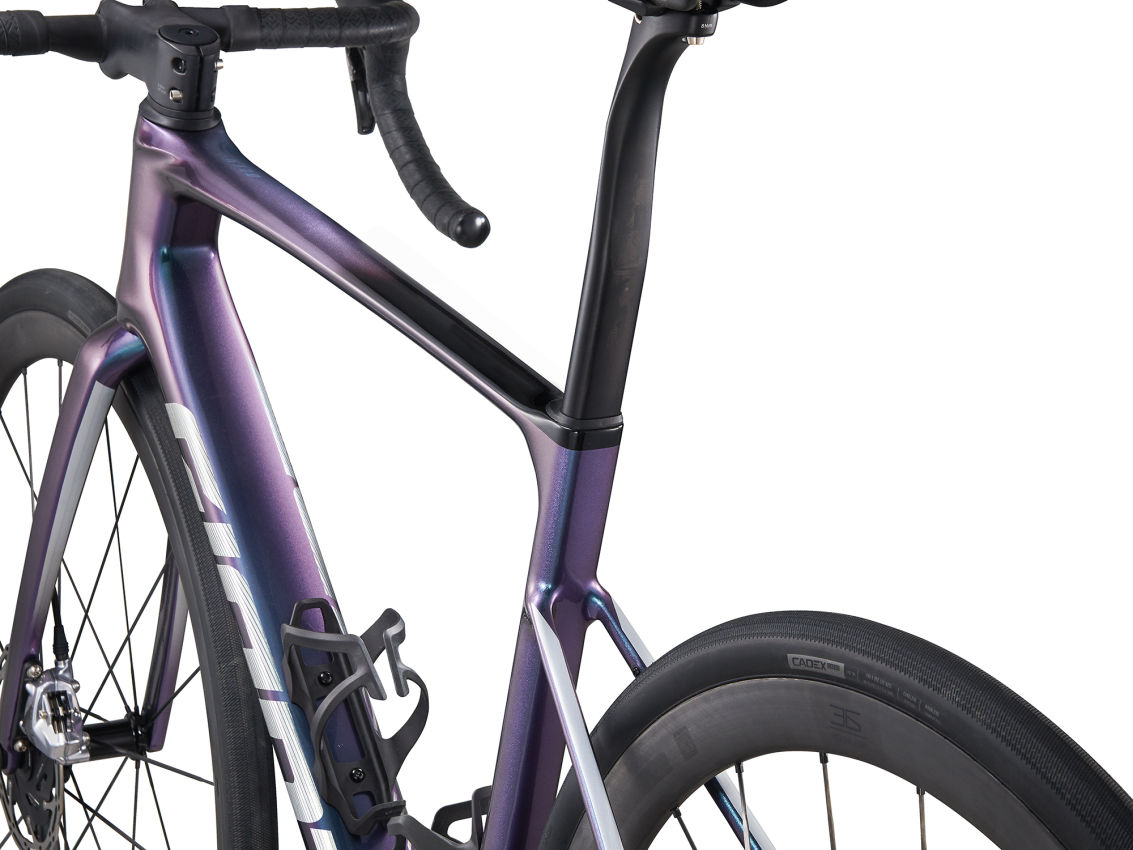

| Seatpost | Giant SLR D-Fuse, composite, -5/+15mm offset |
| Saddle | Giant Fleet SLR |
| Pedals | PEDALS NOT SUPPLIED |
| Shifters | SRAM RED eTap AXS |
| Front Derailleur | SRAM RED eTap AXS |
| Rear Derailleur | SRAM RED eTap AXS |
| Brakes | SRAM RED eTap AXS hydraulic, SRAM CenterLine XR rotors [F]160mm, [R]160mm |
| Brake Levers | SRAM RED eTap AXS hydraulic |
| Cassette | SRAM Force, 12-speed, 10×36 |
| Chain | SRAM RED D1 |

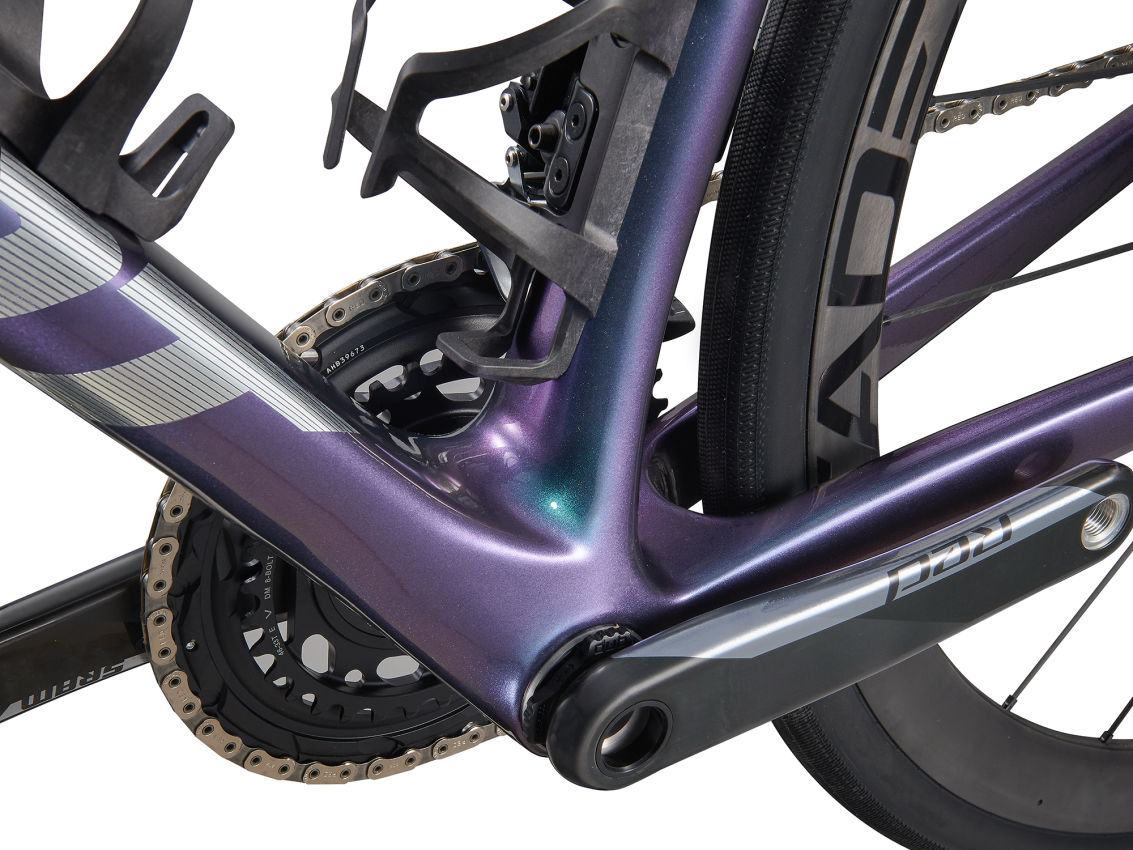

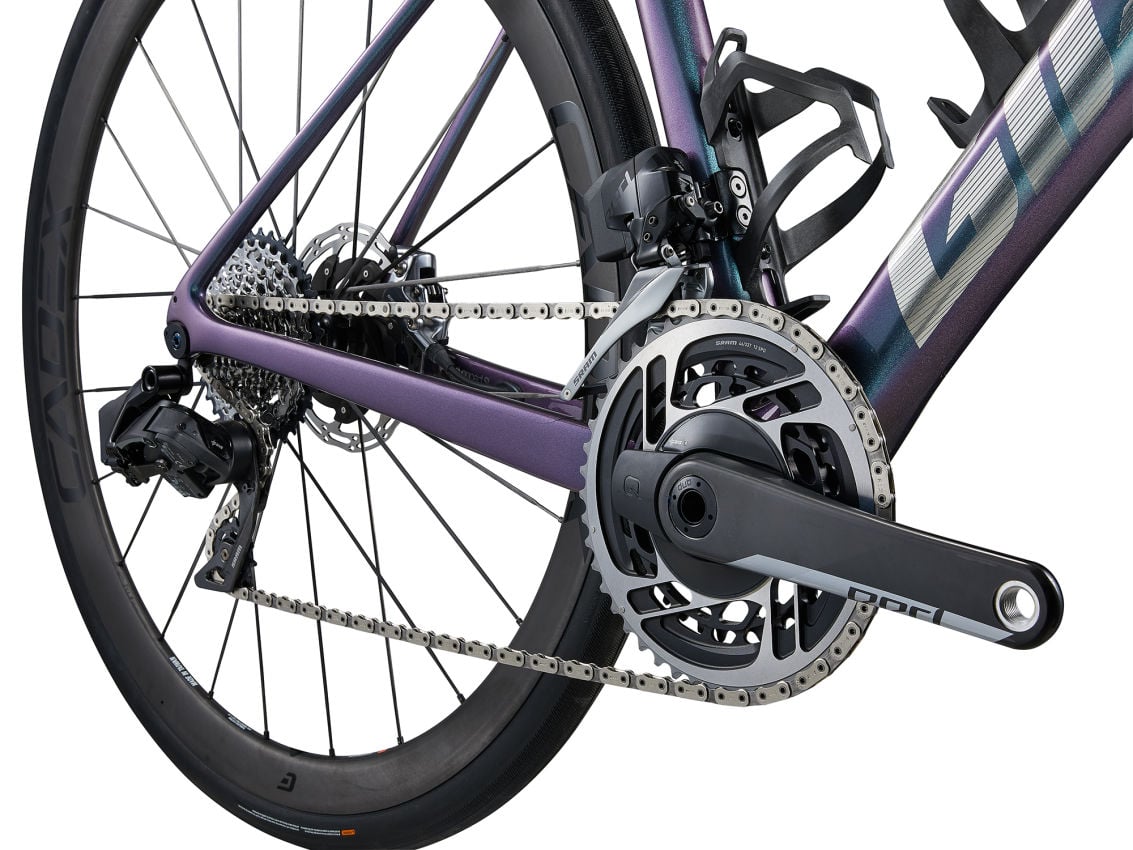

| Crankset | SRAM RED D1 DUB, 33/46 with Quarq DZero power meter S:170mm, M:172.5mm, M/L:172.5mm, L:175mm |
| Bottom Bracket | SRAM DUB, press fit |
| Rims | CADEX 36 Disc WheelSystem, [F]36mm, [R]36mm |
| Hubs | [F] CADEX R1 Hub, CenterLock, 12mm thru-axle [R] CADEX R1-C30 Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle |
| Spokes | CADEX Aero Carbon Spoke |
| Tyres | CADEX Classic, tubeless, 700x32c (33.5mm), folding |
| Extras | computer mount, fender mount, water bottle cages, factory tubeless set up, 38mm max tyre size |
Geometry
| S | M | ML | L | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 445 | 480 | 515 | 535 |
| B | SEAT TUBE ANGLE | 74 | 73.5 | 73 | 73 |
| C | TOP TUBE LENGTH | 530 | 545 | 560 | 575 |
| D | HEAD TUBE LENGTH | 140 | 150 | 175 | 195 |
| E | HEAD TUBE ANGLE | 71.8 | 72.5 | 72.5 | 72.5 |
| F | FORK RAKE | 50 | 50 | 50 | 50 |
| G | TRAIL | 63.4 | 58.6 | 58.6 | 58.6 |
| H | WHEEL BASE | 994 | 998 | 1010 | 1025 |
| I | CHAIN STAY LENGTH | 420 | 420 | 420 | 420 |
| J | BOTTOM BRACKET DROP | 75 | 75 | 70 | 70 |
| K | STACK | 541 | 558 | 577 | 596 |
| L | REACH | 375 | 380 | 384 | 393 |
| M | STAND OVER HEIGHT | 733 | 762 | 796 | 814 |
| N | HANDLERBAR WIDTH | 400 | 420 | 420 | 440 |
| O | STEM LENGTH | 90 | 100 | 100 | 110 |
| P | CRANK LENGTH DEC | 170 | 172.5 | 172.5 | 175 |
| Q | WHEEL SIZE ALT | 700C | 700C | 700C | 700C |
