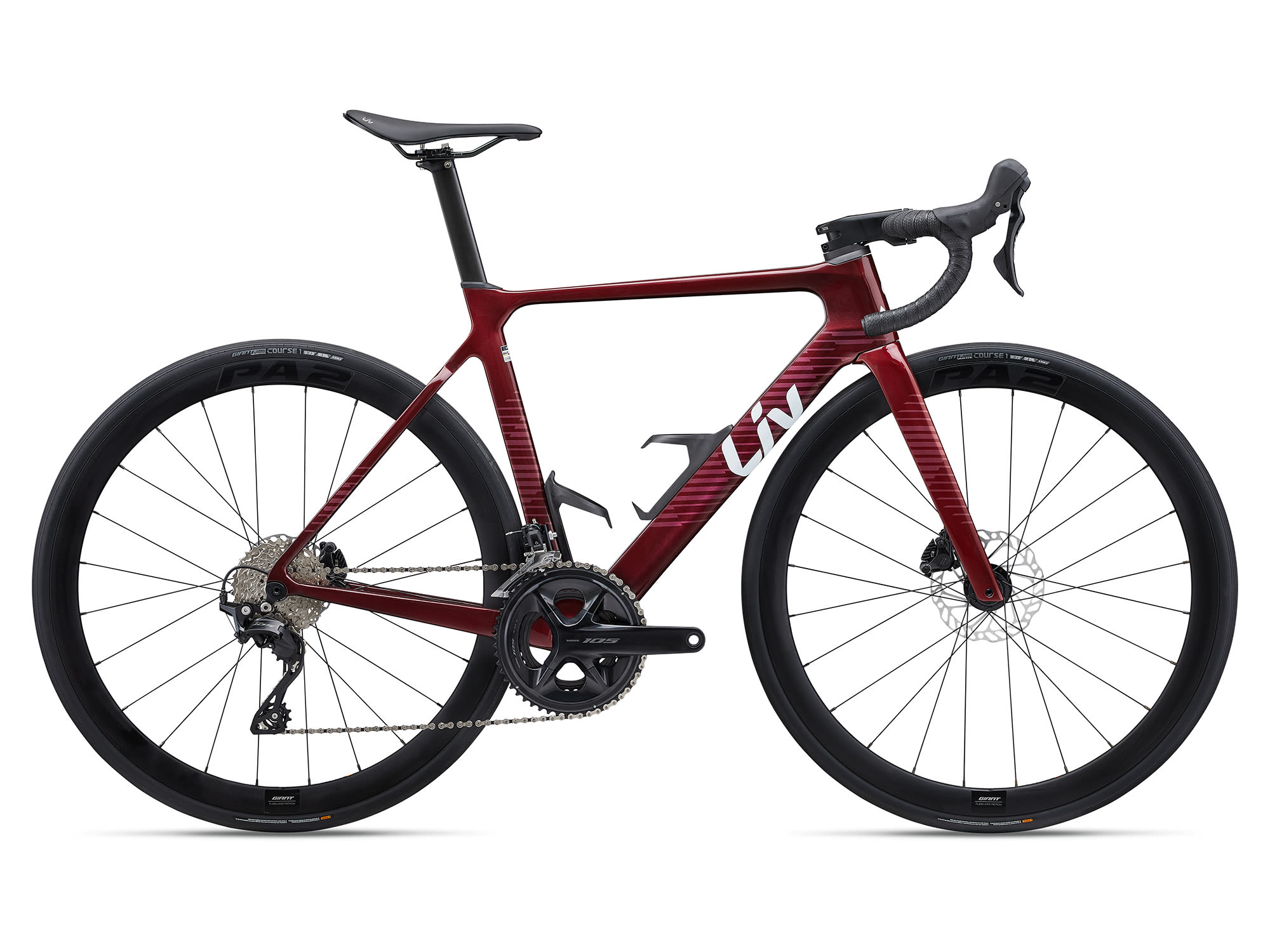

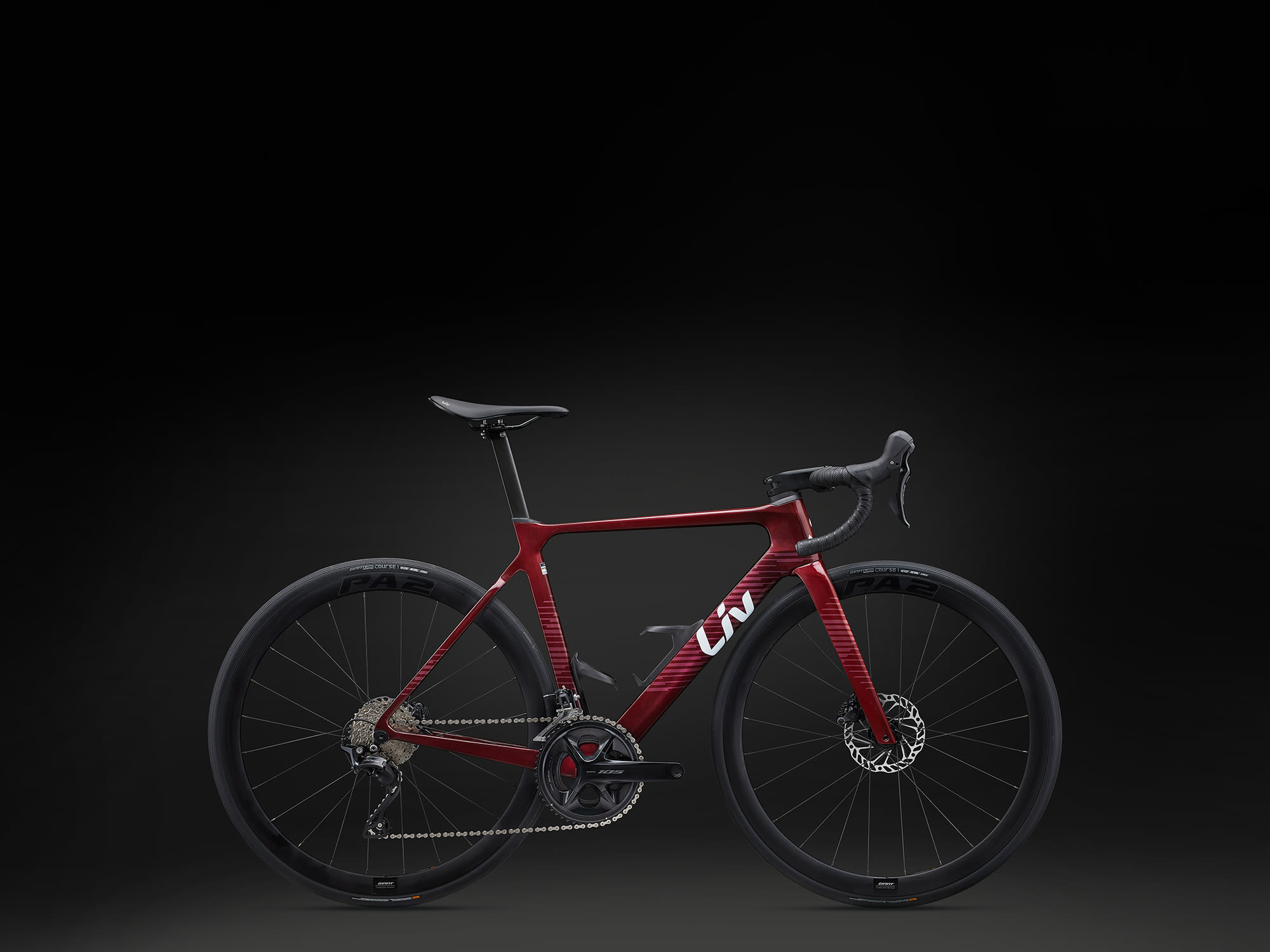

EnviLiv Advanced 2 (2024) | Women bike
€3,499.00
Features:
Specifications
From the stage race breakaway to the final criterium lap, the all-new EnviLiv is made to be out front. We’ve redesigned our signature sprinter for optimized aerodynamic performance, greater stiffness-to-weight advantage, and maximum trophies.
Key Performance Factors
Optimized Aerodynamics

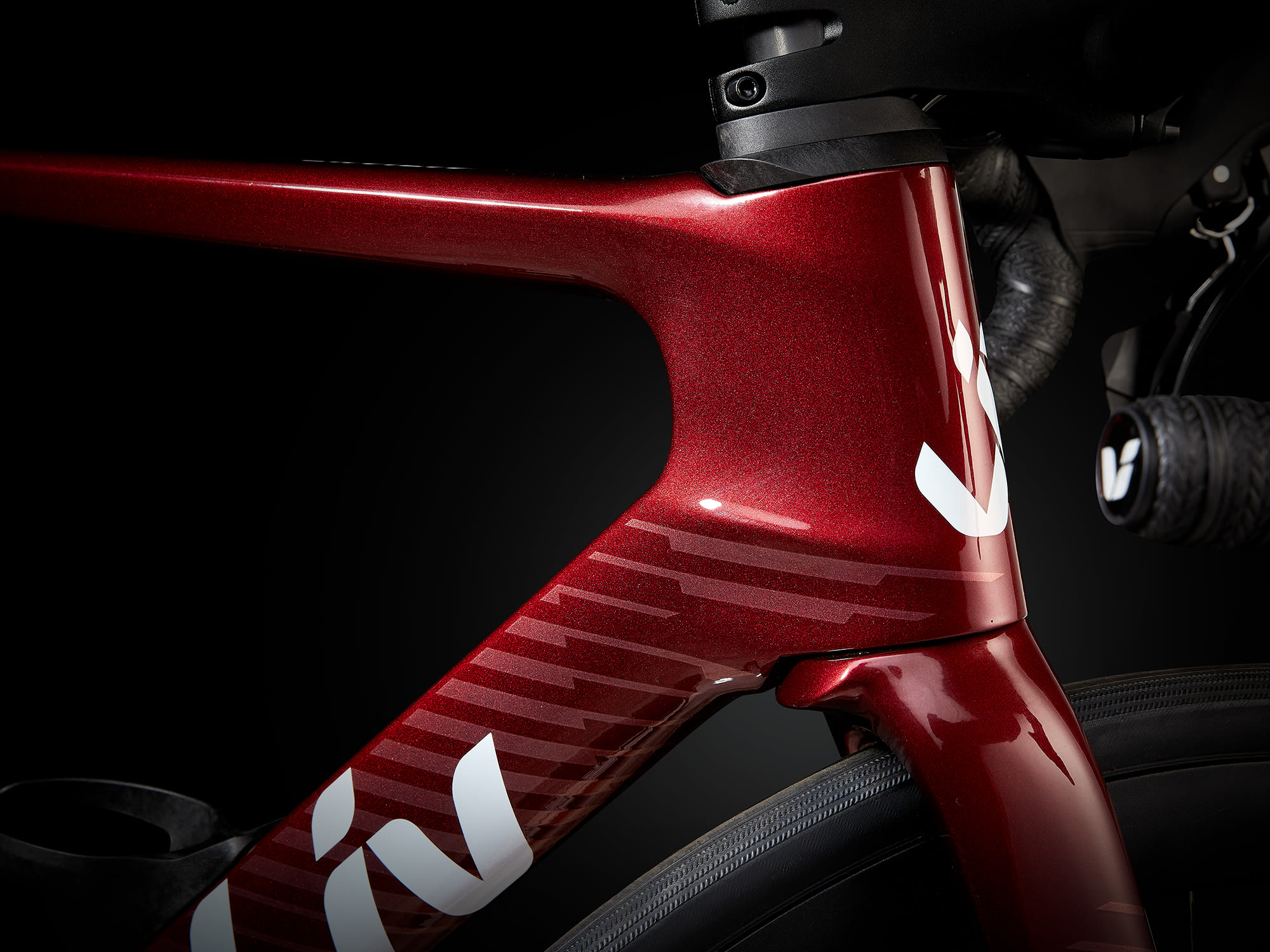

In our pursuit of maximum power and efficiency, we analyze how the bike and rider experience airflow at every speed and direction, both on the computer and in the wind tunnel. The new EnviLiv features truncated ellipse airfoil tube shapes and an all-new Contact SL Aero cockpit, with flattened tops and deeper drops, for reduced drag and added control, and better overall aero performance.
Sprinting Efficiency
Aerodynamics are affected by many factors, two of them often seen as mutually exclusive: stiffness and weight. But the EnviLiv has found the sweet spot, with a new Advanced-grade composite frame and fork—resulting in 292 grams of weight savings over the previous generation.
Seamless Integration
When every second matters, so does every detail. So we developed a new way to route cables through the handlebar, stem, and frame, which improves aero performance, and also makes it easier to disassemble your bike for travel and maintenance. Two aerodynamic water bottle cages flawlessly integrate with the seat tube and down tube, further reducing drag.
| Sizes | XXS, XS, S, M, L |
|---|---|
| Colours | Gloss Sangria |
| Frame | Advanced-grade composite, 12x142mm thru-axle, disc |
| Fork | Advanced-grade composite, full-composite OverDrive 2 steerer, 12x100mm, disc |
| Shock | N/A |
| Handlebar | Liv Contact SL Aero, 31.8mm |
| Grips | Liv All Condition |
| Stem | Giant Contact SL Aero |
| Seatpost | Giant Vector, composite |
| Saddle | Liv Approach |
| Pedals | PEDALS NOT SUPPLIED |
| Shifters | Shimano 105 2×12 |
| Front Derailleur | Shimano 105 |
| Rear Derailleur | Shimano 105 |
| Brakes | Shimano 105 hydraulic, Shimano rotors [F]160mm, [R]140mm |
| Brake Levers | Shimano 105 hydraulic |
| Cassette | Shimano 105, 12-speed, 11×34 |
| Chain | KMC X11SL-1 |
| Crankset | Shimano 105, 36/52 |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant P-A2 Disc, alloy, 22mm inner width |
| Hubs | Giant P-A2 Disc, 12mm thru-axle |
| Spokes | Sapim |
| Tyres | Giant Gavia Course 1, 700x25c (28mm effective width), folding, tubeless |
| Extras | Computer mount, two bottle cages, factory tubeless set up, 30mm max tyre size |
Geometry
| S | XXS | XS | M | L | ||
|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 500 | 440 | 470 | 530 | 560 |
| B | SEAT TUBE ANGLE | 74.5 | 75 | 75 | 74 | 73.5 |
| C | TOP TUBE LENGTH | 524 | 498 | 508 | 540 | 555 |
| D | HEAD TUBE LENGTH | 135 | 105 | 120 | 155 | 175 |
| E | HEAD TUBE ANGLE | 72 | 70 | 71 | 72.5 | 72.5 |
| F | FORK RAKE | 49 | 49 | 49 | 49 | 49 |
| G | TRAIL | 59.9 | 72.7 | 66.3 | 56.8 | 56.8 |
| H | WHEEL BASE | 977 | 970 | 973 | 984 | 996 |
| I | CHAIN STAY LENGTH | 405 | 405 | 405 | 405 | 405 |
| J | BOTTOM BRACKET DROP | 70 | 72 | 72 | 70 | 67 |
| K | STACK | 532 | 499 | 517 | 553 | 569 |
| L | REACH | 377 | 364 | 370 | 382 | 386 |
| M | STAND OVER HEIGHT | 752 | 719 | 734 | 768 | 786 |
| N | HANDLERBAR WIDTH | 380 | 360 | 360 | 400 | 420 |
| O | STEM LENGTH | 90 | 80 | 80 | 100 | 110 |
| P | CRANK LENGTH DEC | 170 | 165 | 165 | 170 | 172.5 |
| Q | WHEEL SIZE ALT | 700C | 700C | 700C | 700C | 700C |
