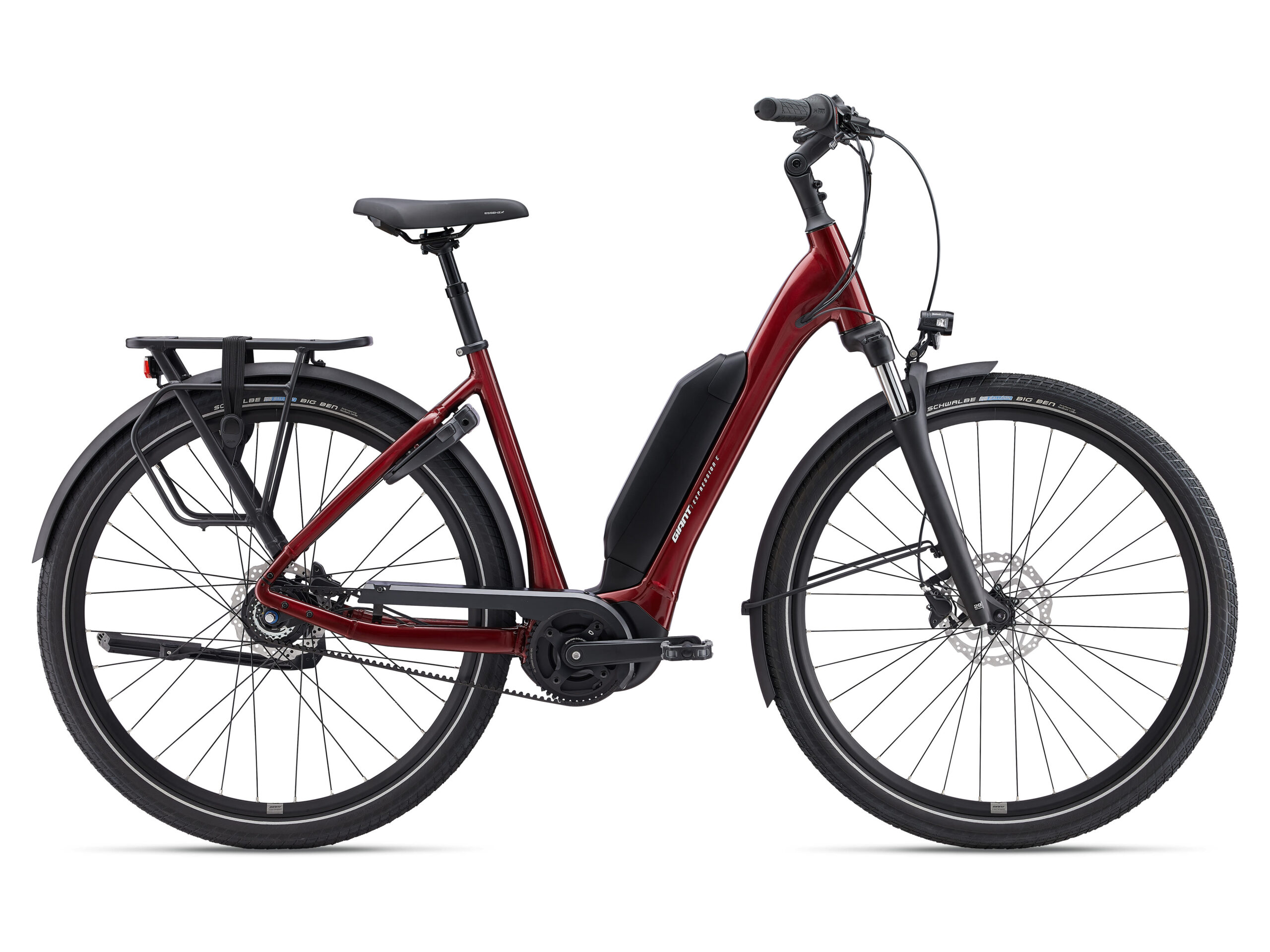

Expression E+ 0 (2024) | bike
€3,899.00
Features:
Specifications
Exhilarating yet relaxing. With smooth, powerful pedaling assistance and comfortable handling, the new Expression E+ is a motivating companion for commuting, fitness riding, or just pedaling for the fun of it.
Key Performance Factors
Smart support
The new SyncDrive Core 50Nm motor has Smart Assist mode, which uses sensors to constantly determine and deliver the optimal level of support by automatically adjusting power output.
Comfort and control
A step-thru frame design with a 63mm suspension fork, suspension seatpost, powerful disc brakes and extra-wide 55mm tires combine for smooth confidence and control on a variety of road surfaces and conditions.
Full-Color Display
RideDash Evo (on select models) on the handlebar/stem area makes it easy to view ride data including speed, distance, battery level and navigation.
| Motor | Giant SyncDrive Core, 50Nm, Powered by Yamaha, PedalPlus 6-sensor technology |
|---|---|
| Controller | Giant RideControl Ergo 2 remote, Smart Assist automatic mode, 5 support levels, USB-C (10W) |
| Display | Giant RideDash EVO, high-angle visibility, 3″ full color LCD display, on-board navigation |
| Battery | Giant EnergyPak 600Wh, CO2 Neutral production |
| Charger | Giant EnergyPak 4A smart charger |
| Connectivity | Giant RideControl App enabled ANT+ wireless display signal with e-bike profile |
| Sizes | S, M, L |
| Colours | Gloss Sangria |
| Frame | ALUXX aluminium, monotube, Battery Semi Integrated, low step through design |
| Fork | SR Suntour Mobie A32 DS Coil, 63mm travel 100x15mm axle |
| Handlebar | Aluminium, 30° back sweep, 31.8x660mm |
| Grips | Comfort Ergo Microtech Plus |
| Stem | Aluminium angle adjustable stem w/ EVO display bracket |
| Seatpost | Suspension 30.9x300mm |
| Saddle | Selle Royal Essenza Plus |
| Pedals | Wellgo C097, PP/ Kraton body, Anti-slip |
| Shifters | Shimano Nexus 8-speed RevoShift |
| Brakes | Shimano BR-MT200 hydraulic disc, 180mm [F], 160mm [R] |
| Brake Levers | Shimano BL-MT200 |
| Cassette | Gates CDC stainless steel 22T rear sprocket |
| Chain | Gates CDC Carbon Drive 120T CenterTrack belt |
| Crankset | Gates CDC CenterTrack 46T front sprocket |
| Rims | Giant Double Wall Aluminium 622×19 |
| Hubs | Shimano HB-TC500-15 100×15 [F], Shimano Nexus 8 disc brake [R] |
| Spokes | Stainless 14G(2.0mm) [F]Stainless 13-14G(2.3-2.0mm) butted [R] |
| Tyres | Schwalbe Big Ben 55-622 Wire Bead w/ reflective stripe |
| Extras | KSA18 direct mount kickstand |
| Lighting | Axa Blueline 30 LED [F]Axa Blue Line Steady E6 [R] |
| Lock | ABUS 4750X NR (w/o chip) LH OEM |
| Carrier | MIK rack. System bag & basket compatible |
Geometry
| S | M | L | ||
|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 450 | 500 | 550 |
| B | SEAT TUBE ANGLE | 71 | 71 | 71 |
| C | TOP TUBE LENGTH | 570 | 595 | 620 |
| D | HEAD TUBE LENGTH | 140 | 160 | 180 |
| E | HEAD TUBE ANGLE | 70 | 70 | 70 |
| F | FORK RAKE | 44 | 44 | 44 |
| G | TRAIL | 87.1 | 87.1 | 87.1 |
| H | WHEEL BASE | 728 | 754 | 779 |
| I | CHAIN STAY LENGTH | 470 | 470 | 470 |
| J | BOTTOM BRACKET DROP | 60 | 60 | 60 |
| K | STACK | 622 | 641 | 660 |
| L | REACH | 356 | 374 | 393 |
| M | STAND OVER HEIGHT | 515 | 515 | 515 |
| N | HANDLERBAR WIDTH | 690 | 690 | 690 |
| O | STEM LENGTH | 90 | 90 | 110 |
| P | CRANK LENGTH DEC | 170 | 170 | 170 |
| Q | WHEEL SIZE ALT | 700C | 700C | 700C |
