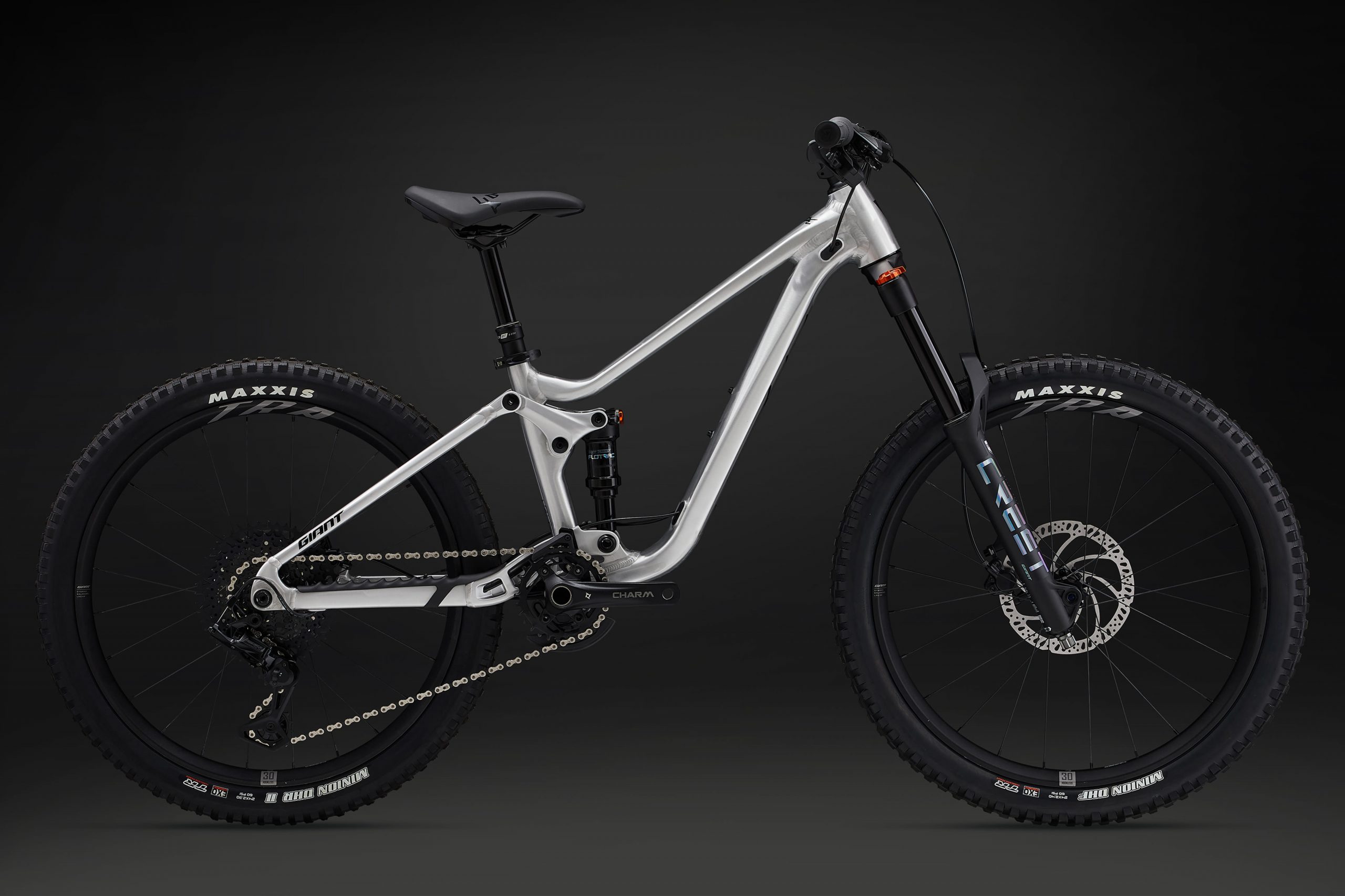

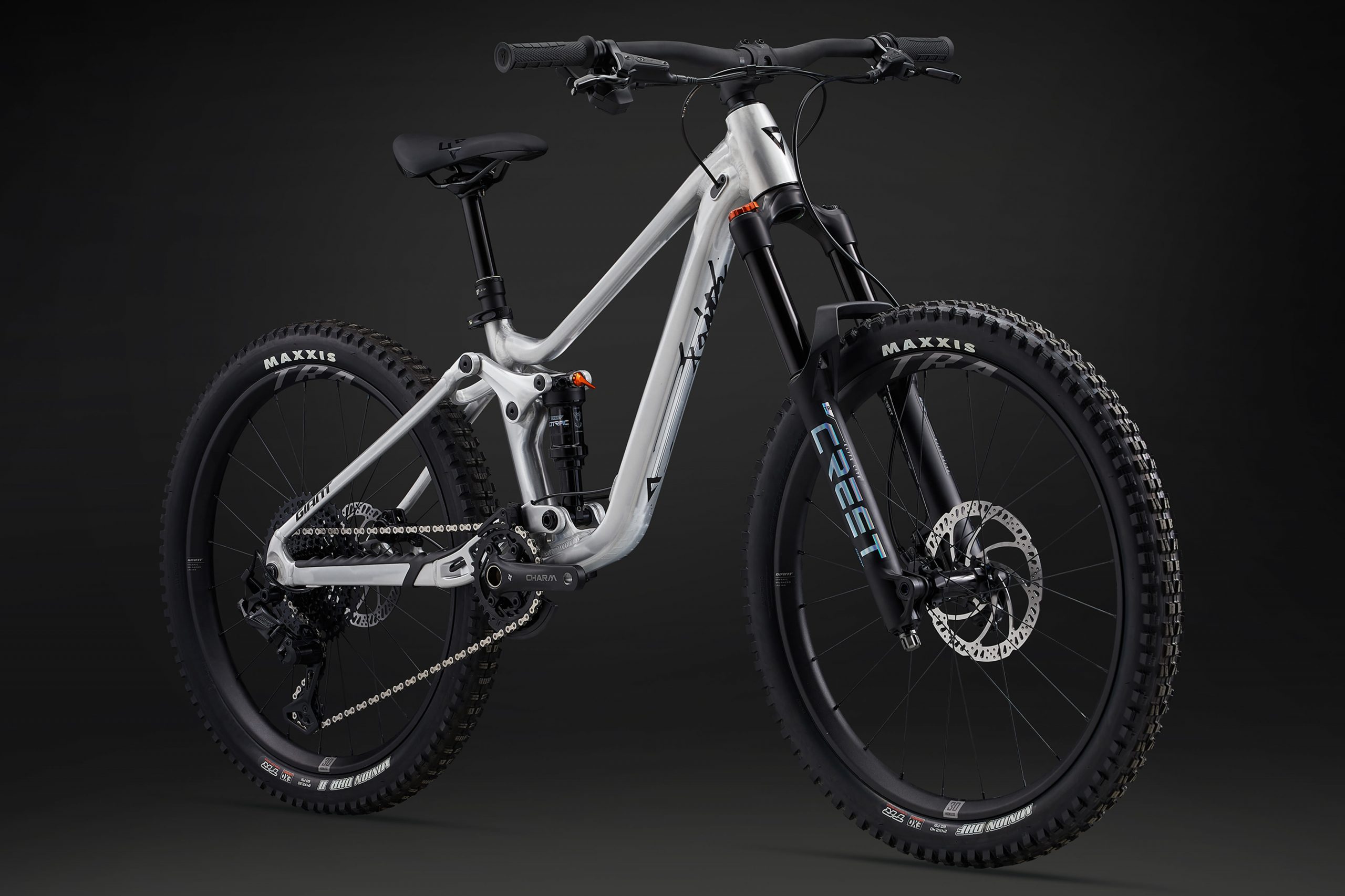

Faith 24 (2025) | Trail bike
€2,749.00
Features:
Specifications

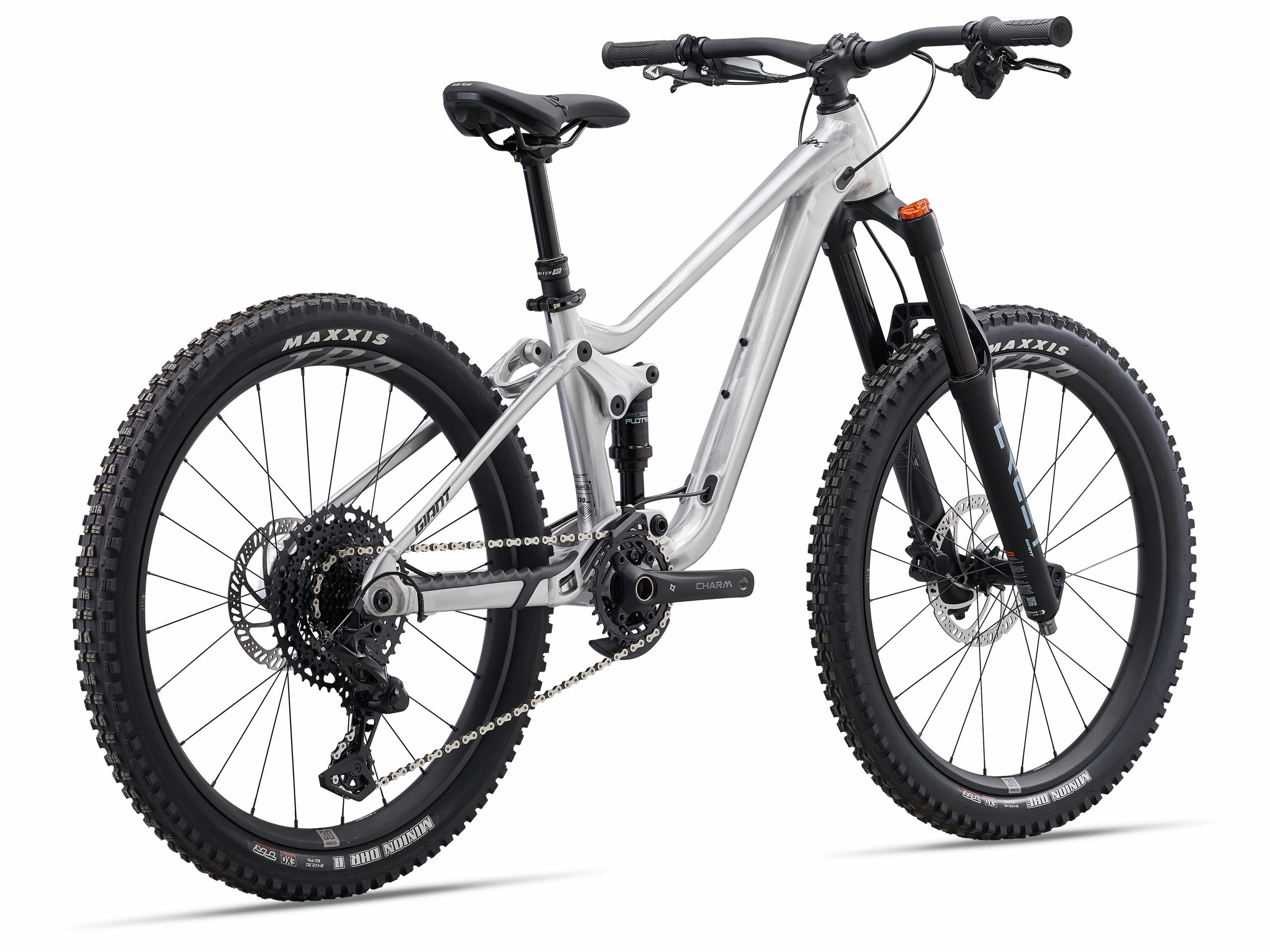

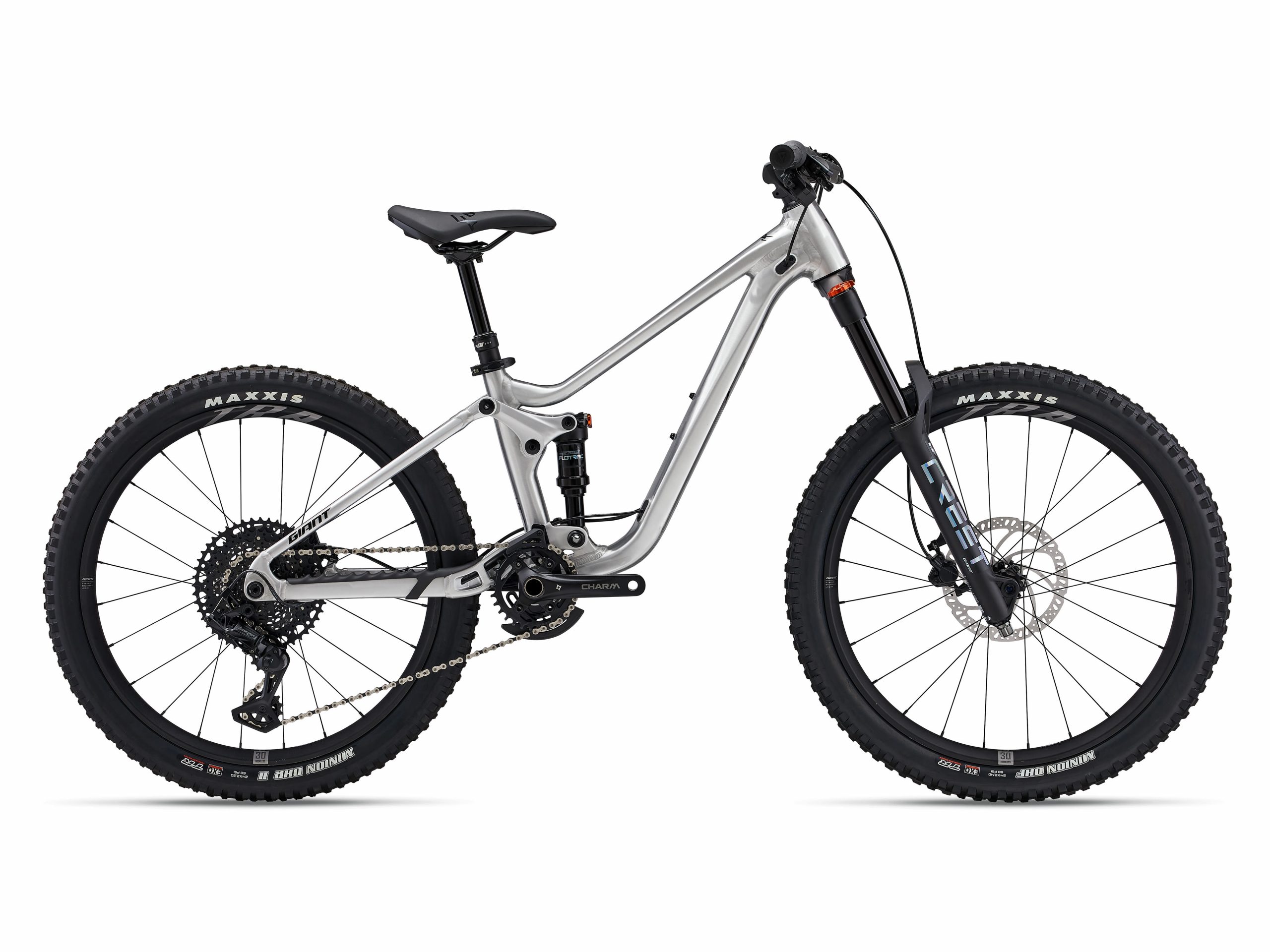

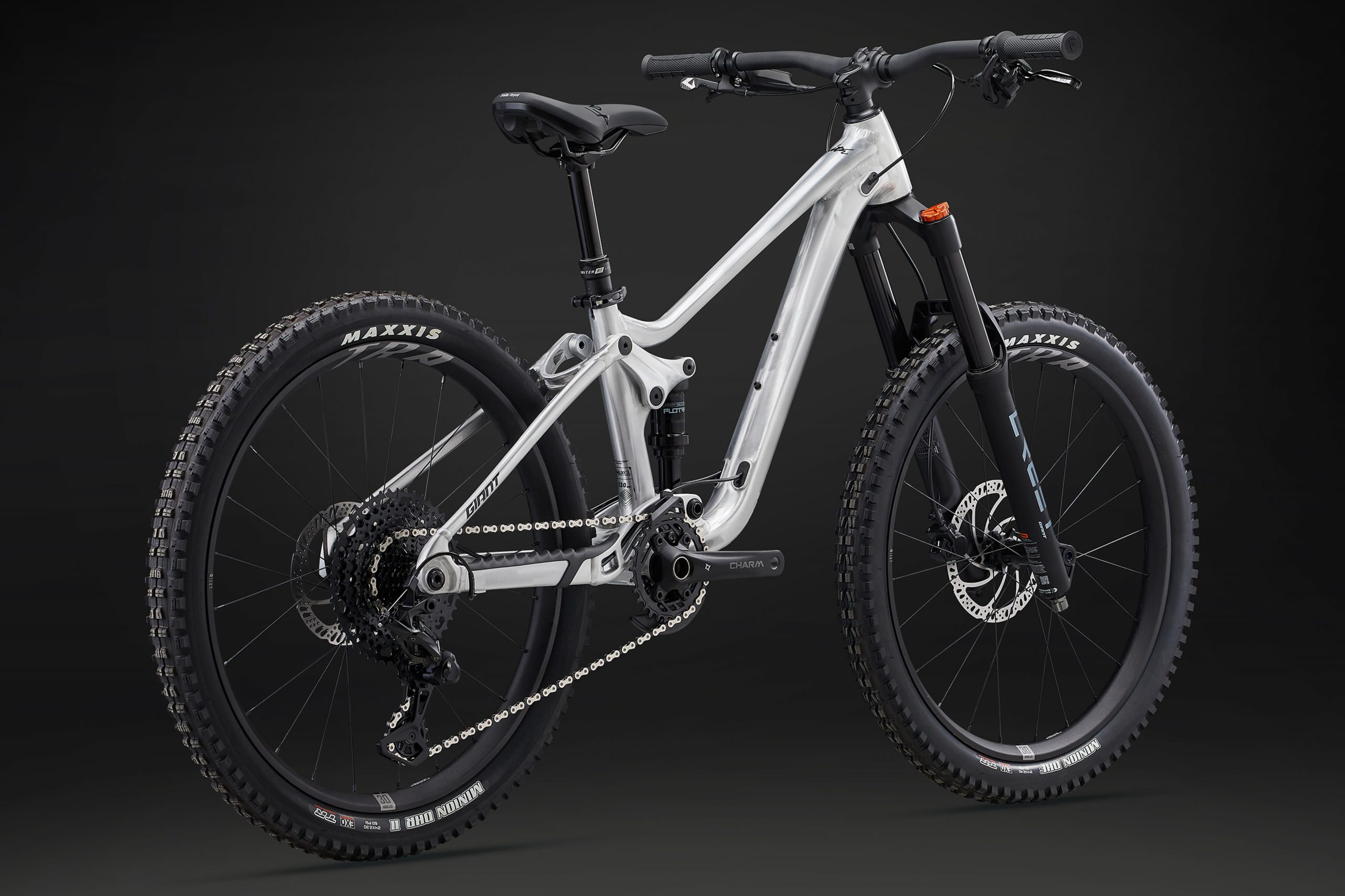

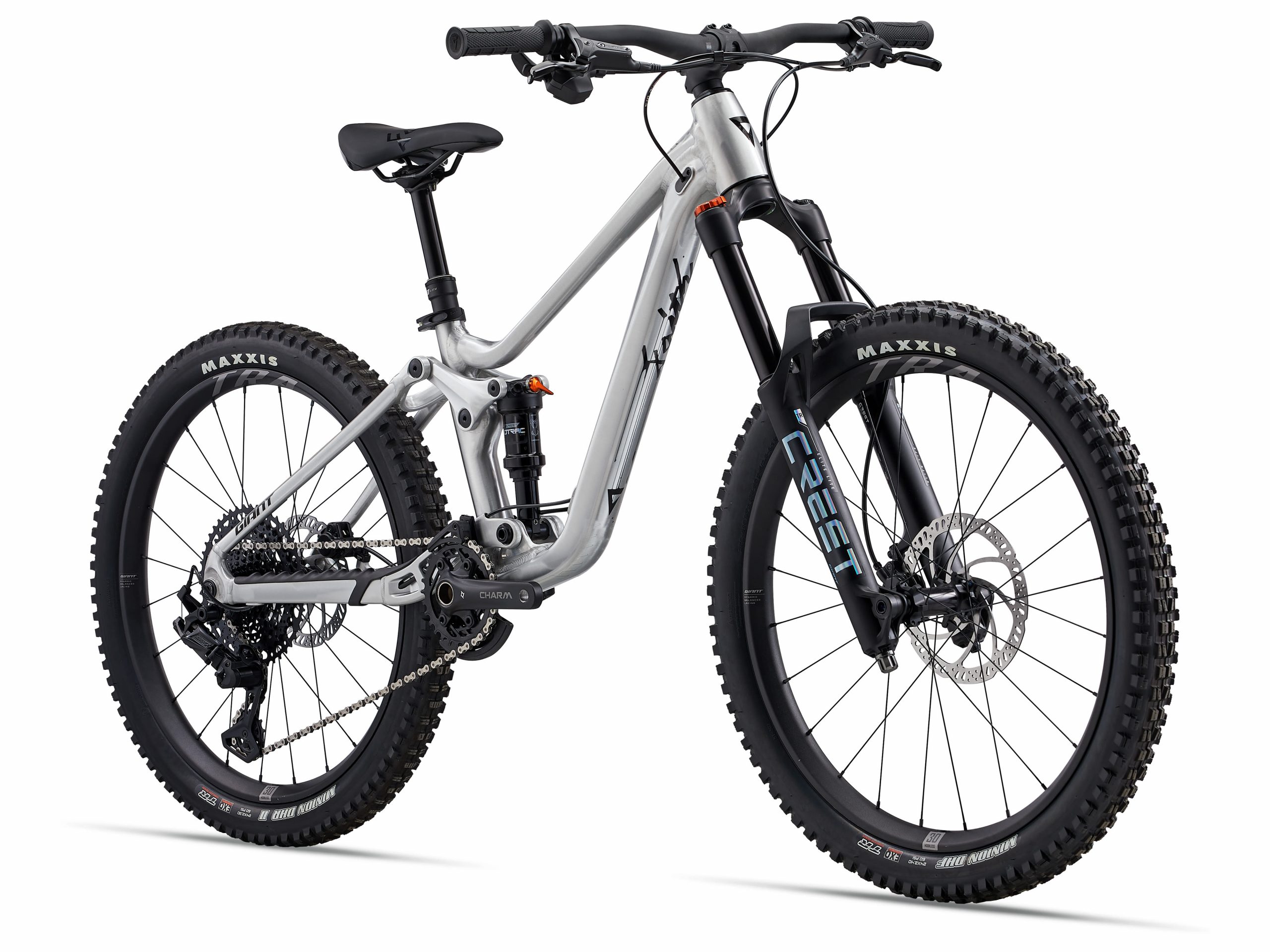

Small but mighty, this highly capable new trail bike is made for little rippers with big ambitions. With a lightweight alloy frame, 24-inch wheels, and youth-tuned suspension, it balances efficient climbing, loads of traction, and confident handling to help young riders take it to the next level.
Key Performance Factors
YOUTH-TUNED SUSPENSION

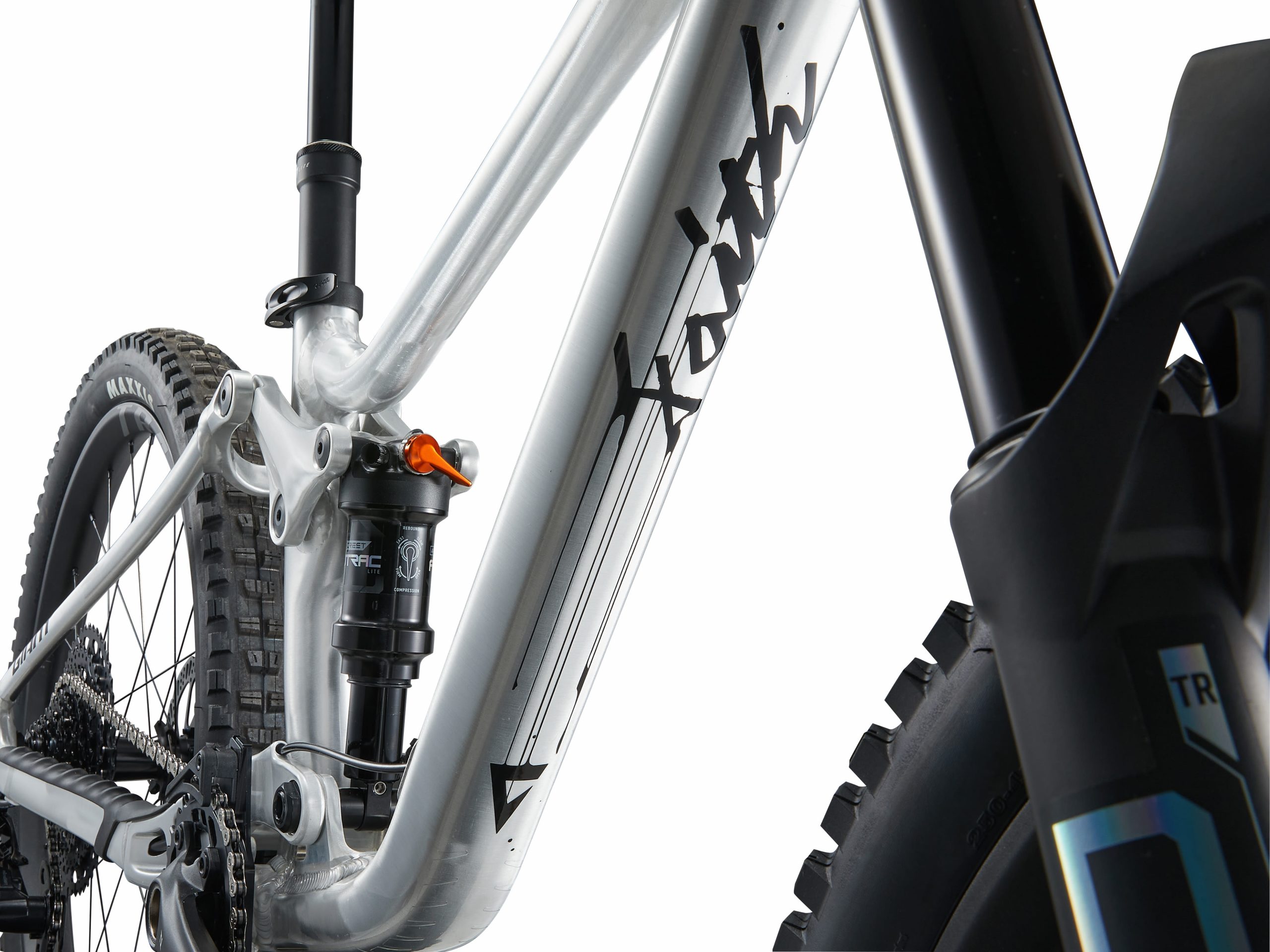

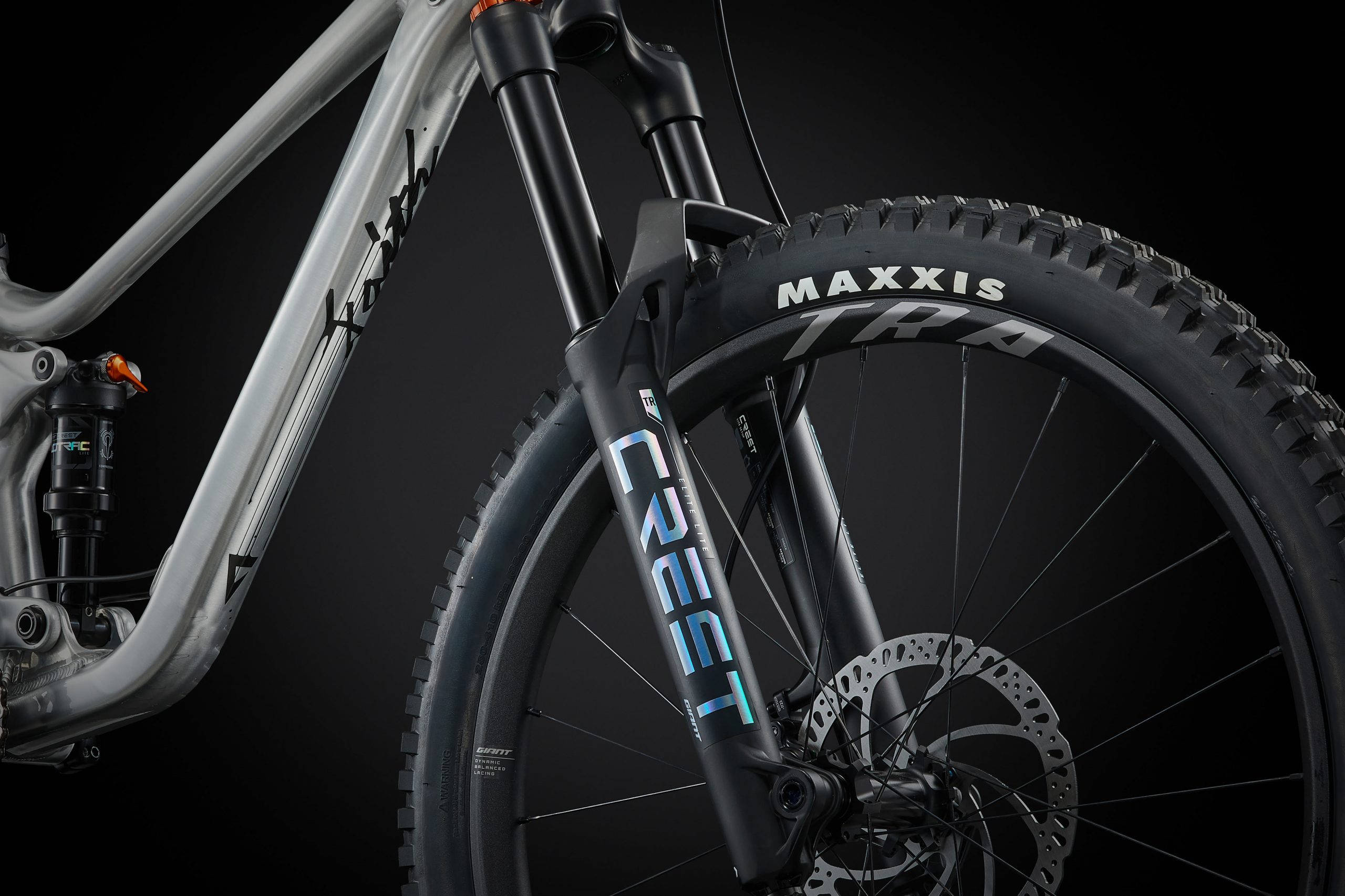

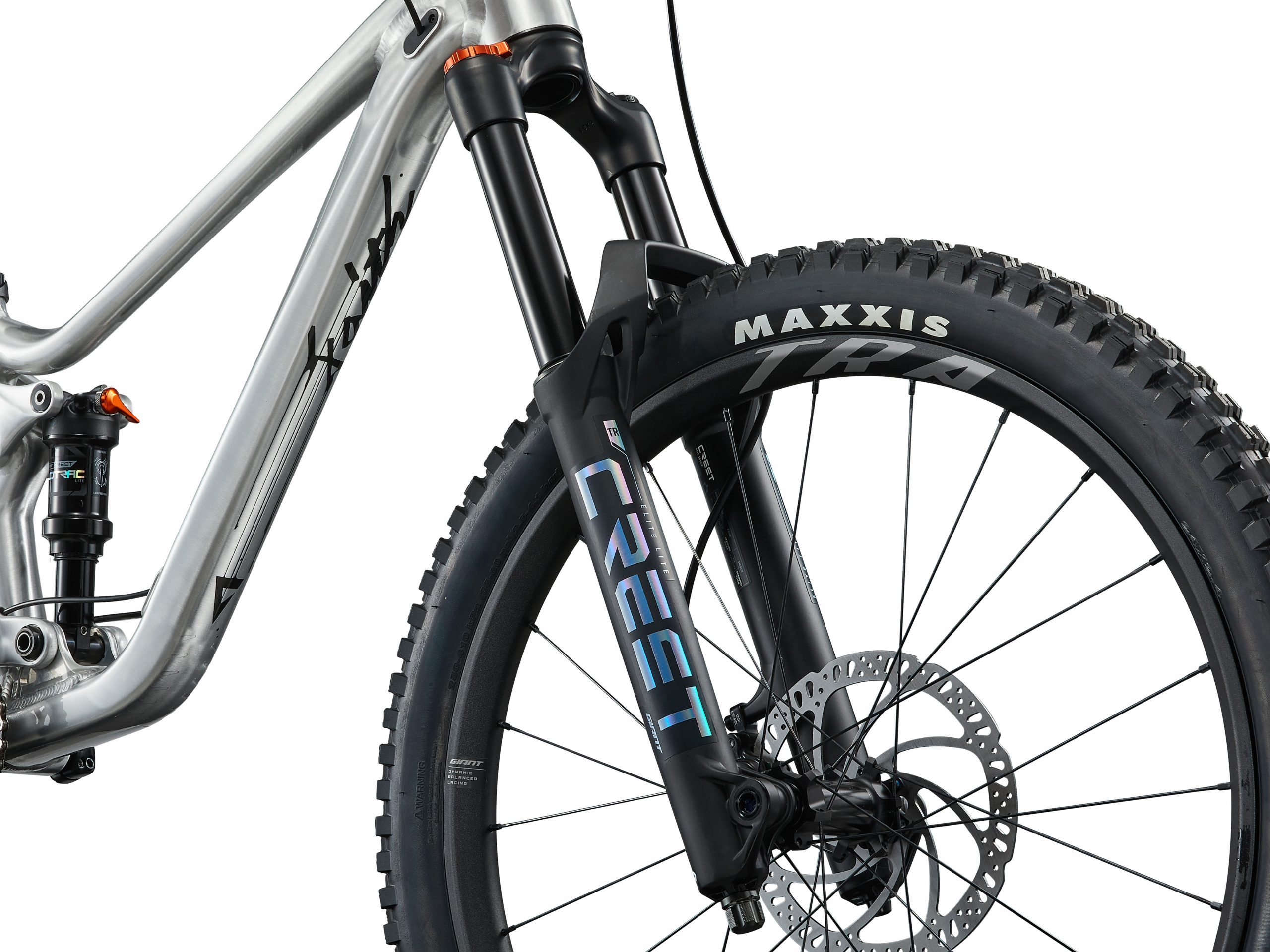

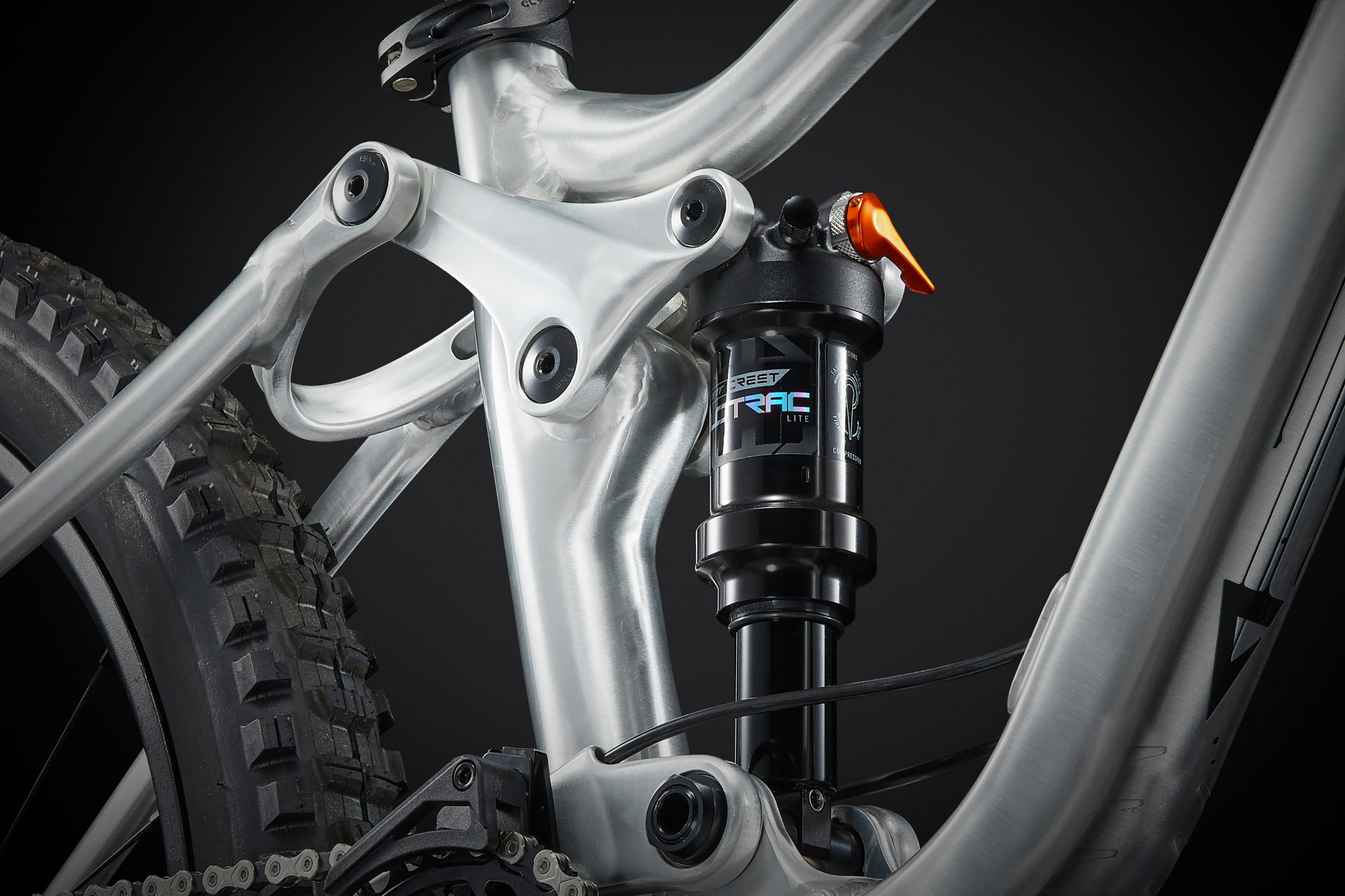

FlexPoint rear suspension with a Crest FloTrac Lite shock delivers 130mm of smooth travel tuned specifically for lighter weight riders. Up front, the 140mm Crest TR Elite fork handles rocks, roots and ruts. Front and rear suspension both have minimal activating force, giving young riders smooth control and confidence on technical trails.
AGILE AND EFFICIENT
An ALUXX SL aluminum frameset with youth-specific trail geometry is combined with quality lightweight components to minimize weight and help young riders tackle challenging terrain. A new 24-inch TRA WheelSystem borrows key technologies from the proven adult TRA WheelSystem for improved climbing capabilities and quicker acceleration.
OFF-ROAD CONTROL
Giant TRA WheelSystem features WideGuard technology, resulting in lighter, stronger rims so riders can run lower tire pressures for better traction without the risk of tire punctures or rim damage. The youth-specific 24-inch wheels help smaller riders maneuver and tackle technical trails, while a dropper seatpost makes it easy to optimize riding position while climbing or descending.
| Sizes | One Size |
|---|---|
| Colours | Raw Aluminum |

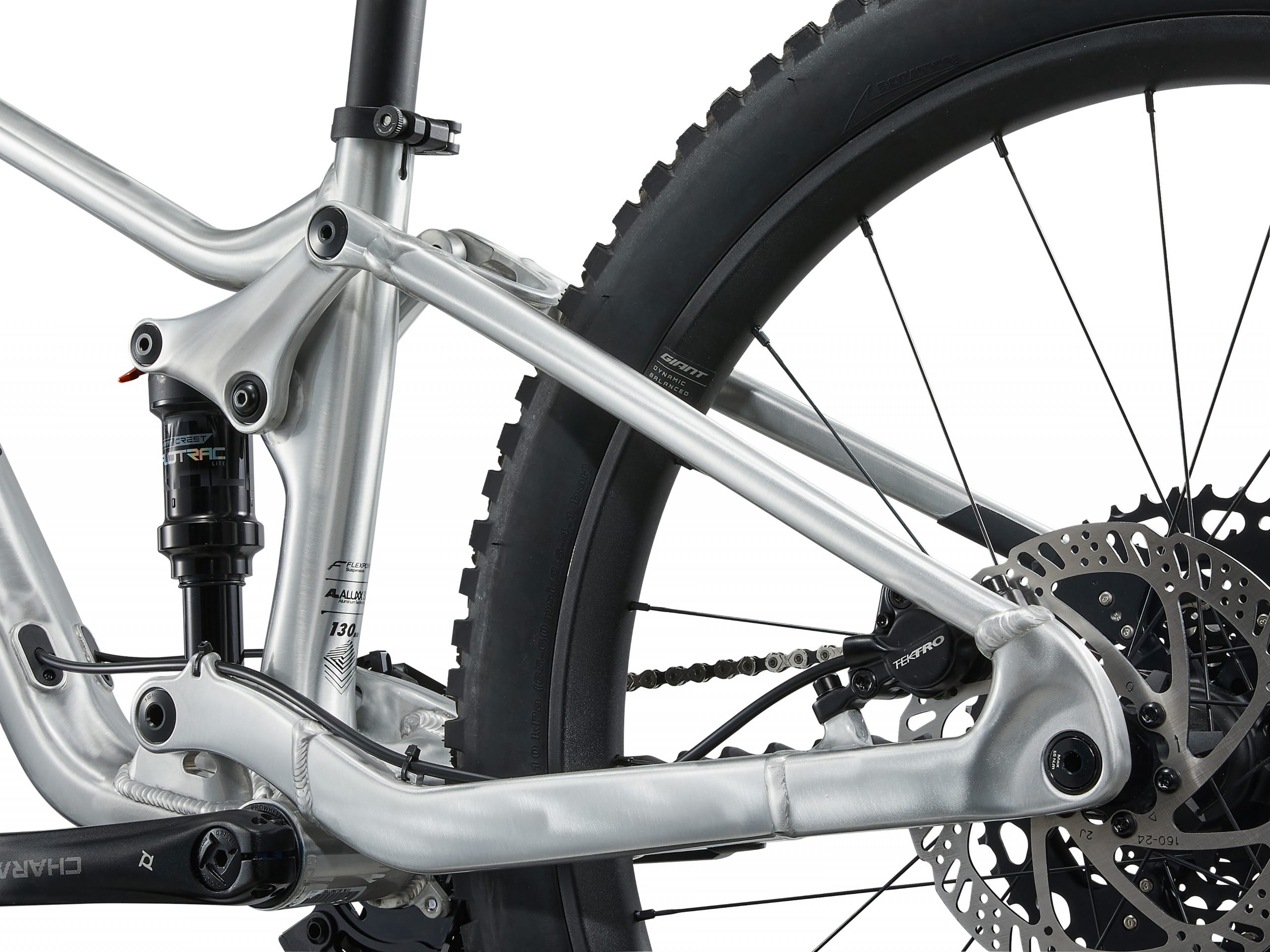

| Frame | ALUXX SL-Grade Aluminium front and rear triangles, 12x148mm thru-axle, 130mm FlexPoint suspension |

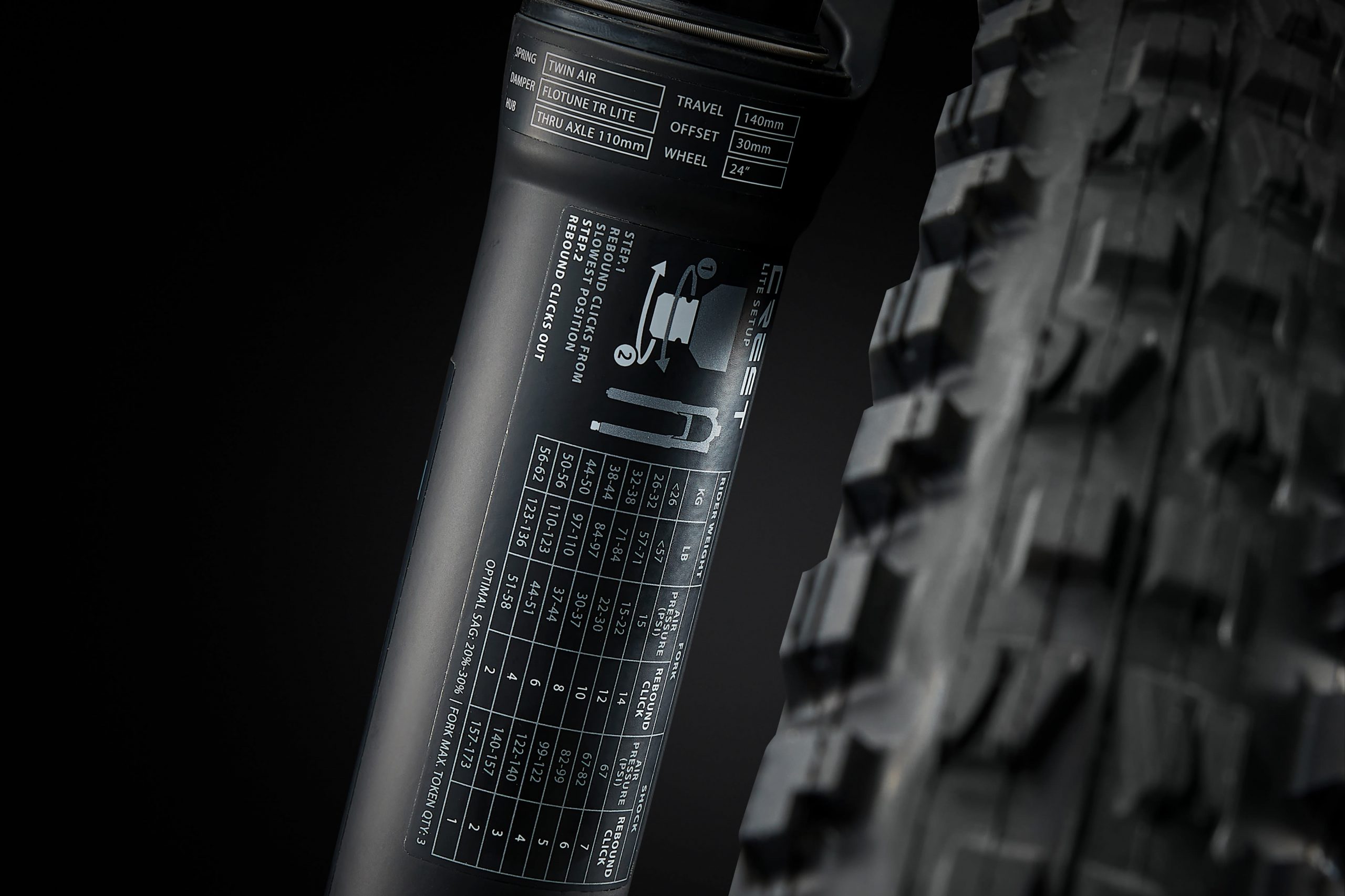

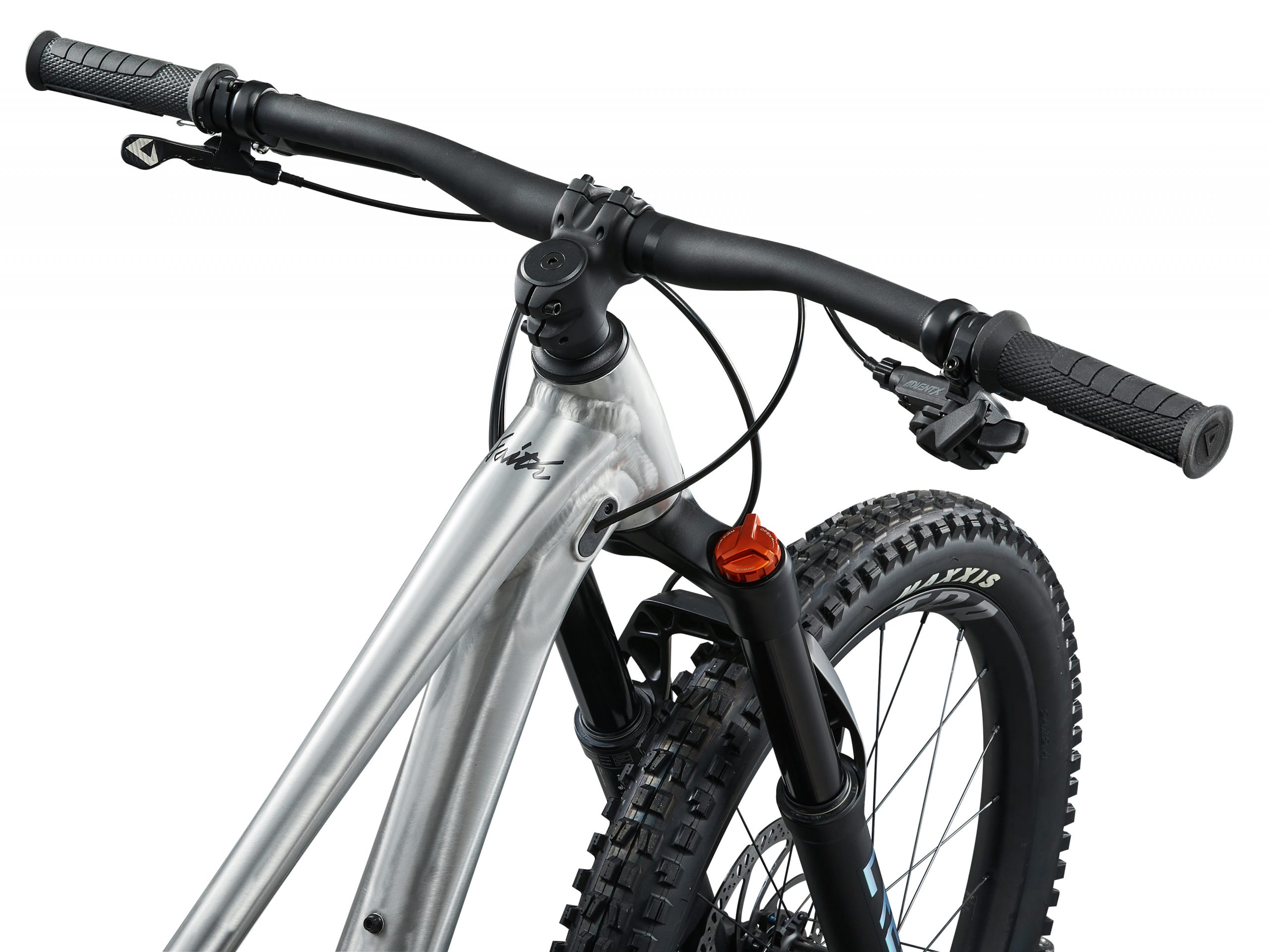

| Fork | Crest TR Elite Lite, FloTune Lite Damper, 140mm |

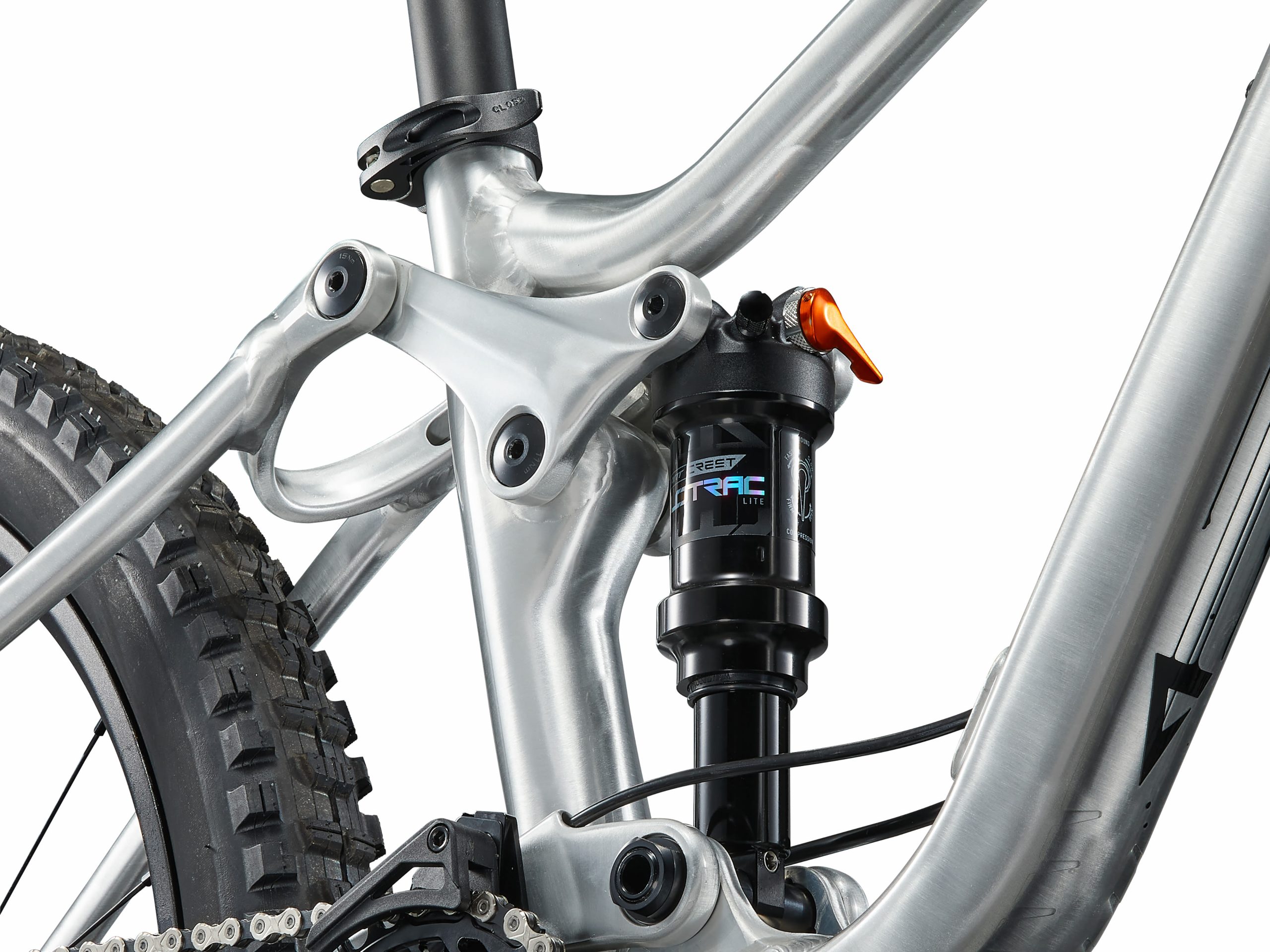

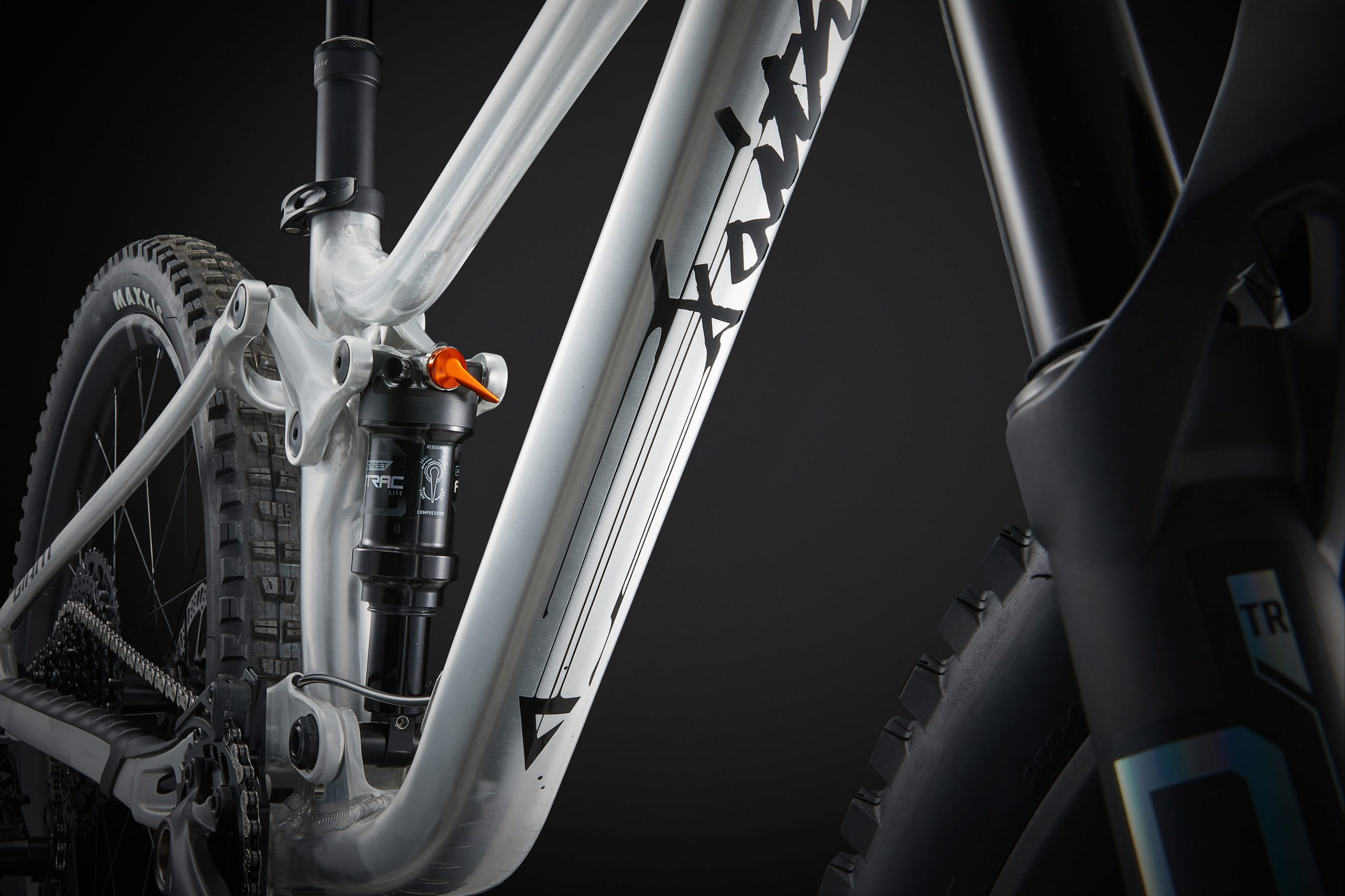

| Shock | Crest FloTrac Lite, 165/45mm, trunnion mount |

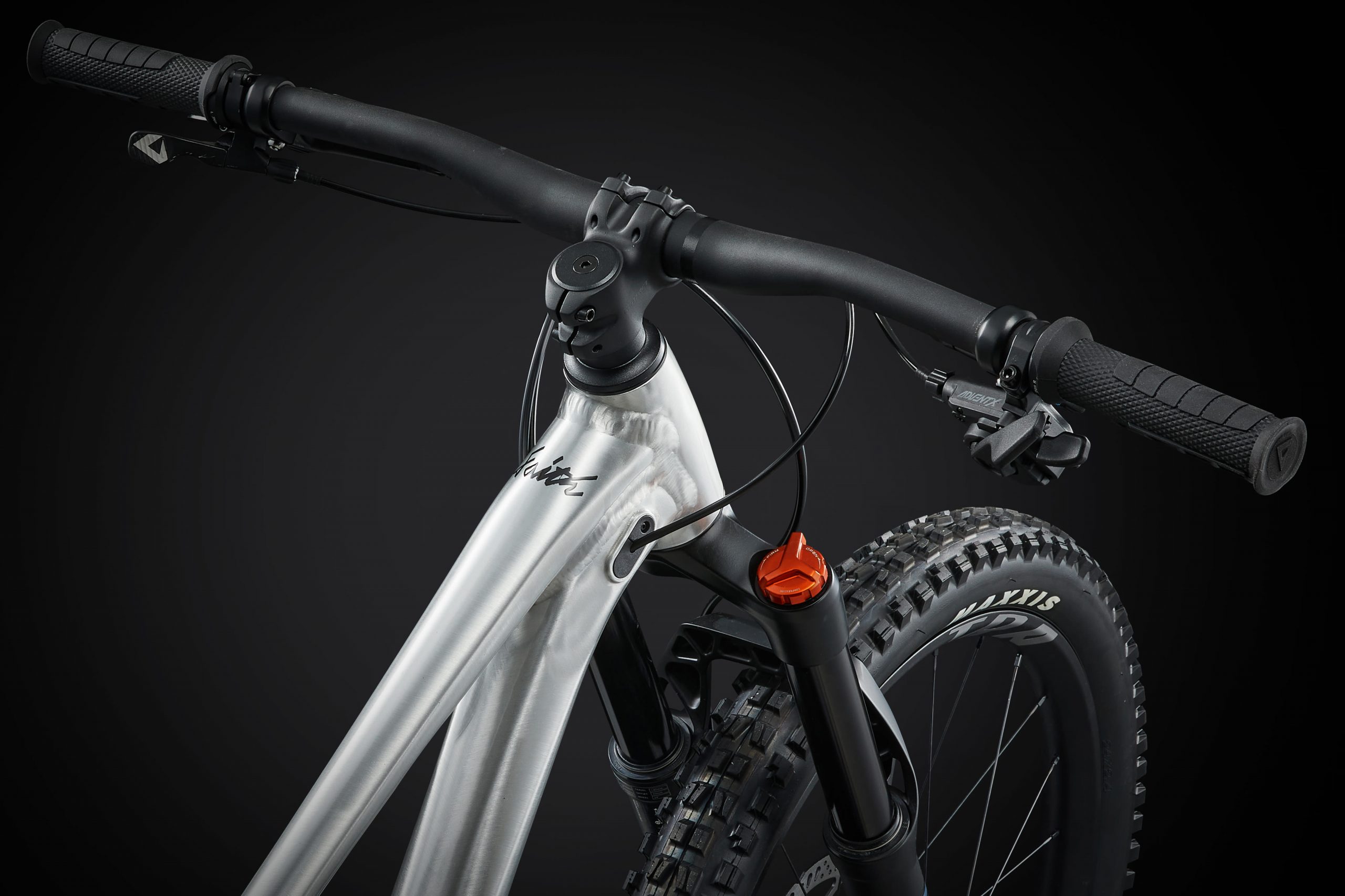

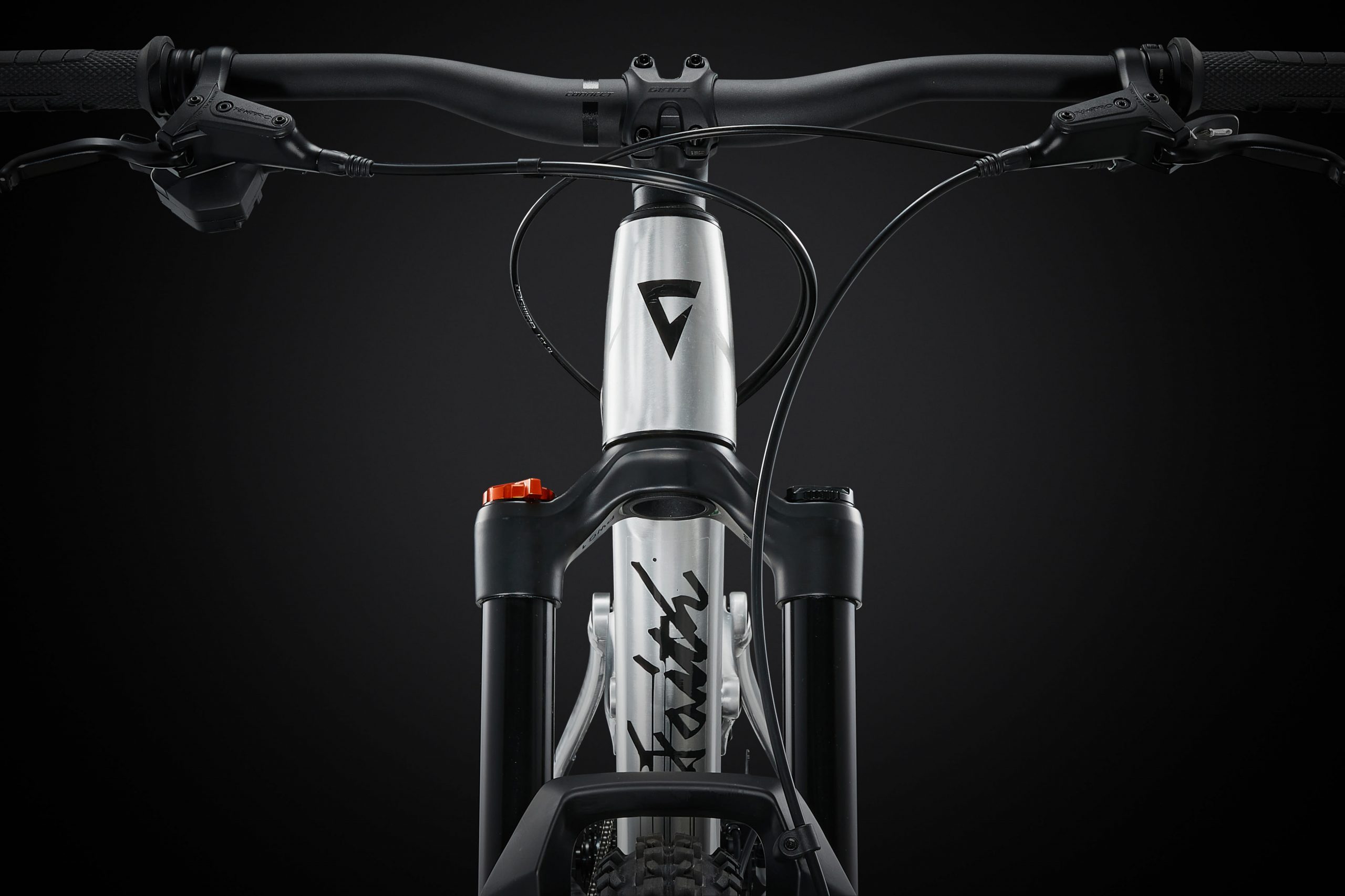

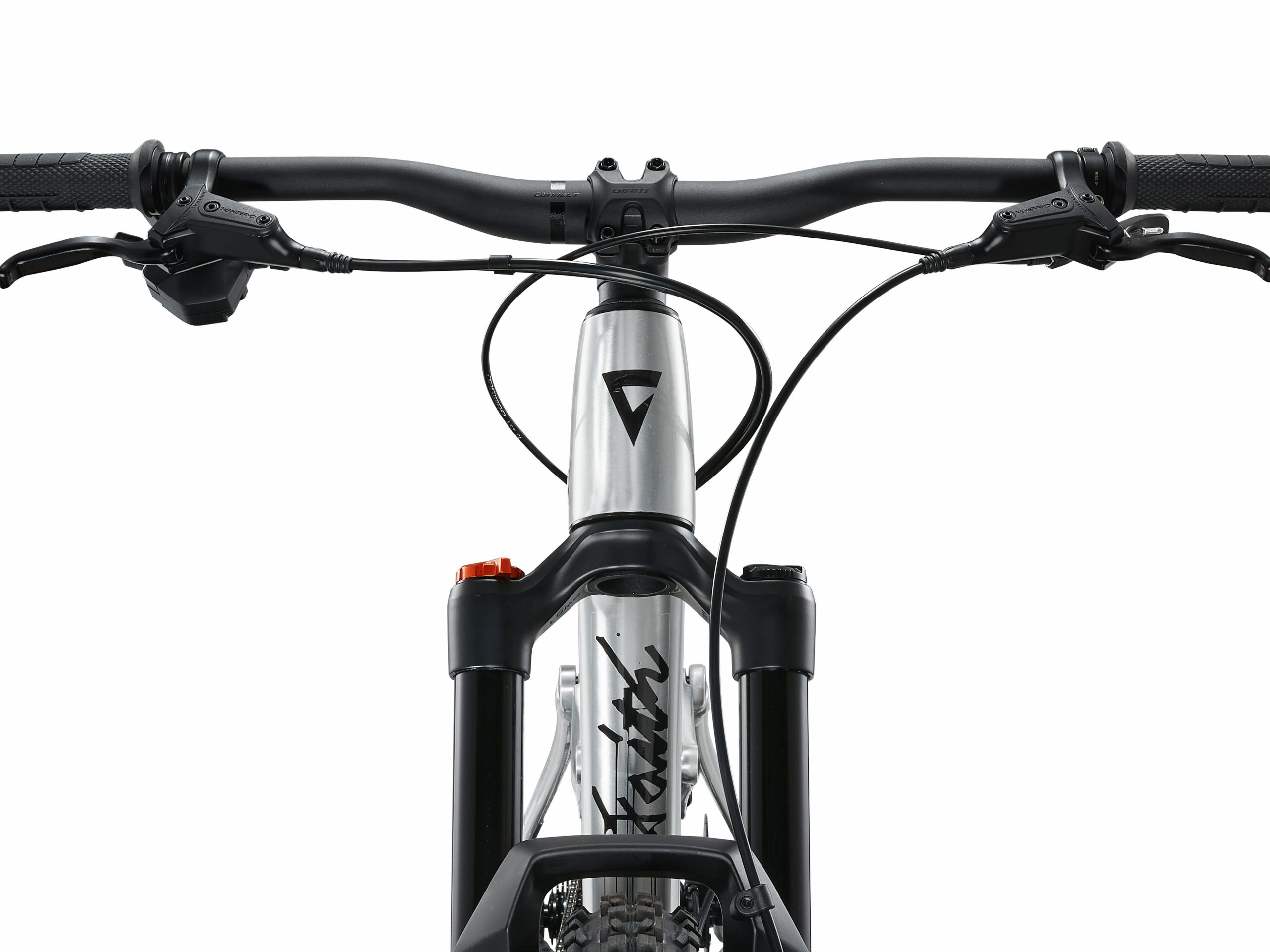

| Handlebar | Giant Contact TR, 20mm rise, AL6061 aluminium, 680mm |
| Grips | Giant small-hand |
| Stem | Giant Contact, 8 degrees, 40mm |

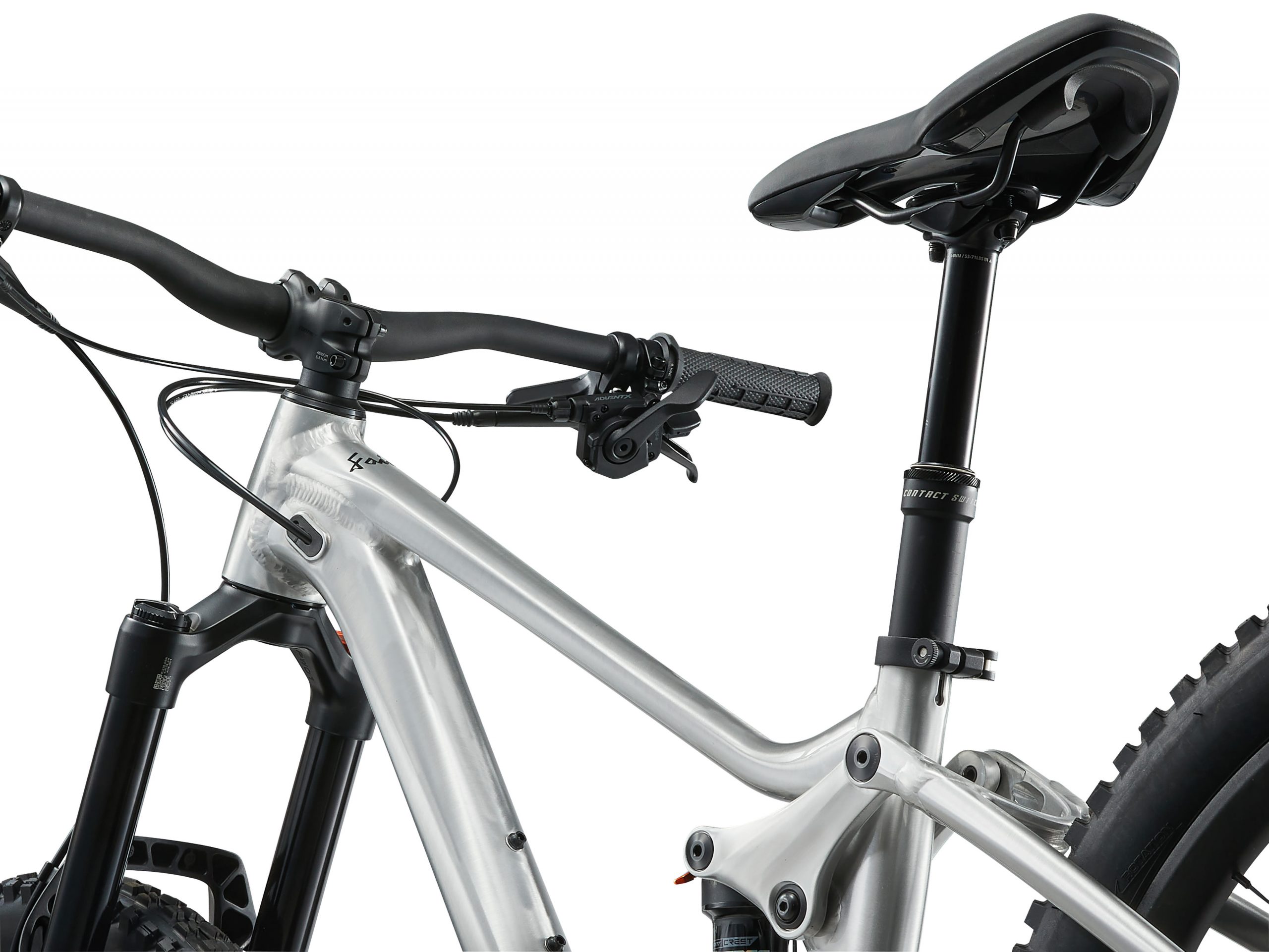

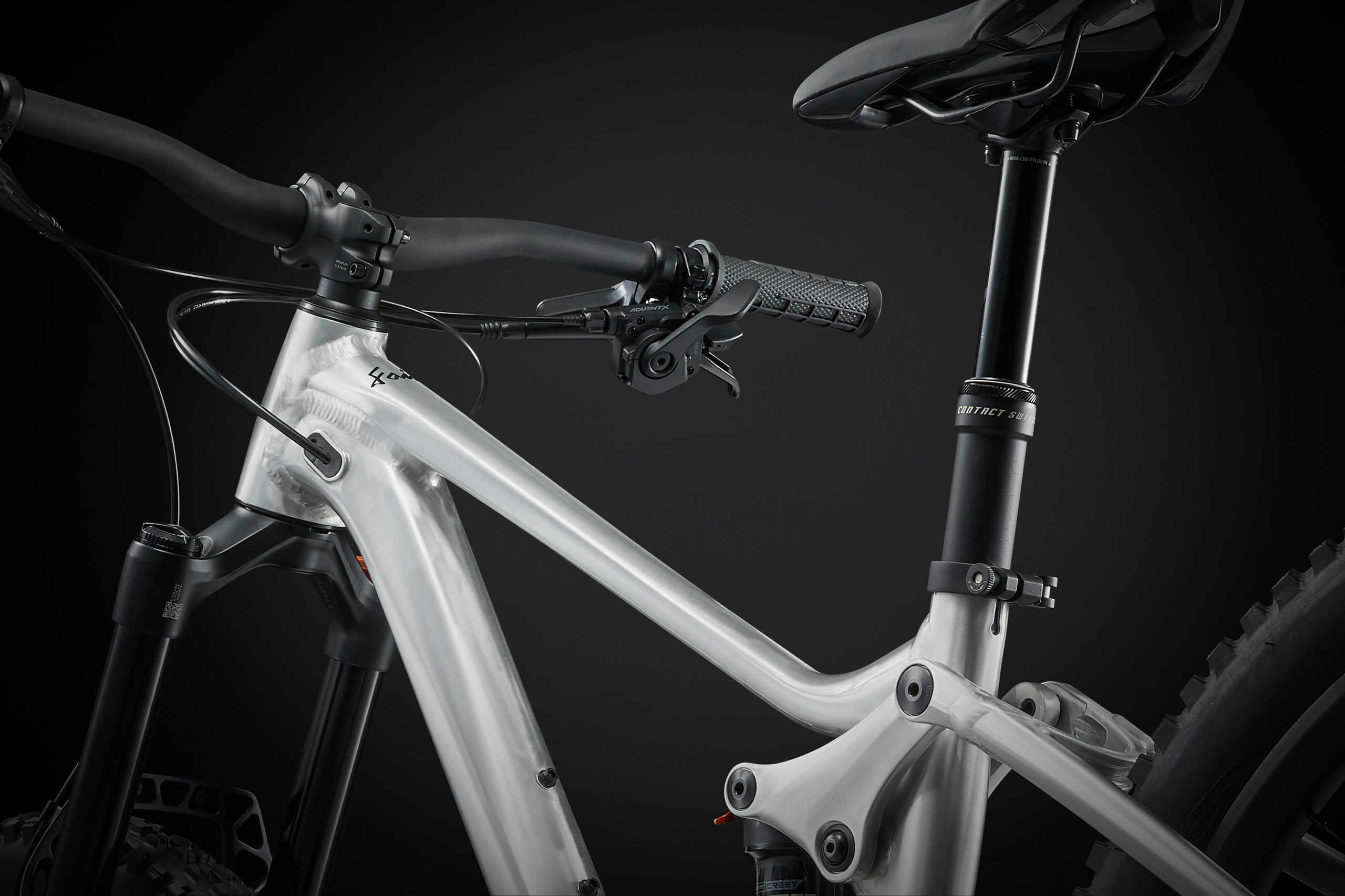

| Seatpost | Contact Switch AT Lite, 100mm |
| Saddle | Selle Royal Vivo Jr |
| Pedals | Giant Pinner Lite |

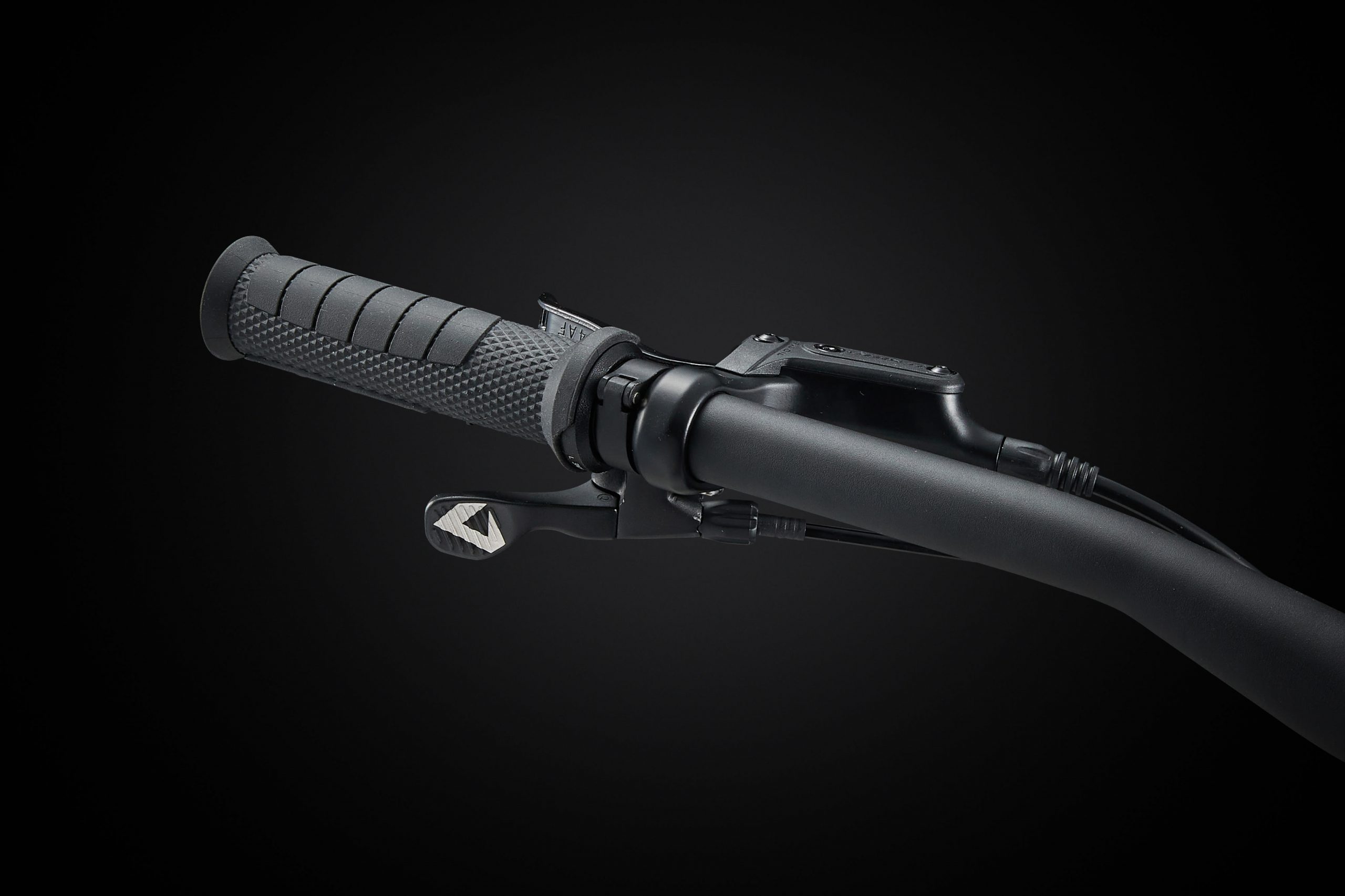

| Shifters | MicroSHIFT Advent X Trail trigger shifter SL-M9505-R (with nanowire) |
| Front Derailleur | N/A |

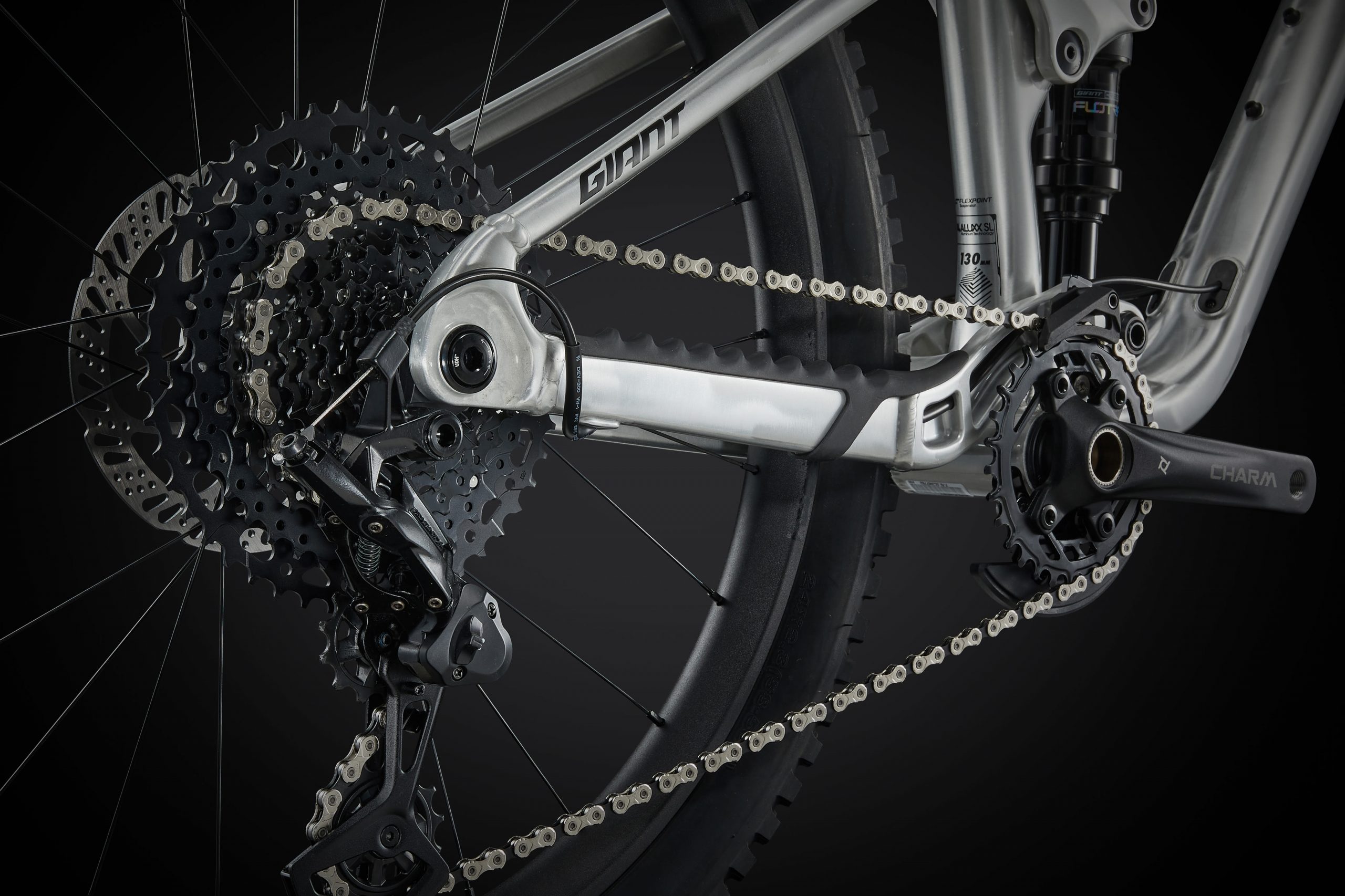

| Rear Derailleur | Microshift Advent X RD-M6205AM |
| Brakes | Tektro [F]180mm, [R]160mm |

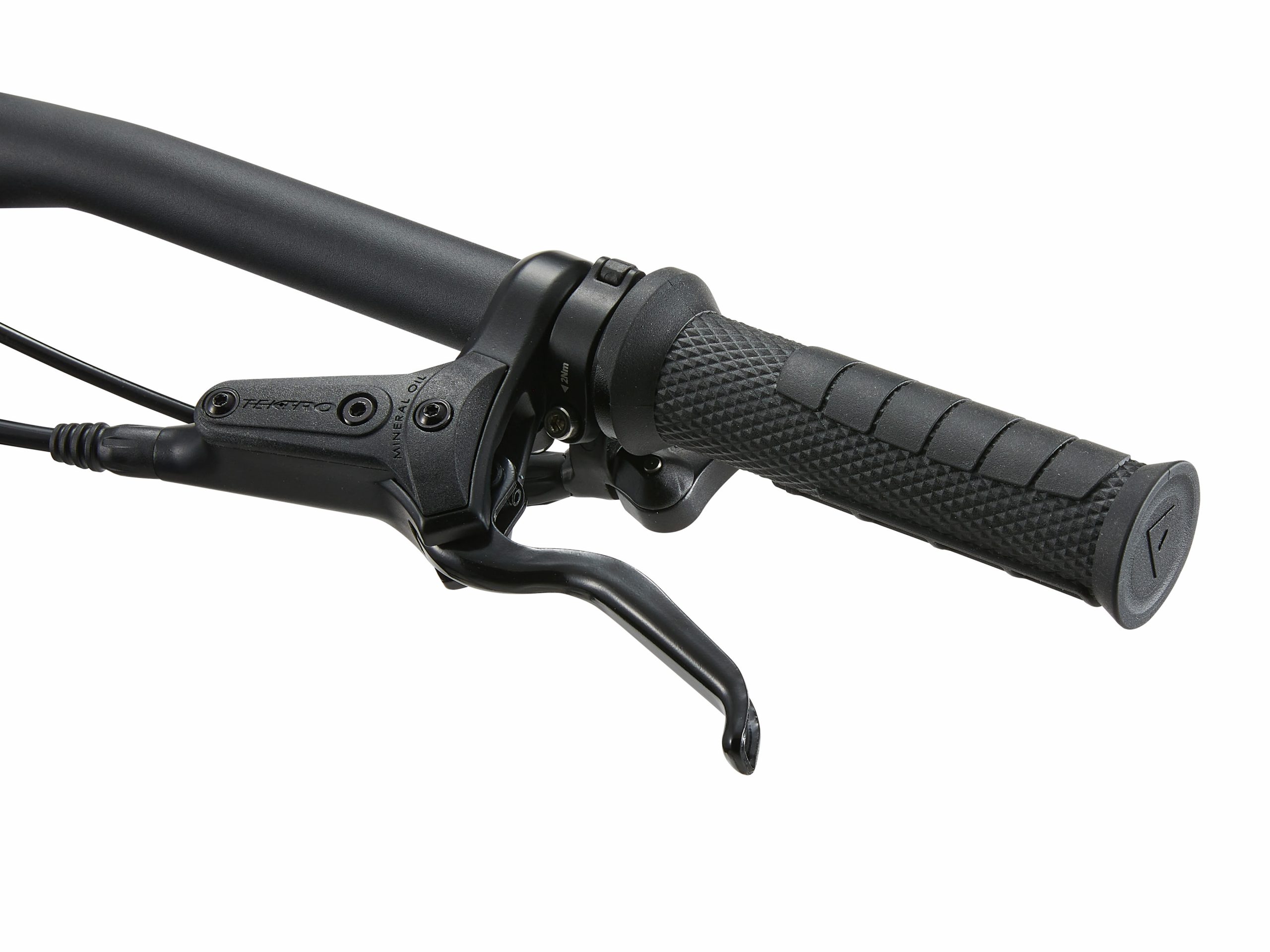

| Brake Levers | Tektro HD-J285 |

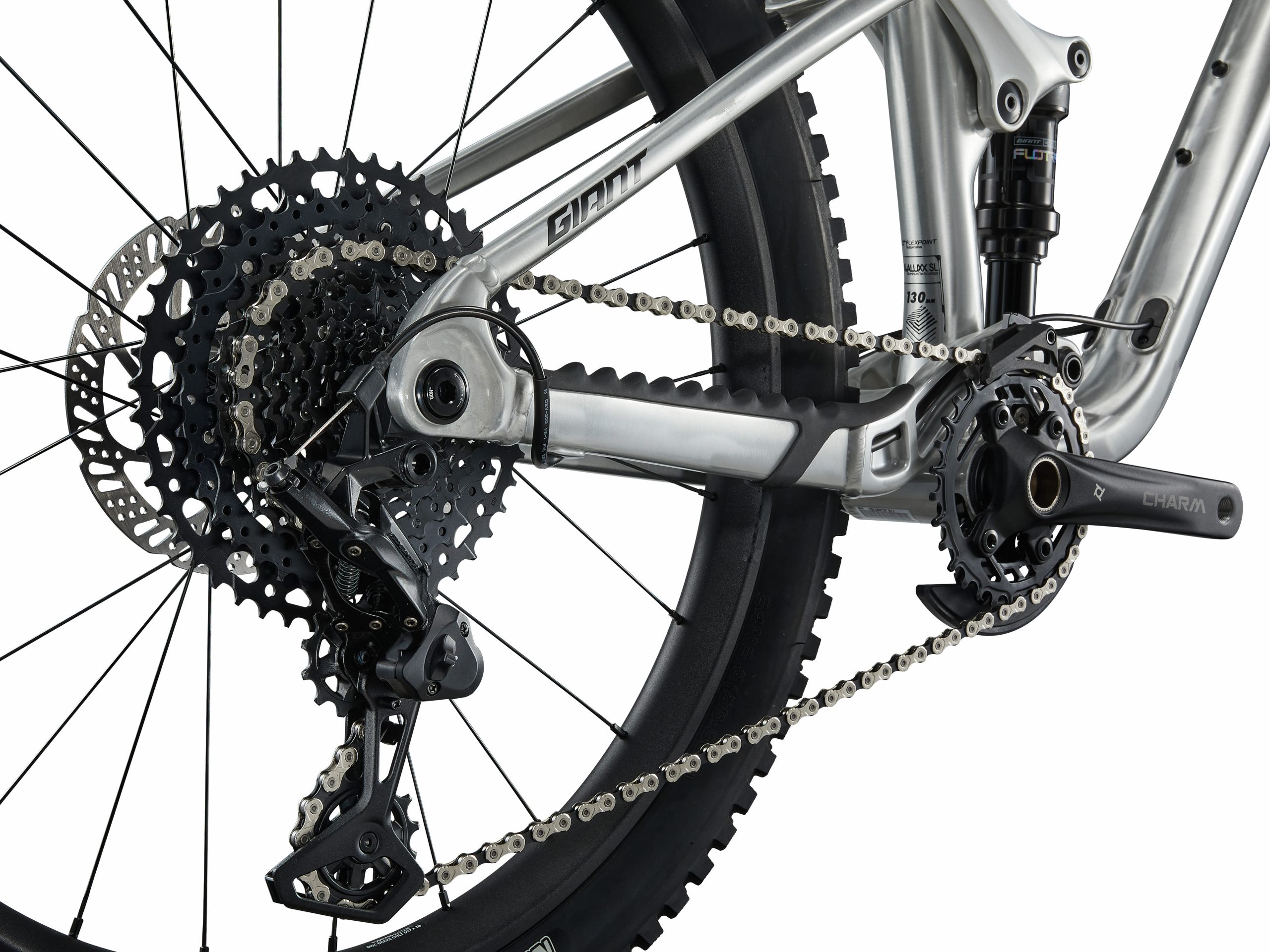

| Cassette | Microshift Advent X G-Series 10-speed, 11×48 |
| Chain | KMC X10 with missing link |
| Crankset | ProWheel Charm, 30t, 140mm |
| Bottom Bracket | Press Fit |
| Rims | Giant TRA WheelSystem, alloy, hollow rim wall construction, hookless, 30mm inner width, 40mm outer width, 21mm height, Wide Guard Technology [F] 24” [R] 24″ |
| Hubs | [F] Giant alloy, DBL, six-bolt [R] TRA HE, DBL, 72t pawl driver, 6 bolt |
| Spokes | Sapim Laser |
| Tyres | [F] Maxxis Minion DHF, 24×2.5, 60 TPI, folding,[R] Maxxis Minion DHR II, 24×2.4, 60 TPI, folding |
| Extras | Giant 1x chain guide |
Geometry
| One Size | ||
|---|---|---|
| A | SEAT TUBE LENGTH | 320 |
| B | SEAT TUBE ANGLE | 77 |
| C | TOP TUBE LENGTH | 500 |
| D | HEAD TUBE LENGTH | 105 |
| E | HEAD TUBE ANGLE | 64.5 |
| F | FORK RAKE | 30 |
| G | TRAIL | 119.2 |
| H | WHEEL BASE | 1054.1 |
| I | CHAIN STAY LENGTH | 390 |
| J | BOTTOM BRACKET DROP | 0 |
| K | STACK | 534.6 |
| L | REACH | 376.6 |
| M | STAND OVER HEIGHT | 641 |
| N | HANDLERBAR WIDTH | 680 |
| O | STEM LENGTH | 40 |
| P | CRANK LENGTH DEC | 140 |
| Q | WHEEL SIZE ALT | 24″ |
