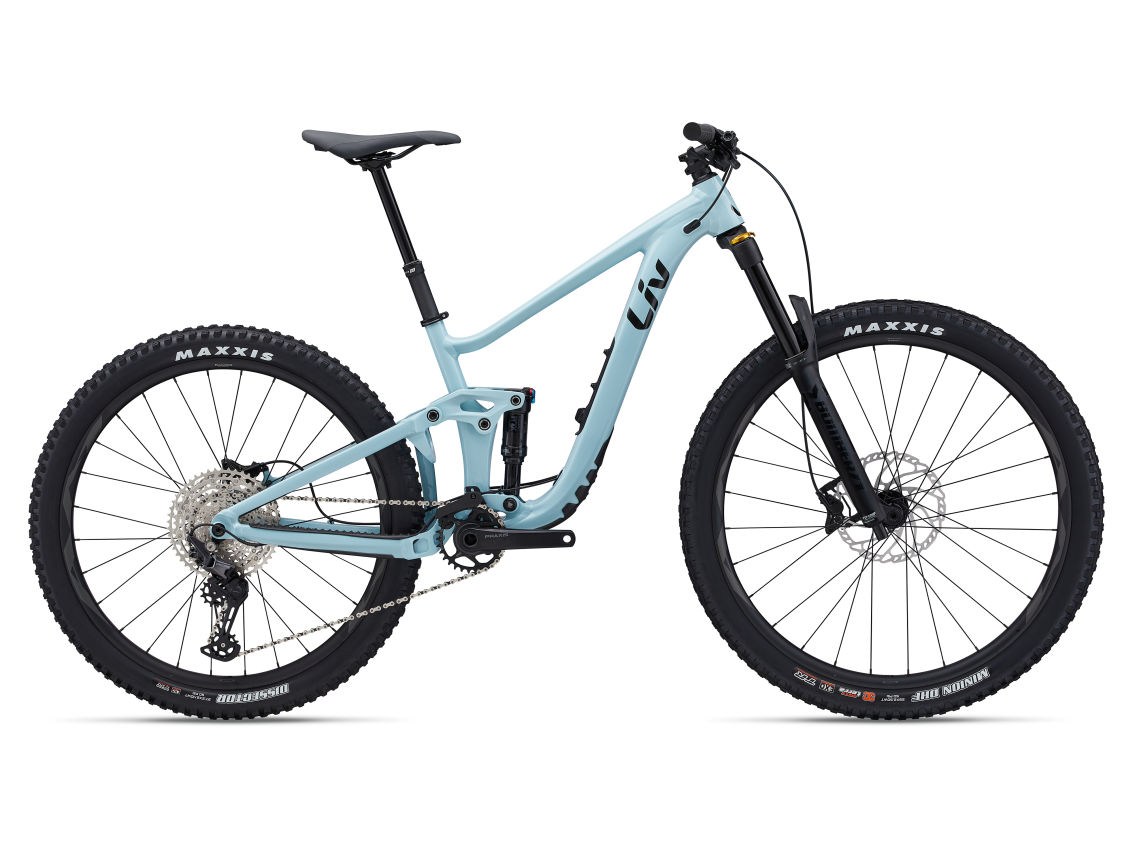

Intrigue LT 1 (2024) | Women bike
€3,449.00
Features:
Specifications
Whether you’re looking ahead to park days, staring down a rocky line you’re determined to conquer, or preparing for your first enduro race – the all-new Intrigue LT equips you with the versatility of adjustable frame geometry, the durability of ALUXX SL-grade aluminum and the ultra-smooth performance of Maestro suspension so you can say “YES!” to it all.
Key Performance Factors
Performance Long Travel Trail

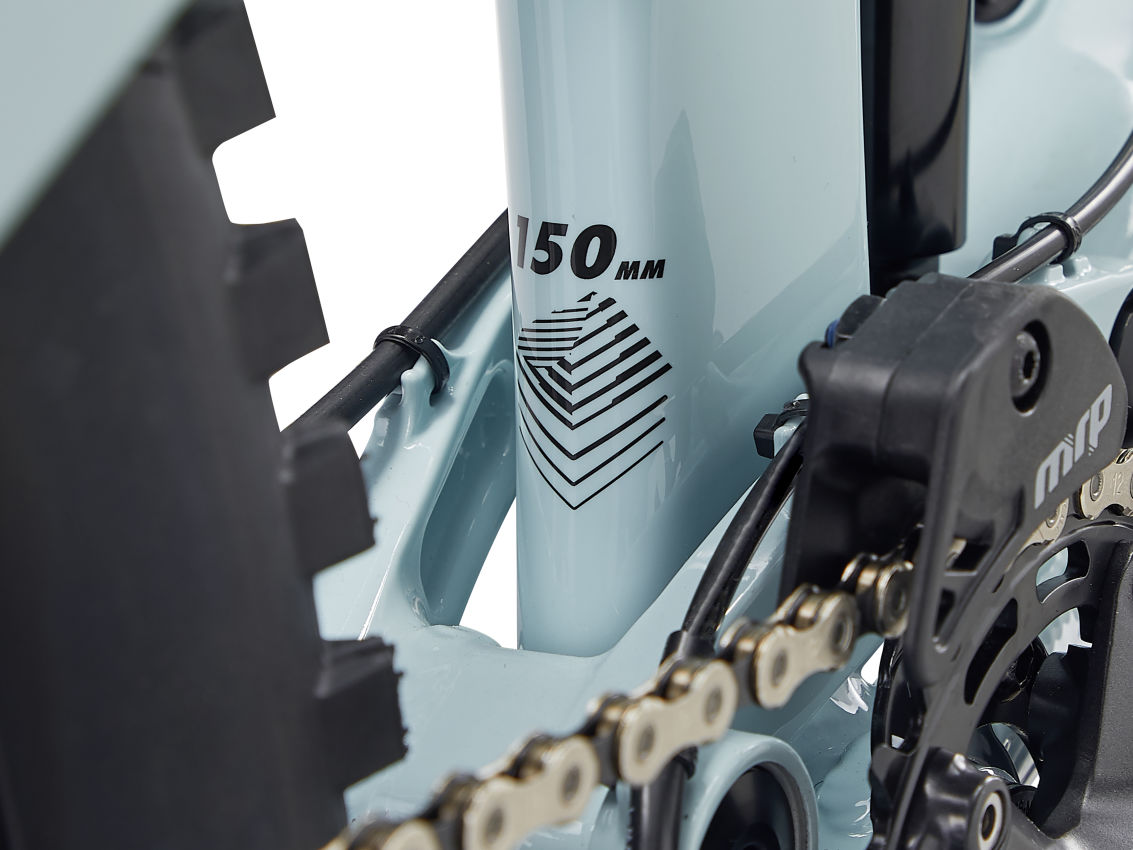

Lightweight Advanced-grade composite frameset with integrated down tube storage features a slacker head tube angle for confidence on technical terrain and a longer reach to keep you centered and in control in the corners. The 150mm of Maestro rear wheel suspension has been custom tuned by women who shred, for women who shred. And paired with 160mm of front suspension, you’ve got a bike that is equal parts agile and burly.
Adjustable Frame Geometry

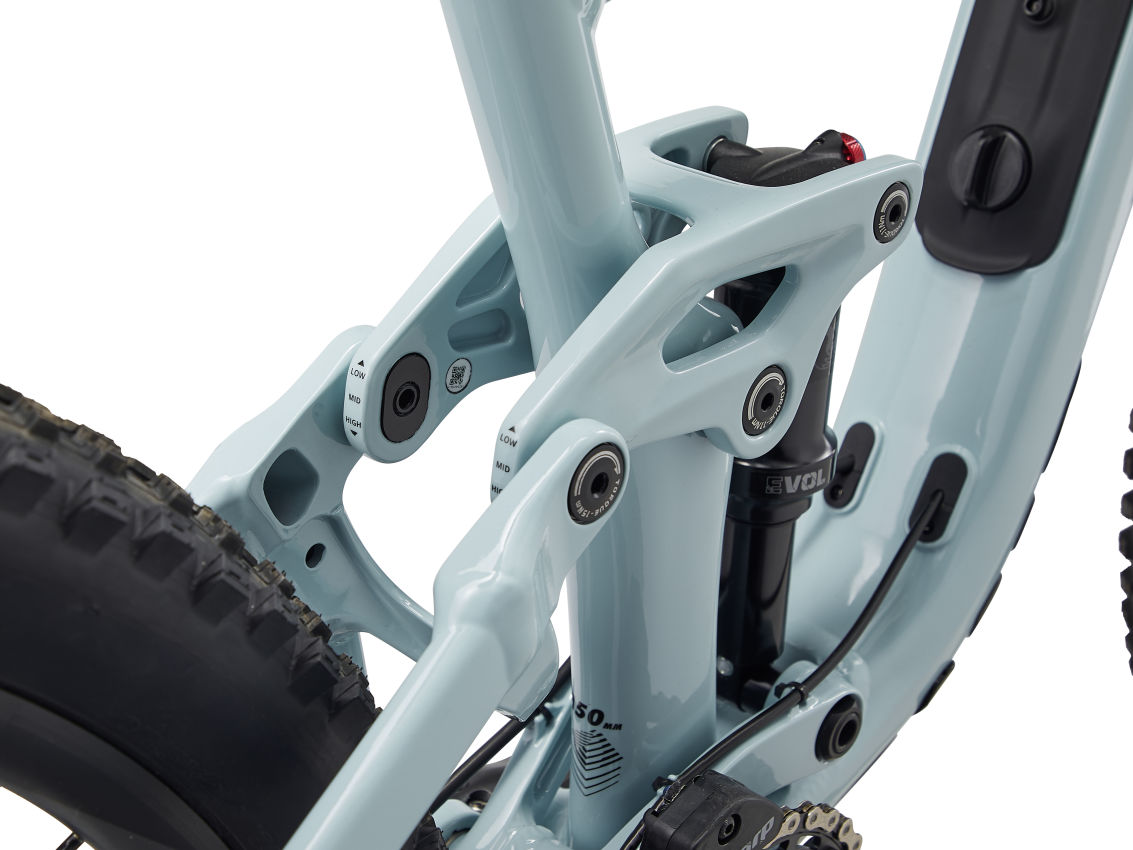

Equipped with the new flip chip – Maestro 3, you can easily change the head tube and seat tube angles, bottom bracket height and rear wheel size* to fine-tune handling for varying trail conditions and your personal riding style. *Sizes M and L only
Best of Both Wheels
Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimizes rear wheel travel, provides a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customize your set up for how and where you ride. *27.5-inch wheel sold separately for frame sizes M and L
| Sizes | XS, S: MX only, M, L: 29″ F&R out of the box, MX compatible |
|---|---|
| Colours | Soap Suds |

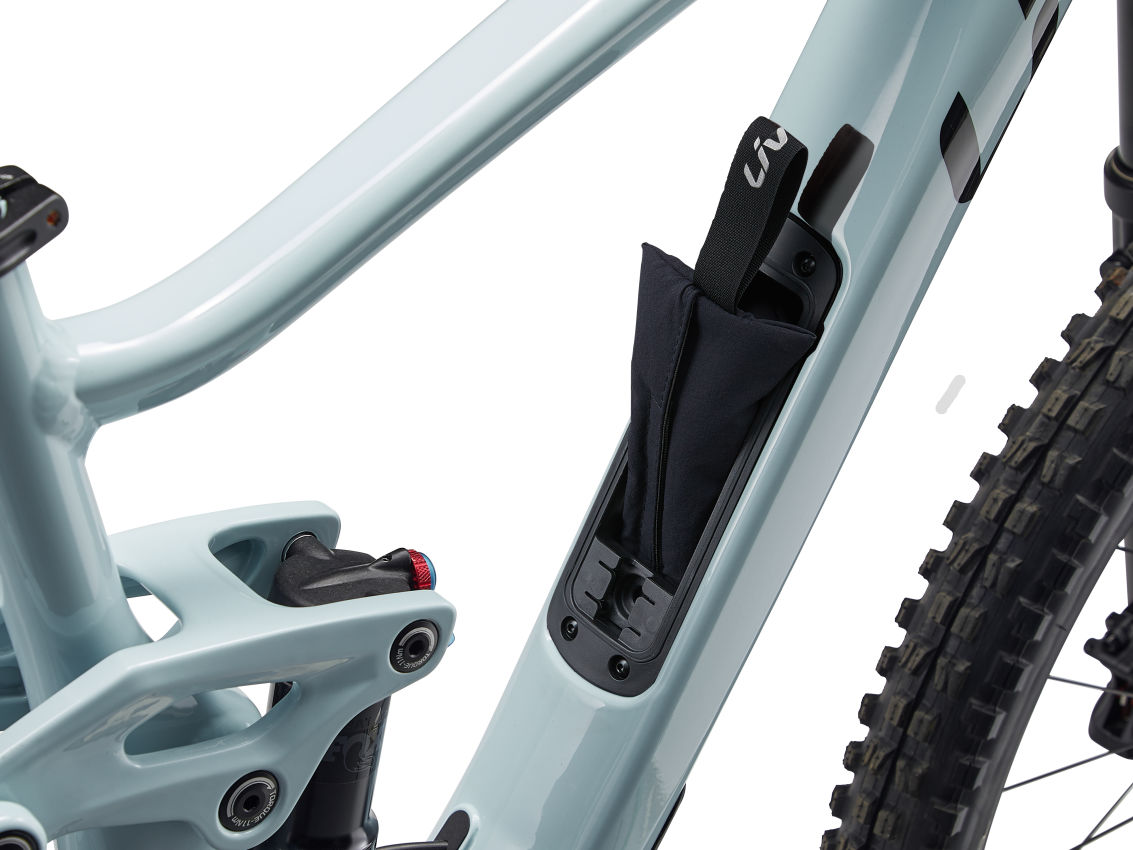

| Frame | ALUXX SL-grade aluminium front and rear triangles, 150mm Maestro Suspension, 3 position flip chip, integrated down tube storage |
| Fork | Marzocchi Bomber Z1, 160mm, Rail damper, Boost 15×110 Kabolt, tapered, 44mm offset |

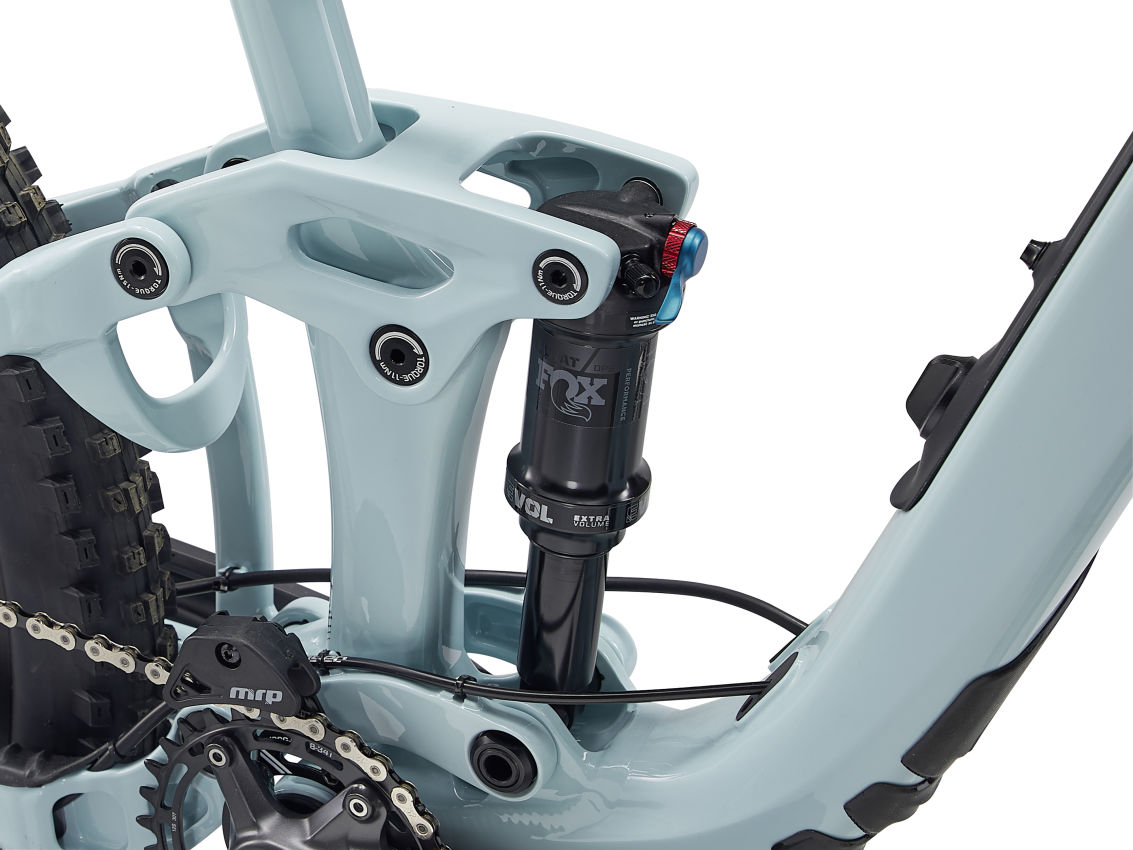

| Shock | Fox Float Performance 185×55, custom tuned for Liv |
| Handlebar | Giant Contact TR35, alloy, 35mm, 20mm rise |
| Grips | Liv Tactal Pro Single Lock-On |
| Stem | Giant Contact SL, 35mm |
| Seatpost | Giant Contact Switch dropper, remote XS: 100mm travel/ 30.9 x 345mm S: 125mm travel / 30.9 x 395mm M&L: 150mm travel / 30.9 x 440mm |
| Saddle | Liv Sylvia |
| Pedals | PEDALS NOT SUPPLIED |
| Shifters | Shimano Deore, 1×12 |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Deore, Shadow + |
| Brakes | Shimano BR-MT420, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm |
| Brake Levers | Shimano BL-MT401 |
| Cassette | Shimano Deore M6100, 10×51 |
| Chain | KMC X12 |
| Crankset | Praxis Cadet, steel chain ring 30t, 52mm chainline |
| Bottom Bracket | Praxis, press fit |
| Rims | Giant AM, tubeless ready, sleeve-joint, 30mm inner width XS/S: [F] 29, [R] 27.5 M/L: [F] 29, [R] 29 |
| Hubs | alloy |
| Spokes | Stainless steel |
| Tyres | [F]: Maxxis Minion DHF 29×2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S, [R]: Maxxis Dissector 27.5×2.4WT, 3C Max Terra, EXO, TR, tubeless Size M and L, [R]: Maxxis Dissector 29×2.4WT, 3C Max Terra, EXO, TR, tubeless |
| Extras | MRP chain guide, 3M tailgate protector, factory tubeless set up, integrated down tube storage bag, max tyre size 2.5″, max chainring size 32t |
Geometry
| XS | L | S | M | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 370 | 450 | 390 | 420 |
| B | SEAT TUBE ANGLE | 76.2 | 77.3 | 76.2 | 77.3 |
| C | TOP TUBE LENGTH | 552 | 603 | 567 | 581 |
| D | HEAD TUBE LENGTH | 95 | 110 | 95 | 100 |
| E | HEAD TUBE ANGLE | 64.7 | 64.8 | 64.6 | 64.8 |
| F | FORK RAKE | 44 | 44 | 44 | 44 |
| G | TRAIL | 131 | 130.5 | 131.6 | 130.6 |
| H | WHEEL BASE | 1166 | 1232 | 1183 | 1208 |
| I | CHAIN STAY LENGTH | 443 | 443 | 443 | 443 |
| J | BOTTOM BRACKET DROP | 25 | 35 | 24 | 35 |
| K | STACK | 629 | 637 | 628 | 628 |
| L | REACH | 398 | 459 | 413 | 439 |
| M | STAND OVER HEIGHT | 613 | 750 | 674 | 712 |
| N | HANDLERBAR WIDTH | 760 | 780 | 760 | 760 |
| O | STEM LENGTH | 40 | 50 | 50 | 50 |
| P | CRANK LENGTH DEC | 165 | 170 | 170 | 170 |
| Q | WHEEL SIZE ALT | F 29 | R 27.5 | 29″ | F 29 | R 27.5 | 29″ |
Technology and Features
