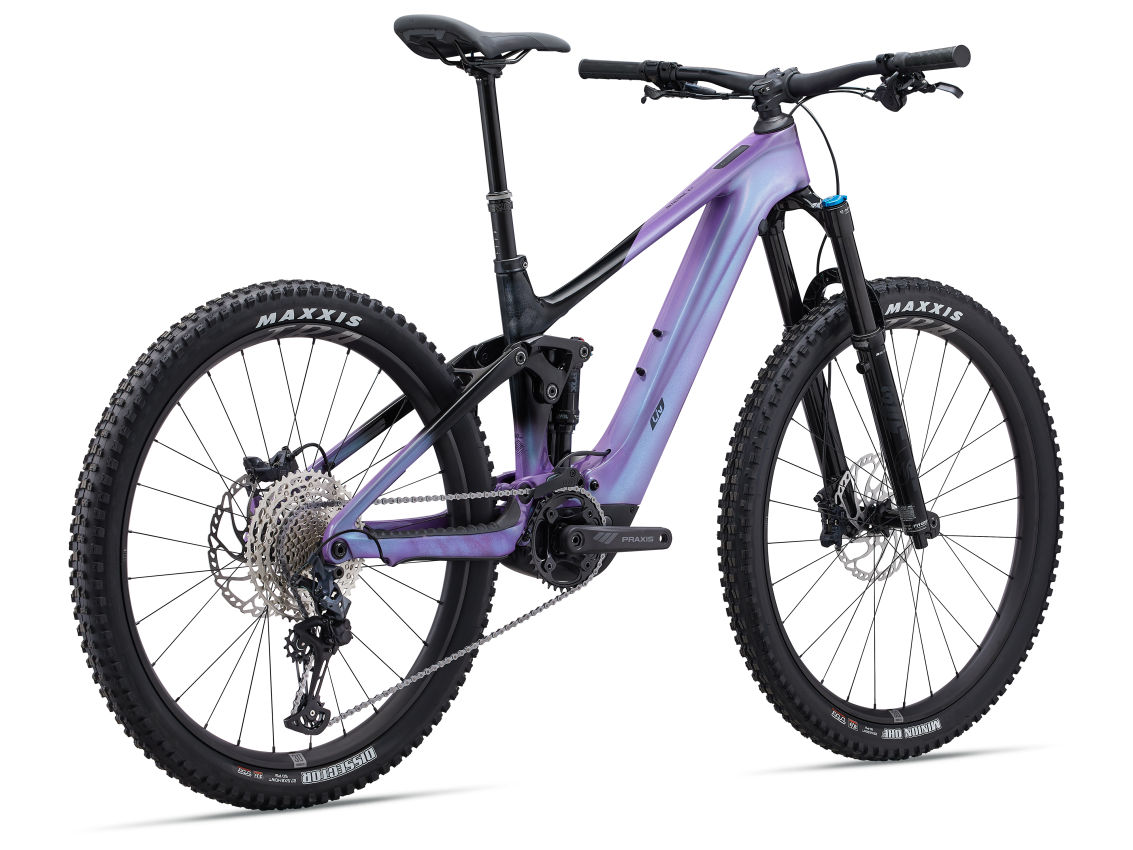

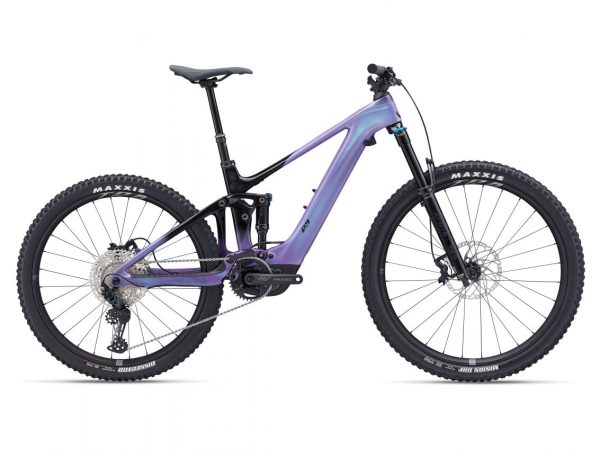

Intrigue X Advanced E+ Elite 2 (2024) | Women bike
€7,299.00
Features:
Specifications
Next-level performance and unforgettable fun await you on this premium E-MTB. The cutting-edge Intrigue X Advanced E+ Elite is remarkably light yet super powerful. Get ready to feel like a pro as you shred technical terrain with confidence, accelerate up climbs, and corner at top speed.
Key Performance Factors
Lightweight and nimble
This full-suspension E-MTB, with its short chainstay and 140mm (rear)/150mm (front) travel, is engineered to create an ultra-light, efficient and responsive ride. Exceptional shock absorption is an added bonus on rock gardens.
Powerful and smooth
A potent 85Nm of torque delivered by the lightweight SyncDrive Pro 2 Mg motor is smooth and instant, keeping you efficient and in control at all times. The ultra-slim, 400Wh battery hidden in the down tube minimises weight and provides a perfect balance of efficiency and range.
Sleek design

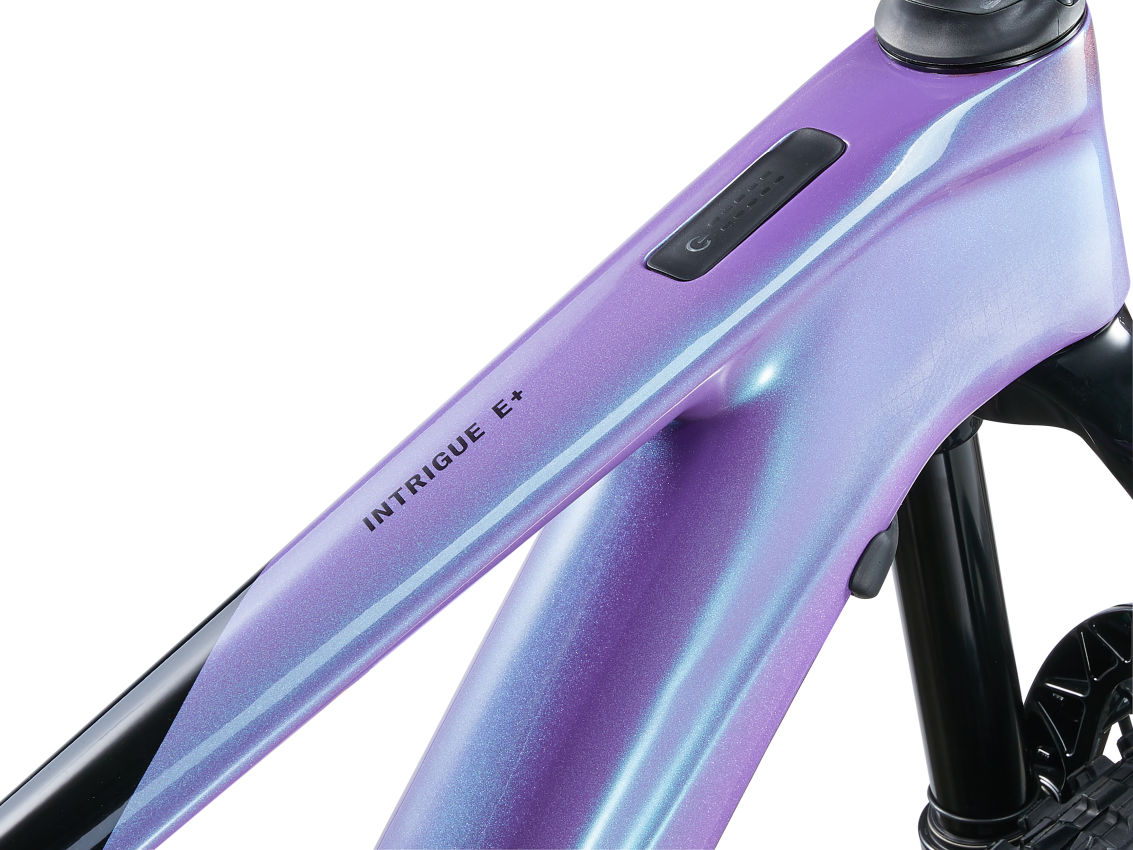

From the integrated control unit to the sleek console on the top tube and the internal cable routing, every design element embodies a high-end, modern look. It combines leading-edge E-MTB design with a user-friendly experience.

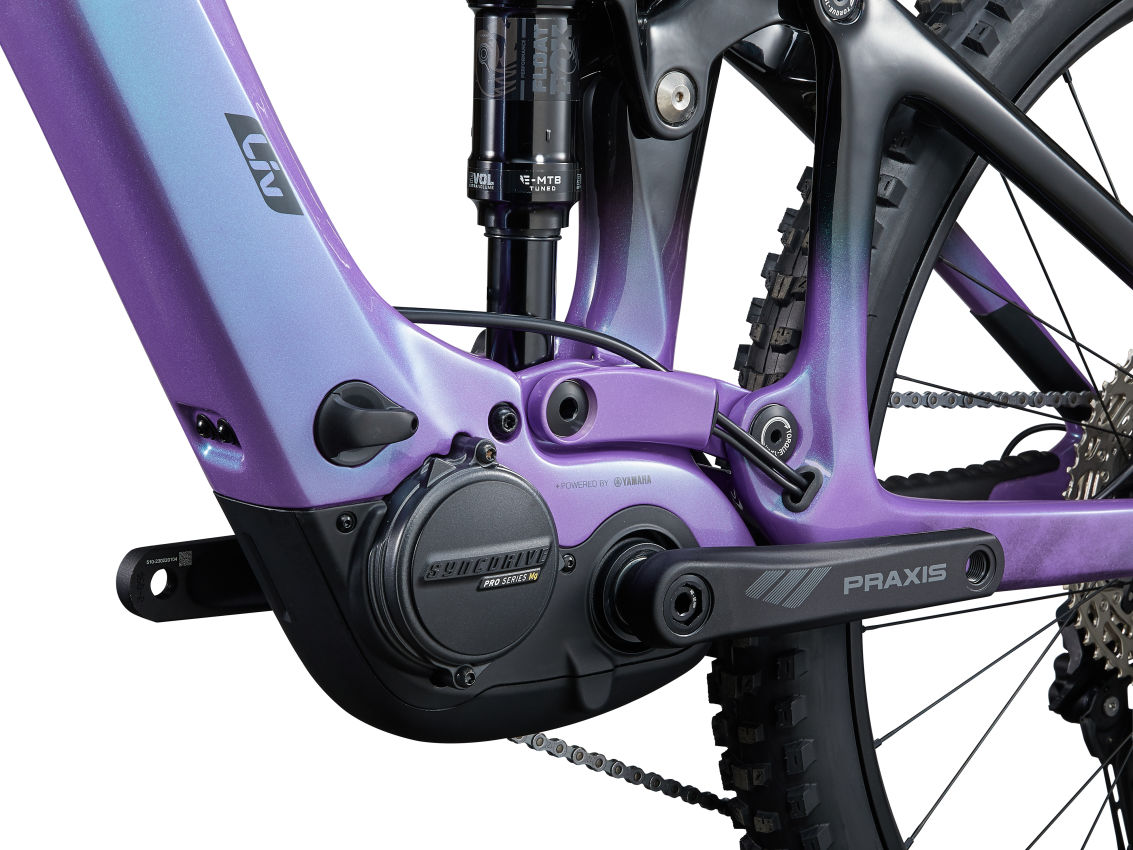

| Motor | Giant SyncDrive Pro2 Magnesium 85Nm, PedalPlus 6-Sensor technology |
|---|---|
| Controller | Giant RideControl Ergo3, grip integrated remote |
| Display | Giant RideControl GO, frame integrated LED consoleOptional wireless ANT+ display |
| Battery | Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible |
| Charger | Giant EnergyPak 4A smart charger, 60% in 1:45 |
| Connectivity | Giant RideControl App enabled ANT+ wireless display signal with e-bike profile |
| Sizes | XS, S, M, L |
| Colours | Gloss Digital Blurple / Black |
| Frame | Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system |

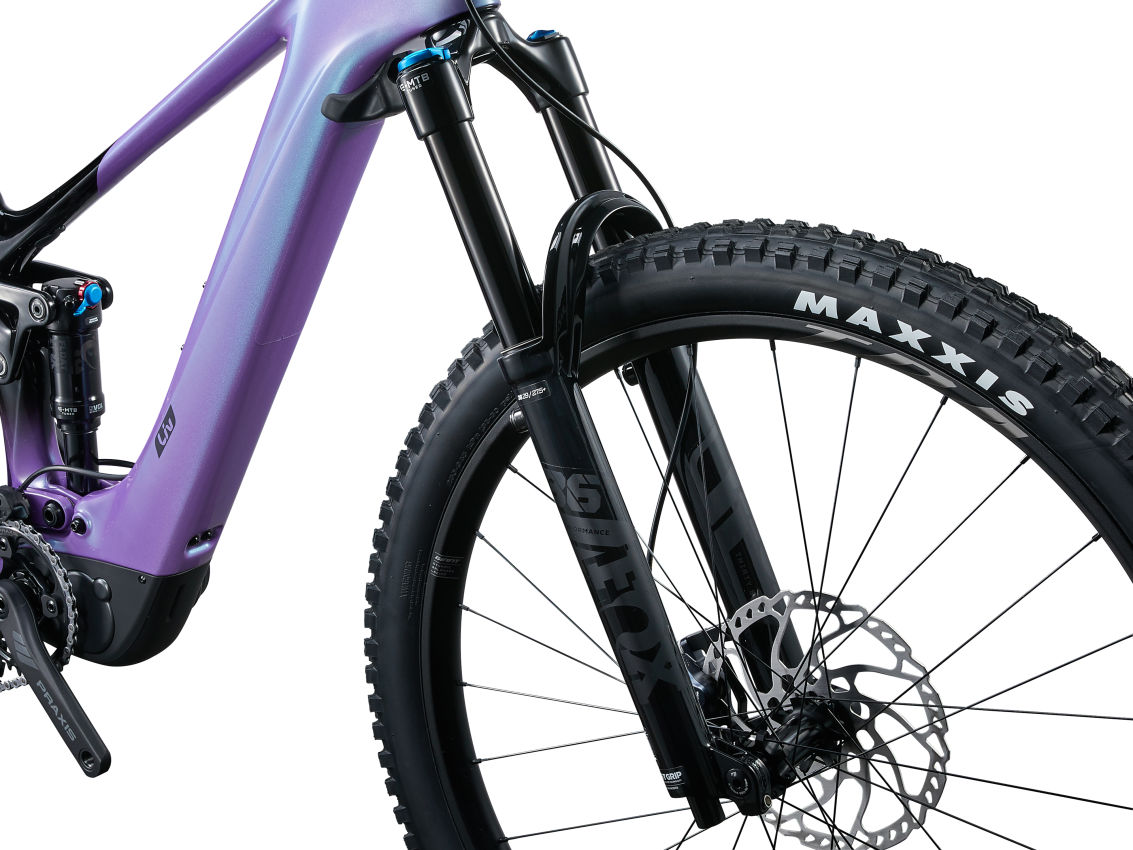

| Fork | Fox 36 Float Performance E-Tuned, 29er, 150mm travel, 44mm offset, Grip Damper, Kabolt-X 110 |
| Shock | Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185×52.5mm Trunnion mount, custom tuned |
| Handlebar | Giant Contact 35 Trail |
| Grips | Liv Tactal Pro-E Single Lock-On Grips |
| Stem | Giant Contact SL 35 |
| Seatpost | Tranz-X Rad+ dropper, 30,9mm, 30mm travel adjustable (XS/S:90-125mm, M:120-150mm, L:140-170mm) |
| Saddle | Liv Sylvia E+ |
| Pedals | PEDALS NOT SUPPLIED |
| Shifters | Shimano SLX 1×12 |
| Front Derailleur | MRP HD2 co-moulded chain guide |
| Rear Derailleur | Shimano SLX |
| Brakes | Shimano SLX, BR-M7120, 4-piston, hydraulic disc, 203mm |
| Brake Levers | Shimano SLX, I-spec EV |
| Cassette | Shimano HG-M6100, 10-51T |
| Chain | KMC e.12 Turbo, EcoProteq, e-bike optimised |
| Crankset | Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-Cranks |
| Bottom Bracket | n/a |
| Rims | E-TRA Hookless Tubeless ready Alloy 29 [F] / 27.5 [R] 30mm inner width |
| Hubs | E-TRA MTB Alloy Hub, 6 Bolt, 110×15 [F] / 148×12 Shimano Micro-Spline Drive Body Pawl Driver (Pawl 36×2 T) Thru-axle [R] |
| Tyres | Maxxis Minion DHF 29X2.50″ Foldable, TLR, EXO [F]Maxxis Dissector 27.5×2.4″ Foldable, TLR, EXO [R] |
| Extras | Tubeless kit (liquid, valves, levers, manual, tool) Inner tube supplied |
| Lighting | Optional:- Giant Recon series e-bike lights available and direct connectable |
Geometry
| M | L | XS | S | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 425 | 450 | 380 | 400 |
| B | SEAT TUBE ANGLE | 76 | 76 | 77.2 | 77.2 |
| C | TOP TUBE LENGTH | 597 | 622 | 557 | 572 |
| D | HEAD TUBE LENGTH | 100 | 115 | 95 | 95 |
| E | HEAD TUBE ANGLE | 65.8 | 65.8 | 65.7 | 65.7 |
| F | FORK RAKE | 44 | 44 | 44 | 44 |
| G | TRAIL | 113.1 | 113.1 | 113.1 | 113.1 |
| H | WHEEL BASE | 1200 | 1228 | 1174 | 1188 |
| I | CHAIN STAY LENGTH | 447 | 447 | 447 | 447 |
| J | BOTTOM BRACKET DROP | 30 | 30 | 30 | 30 |
| K | STACK | 611 | 625 | 606 | 606 |
| L | REACH | 444 | 466 | 419 | 434 |
| M | STAND OVER HEIGHT | 717 | 711 | 722 | 726 |
| N | HANDLERBAR WIDTH | 800 | 800 | 760 | 760 |
| O | STEM LENGTH | 40 | 50 | 40 | 40 |
| P | CRANK LENGTH DEC | 165 | 165 | 160 | 160 |
| Q | WHEEL SIZE ALT | [F] 29″ [R | [F] 29″ [R | [F] 29″ [R | [F] 29″ [R |
