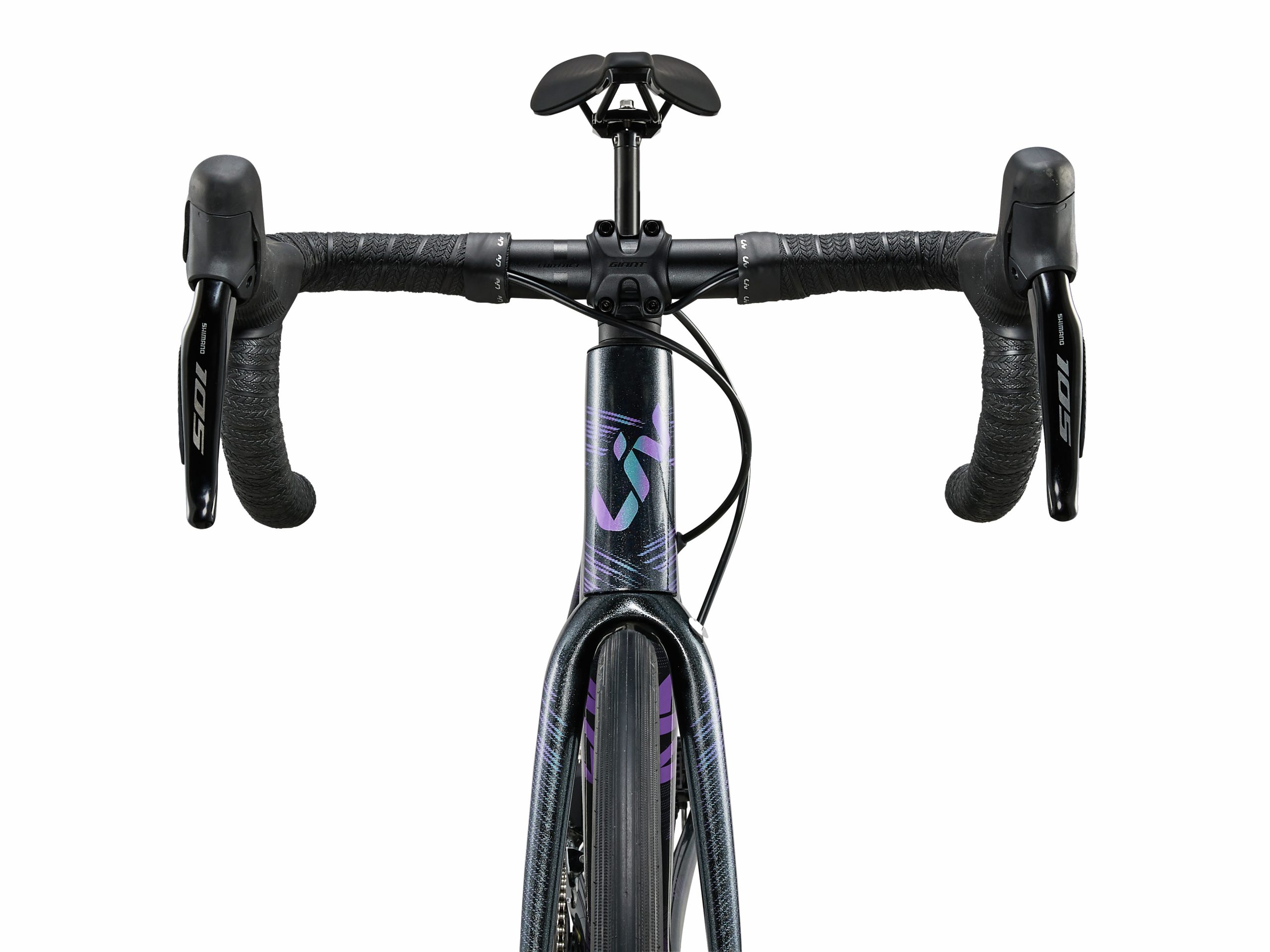

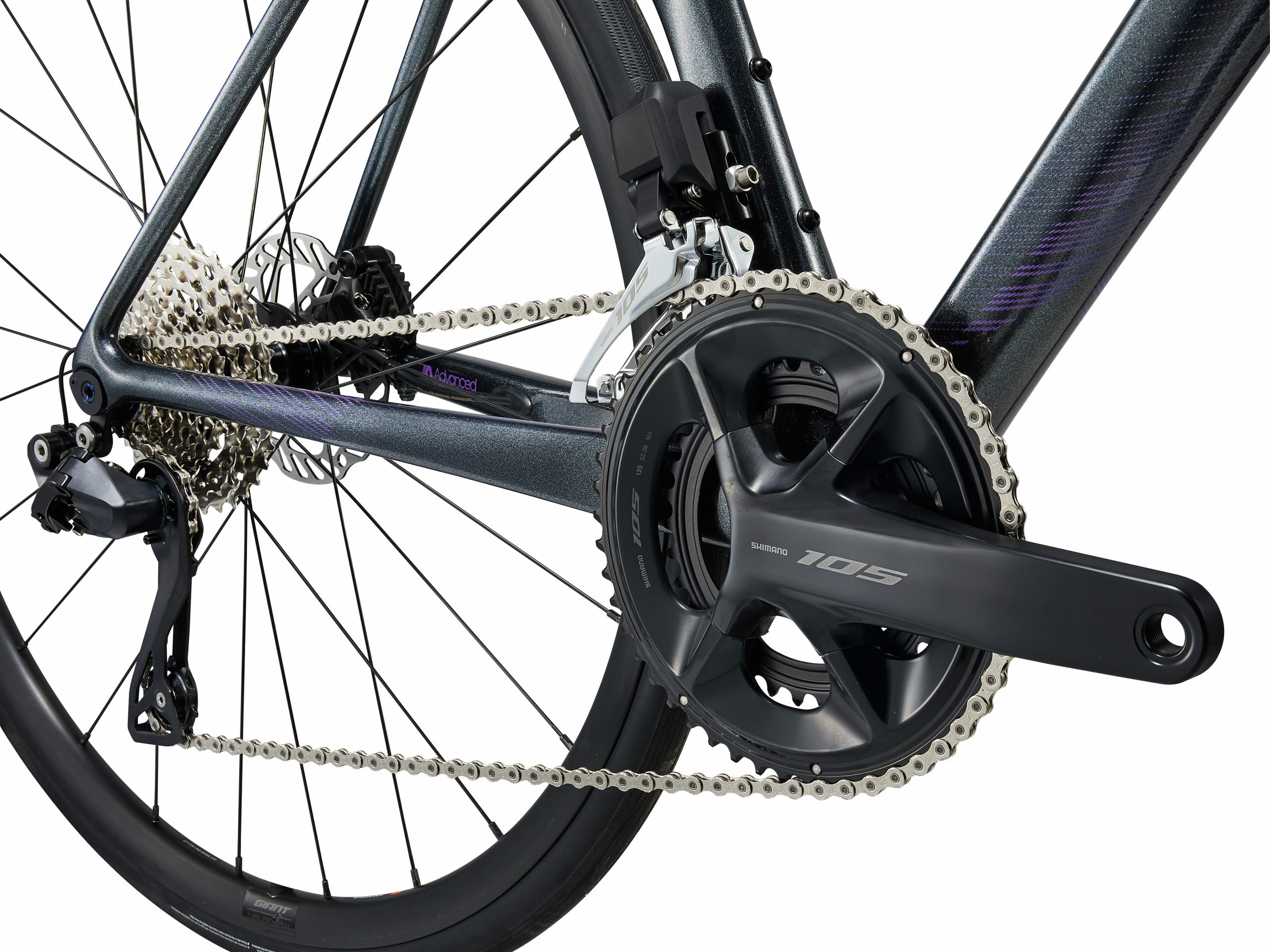

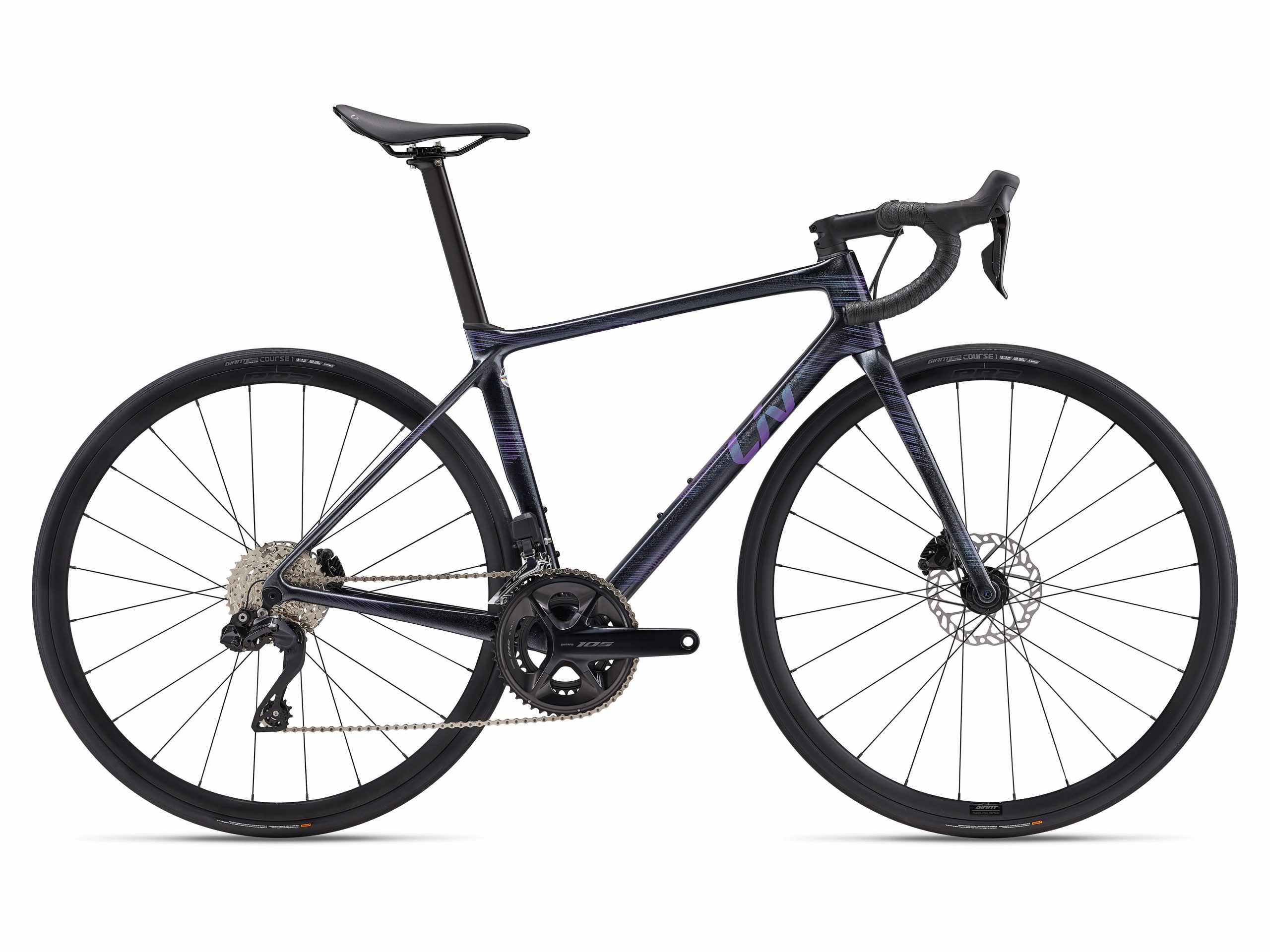

Langma Advanced Disc 1 (2024) | Women bike
€3,499.00
Features:
Specifications
Whether you’re in it for the love of the climb, the rush of the descent, or the next PR, the Langma Advanced Disc is ready with its re-engineered lightweight aero frame and all-new Giant SLR 36 Disc WheelSystem (select models) with integrated disc brakes, plus custom Liv saddle and handlebars for powerful fit and performance.
Key Performance Factors
Accelerate faster
The heart of the Langma Advanced is a super-light Advanced-grade composite frameset, delivering a powerful stiffness-to-weight ratio for explosive acceleration. Updated truncated ellipse tubing reduces wind drag and boosts sprinting efficiency.
Better handling
Integrated, flat-mount disc brakes deliver the confidence to carry speed into corners and navigate variable weather conditions. The Langma also accommodates tires up to 32mm, so you can customize your set-up for the road ahead.
Vibration canceling
The tubeless Giant SLR 36 Disc WheelSystem (select models) reduces drag, while the adjustable Variant Composite Seatpost provides superior compliance, so you get a responsive ride that practically skims over rough roads.
| Sizes | XS, S, M, L |
|---|---|
| Colours | Gloss Black Diamond/Digital Blurple |
| Frame | Advanced-grade composite, 12x142mm thru-axle, disc |
| Fork | Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc |
| Shock | N/A |
| Handlebar | Liv Contact XS: 360mm, S: 380mm, M: 400mm, L: 420mm |
| Grips | Liv All Condition |
| Stem | Giant Contact XS: 80mm, S: 90mm, M: 100mm, L: 110mm |
| Seatpost | Giant Variant, composite |
| Saddle | Liv Approach |
| Pedals | PEDALS NOT SUPPLIED |
| Shifters | Shimano 105 Di2 2×12 |
| Front Derailleur | Shimano 105 Di2 |
| Rear Derailleur | Shimano 105 Di2 |
| Brakes | Shimano 105 hydraulic, stainless rotors [F]160mm, [R]140mm |
| Brake Levers | Shimano 105 Di2 |
| Cassette | Shimano Di2, 12-speed, 11×34 |
| Chain | KMC X12 |
| Crankset | Shimano 105, 36/52 XS: 165mm, S: 170mm, M: 170mm, L: 172.5mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant P-R2 Disc wheelset, alloy |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | Sapim |
| Tyres | Giant Course 1, tubeless, 700x25c (28mm), folding |
| Extras | factory tubeless set up, 32mm max tyre size |
Geometry
| XS | S | L | M | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 420 | 450 | 510 | 480 |
| B | SEAT TUBE ANGLE | 75 | 74.5 | 73.5 | 74 |
| C | TOP TUBE LENGTH | 508 | 524 | 555 | 540 |
| D | HEAD TUBE LENGTH | 120 | 135 | 175 | 155 |
| E | HEAD TUBE ANGLE | 71 | 72 | 72.5 | 72.5 |
| F | FORK RAKE | 49 | 49 | 49 | 49 |
| G | TRAIL | 67.8 | 61.4 | 58.2 | 58.2 |
| H | WHEEL BASE | 973 | 977 | 996 | 984 |
| I | CHAIN STAY LENGTH | 405 | 405 | 405 | 405 |
| J | BOTTOM BRACKET DROP | 72 | 70 | 67 | 70 |
| K | STACK | 517 | 532 | 569 | 553 |
| L | REACH | 370 | 377 | 386 | 382 |
| M | STAND OVER HEIGHT | 700 | 730 | 790 | 760 |
| N | HANDLERBAR WIDTH | 360 | 380 | 420 | 400 |
| O | STEM LENGTH | 80 | 90 | 110 | 100 |
| P | CRANK LENGTH DEC | 165 | 170 | 172.5 | 170 |
| Q | WHEEL SIZE ALT | 700C | 700C | 700C | 700C |
