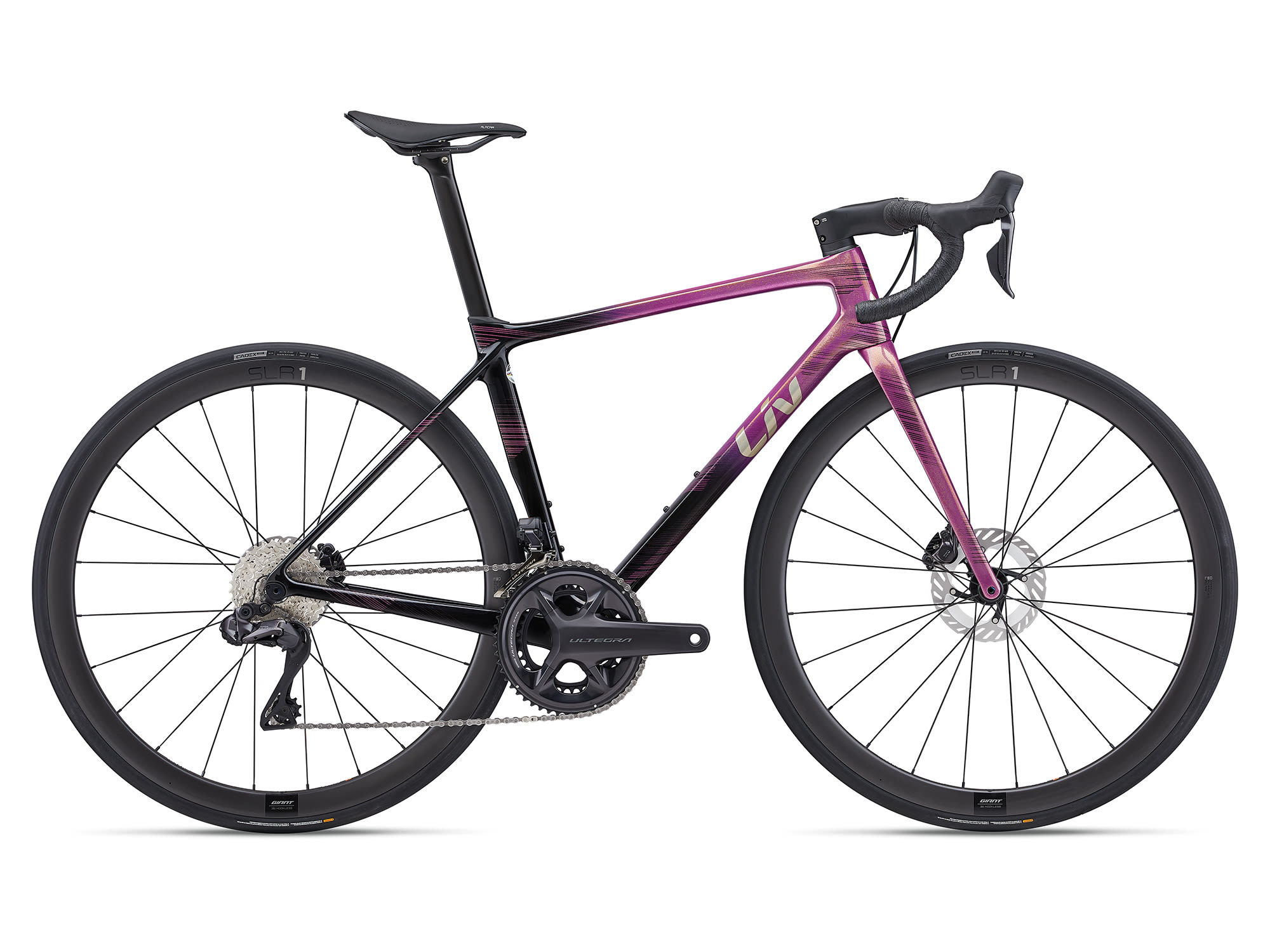

Langma Advanced SL Disc 1 (2024) | Women bike
€9,199.00
Features:
Specifications
Already favored by climbing addicts and WorldTour racers, the all-new Langma Advanced SL Disc is redesigned to be lighter, stiffer, and ready to throw down on race day.
Key Performance Factors
Featherweight efficiency
The heart of the Langma is an ultra-light Advanced SL-grade composite frameset—which we’ve rebuilt with longer, more continuous pieces of carbon fiber for a stiffer bike that’s 60 grams lighter.* So you get a responsive ride that accelerates immediately,
Intuitive handling
We’ve re-engineered the Langma fork for 50% more lateral stiffness,* for precise handling and responsiveness. An oversized headset and all-new Liv Contact SLR handlebar boost control without sacrificing aerodynamics. Integrated, flat-mount disc brakes del
Aero advantage
Updated truncated ellipse tubing reduces wind drag at a wider range of yaw angles, gaining you precious seconds in flats, descents, and headwinds. Our relentless testing and refinement have also inspired the development of the new fully-carbon Variant SLR
| Sizes | XS, S, M |
|---|---|
| Colours | Gloss Mulberry Glitter/Carbon Smoke |
| Frame | Advanced SL-grade composite, 12x142mm thru-axle, disc |
| Fork | Advanced SL-grade composite, full-composite OverDrive 2 steerer, 12x100mm, disc |
| Shock | N/A |
| Handlebar | Liv Contact SLR XS: 360mm, S: 380mm, M: 400mm |
| Grips | Liv All Condition |
| Stem | Giant Contact SLR XS: 80mm, S: 90mm, M: 100mm |
| Seatpost | Giant Variant SLR, composite |
| Saddle | Liv Alacra SLR |
| Pedals | PEDALS NOT SUPPLIED |
| Shifters | Shimano Ultegra Di2 ST-R8170 2×12 |
| Front Derailleur | Shimano Ultegra Di2 FD-R8150 |
| Rear Derailleur | Shimano Ultegra Di2 RD-R8150 |
| Brakes | Shimano Ultegra Di2 hydraulic, Shimano RT-MT800 rotors [F]160mm, [R]140mm |
| Brake Levers | Shimano Ultegra Di2 |
| Cassette | Shimano Ultegra, 12-speed, 11×34 |
| Chain | Shimano Ultegra |
| Crankset | Shimano Ultegra, 36/52 with Giant Power Pro power meter XS: 165mm, S: 170mm, M: 170mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant SLR 1 36 Carbon Disc WheelSystem, [F] 36mm, [R] 36mm |
| Hubs | [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle |
| Spokes | Sapim CX-Ray |
| Tyres | CADEX Race, tubeless, 700x25c (28mm), folding |
| Extras | computer mount, factory tubeless set up, 32mm max tyre size |

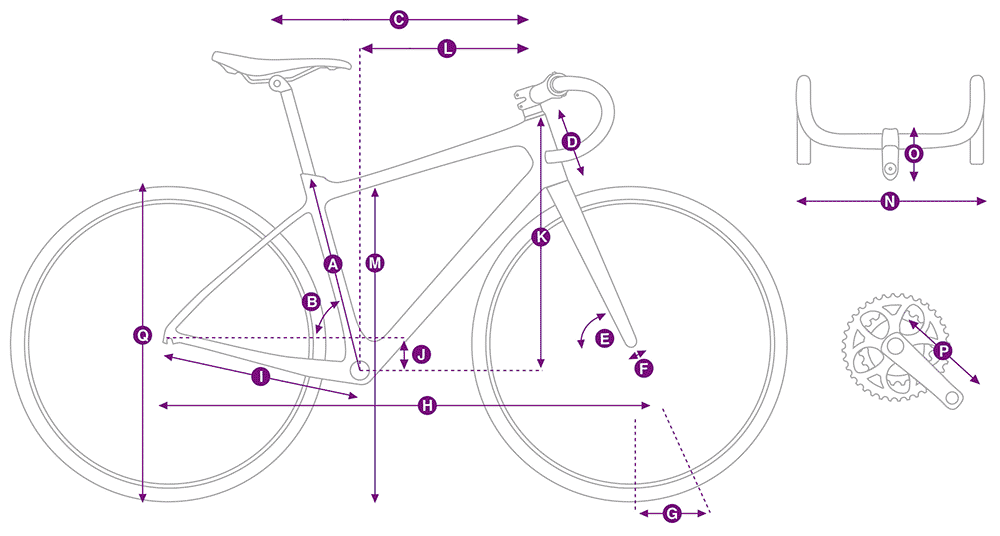

Geometry
| S | M | XS | ||
|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 450 | 480 | 420 |
| B | SEAT TUBE ANGLE | 74.5 | 74 | 75 |
| C | TOP TUBE LENGTH | 524 | 540 | 508 |
| D | HEAD TUBE LENGTH | 135 | 155 | 120 |
| E | HEAD TUBE ANGLE | 72 | 72.5 | 71 |
| F | FORK RAKE | 49 | 49 | 49 |
| G | TRAIL | 61.4 | 58.2 | 67.8 |
| H | WHEEL BASE | 977 | 984 | 973 |
| I | CHAIN STAY LENGTH | 405 | 405 | 405 |
| J | BOTTOM BRACKET DROP | 70 | 70 | 72 |
| K | STACK | 532 | 553 | 517 |
| L | REACH | 377 | 382 | 370 |
| M | STAND OVER HEIGHT | 730 | 760 | 700 |
| N | HANDLERBAR WIDTH | 380 | 400 | 360 |
| O | STEM LENGTH | 90 | 100 | 80 |
| P | CRANK LENGTH DEC | 170 | 170 | 165 |
| Q | WHEEL SIZE ALT | 700C | 700C | 700C |
