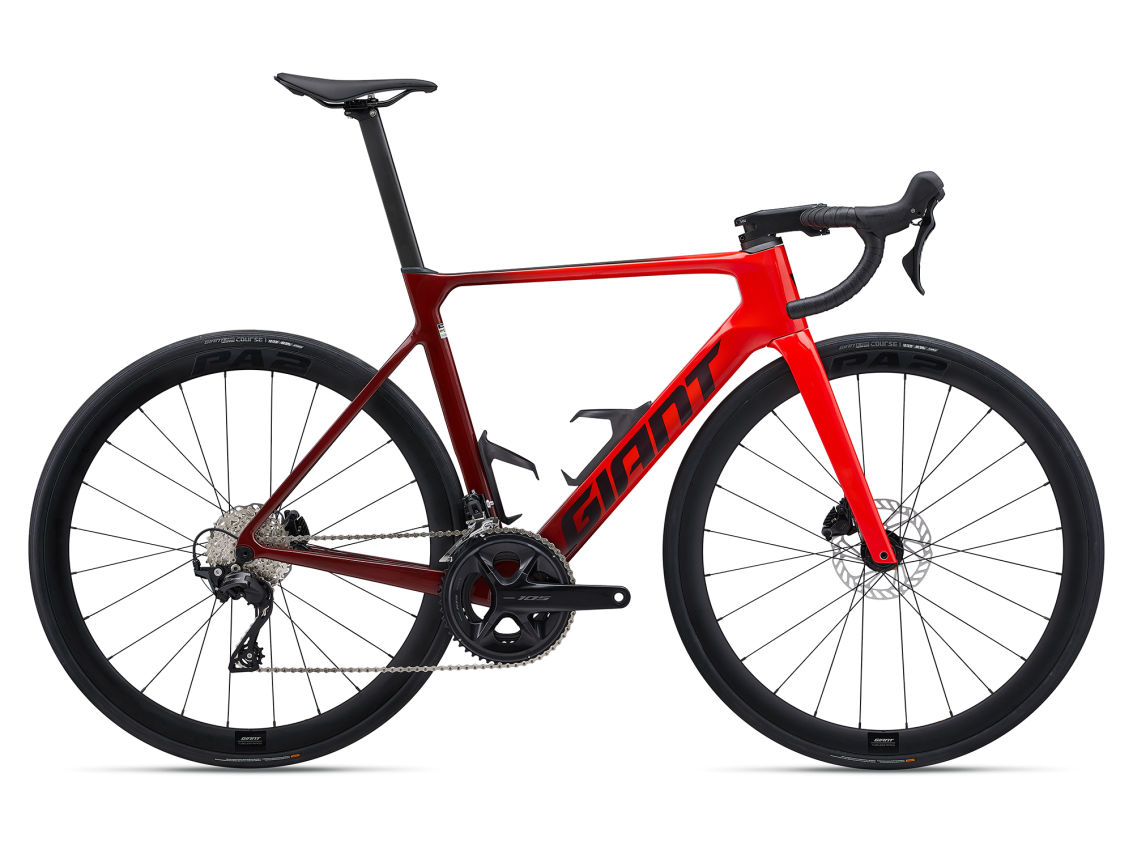

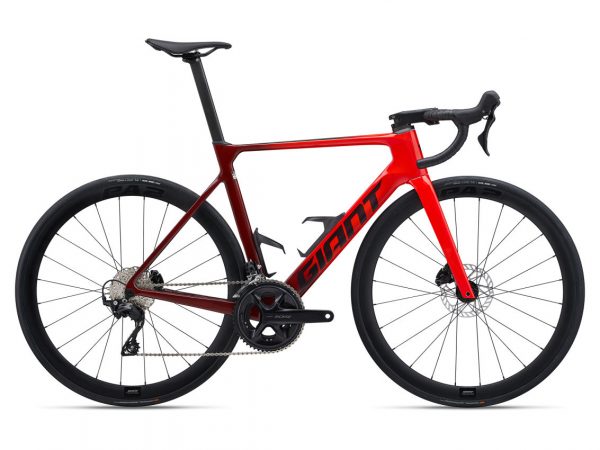

Propel Advanced 2 (2024) | bike
€3,499.00
Features:
Specifications
Maximize your watts during sprints, breakaways and solo attacks. This aero road machine is built to give you a real advantage against the wind. Because small gains lead to big wins.
Key Performance Factors
Integrated aerodynamics
AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimizes aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and all-new Contact SL Aero cockpit produce superior aero performance.
Easier adjustability
All-new cable routing through the stem and head tube makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.
Race-winning efficiency
Advanced-grade composite frame and hybrid alloy/composite fork deliver optimal stiffness and weight savings. The result is an even greater stiffness-to-weight advantage.
| Sizes | XS, S, M, M/L, L, XL |
|---|---|
| Colours | Gloss Pure Red/Dried Chilli |
| Frame | Advanced-grade composite, disc |
| Fork | Advanced-grade composite, full-composite OverDrive Aero steerer, disc |
| Shock | N/A |
| Handlebar | Giant Contact SL Aero XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm |
| Grips | Stratus Lite 2.0 |
| Stem | Giant Contact SL Aero XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm |
| Seatpost | Giant Vector, composite, -5/+15mm offset |
| Saddle | Giant Fleet SL |
| Pedals | PEDALS NOT SUPPLIED |
| Shifters | Shimano 105 2×12 |
| Front Derailleur | Shimano 105 |
| Rear Derailleur | Shimano 105 |
| Brakes | Shimano 105 hydraulic, Giant MPH rotors [F]160mm, [R]140mm |
| Brake Levers | Shimano 105 hydraulic |
| Cassette | Shimano 105, 12-speed, 11×34 |
| Chain | KMC X12EL-1 |
| Crankset | Shimano 105, 36/52 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant P-A2 Disc, alloy |
| Hubs | Giant P-A2 Disc, 12mm thru-axle |
| Spokes | Sapim |
| Tyres | Giant Gavia Course 1, tubeless,700x25c (28mm), folding |
| Extras | computer mount, water bottle cages, factory tubeless set up, 30mm max tyre size |
Geometry
| S | XS | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 500 | 465 | 520 | 545 | 575 | 595 |
| B | SEAT TUBE ANGLE | 74 | 74.5 | 73.5 | 73 | 73 | 72.5 |
| C | TOP TUBE LENGTH | 535 | 520 | 550 | 565 | 580 | 600 |
| D | HEAD TUBE LENGTH | 130 | 120 | 145 | 165 | 185 | 200 |
| E | HEAD TUBE ANGLE | 72.3 | 71 | 73 | 73 | 73 | 73 |
| F | FORK RAKE | 45 | 45 | 45 | 45 | 45 | 45 |
| G | TRAIL | 62.5 | 70.5 | 57.8 | 57.8 | 57.8 | 57.8 |
| H | WHEEL BASE | 977 | 976 | 980 | 991 | 1006 | 1020 |
| I | CHAIN STAY LENGTH | 405 | 405 | 405 | 405 | 405 | 405 |
| J | BOTTOM BRACKET DROP | 70 | 72 | 70 | 67 | 67 | 67 |
| K | STACK | 528 | 517 | 545 | 562 | 581 | 596 |
| L | REACH | 383 | 376 | 388 | 393 | 402 | 412 |
| M | STAND OVER HEIGHT | 753 | 722 | 770 | 794 | 821 | 834 |
| N | HANDLERBAR WIDTH | 400 | 400 | 420 | 420 | 440 | 440 |
| O | STEM LENGTH | 90 | 80 | 100 | 110 | 110 | 120 |
| P | CRANK LENGTH DEC | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Q | WHEEL SIZE ALT | 700C | 700C | 700C | 700C | 700C | 700C |
