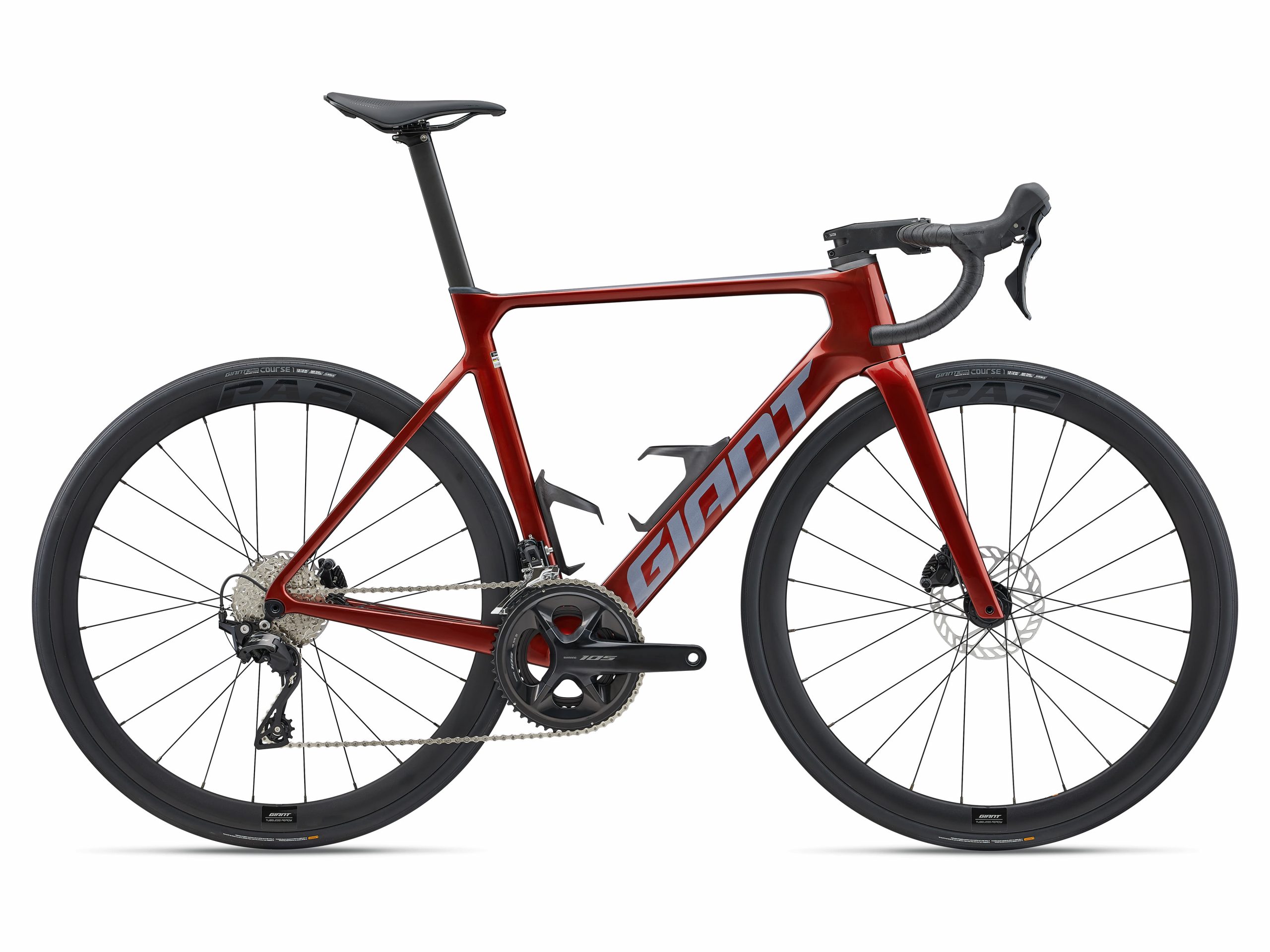

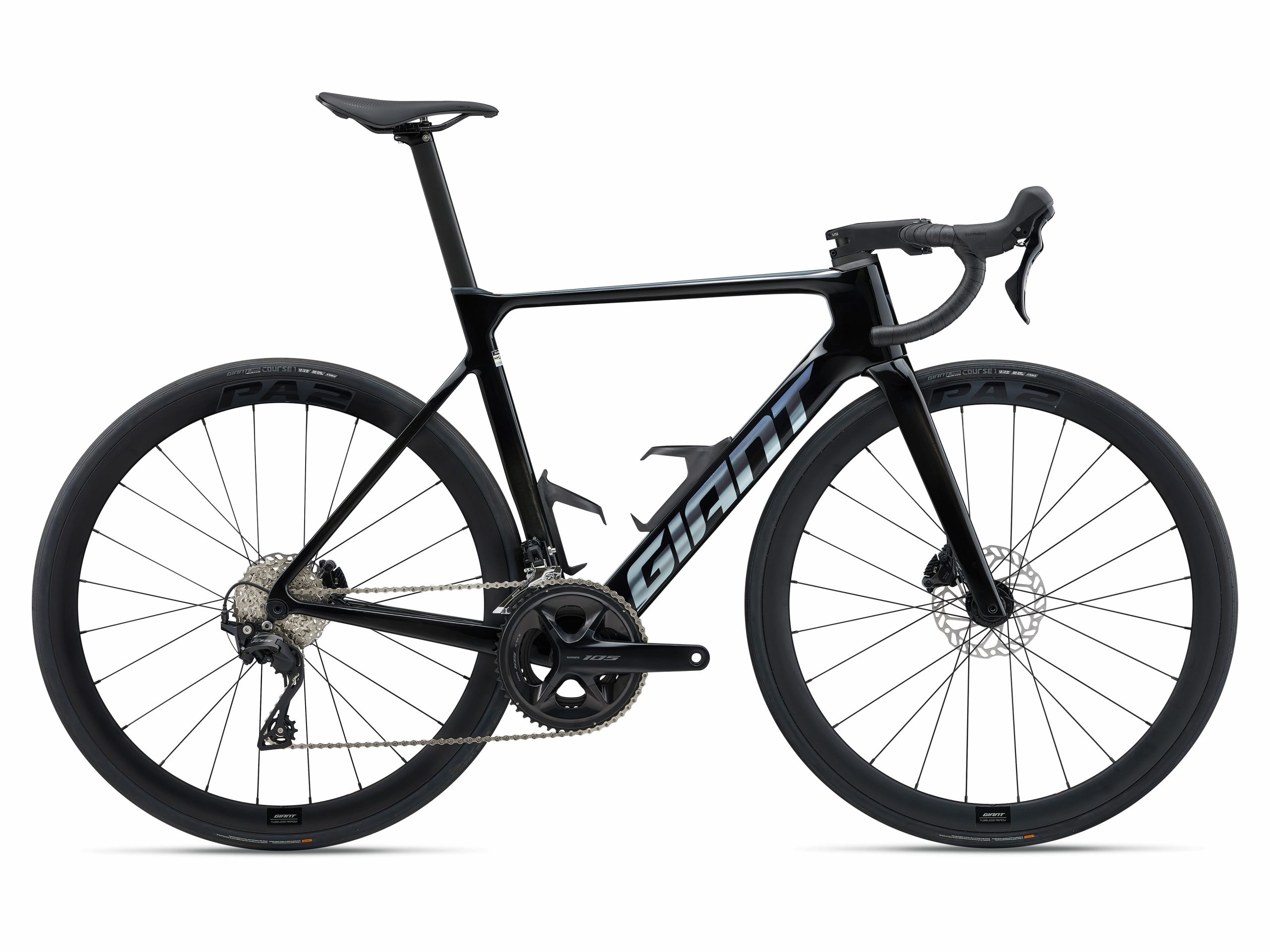

Propel Advanced 2 (2025) | Aero Race bike
€3,499.00
Features:
Specifications
Maximize your watts during sprints, breakaways and solo attacks. This aero road machine is built to give you a real advantage against the wind. Because small gains lead to big wins.
Key Performance Factors
Integrated aerodynamics
AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimizes aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and all-new Contact SL Aero cockpit produce superior aero performance.
Easier adjustability
All-new cable routing through the stem and head tube makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.
Race-winning efficiency
Advanced-grade composite frame and hybrid alloy/composite fork deliver optimal stiffness and weight savings. The result is an even greater stiffness-to-weight advantage.
| Sizes | XS, S, M, M/L, L, XL |
|---|---|
| Colours | Gloss Carbon Smoke/Blue Chrome |
| Frame | Advanced-Grade Composite, 12x142mm thru-axle, disc |
| Fork | Advanced-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc |
| Shock | N/A |
| Handlebar | Giant Contact SL Aero |
| Grips | Stratus Lite 2.0 |
| Stem | Giant Contact SL Aero |
| Seatpost | Giant Vector, composite, -5/+15mm offset |
| Saddle | Giant Fleet SL |
| Pedals | PEDALS NOT SUPPLIED |
| Shifters | Shimano 105 2×12 |
| Front Derailleur | Shimano 105 |
| Rear Derailleur | Shimano 105 |
| Brakes | Shimano 105 hydraulic, Giant MPH rotors [F]160mm, [R]140mm |
| Brake Levers | Shimano 105 hydraulic |
| Cassette | Shimano 105, 11-speed, 11×34 |
| Chain | KMC X12L-1 |
| Crankset | Shimano 105, 36/52 |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant P-A2 Disc, alloy |
| Hubs | Giant P-A2 Disc, 12mm thru-axle |
| Spokes | Sapim |
| Tyres | Giant Gavia Course 1, tubeless,700x25c (28mm), folding |
| Extras | Out front computer mount, water bottle cages, factory tubeless set up, 30mm max tyre size |
| Max Tire Clearance | 30mm |
Geometry
| S | M | ML | L | XL | XS | ||
|---|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 500 | 520 | 545 | 575 | 595 | 465 |
| B | SEAT TUBE ANGLE | 74 | 73.5 | 73 | 73 | 72.5 | 74.5 |
| C | TOP TUBE LENGTH | 535 | 550 | 565 | 580 | 600 | 520 |
| D | HEAD TUBE LENGTH | 130 | 145 | 165 | 185 | 200 | 120 |
| E | HEAD TUBE ANGLE | 72.3 | 73 | 73 | 73 | 73 | 71 |
| F | FORK RAKE | 45 | 45 | 45 | 45 | 45 | 45 |
| G | TRAIL | 62.5 | 57.8 | 57.8 | 57.8 | 57.8 | 70.5 |
| H | WHEEL BASE | 977 | 980 | 991 | 1006 | 1020 | 976 |
| I | CHAIN STAY LENGTH | 405 | 405 | 405 | 405 | 405 | 405 |
| J | BOTTOM BRACKET DROP | 70 | 70 | 67 | 67 | 67 | 72 |
| K | STACK | 528 | 545 | 562 | 581 | 596 | 517 |
| L | REACH | 383 | 388 | 393 | 402 | 412 | 376 |
| M | STAND OVER HEIGHT | 753 | 770 | 794 | 821 | 834 | 722 |
| N | HANDLERBAR WIDTH | 400 | 420 | 420 | 440 | 440 | 400 |
| O | STEM LENGTH | 90 | 100 | 110 | 110 | 120 | 80 |
| P | CRANK LENGTH DEC | 170 | 172.5 | 172.5 | 175 | 175 | 170 |
| Q | WHEEL SIZE ALT | 700C | 700C | 700C | 700C | 700C | 700C |
Technology and Features
