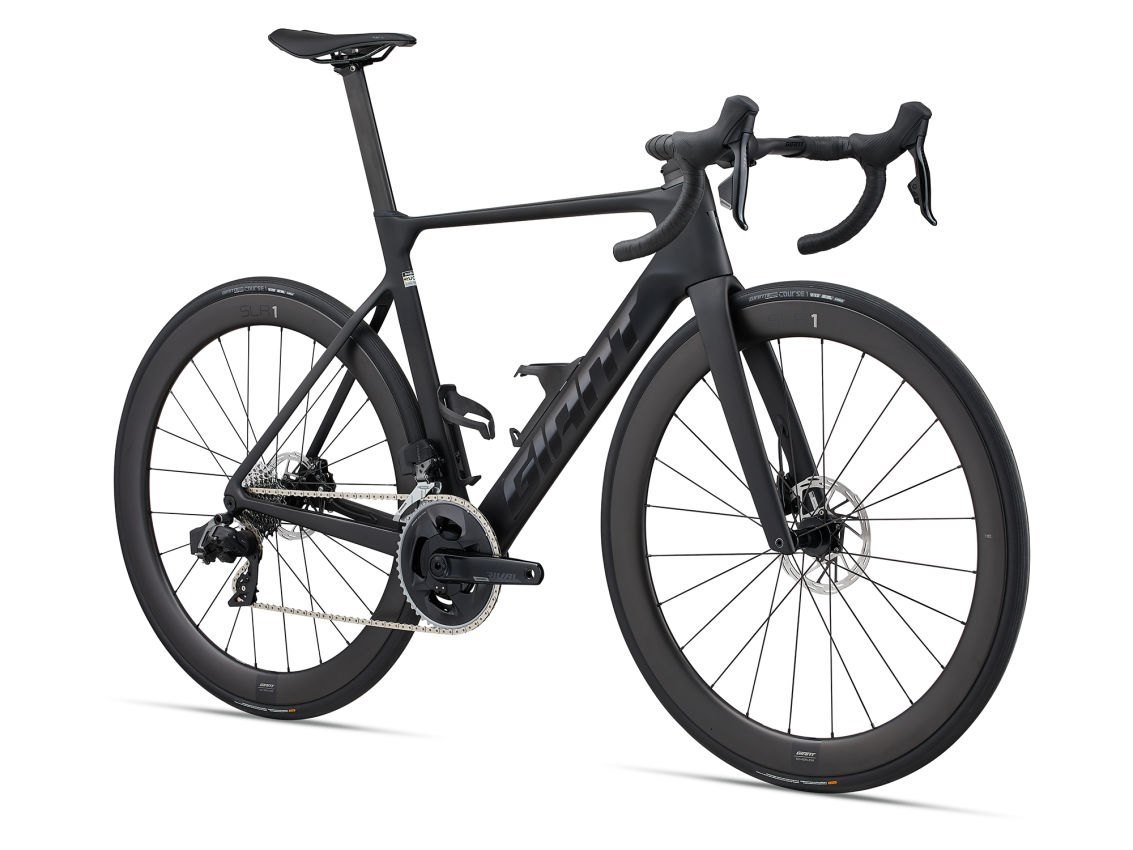

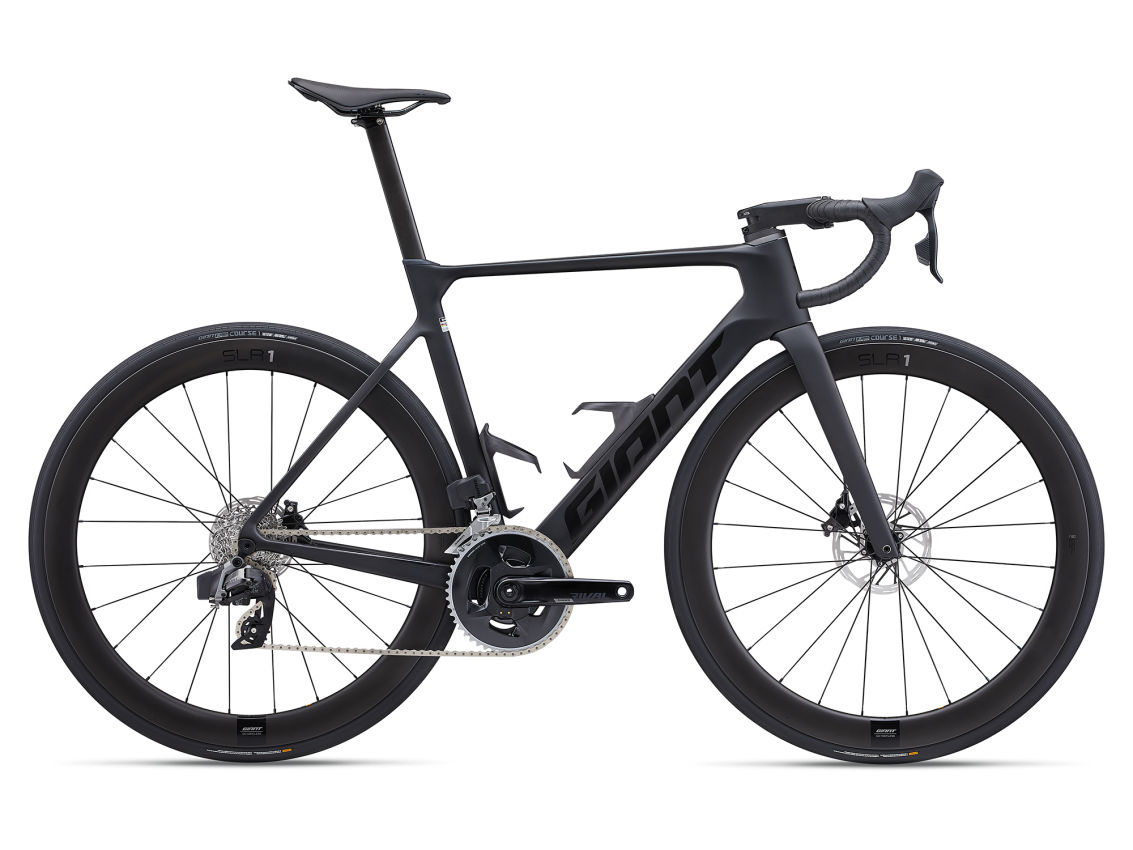

Propel Advanced Pro 1 (2024) | bike
€6,299.00
Features:
Specifications
This aero rocketship is built for speed when it matters most. It’s lighter than the previous generation and engineered to slice through wind. The result? Race-winning efficiency that puts you ahead of the pack.
Key Performance Factors
Integrated aerodynamics
AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimizes aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and Contact SLR/SL Aero cockpit produce the best overall aero performance.
Easier adjustability
All-new cable routing through the stem and head tube makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.
Race-winning efficiency
Advanced-grade composite frameset features high-performance materials and proprietary manufacturing processes. As a result, it’s lighter than the previous generation for an even greater stiffness-to-weight ratio.
| Sizes | S, M, M/L, L, XL |
|---|---|
| Colours | Matte Carbon/Gloss Black |
| Frame | Advanced-grade composite, disc |
| Fork | Advanced SL-grade composite, full-composite OverDrive Aero steerer, disc |
| Shock | N/A |
| Handlebar | Giant Contact SL Aero S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm |
| Grips | Stratus Lite 2.0 |
| Stem | Giant Contact SL Aero S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm |
| Seatpost | Giant Vector, composite, -5/+15mm offset |
| Saddle | Giant Fleet SL |
| Pedals | PEDALS NOT SUPPLIED |
| Shifters | SRAM Rival eTap AXS 2×12 |
| Front Derailleur | SRAM Rival eTap AXS |
| Rear Derailleur | SRAM Rival eTap AXS |
| Brakes | SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]140mm |
| Brake Levers | SRAM Rival eTap AXS hydraulic |
| Cassette | SRAM Rival, 12-speed, 10×30 |
| Chain | SRAM Rival D1 |
| Crankset | SRAM Rival D1 DUB, 35/48 with Giant Power Halo power meter S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | SRAM DUB, press fit |
| Rims | Giant SLR 1 50 Carbon Disc WheelSystem, [F]50mm, [R]50mm |
| Hubs | [F] Giant Low Friction Hub, CenterLock, [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle |
| Spokes | SAPIM CX-Ray |
| Tyres | Giant Gavia Course 1, tubeless,700x25c (28mm), folding |
| Extras | computer mount, water bottle cages, factory tubeless set up, 30mm max tyre size |
Geometry
| S | XL | ML | M | L | ||
|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 500 | 595 | 545 | 520 | 575 |
| B | SEAT TUBE ANGLE | 74 | 72.5 | 73 | 73.5 | 73 |
| C | TOP TUBE LENGTH | 535 | 600 | 565 | 550 | 580 |
| D | HEAD TUBE LENGTH | 130 | 200 | 165 | 145 | 185 |
| E | HEAD TUBE ANGLE | 72.3 | 73 | 73 | 73 | 73 |
| F | FORK RAKE | 45 | 45 | 45 | 45 | 45 |
| G | TRAIL | 62.5 | 57.8 | 57.8 | 57.8 | 57.8 |
| H | WHEEL BASE | 977 | 1020 | 991 | 980 | 1006 |
| I | CHAIN STAY LENGTH | 405 | 405 | 405 | 405 | 405 |
| J | BOTTOM BRACKET DROP | 70 | 67 | 67 | 70 | 67 |
| K | STACK | 528 | 596 | 562 | 545 | 581 |
| L | REACH | 383 | 412 | 393 | 388 | 402 |
| M | STAND OVER HEIGHT | 753 | 834 | 794 | 770 | 821 |
| N | HANDLERBAR WIDTH | 400 | 440 | 420 | 420 | 440 |
| O | STEM LENGTH | 90 | 120 | 110 | 100 | 110 |
| P | CRANK LENGTH DEC | 170 | 175 | 172.5 | 172.5 | 175 |
| Q | WHEEL SIZE ALT | 700C | 700C | 700C | 700C | 700C |
