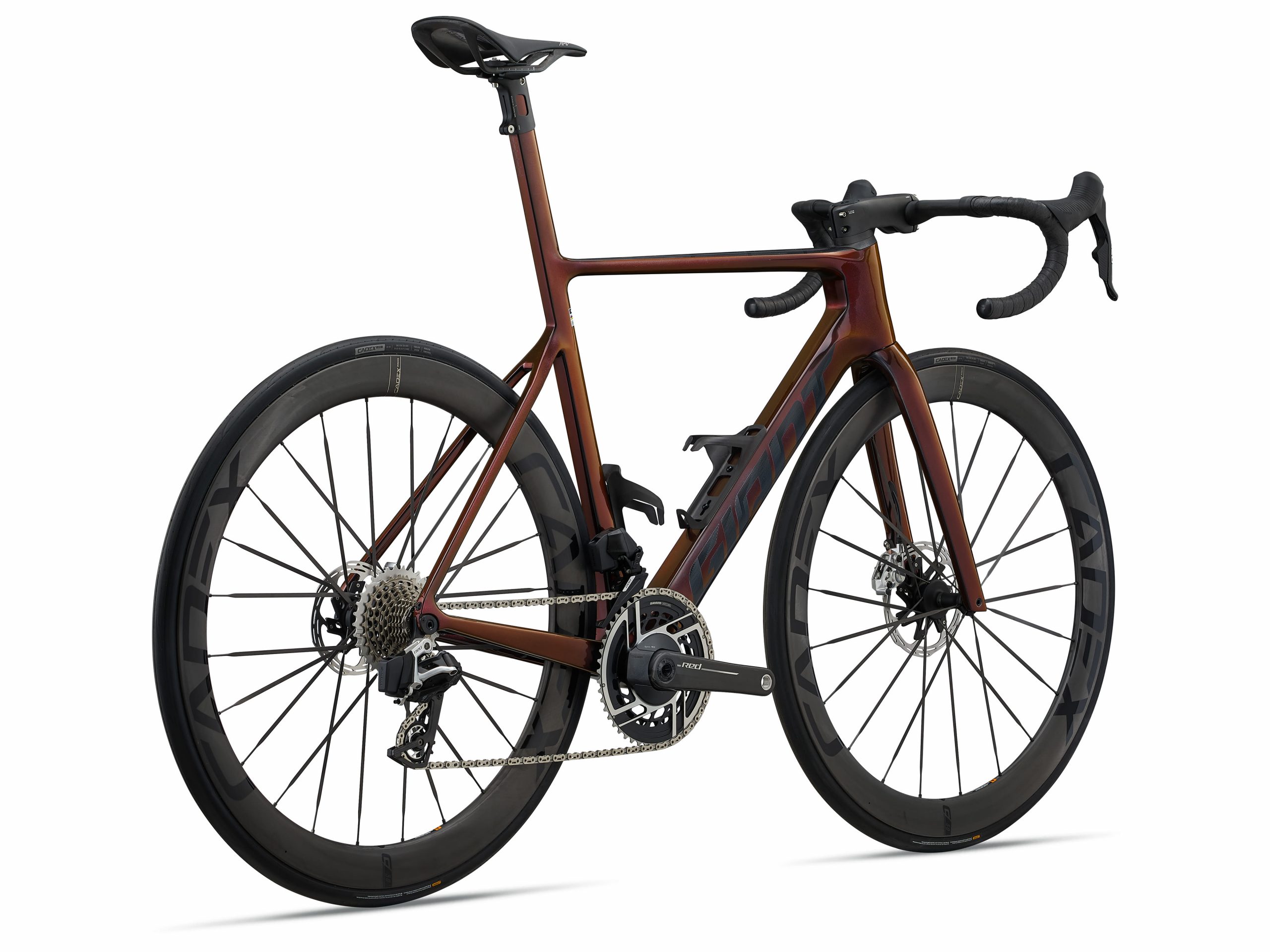

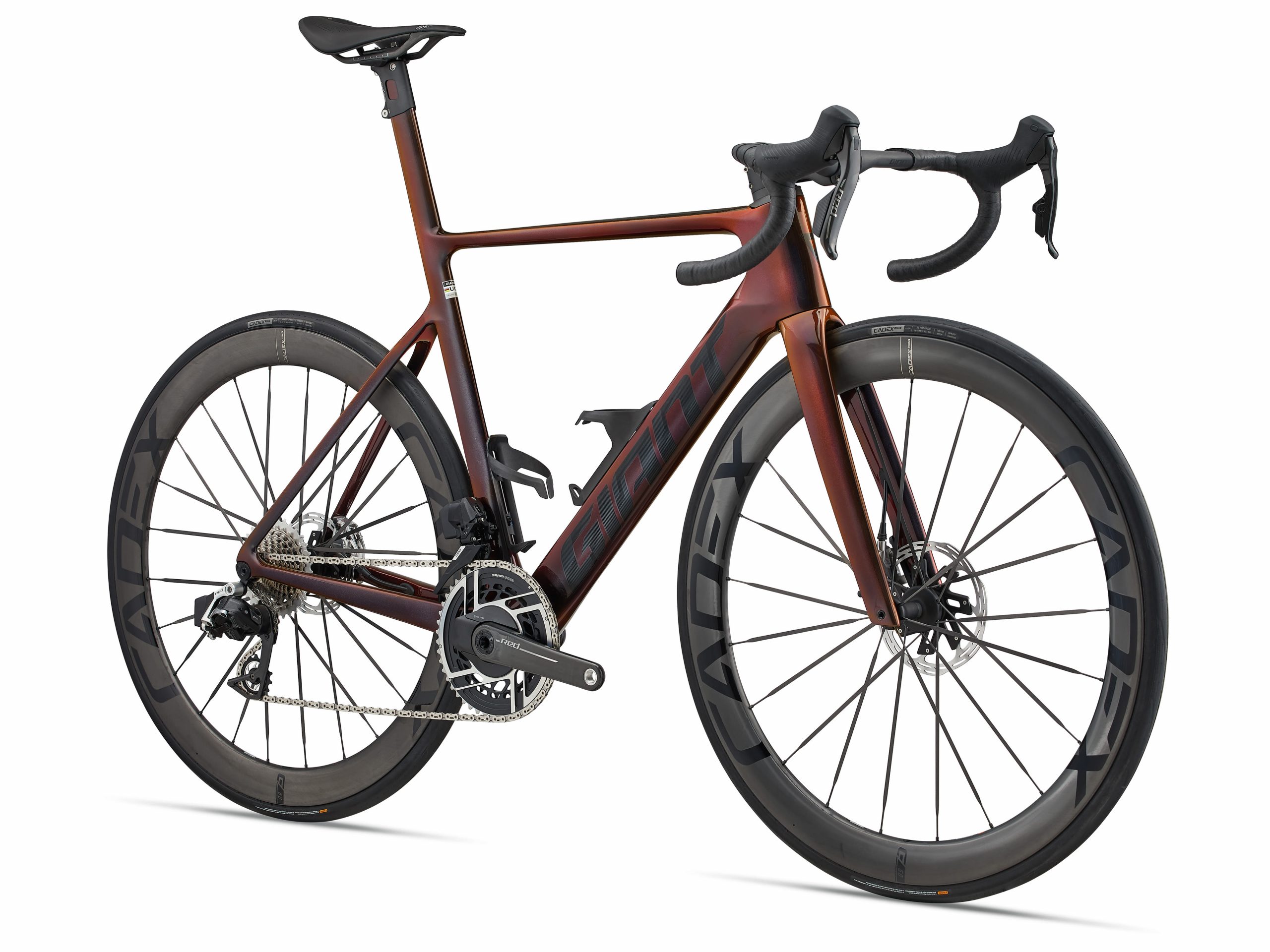

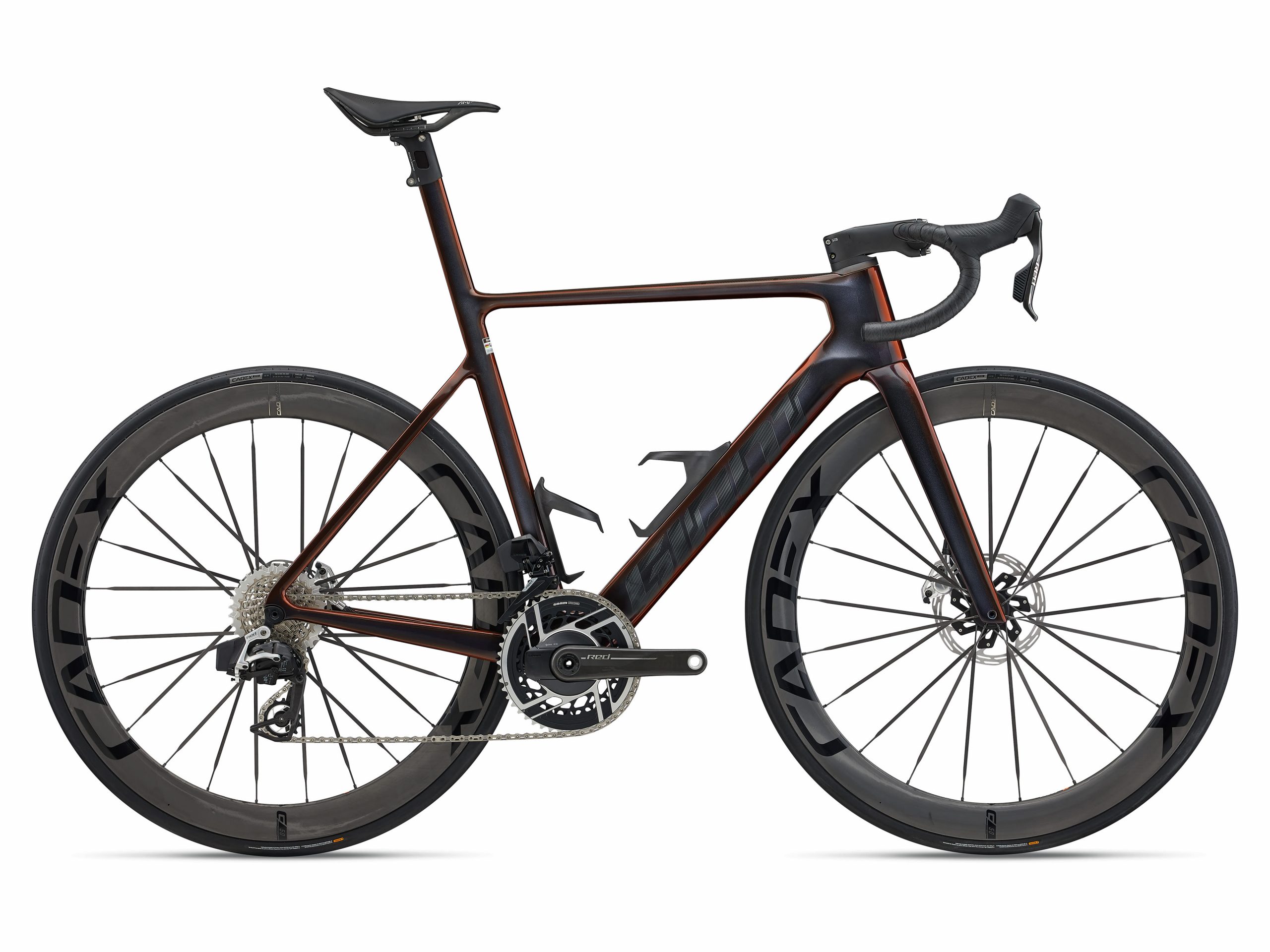

Propel Advanced SL 0 RED (2025) | Aero Race bike
€13,799.00
Features:
Specifications
Unleash your sprint with 200 meters to go. Close a gap, chase back, launch a solo attack. This pro-level road machine is made for the moments that count. More aero, more adjustable, more ways to win.
Key Performance Factors
Integrated aerodynamics

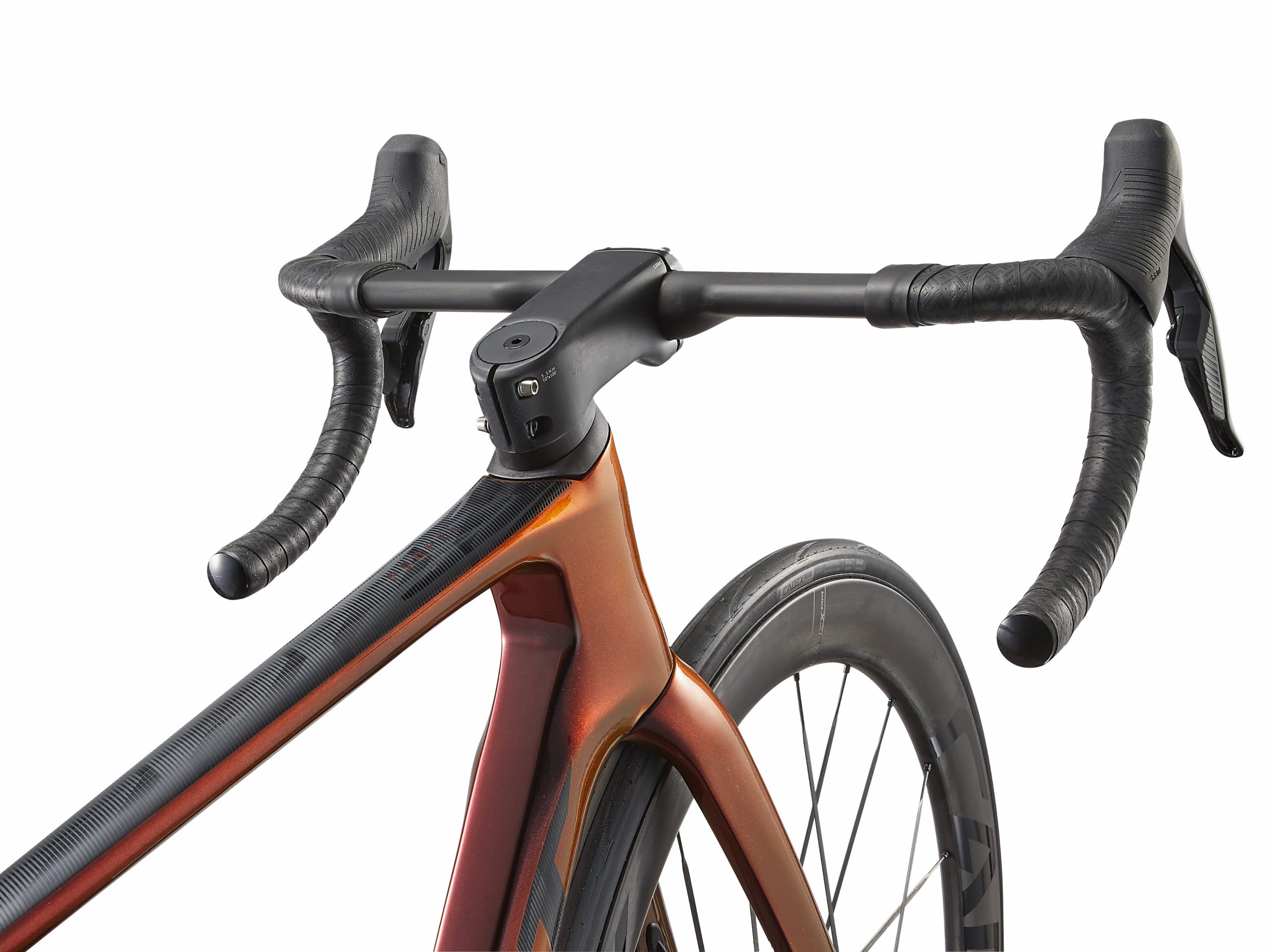

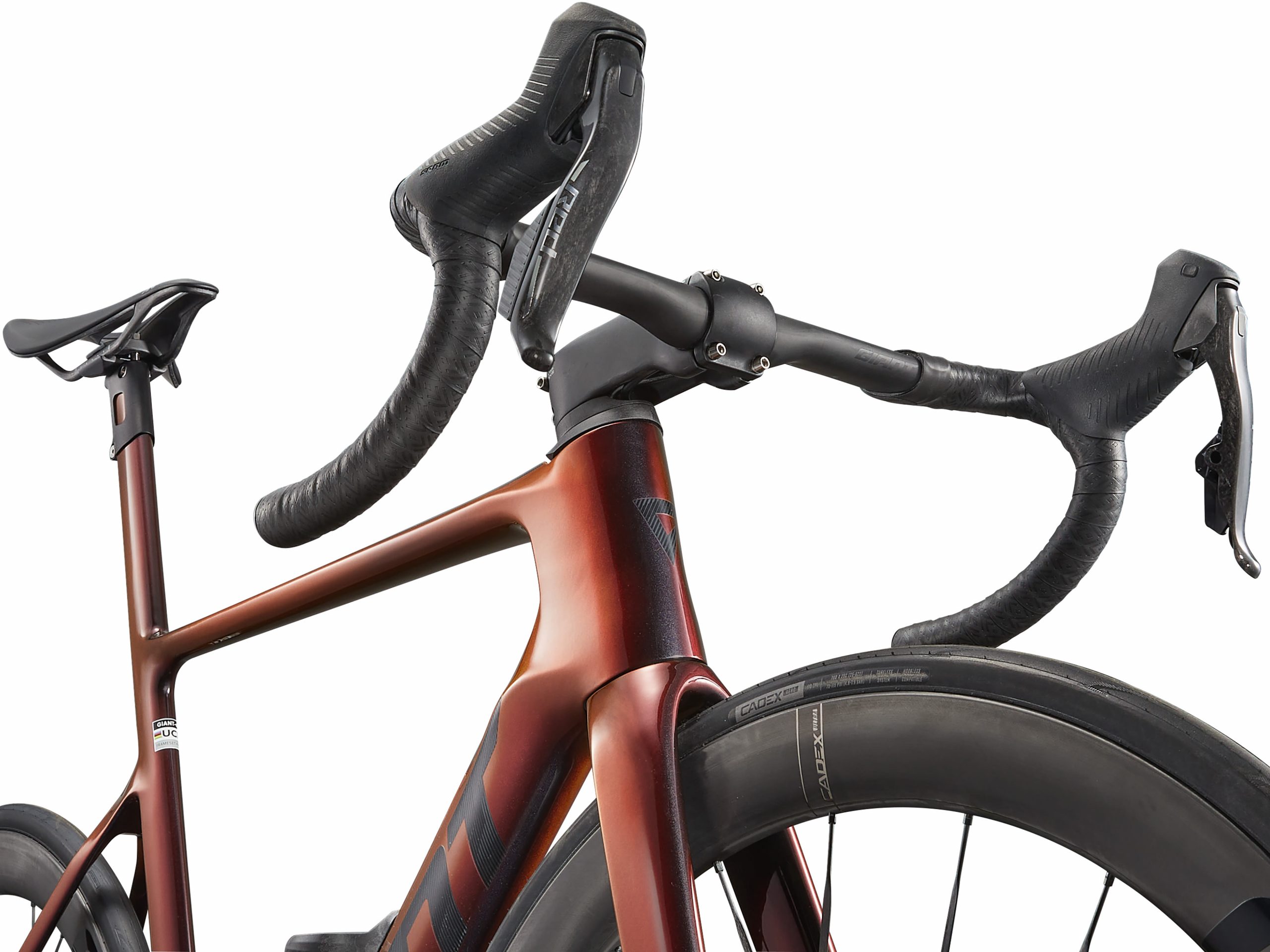

AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimizes aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and Contact SLR Aero cockpit produce the best overall aero performance.
Easier adjustability

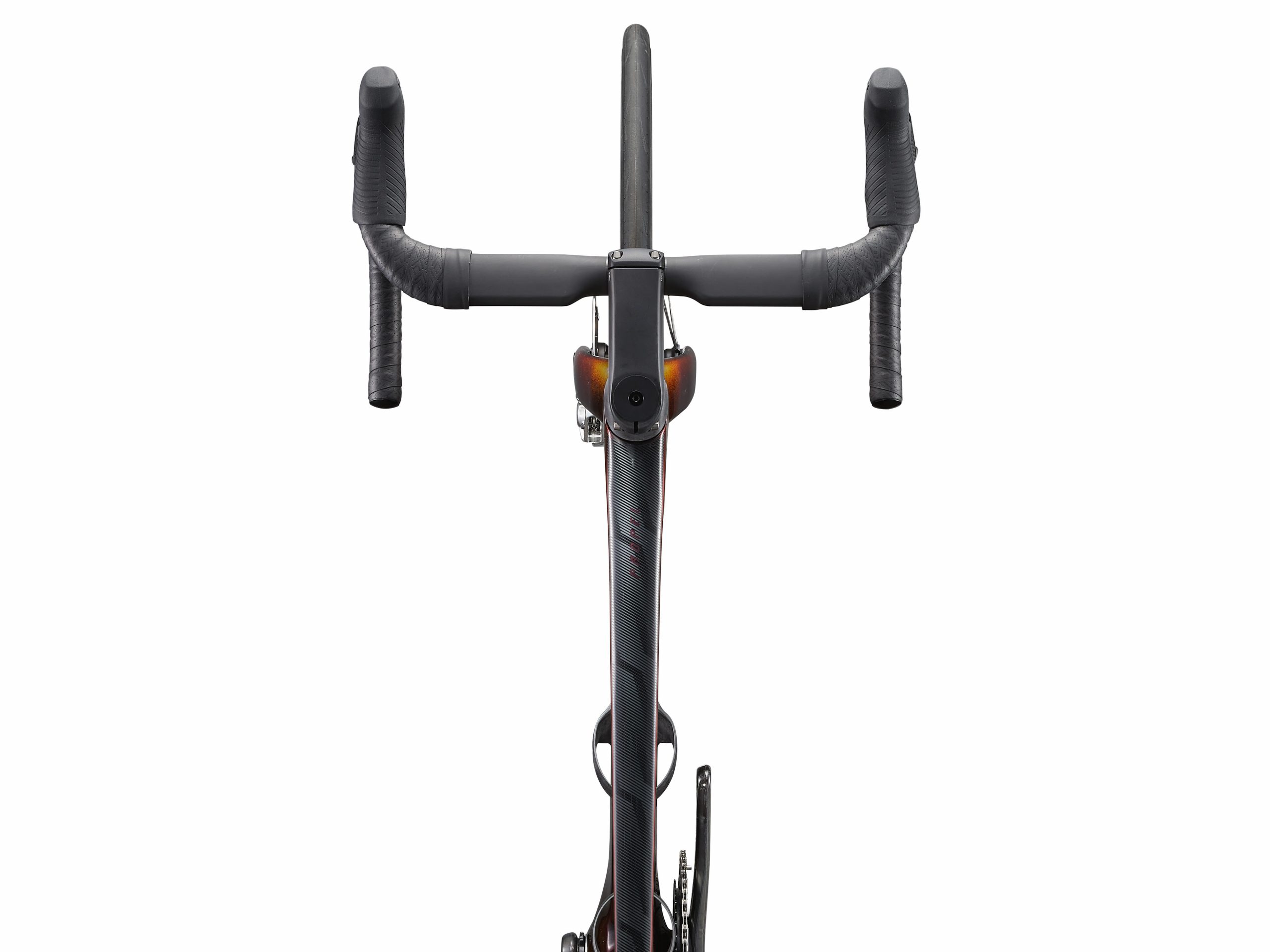

Cable routing through the stem and head tube makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.
Race-winning efficiency
Advanced SL-grade composite frameset features Giant’s pro-level composite materials and manufacturing processes. The result is 150 grams of weight savings compared to the previous generation and an even greater stiffness-to-weight advantage.
| Sizes | S, M, M/L, L |
|---|---|
| Colours | Gloss Black Lava / Monogram |

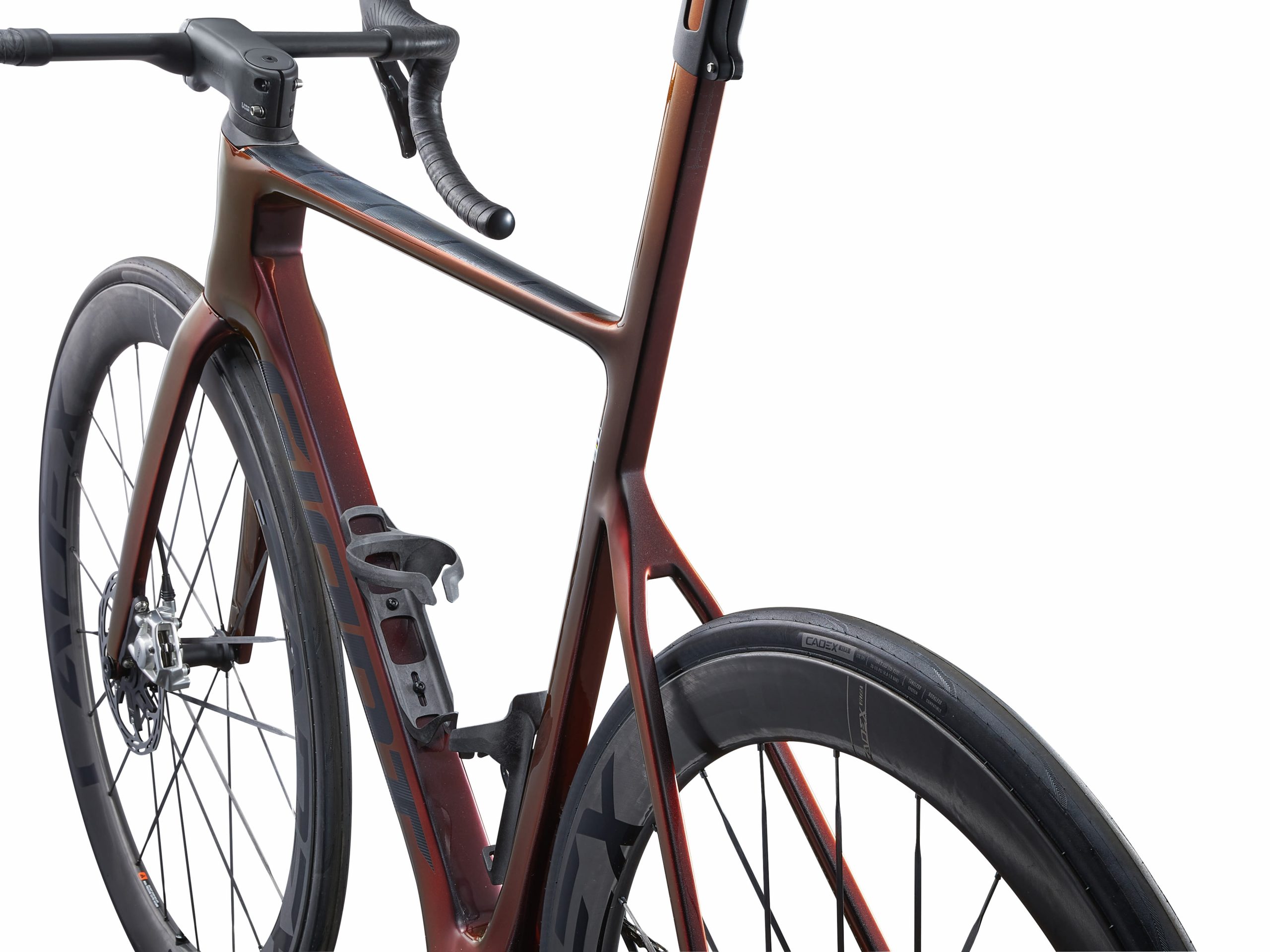

| Frame | Advanced SL-Grade Composite, 12x142mm thru-axle, integrated seatpost, disc |

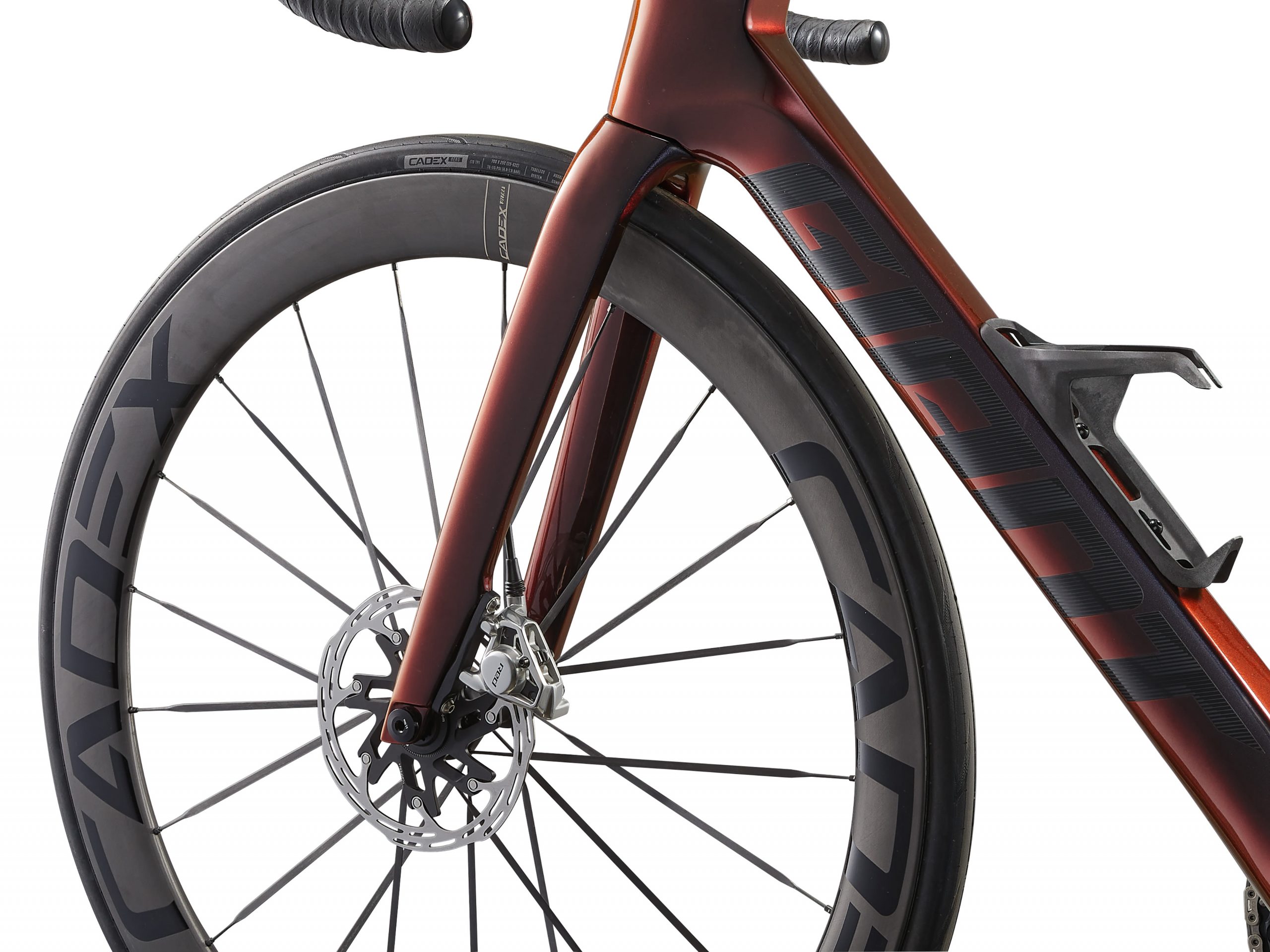

| Fork | Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc |
| Shock | N/A |

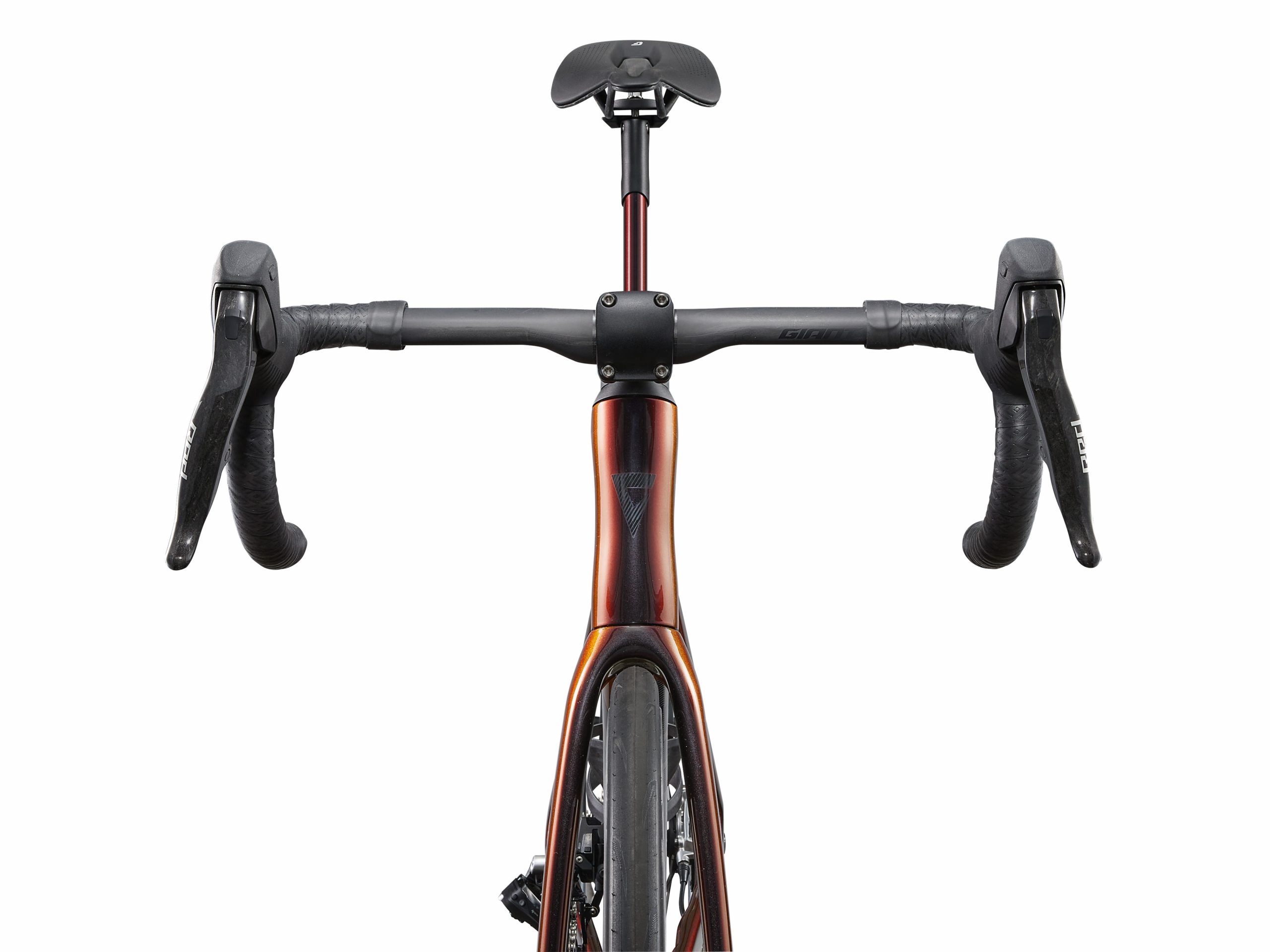

| Handlebar | Giant Contact SLR Aero |
| Grips | Stratus Lite 2.0 |
| Stem | Giant Contact SLR Aero |
| Seatpost | Advanced SL-grade composite, integrated design, -5/+15mm offset |
| Saddle | CADEX AMP |
| Pedals | PEDALS NOT SUPPLIED |
| Shifters | SRAM RED eTap AXS 2×12 |
| Front Derailleur | SRAM RED eTap AXS |

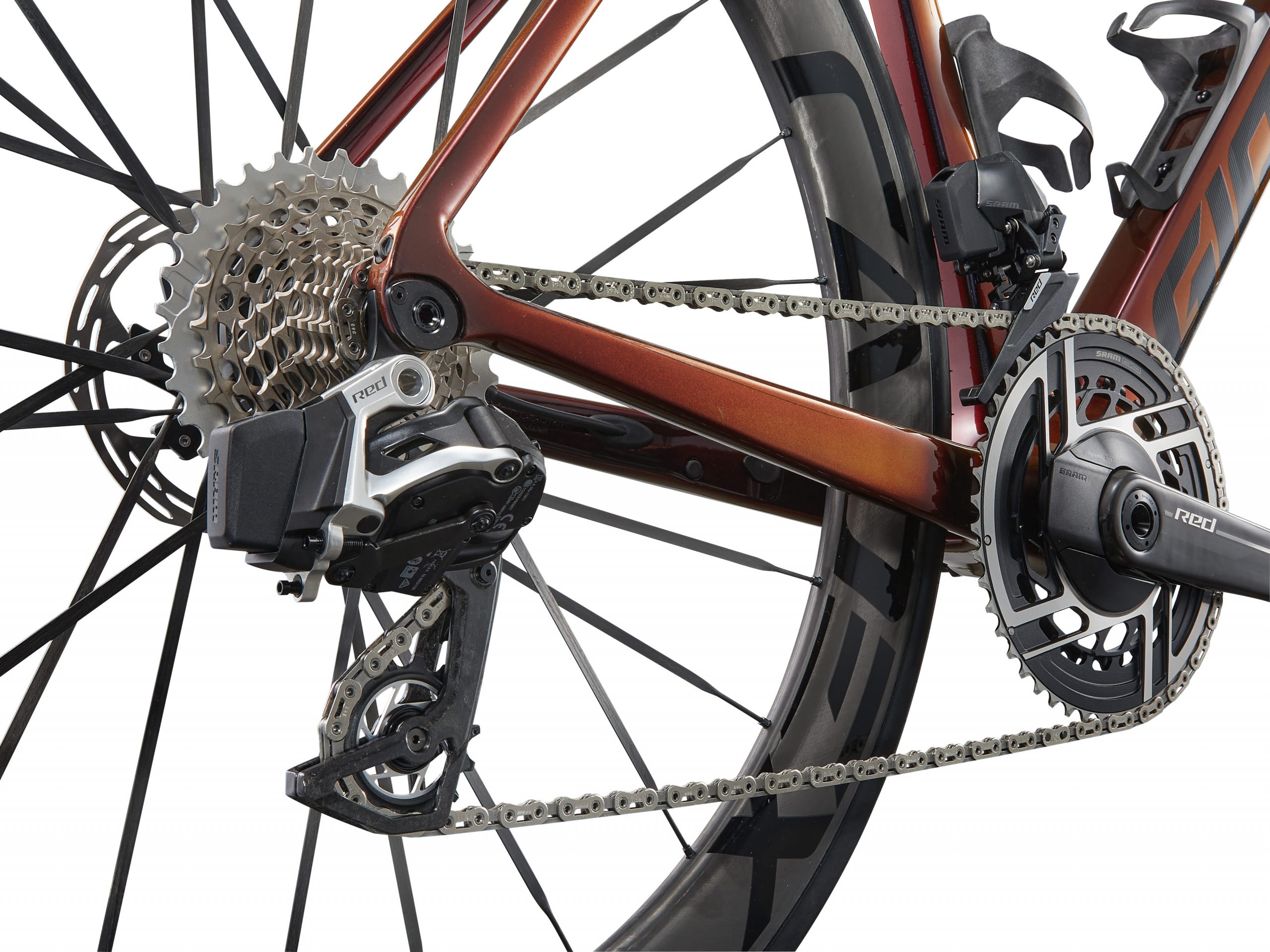

| Rear Derailleur | SRAM RED eTap AXS |
| Brakes | SRAM RED eTap AXS hydraulic, SRAM PaceLine X rotors [F]160mm, [R]140mm |
| Brake Levers | SRAM RED eTap AXS hydraulic |
| Cassette | SRAM RED, 12-speed, 10×33 |
| Chain | SRAM RED |

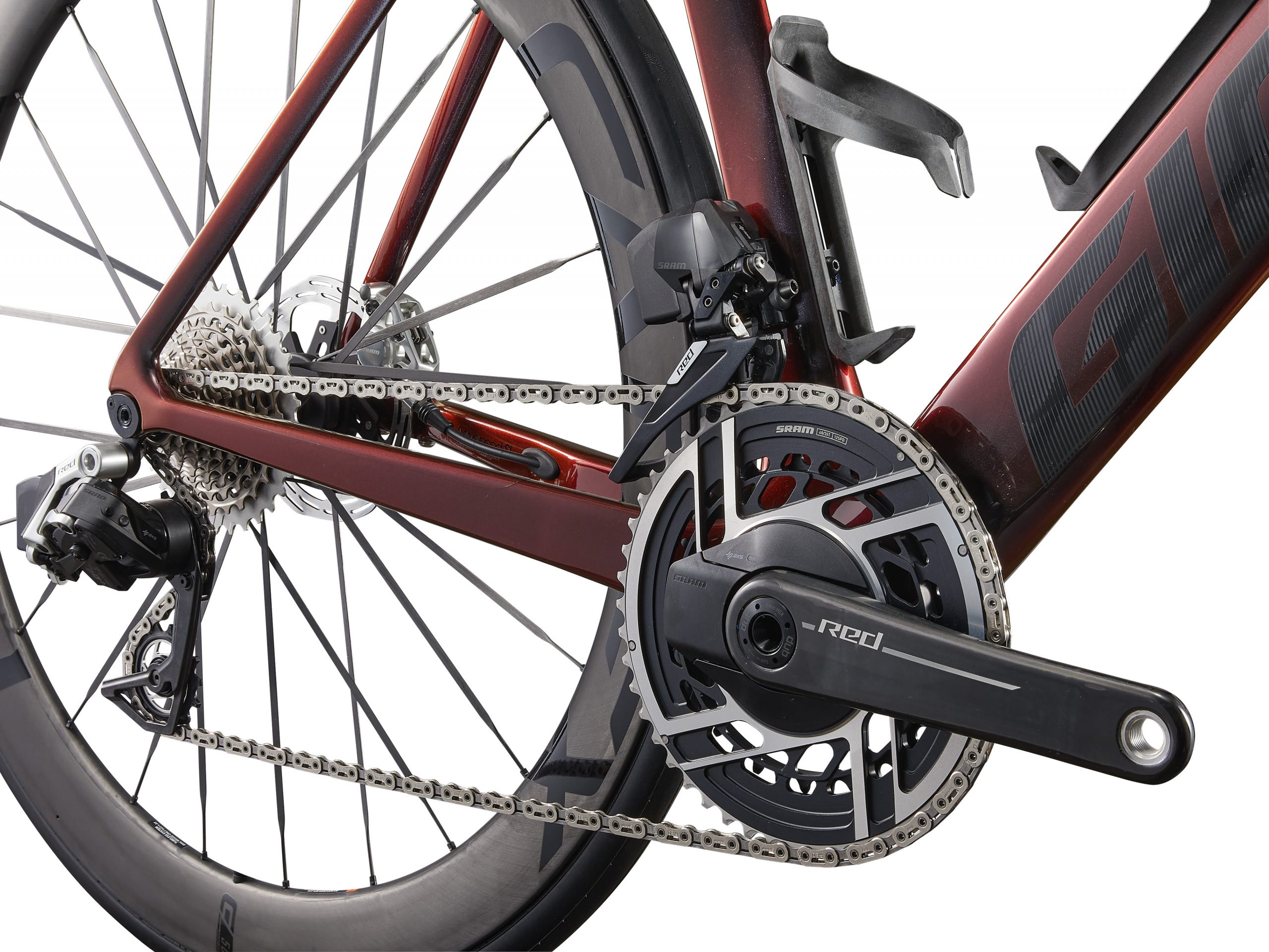

| Crankset | SRAM RED PM E1 DUB, 35/48 with power meter |
| Bottom Bracket | SRAM, press fit |
| Rims | CADEX 50 Ultra WheelSystem, [F]50mm, [R]50mm |
| Hubs | [F] CADEX R3 Aero Hub, CenterLock, 12mm thru-axle [R] CADEX R3-C40 Aero Low Friction Hub, 40T ratchet driver, CenterLock, 12mm thru-axle |
| Spokes | CADEX Super Aero Carbon Spoke |
| Tyres | CADEX Aero, tubeless, 700x25c (26.5mm), folding |

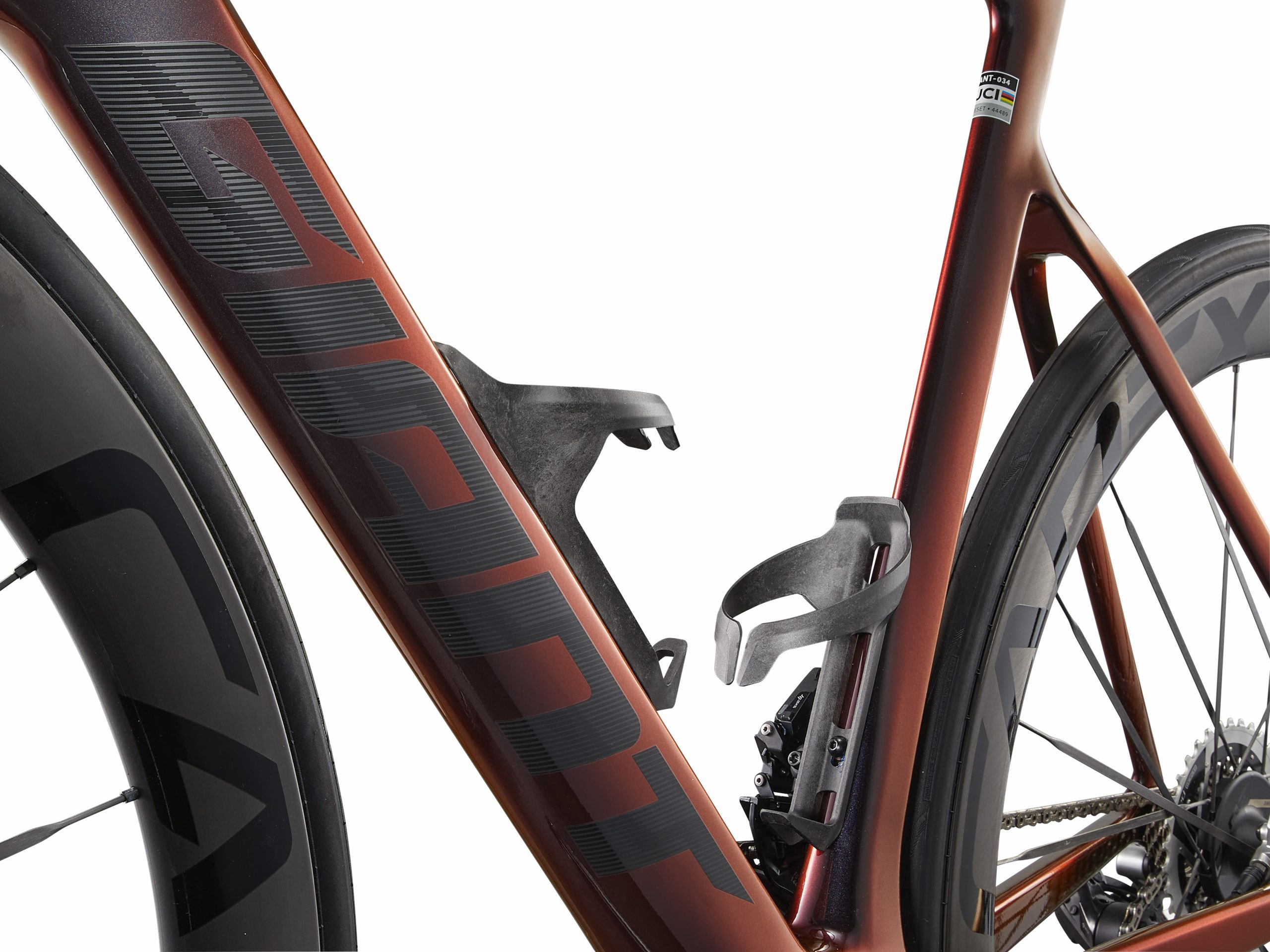

| Extras | Out front computer mount, water bottle cages, factory tubeless set up, 30mm max tyre size |
| Max Tire Clearance | 30mm |
Geometry
| S | M | ML | L | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 710 | 740 | 770 | 800 |
| B | SEAT TUBE ANGLE | 74 | 73.5 | 73 | 73 |
| C | TOP TUBE LENGTH | 535 | 550 | 565 | 580 |
| D | HEAD TUBE LENGTH | 130 | 145 | 165 | 185 |
| E | HEAD TUBE ANGLE | 72.3 | 73 | 73 | 73 |
| F | FORK RAKE | 45 | 45 | 45 | 45 |
| G | TRAIL | 62.5 | 57.8 | 57.8 | 57.8 |
| H | WHEEL BASE | 977 | 980 | 991 | 1006 |
| I | CHAIN STAY LENGTH | 405 | 405 | 405 | 405 |
| J | BOTTOM BRACKET DROP | 70 | 70 | 67 | 67 |
| K | STACK | 528 | 545 | 562 | 581 |
| L | REACH | 383 | 388 | 393 | 402 |
| M | STAND OVER HEIGHT | 755 | 775 | 794 | 821 |
| N | HANDLERBAR WIDTH | 400 | 420 | 420 | 440 |
| O | STEM LENGTH | 90 | 100 | 110 | 110 |
| P | CRANK LENGTH DEC | 170 | 172.5 | 172.5 | 175 |
| Q | WHEEL SIZE ALT | 700C | 700C | 700C | 700C |
