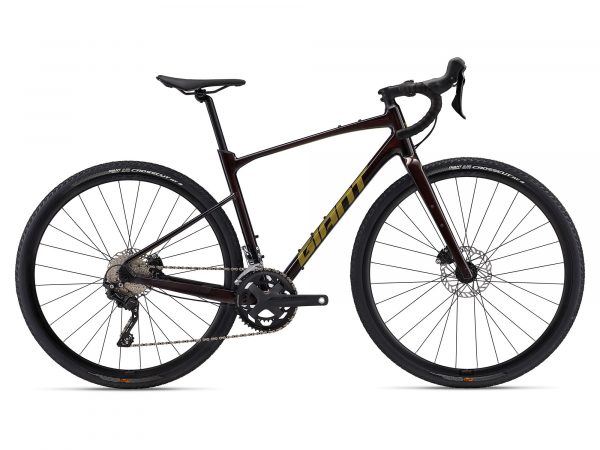

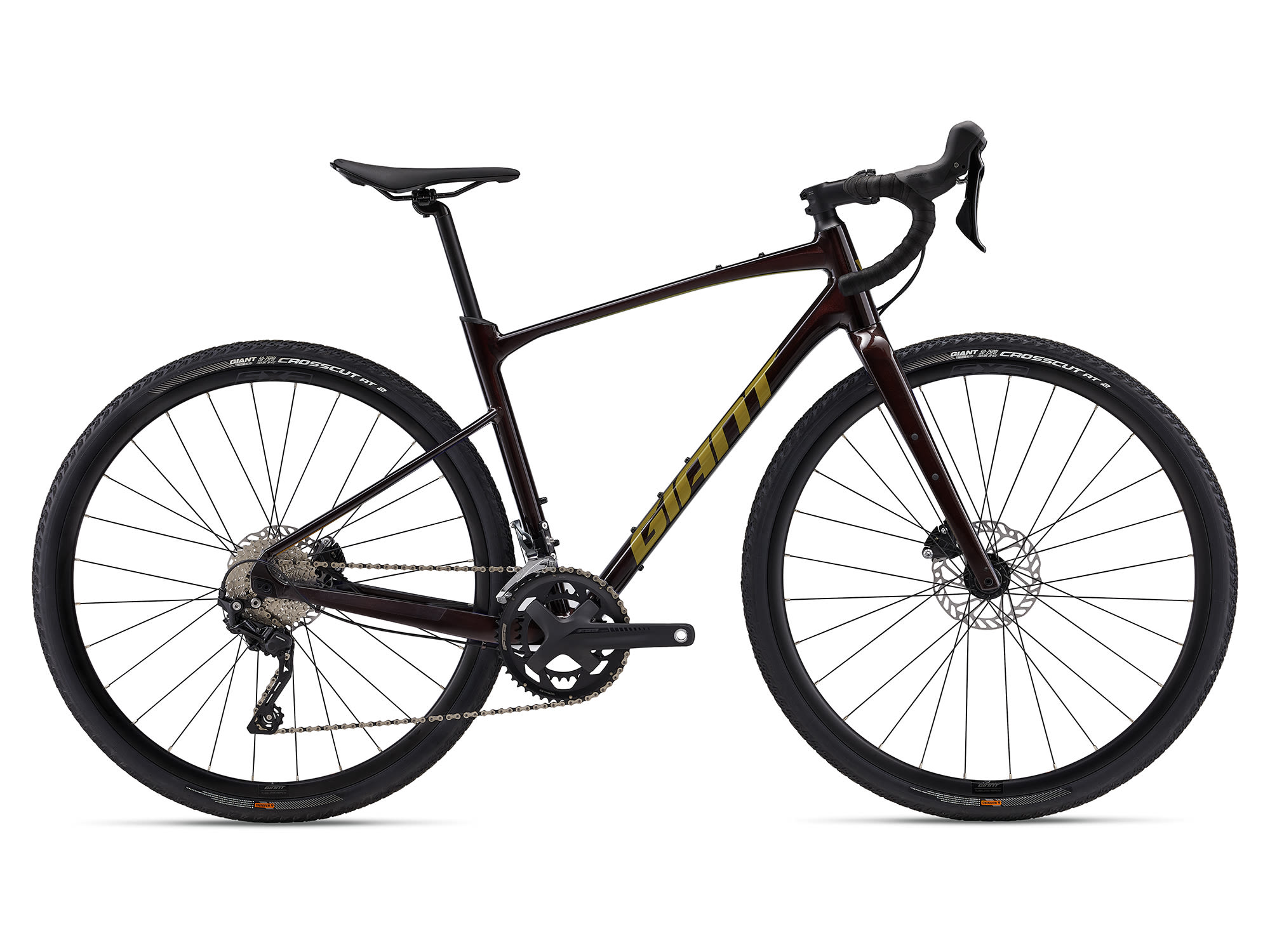

Revolt 1 (2024) | bike
€1,749.00
Features:
Specifications
Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.
Key Performance Factors
Confident handling
Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
Tuned compliance
Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
| Sizes | S, M, M/L, L, XL |
|---|---|
| Colours | Gloss Cordovan/Dried Herb |
| Frame | ALUXX-grade aluminium, 12x142mm thru-axle, disc, flip chip dropout |
| Fork | Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Shock | N/A |
| Handlebar | Giant Contact XR D-Fuse, 31.8mm |
| Grips | cork tape with gel |
| Stem | Giant Contact, 8-degree |
| Seatpost | Giant D-Fuse, alloy, 14mm offset |
| Saddle | Giant Approach |
| Pedals | PEDALS NOT SUPPLIED |
| Shifters | Shimano GRX RX-400, 2×10 |
| Front Derailleur | Shimano Tiagra |
| Rear Derailleur | Shimano GRX RX-400 |
| Brakes | Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
| Brake Levers | Shimano GRX RX-400 hydraulic |
| Cassette | Shimano HG500, 11×34 |
| Chain | KMC X10 with Missing Link |
| Crankset | FSA Omega Adventure, 32/48 |
| Bottom Bracket | FSA Mega EXO |
| Rims | Giant S-X2 Disc wheelset, alloy, 25mm inner rim width |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | Stainless steel |
| Tyres | Giant CrossCut AT 2, 700x38c, tubeless |
| Extras | Factory tubeless set up, 53mm max tyre size in “long” flip chip position, 45mm max tyre size in “short” flip chip position |
| Max Chainring Size | SRAM Wide 2x 43-30, 1x 46T. SRAM Road 2x 52-39, 1x 52T. Shimano Road 2x 52-36. GRX 2x 48-31, 1x 42T |
Geometry
| ML | XL | M | S | L | ||
|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 490 | 530 | 470 | 450 | 510 |
| B | SEAT TUBE ANGLE | 73 | 73 | 73.5 | 73.5 | 73 |
| C | TOP TUBE LENGTH | 575 | 600 | 560 | 550 | 585 |
| D | HEAD TUBE LENGTH | 165 | 195 | 150 | 135 | 180 |
| E | HEAD TUBE ANGLE | 72 | 72 | 71.5 | 71 | 72 |
| F | FORK RAKE | 50 | 50 | 50 | 50 | 50 |
| G | TRAIL | 65 | 65 | 68 | 72 | 65 |
| H | WHEEL BASE | 1035 | 1061 | 1030 | 1025 | 1045 |
| I | CHAIN STAY LENGTH | 430 | 430 | 430 | 430 | 430 |
| J | BOTTOM BRACKET DROP | 80 | 80 | 80 | 80 | 80 |
| K | STACK | 602 | 630 | 586 | 570 | 616 |
| L | REACH | 391 | 407 | 387 | 381 | 397 |
| M | STAND OVER HEIGHT | 769 | 801 | 752 | 734 | 786 |
| N | HANDLERBAR WIDTH | 440 | 460 | 440 | 420 | 460 |
| O | STEM LENGTH | 80 | 90 | 70 | 60 | 80 |
| P | CRANK LENGTH DEC | 172.5 | 175 | 172.5 | 170 | 175 |
| Q | WHEEL SIZE ALT | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | | 700x 42C | |
