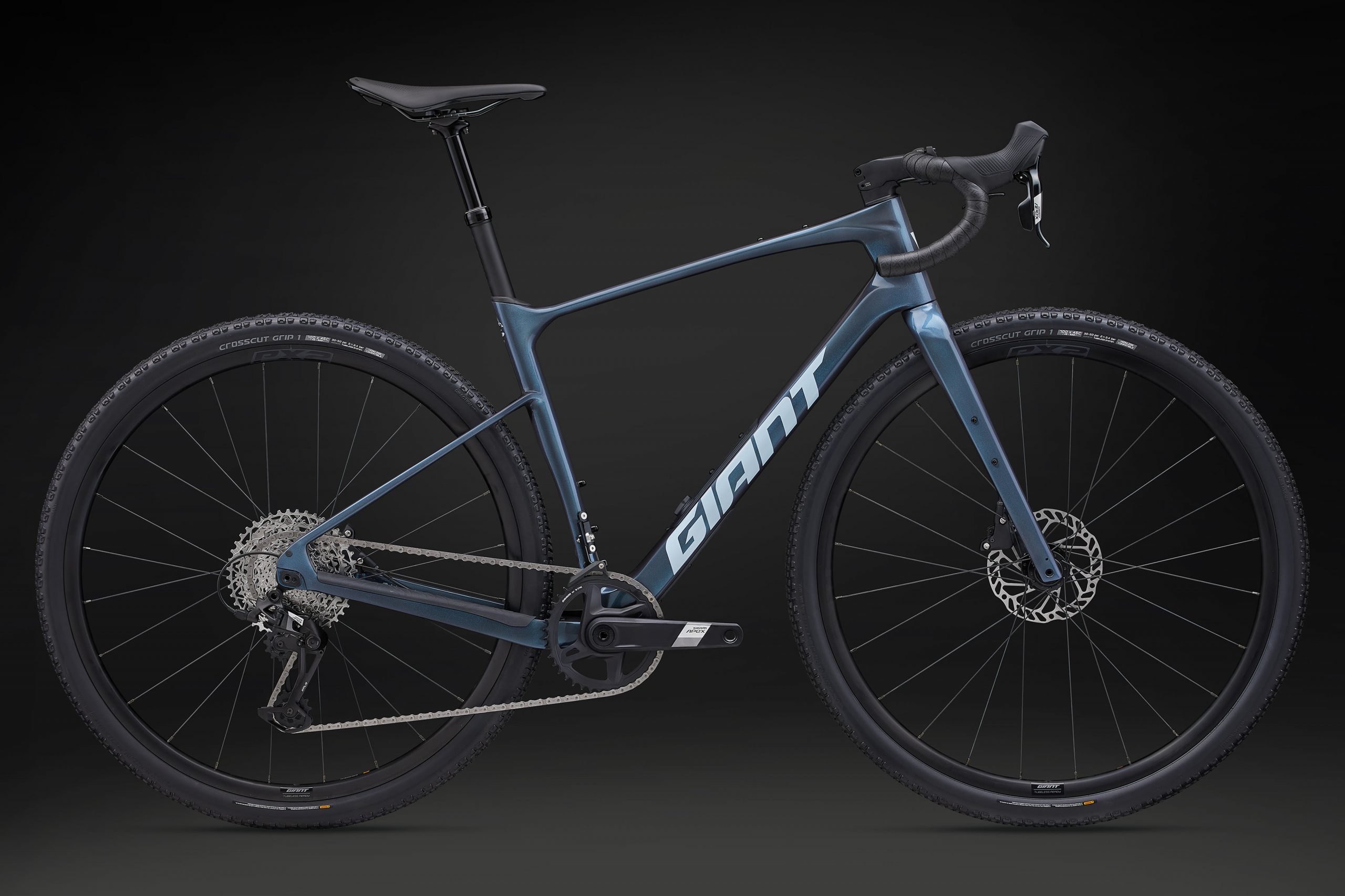

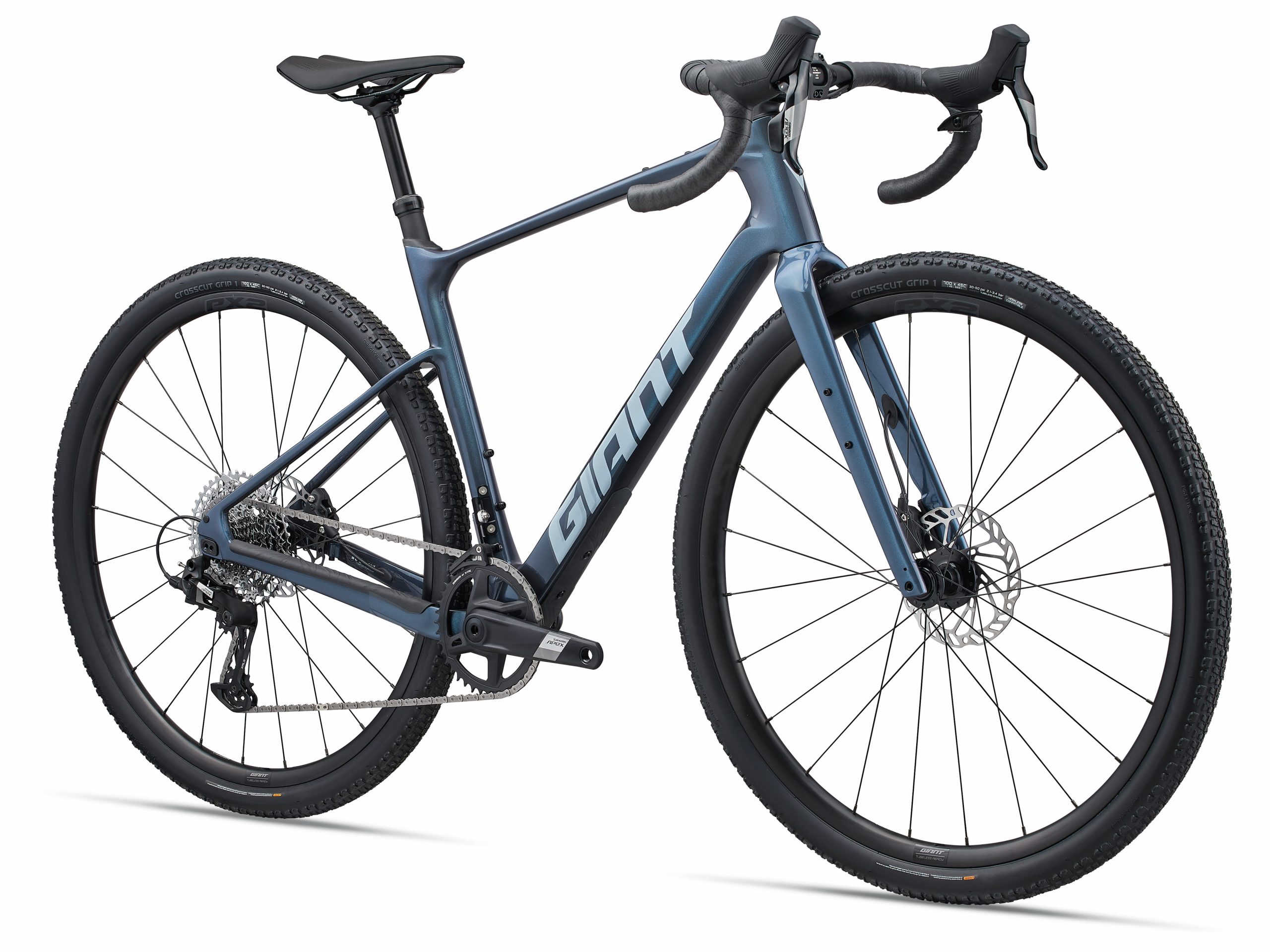

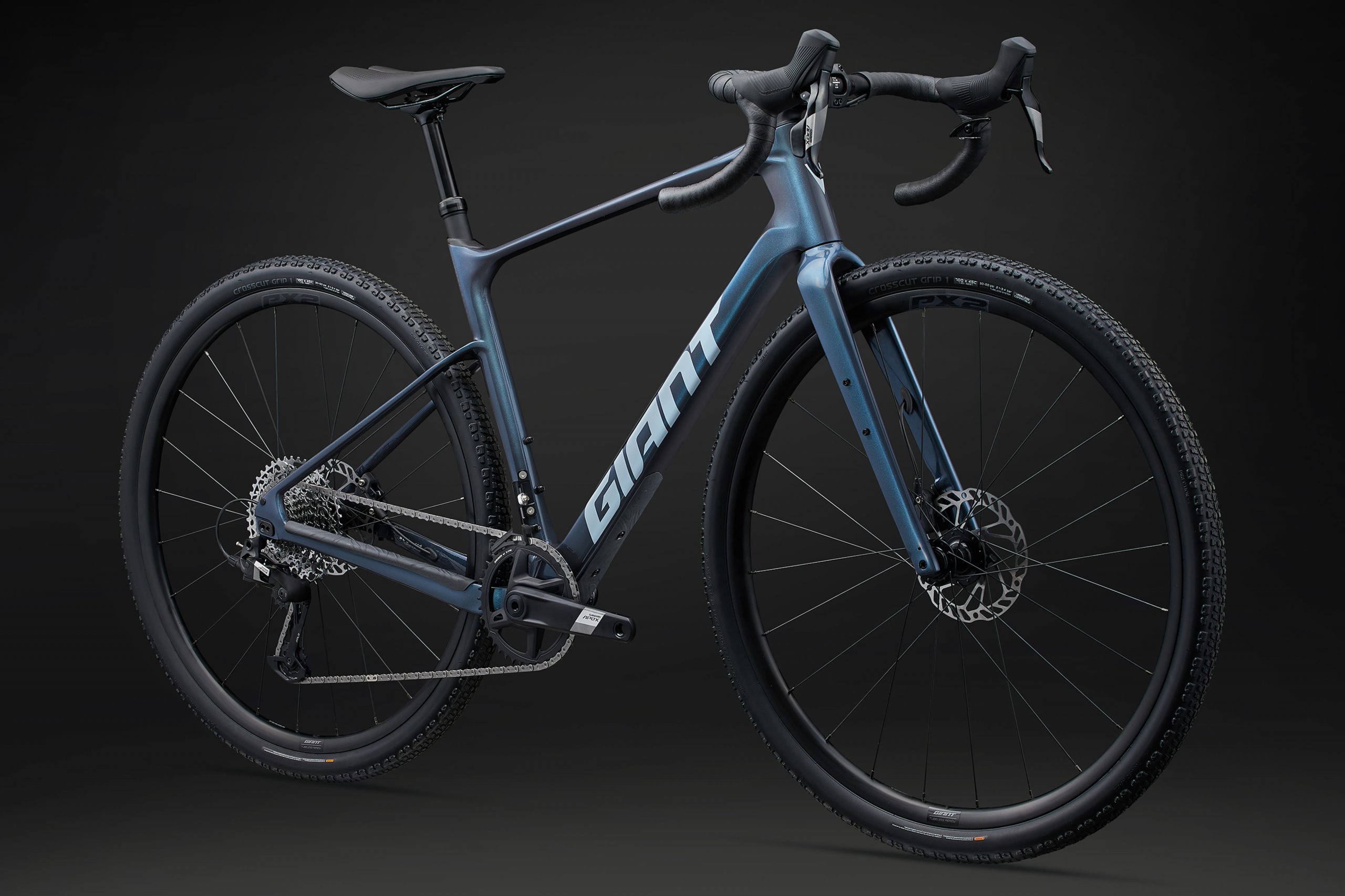

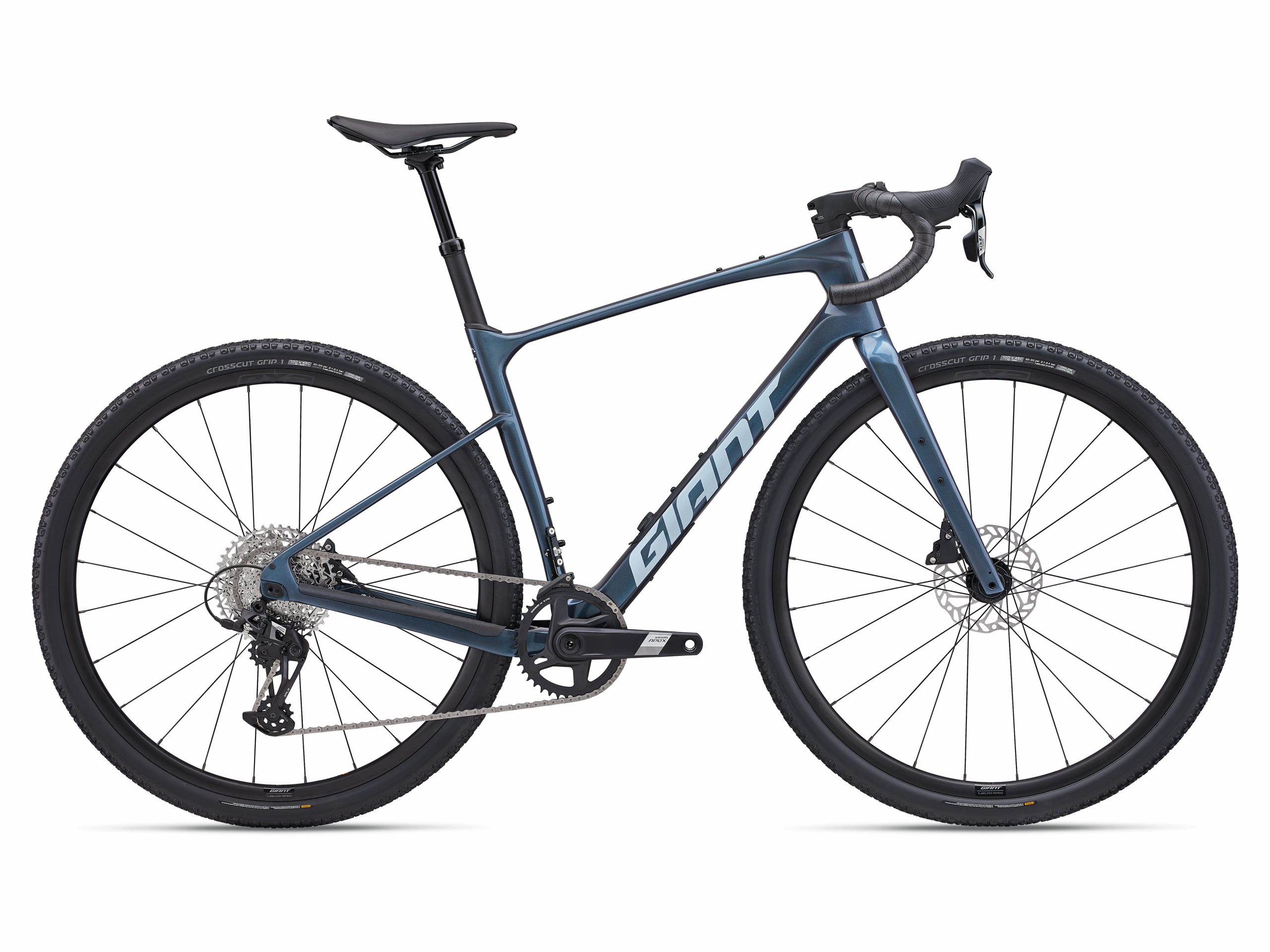

Revolt Advanced 1 (2025) | Gravel bike
€3,549.00
Features:
Specifications
GRAVEL CRUSHER
For those who like their gravel riding fast and free, this lightweight composite flyer lets you choose your objective: Pin on a number and go for the win, or chart a weekend adventure and discover how far you can go. With its composite frame, adjustable wheelbase, and internal storage to carry your essentials, the Revolt Advanced is ready for anything.
Key Performance Factors
FAST AND VERSATILE

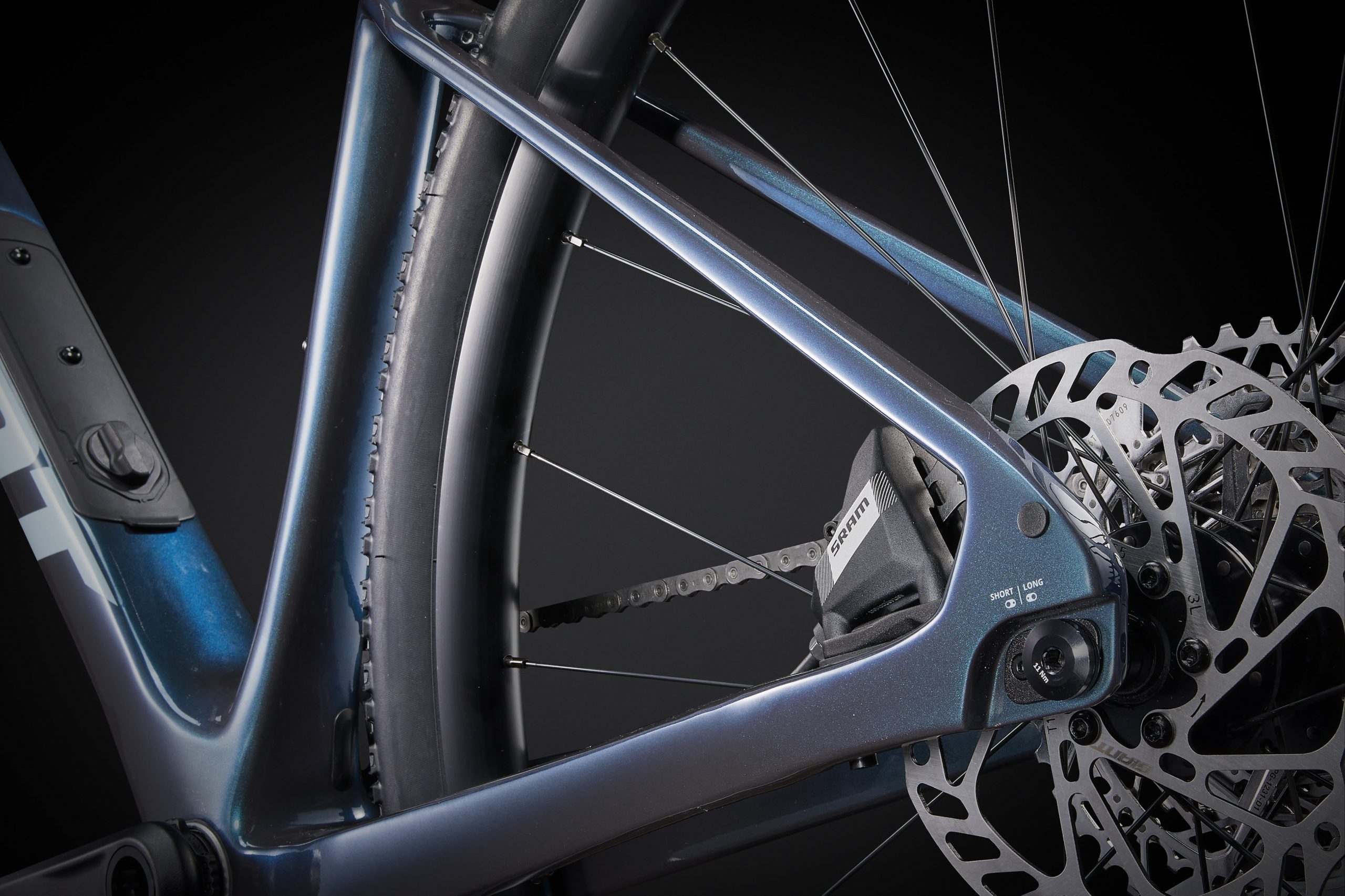

An Advanced-grade composite frame and fork combine for lightweight efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tire clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost* for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.
TUNED COMPLIANCE
Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SL XR D-Fuse alloy handlebar and carbon D-Fuse seatpost help smooth out rough tracks, improving control and minimizing fatigue over long distances.
SMART INTEGRATION

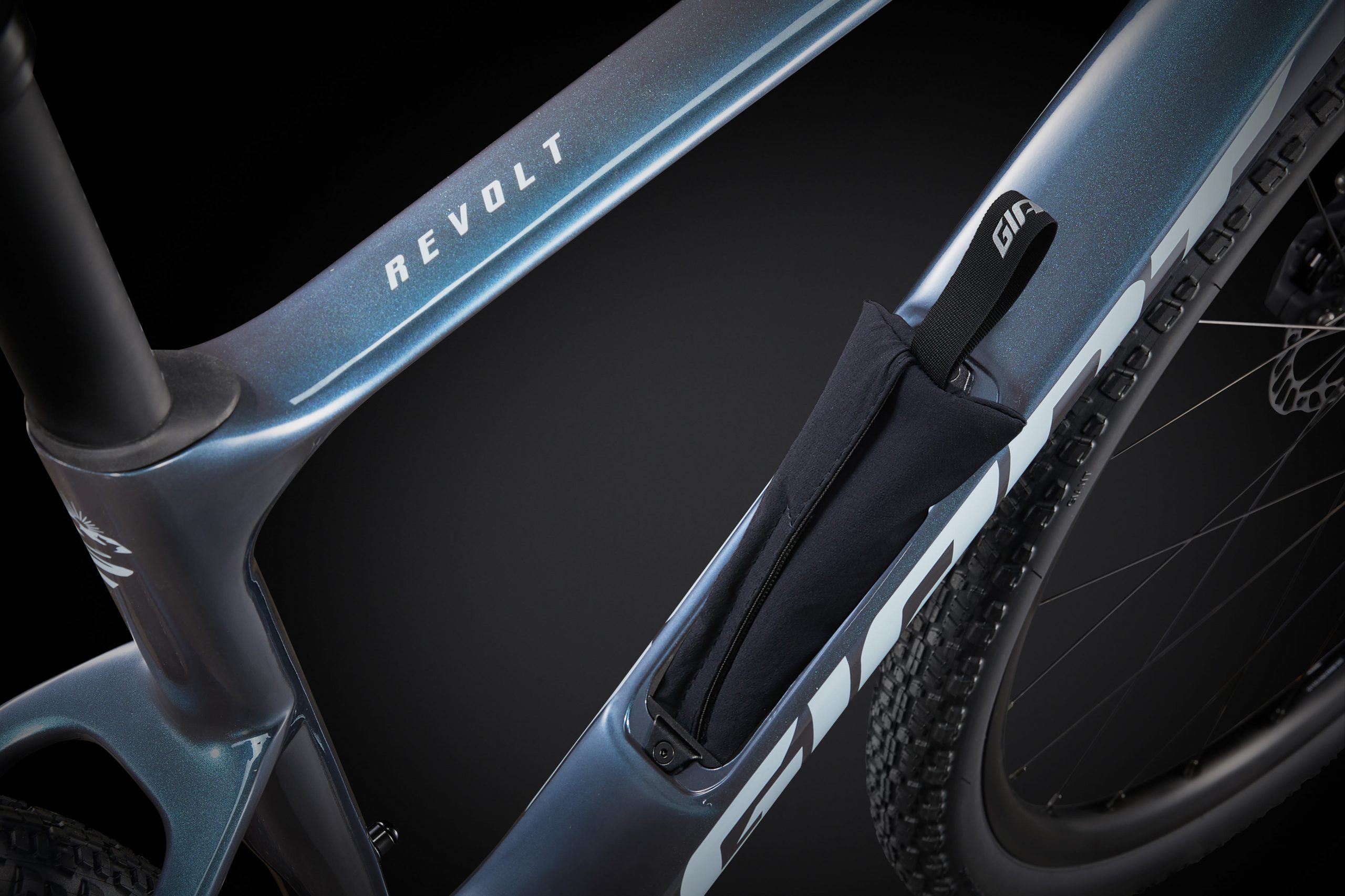

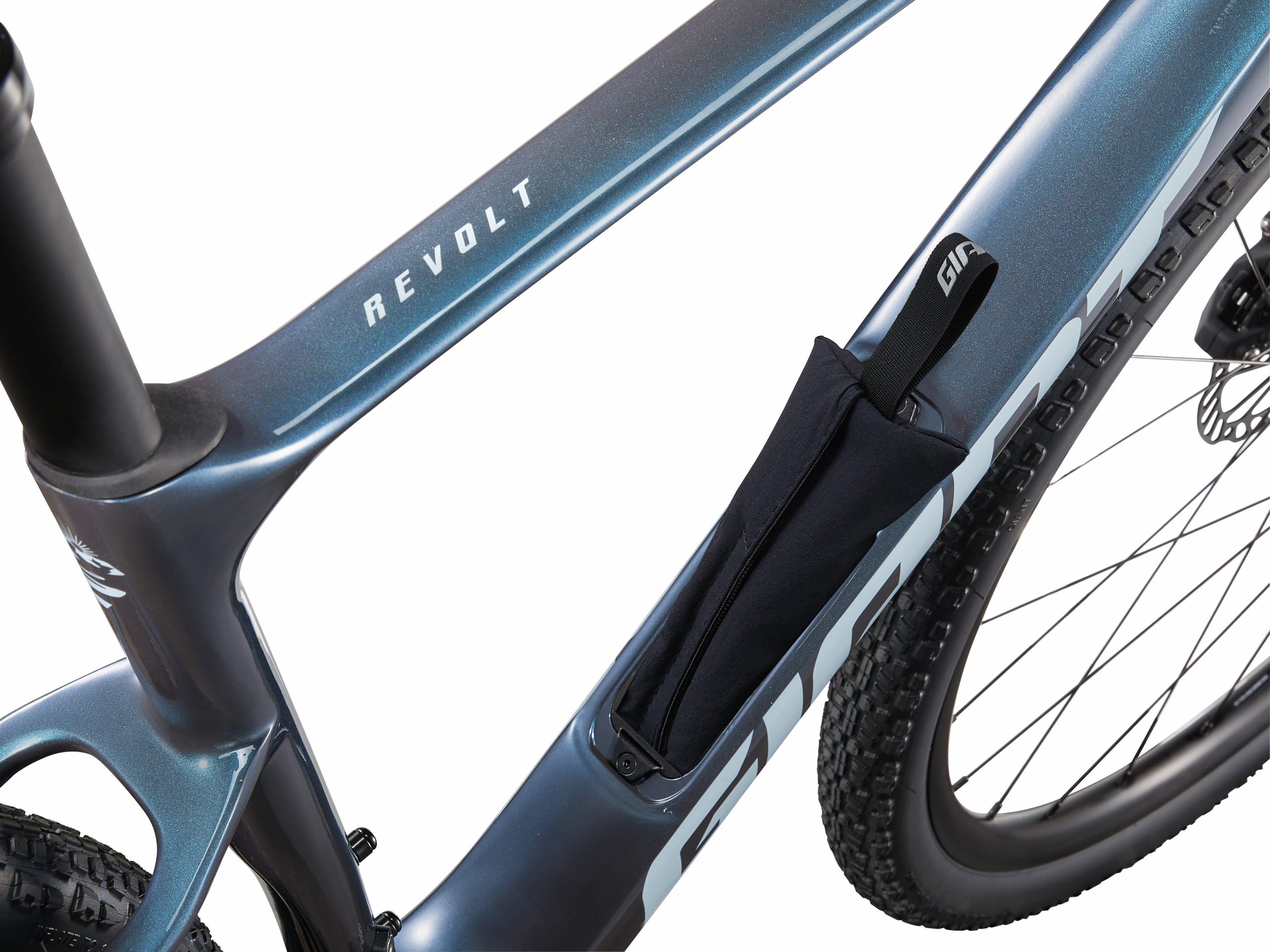

Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, molded, chainstay and down tube protection help defend the frame against impacts and quell noise.
| Sizes | S, M, M/L, L, XL |
|---|---|
| Colours | Gloss Ocean Twilight |
| Frame | Advanced-grade composite |

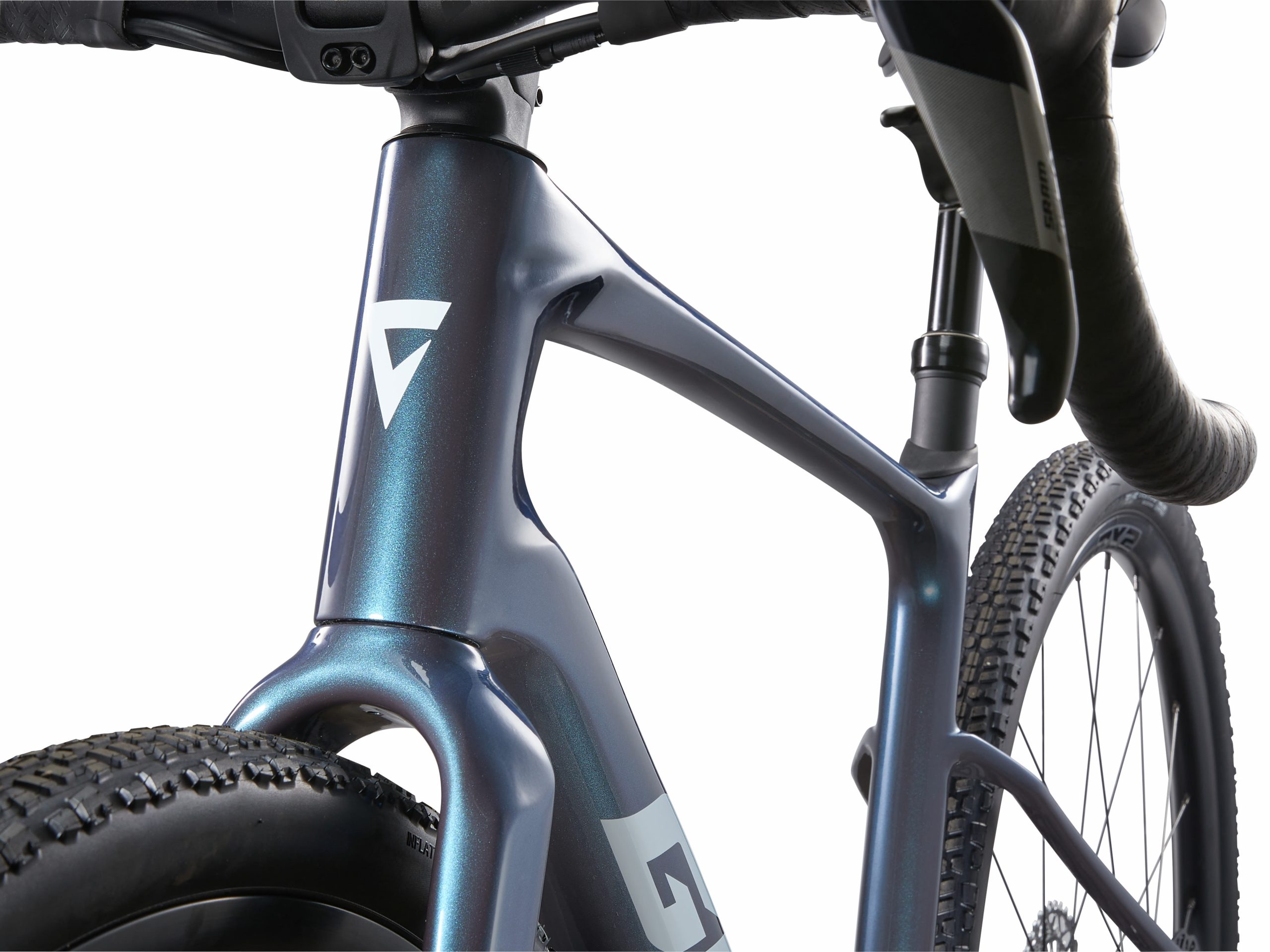

| Fork | Advanced-grade composite |

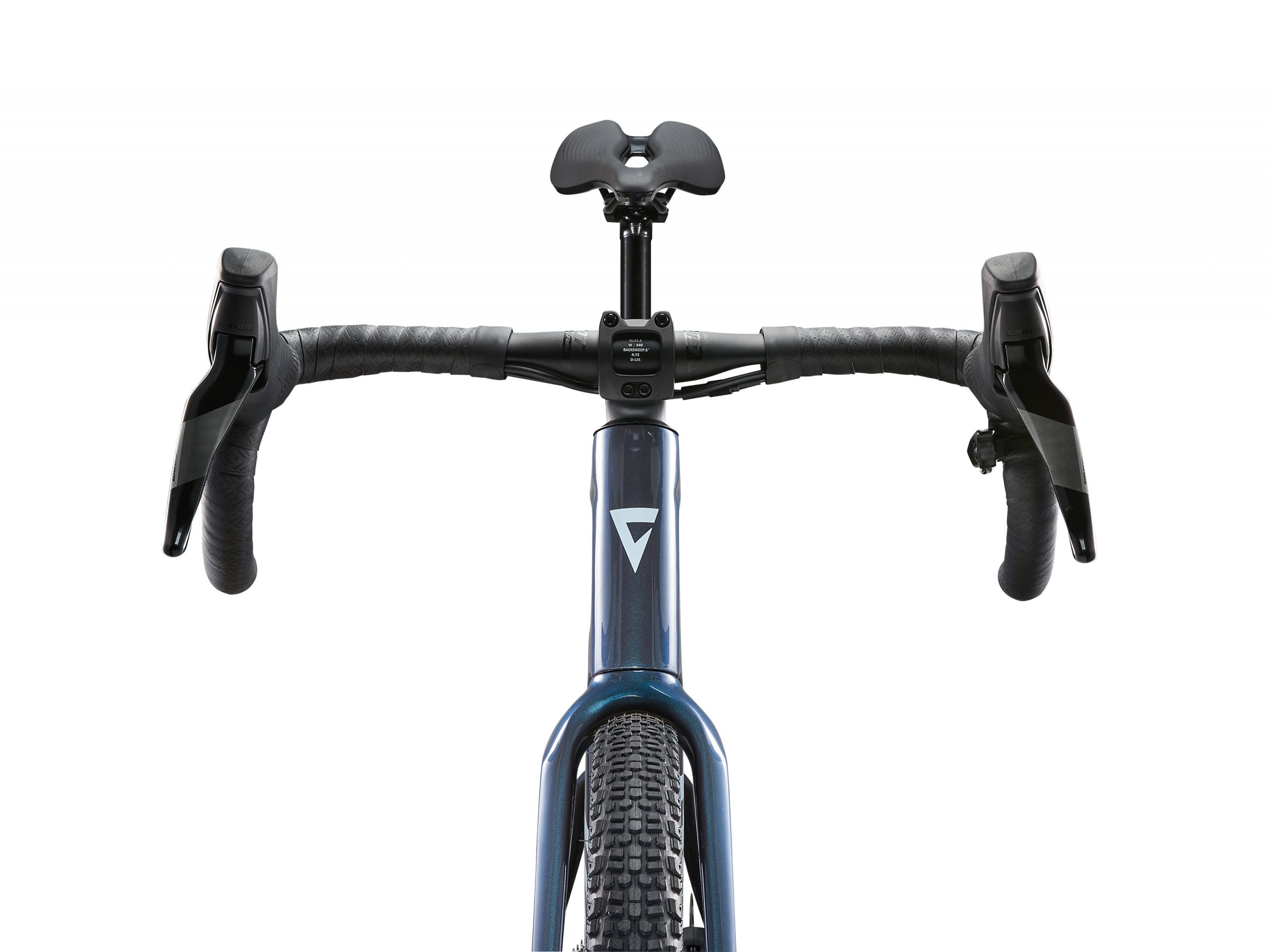

| Handlebar | Giant Contact XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
| Grips | Stratus Lite 3.0 |
| Stem | Giant Contact AeroLight, -10 degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
| Seatpost | Post Moderne, dropper, 30.9mm, 30mm suspension |
| Saddle | Giant Grit |
| Pedals | Not included |
| Shifters | SRAM Apex 1, 1×12 |
| Rear Derailleur | SRAM Apex XPLR |
| Brakes | SRAM Apex hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
| Brake Levers | SRAM Rival 1, left lever dropper switch |
| Cassette | SRAM PG-1231, 12-speed, 11×44 |
| Chain | SRAM Apex D1 |

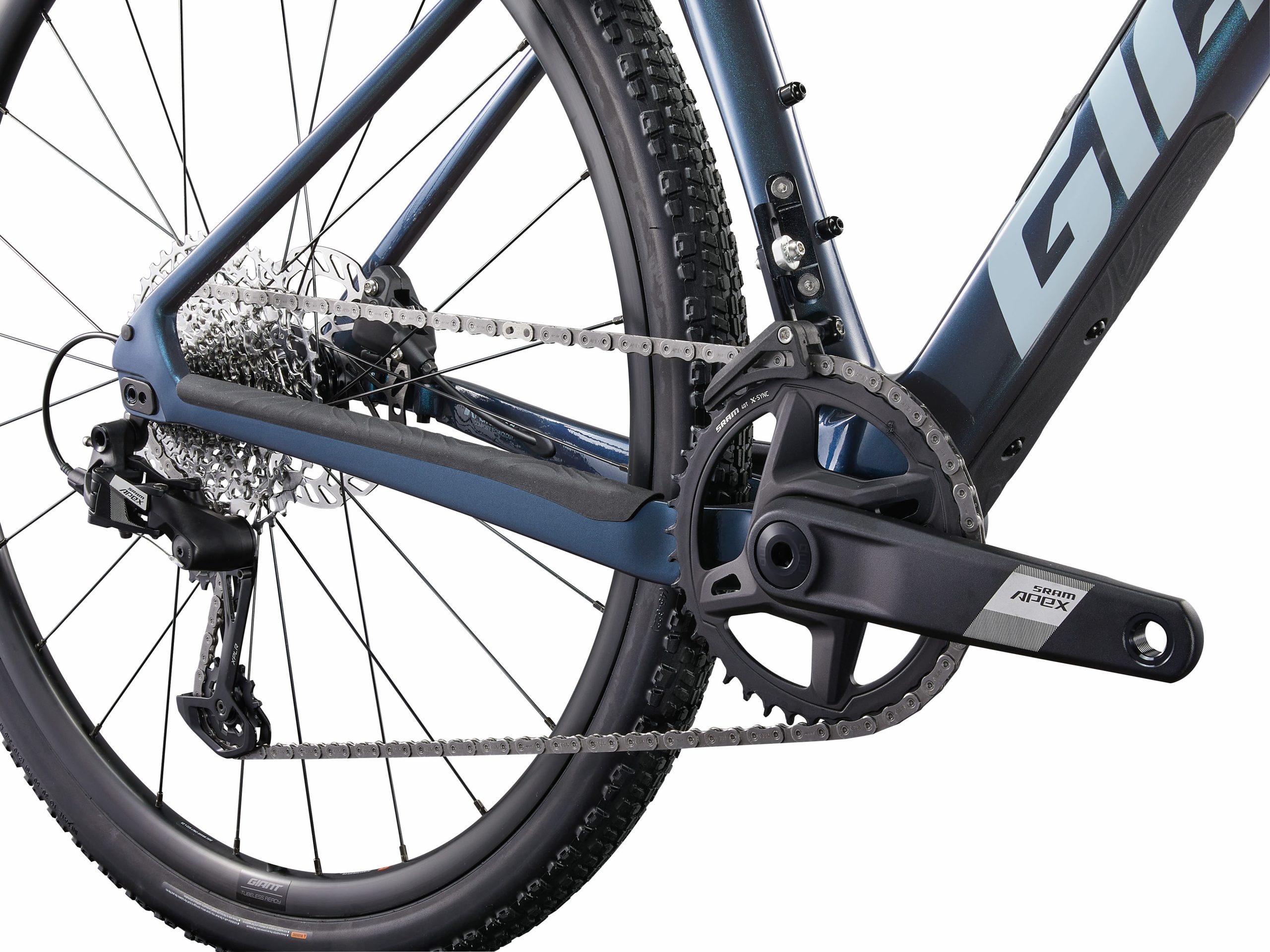

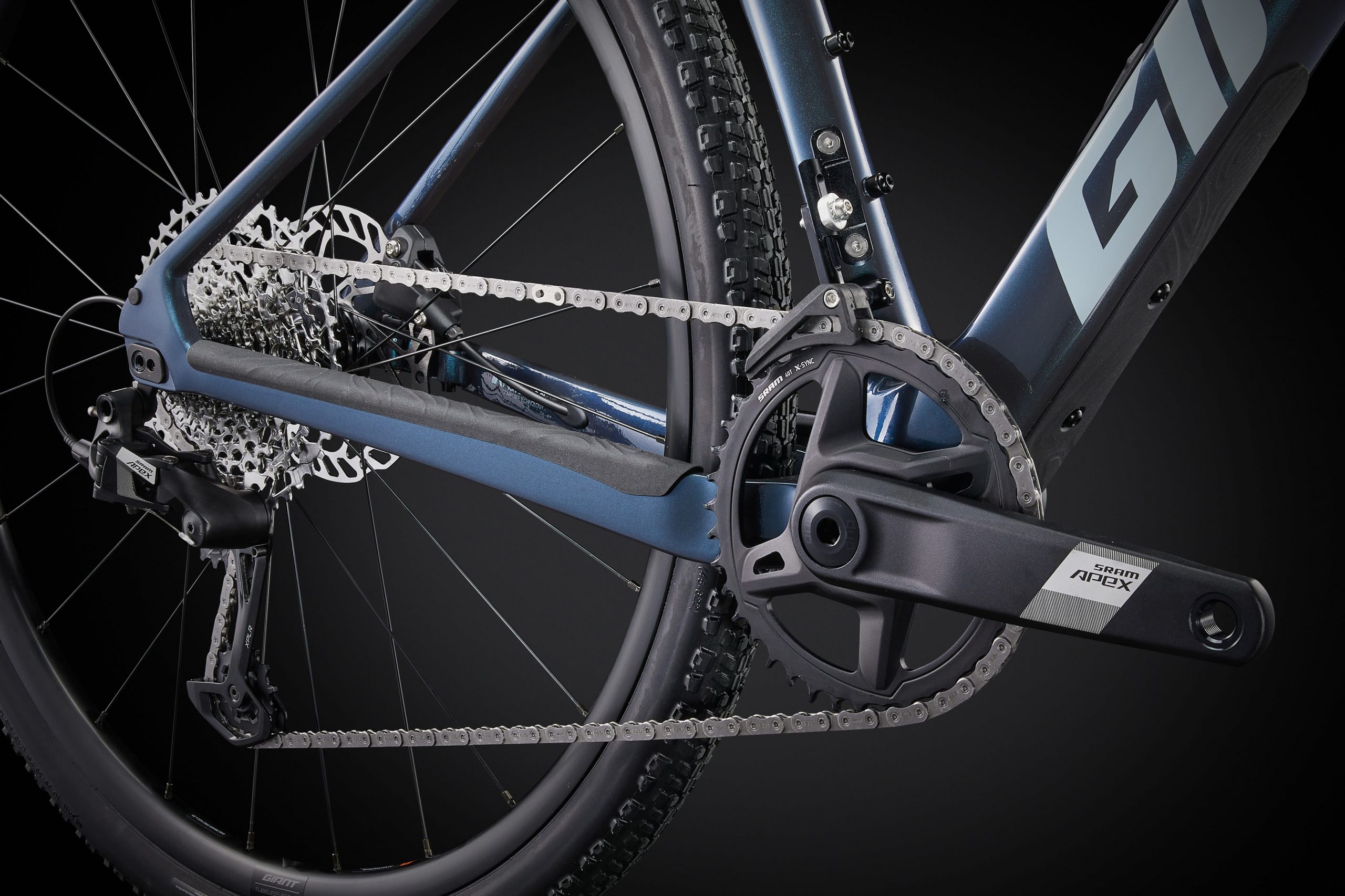

| Crankset | SRAM Apex 1 Wide DUB, 40t |
| Bottom Bracket | SRAM DUB, press fit |
| Rims | Giant P-X2 Disc wheelset, alloy |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | Sapim |
| Tyres | Giant Crosscut Grip, 700x45c, tubeless |
| Extras | Giant 1x chain guide, tubeless prepared, 53mm max tire size in “long” flip chip position, 45mm max tire size in “short” flip chip position, in-frame storage bag |
Geometry
| S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 450 | 470 | 490 | 510 | 530 |
| B | SEAT TUBE ANGLE | 73.5 | 73.5 | 73 | 73 | 73 |
| C | TOP TUBE LENGTH | 550 | 560 | 575 | 585 | 600 |
| D | HEAD TUBE LENGTH | 135 | 150 | 165 | 180 | 195 |
| E | HEAD TUBE ANGLE | 71 | 71.5 | 72 | 72 | 72 |
| F | FORK RAKE | 50 | 50 | 50 | 50 | 50 |
| G | TRAIL | 72 | 68 | 65 | 65 | 65 |
| H | WHEEL BASE | 1020 | 1026 | 1031 | 1041 | 1056 |
| I | CHAIN STAY LENGTH | 425 | 425 | 425 | 425 | 425 |
| J | BOTTOM BRACKET DROP | 80 | 80 | 80 | 80 | 80 |
| K | STACK | 570 | 586 | 602 | 616 | 630 |
| L | REACH | 381 | 387 | 391 | 397 | 407 |
| M | STAND OVER HEIGHT | 740 | 757 | 774 | 791 | 807 |
| N | HANDLERBAR WIDTH | 420 | 440 | 440 | 460 | 460 |
| O | STEM LENGTH | 60 | 70 | 80 | 80 | 90 |
| P | CRANK LENGTH DEC | 170 | 172.5 | 172.5 | 175 | 175 |
| Q | WHEEL SIZE ALT | 700c | 700c | 700c | 700c | 700c |
