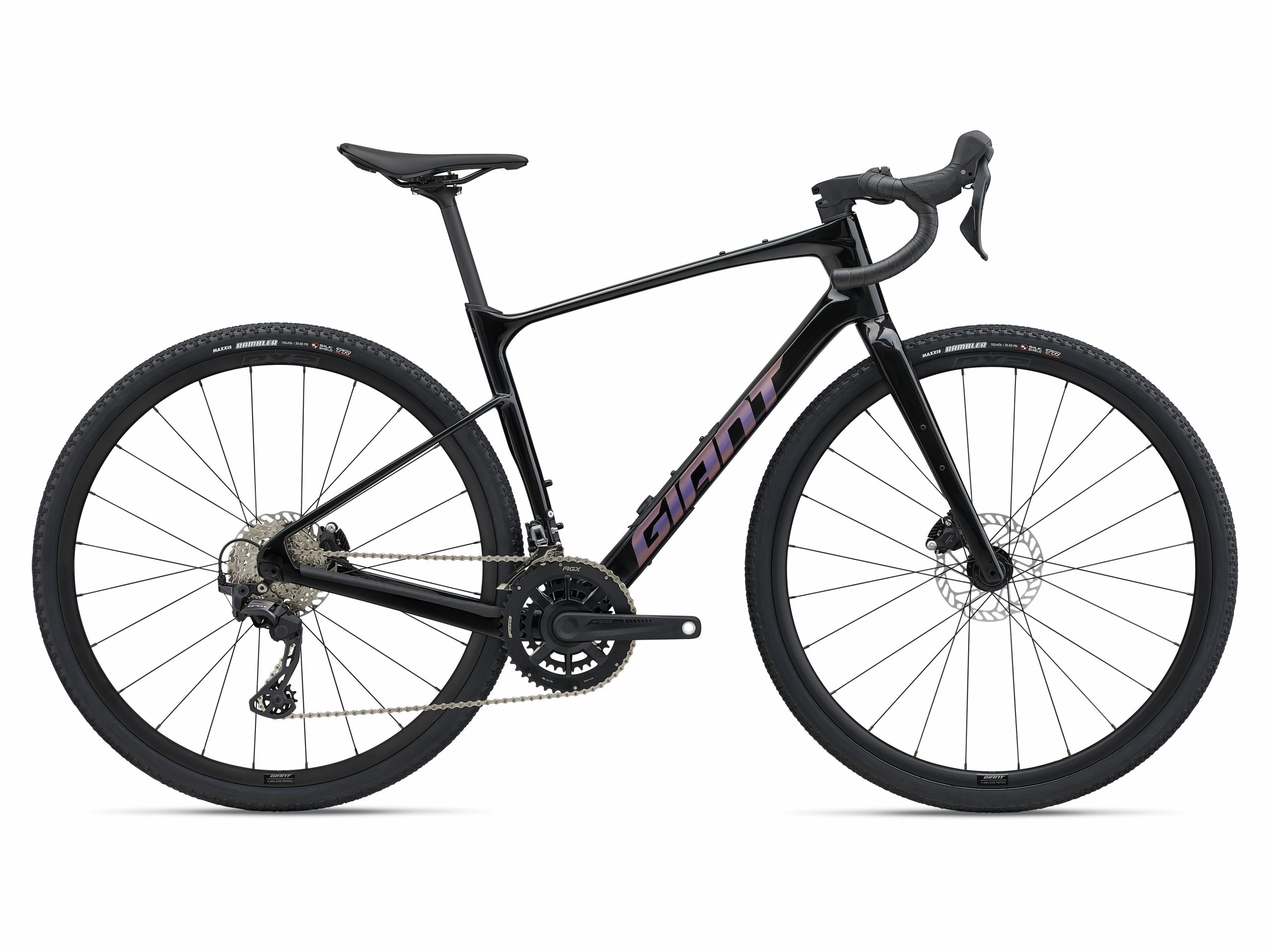

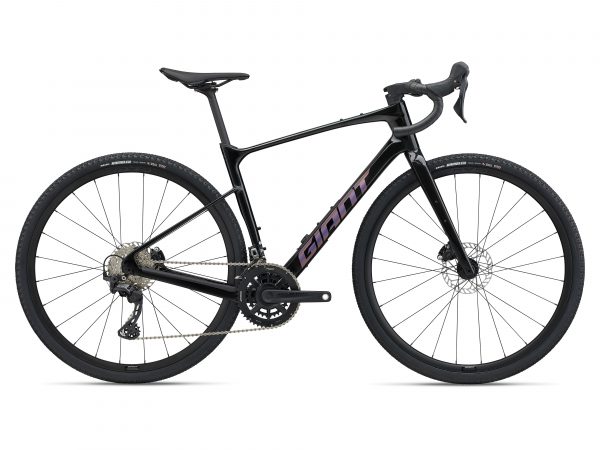

Revolt Advanced 2 (2025) | Gravel bike
€3,099.00
Features:
Specifications
GRAVEL CRUSHER
For those who like their gravel riding fast and free, this lightweight composite flyer lets you choose your objective: Pin on a number and go for the win, or chart a weekend adventure and discover how far you can go. With its composite frame, adjustable wheelbase, and internal storage to carry your essentials, the Revolt Advanced is ready for anything.
Key Performance Factors
FAST AND VERSATILE
An Advanced-grade composite frame and fork combine for lightweight efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tire clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost* for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.
TUNED COMPLIANCE
Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SL XR D-Fuse alloy handlebar and carbon D-Fuse seatpost help smooth out rough tracks, improving control and minimizing fatigue over long distances.
SMART INTEGRATION
Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, molded, chainstay and down tube protection help defend the frame against impacts and quell noise.
| Sizes | XS, S, M, M/L, L, XL |
|---|---|
| Colours | Gloss Carbon |
| Frame | Advanced-grade composite |
| Fork | Advanced-grade composite |
| Handlebar | Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
| Grips | Stratus Lite 3.0 |
| Stem | Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
| Seatpost | Giant D-Fuse, composite, 14mm offset |
| Saddle | Giant Grit |
| Pedals | Not included |
| Shifters | Shimano GRX RX-610, 2×12 |
| Front Derailleur | Shimano GRX RX-820 |
| Rear Derailleur | Shimano GRX RX-820 |
| Brakes | Shimano GRX RX-410 hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
| Brake Levers | Shimano GRX RX-610 hydraulic |
| Cassette | Shimano CS-HG710, 12-speed, 11×36 |
| Chain | KMC X12L-1 |
| Crankset | FSA Omega Modular AGX+, 32/48 |
| Bottom Bracket | FSA BB-AL86, press fit |
| Rims | Giant P-X2 Disc wheelset, alloy |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | Sapim |
| Tyres | Giant Crosscut Grip TR, 700x40c, tubeless |
| Extras | tubeless prepared, 53mm max tire size in “long” flip chip position, 45mm max tire size in “short” flip chip position, in-frame storage bag |
Geometry
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 430 | 450 | 470 | 490 | 510 | 530 |
| B | SEAT TUBE ANGLE | 74 | 73.5 | 73.5 | 73 | 73 | 73 |
| C | TOP TUBE LENGTH | 540 | 550 | 560 | 575 | 585 | 600 |
| D | HEAD TUBE LENGTH | 125 | 135 | 150 | 165 | 180 | 195 |
| E | HEAD TUBE ANGLE | 70 | 71 | 71.5 | 72 | 72 | 72 |
| F | FORK RAKE | 50 | 50 | 50 | 50 | 50 | 50 |
| G | TRAIL | 78 | 72 | 68 | 65 | 65 | 65 |
| H | WHEEL BASE | 1024 | 1020 | 1026 | 1031 | 1041 | 1056 |
| I | CHAIN STAY LENGTH | 425 | 425 | 425 | 425 | 425 | 425 |
| J | BOTTOM BRACKET DROP | 80 | 80 | 80 | 80 | 80 | 80 |
| K | STACK | 556 | 570 | 586 | 602 | 616 | 630 |
| L | REACH | 381 | 381 | 387 | 391 | 397 | 407 |
| M | STAND OVER HEIGHT | 724 | 740 | 757 | 774 | 791 | 807 |
| N | HANDLERBAR WIDTH | 420 | 420 | 440 | 440 | 460 | 460 |
| O | STEM LENGTH | 50 | 60 | 70 | 80 | 80 | 90 |
| P | CRANK LENGTH DEC | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Q | WHEEL SIZE ALT | 700c | 700c | 700c | 700c | 700c | 700c |
