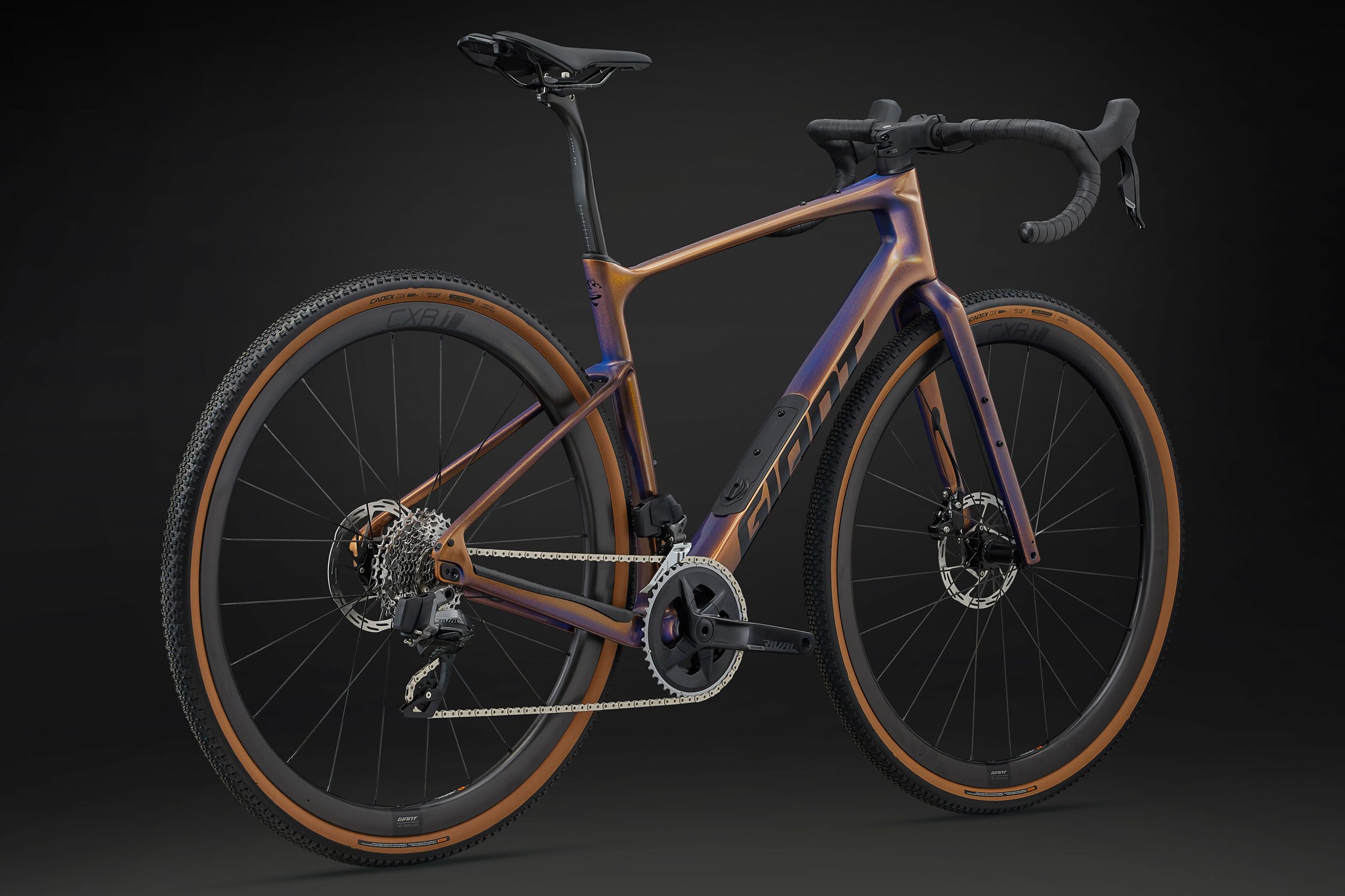

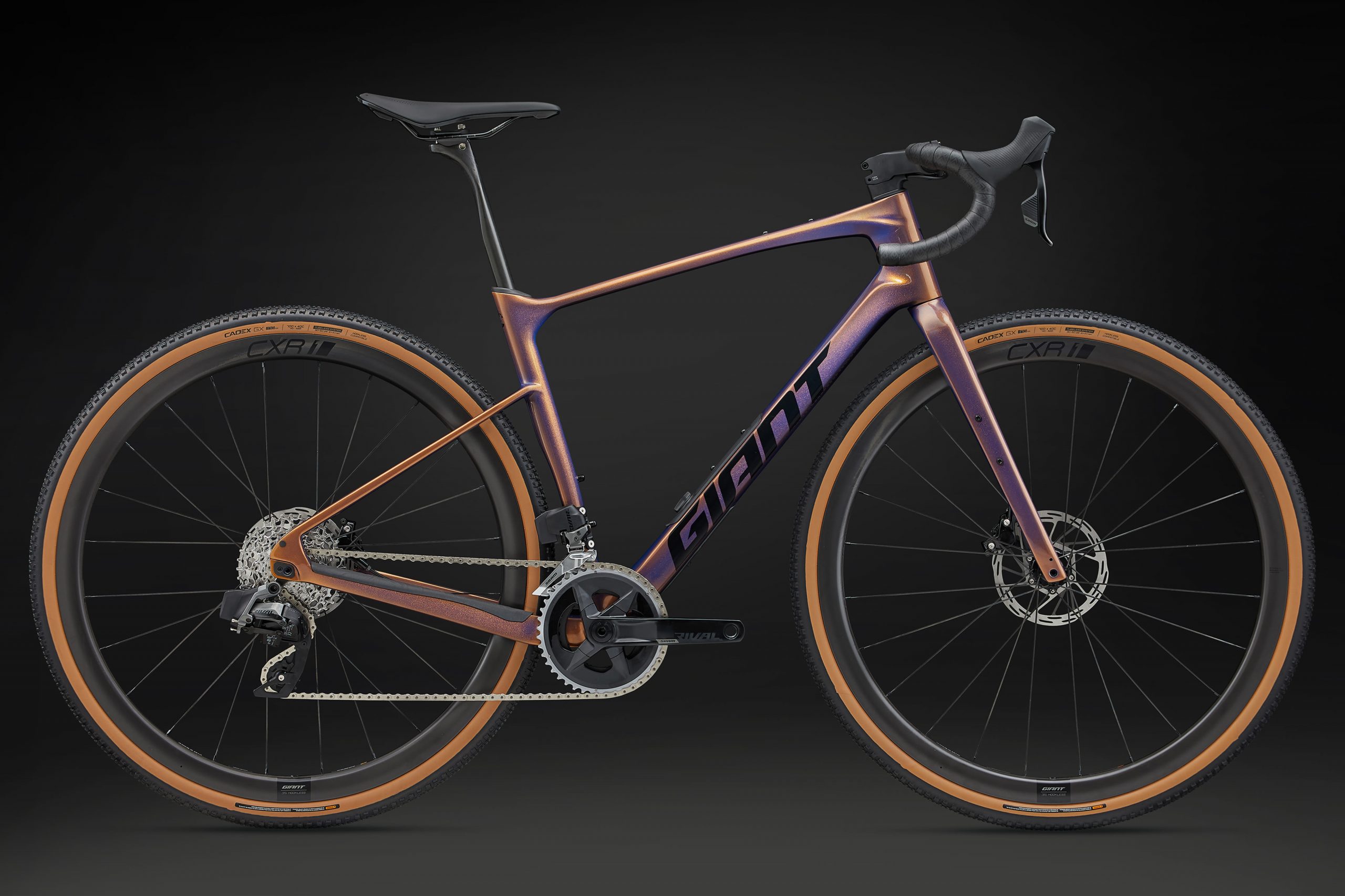

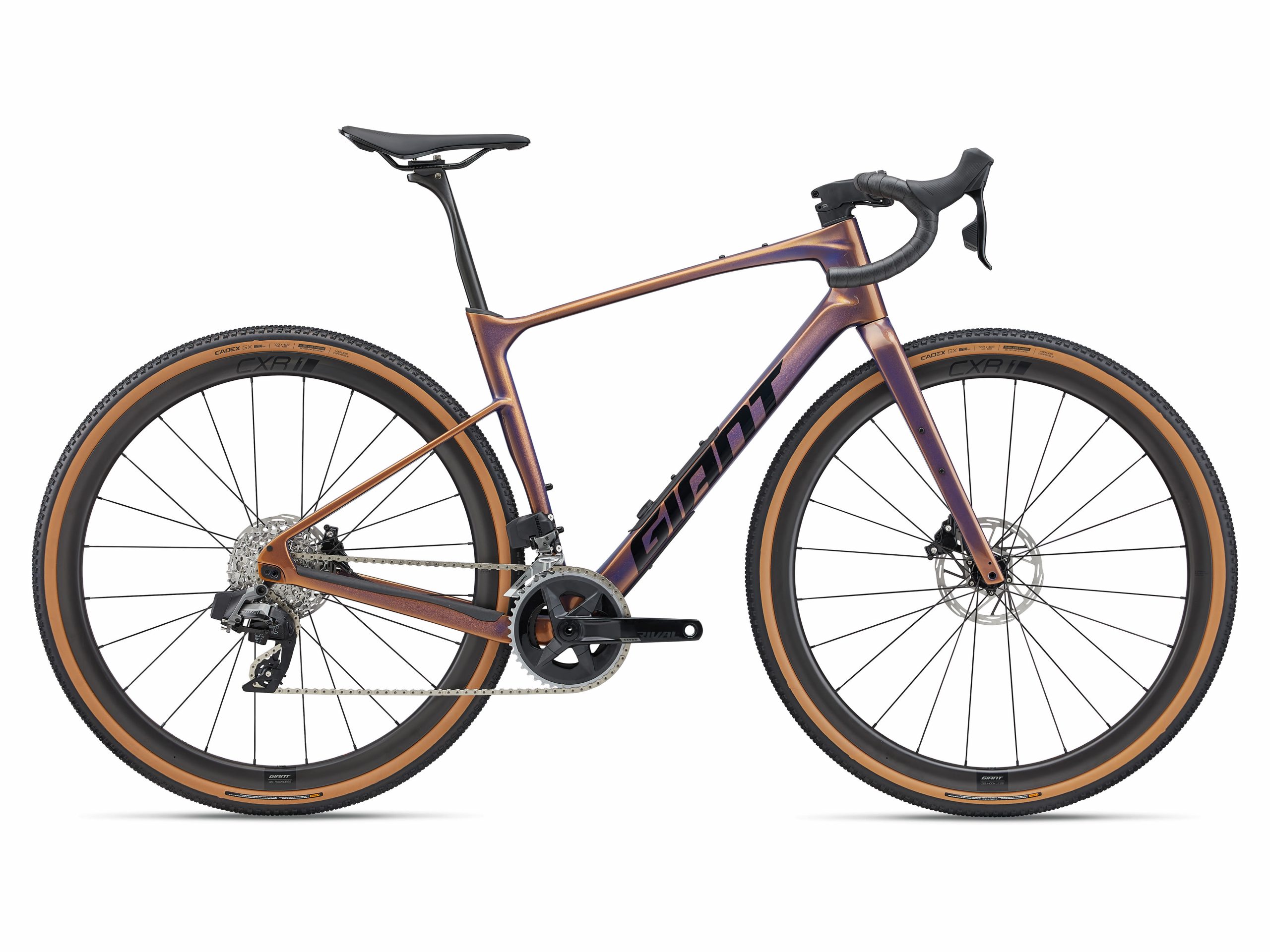

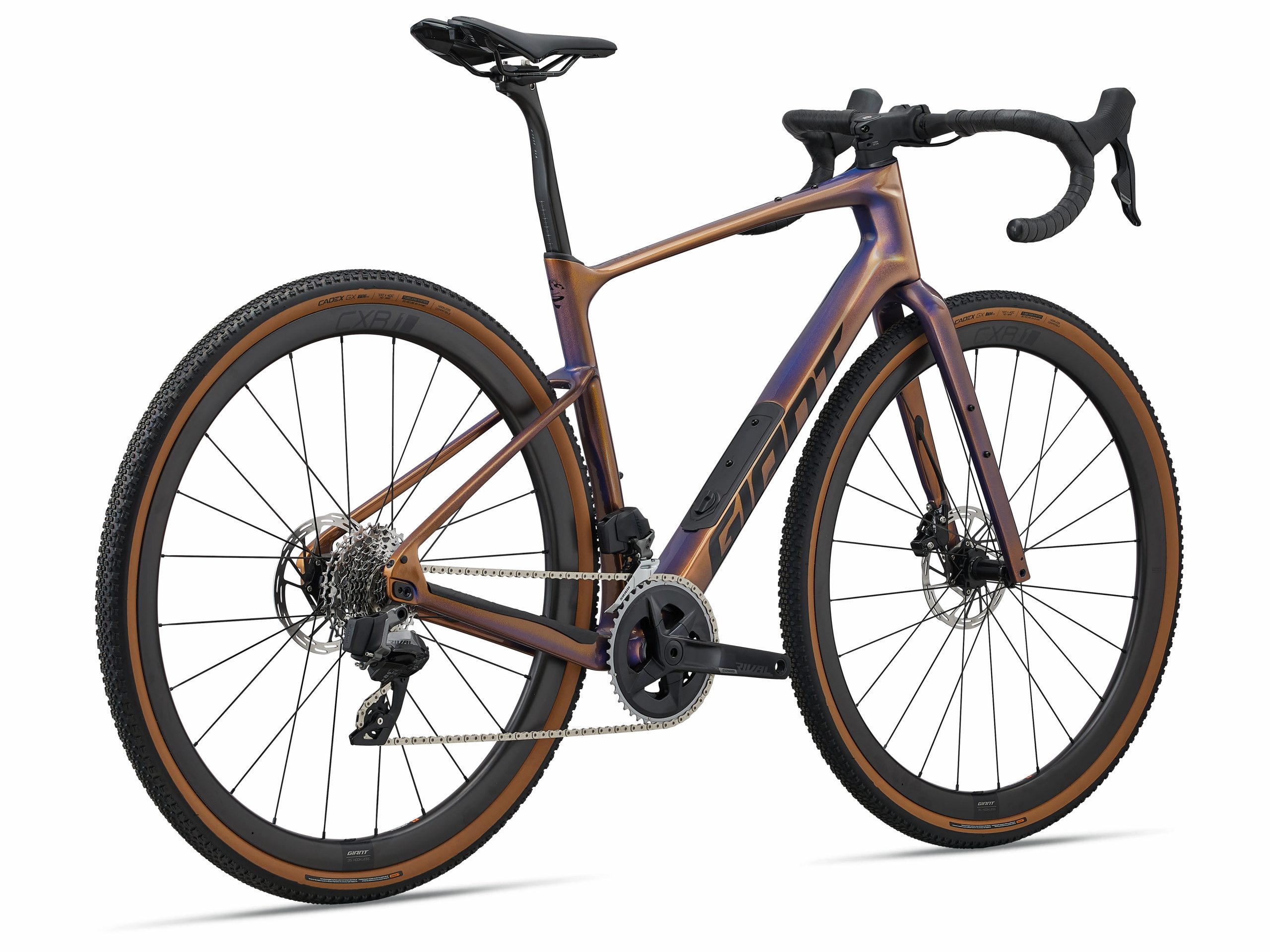

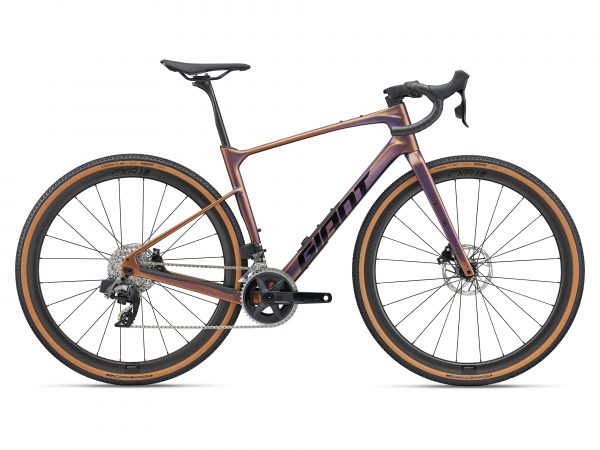

Revolt Advanced Pro 1 (2025) | Gravel bike
€5,749.00
Features:
Specifications
GRAVEL CRUSHER
Now lighter, smoother and more adaptable to variable conditions and terrain, this reengineered composite gravel bike combines ultra-efficient performance with next-level handling and control.
Key Performance Factors
FAST AND VERSATILE

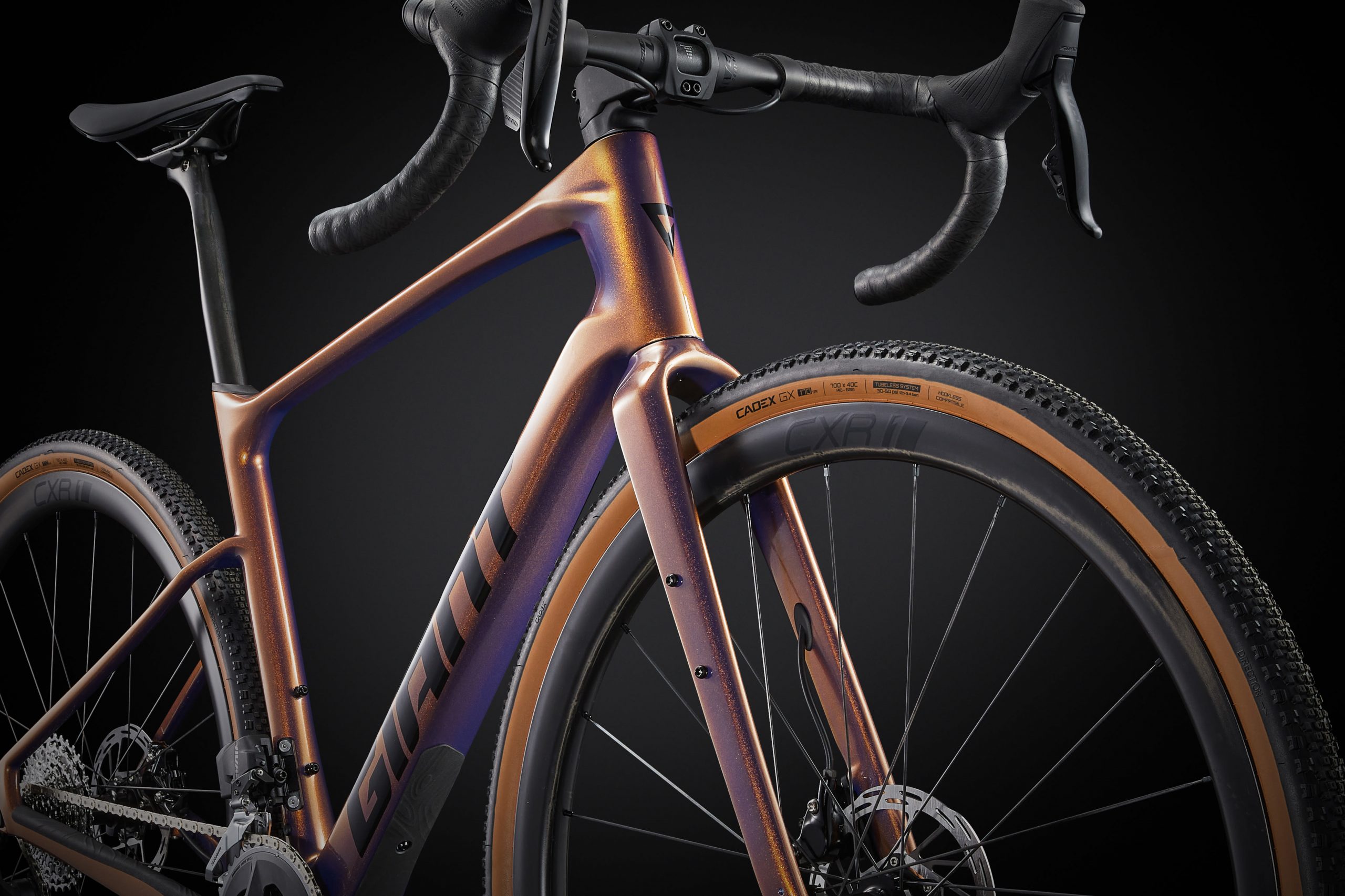

Lightweight Advanced-grade composite frame and Advanced SL composite fork combine for race-winning efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tire clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.
TUNED COMPLIANCE

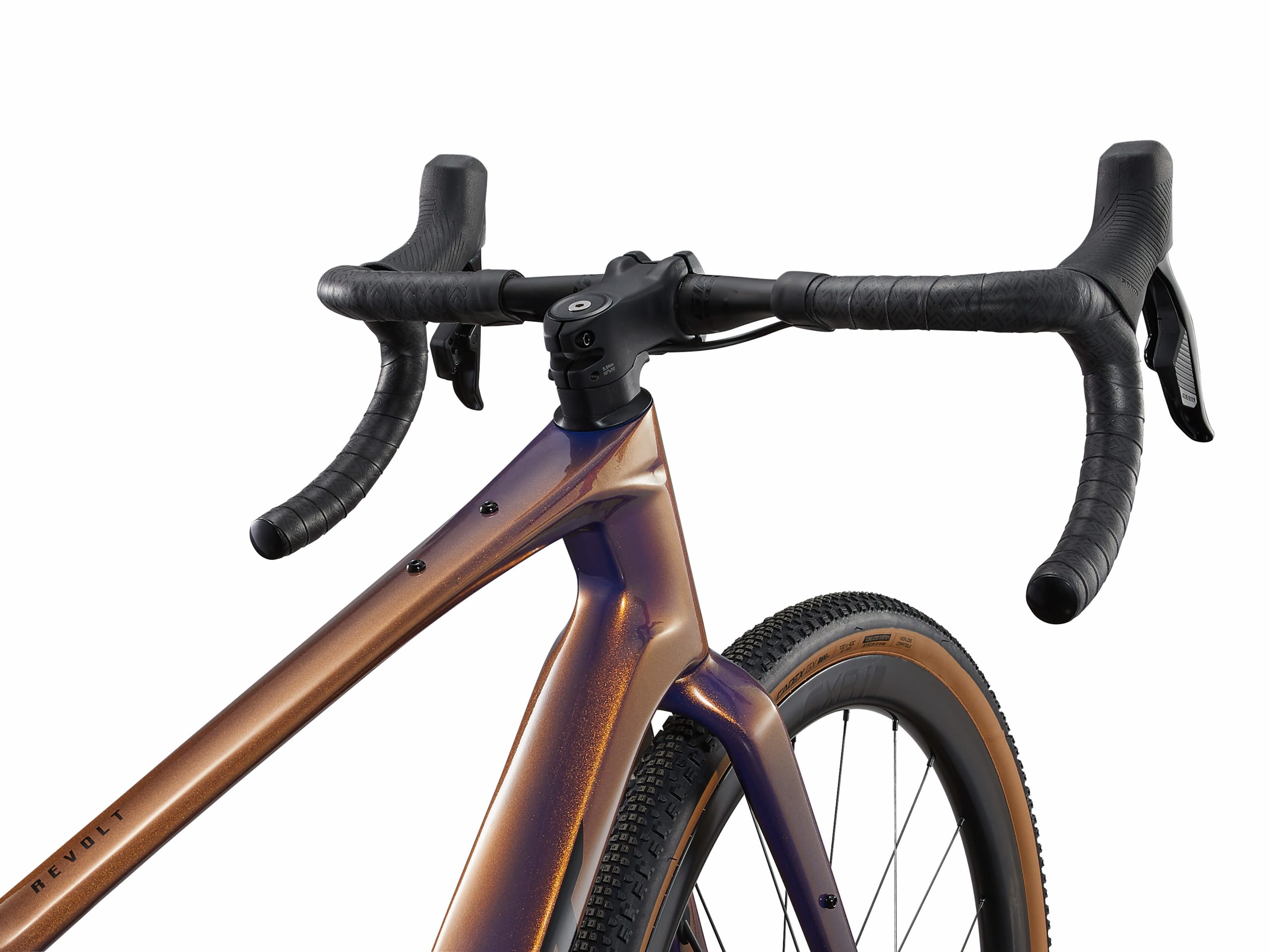

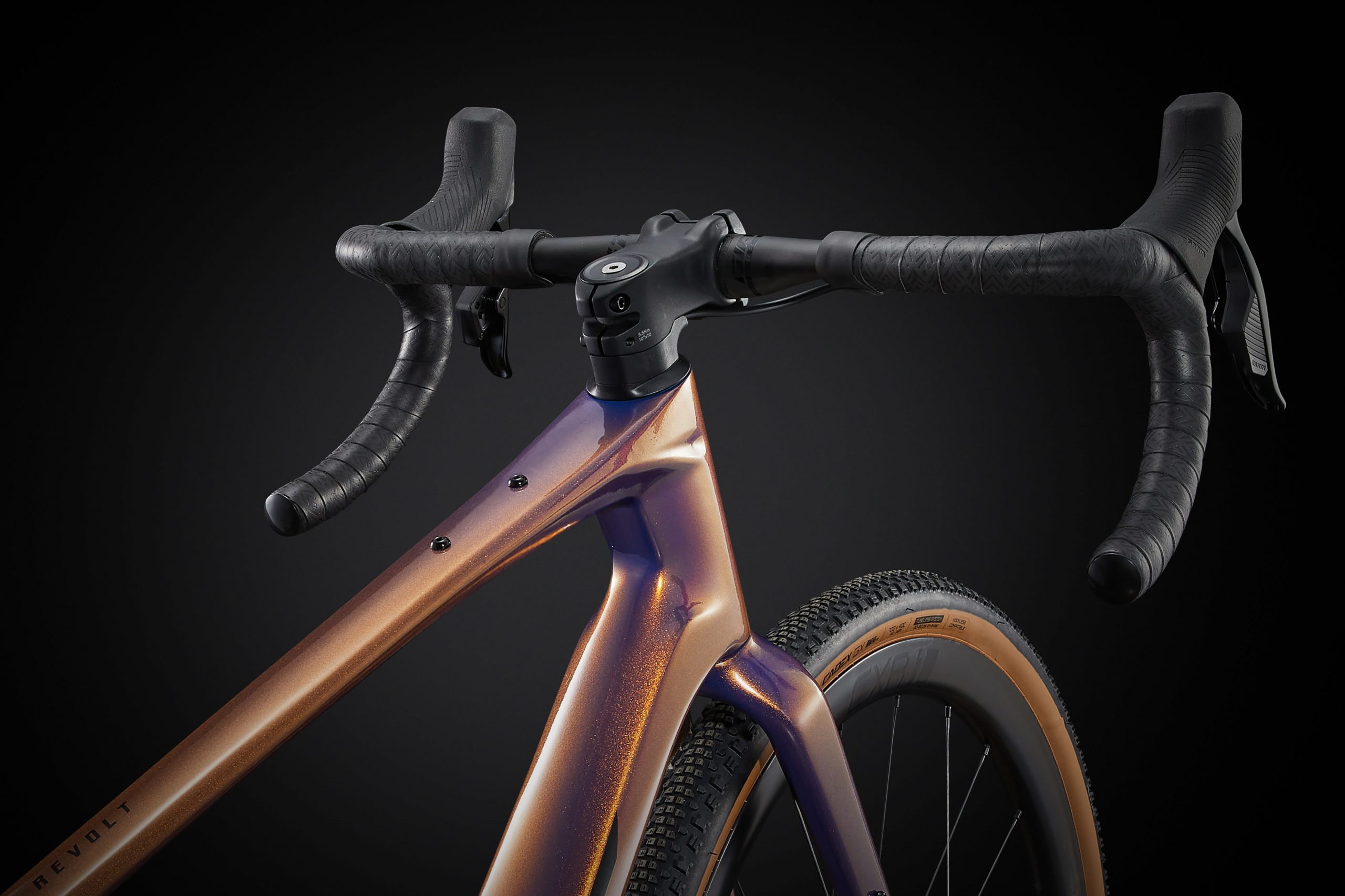

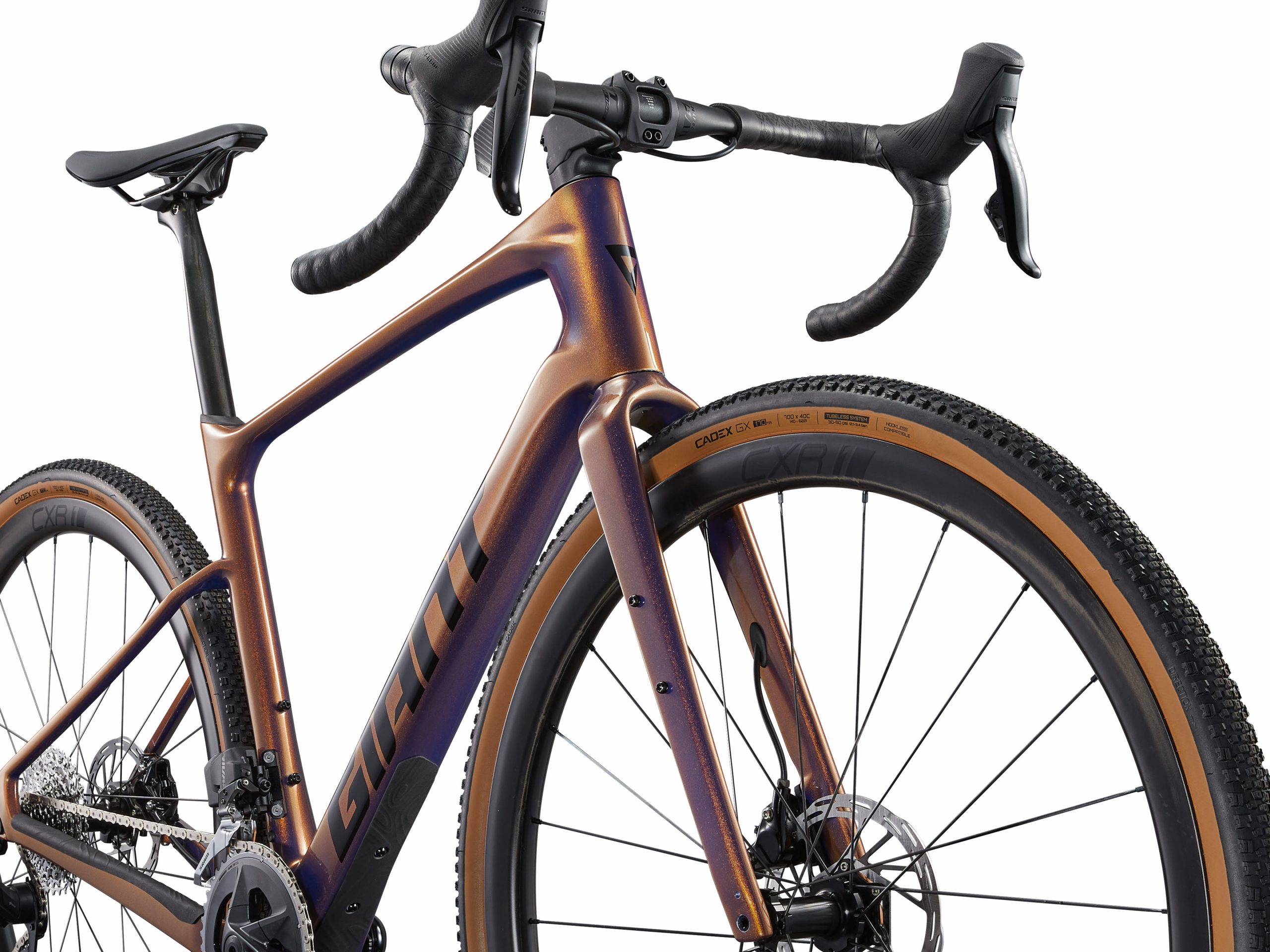

Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SLR XR D-Fuse carbon handlebar and D-Fuse SLR seatpost help smooth out rough tracks, improving control and minimizing fatigue over long distances.
SMART INTEGRATION

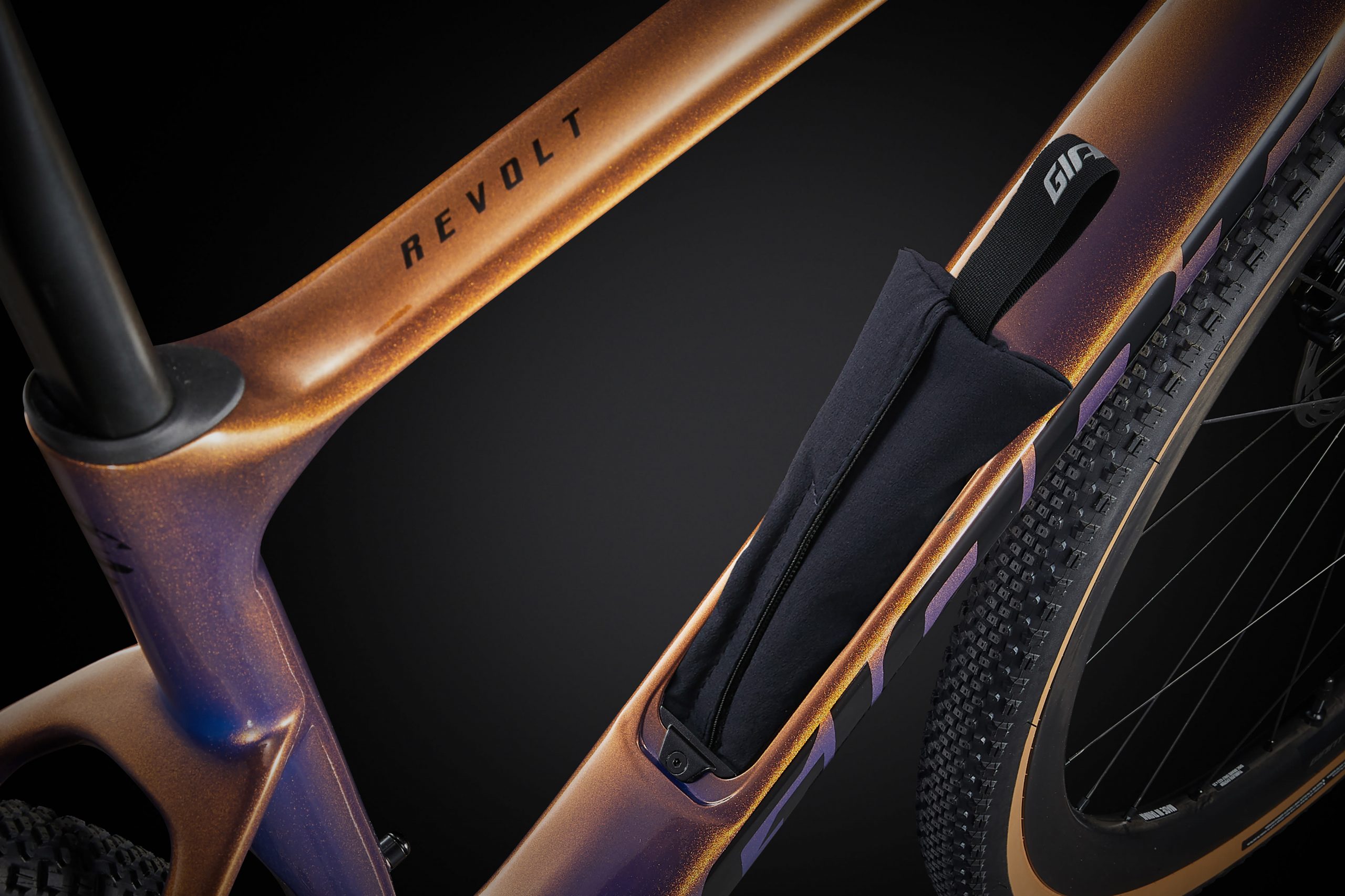

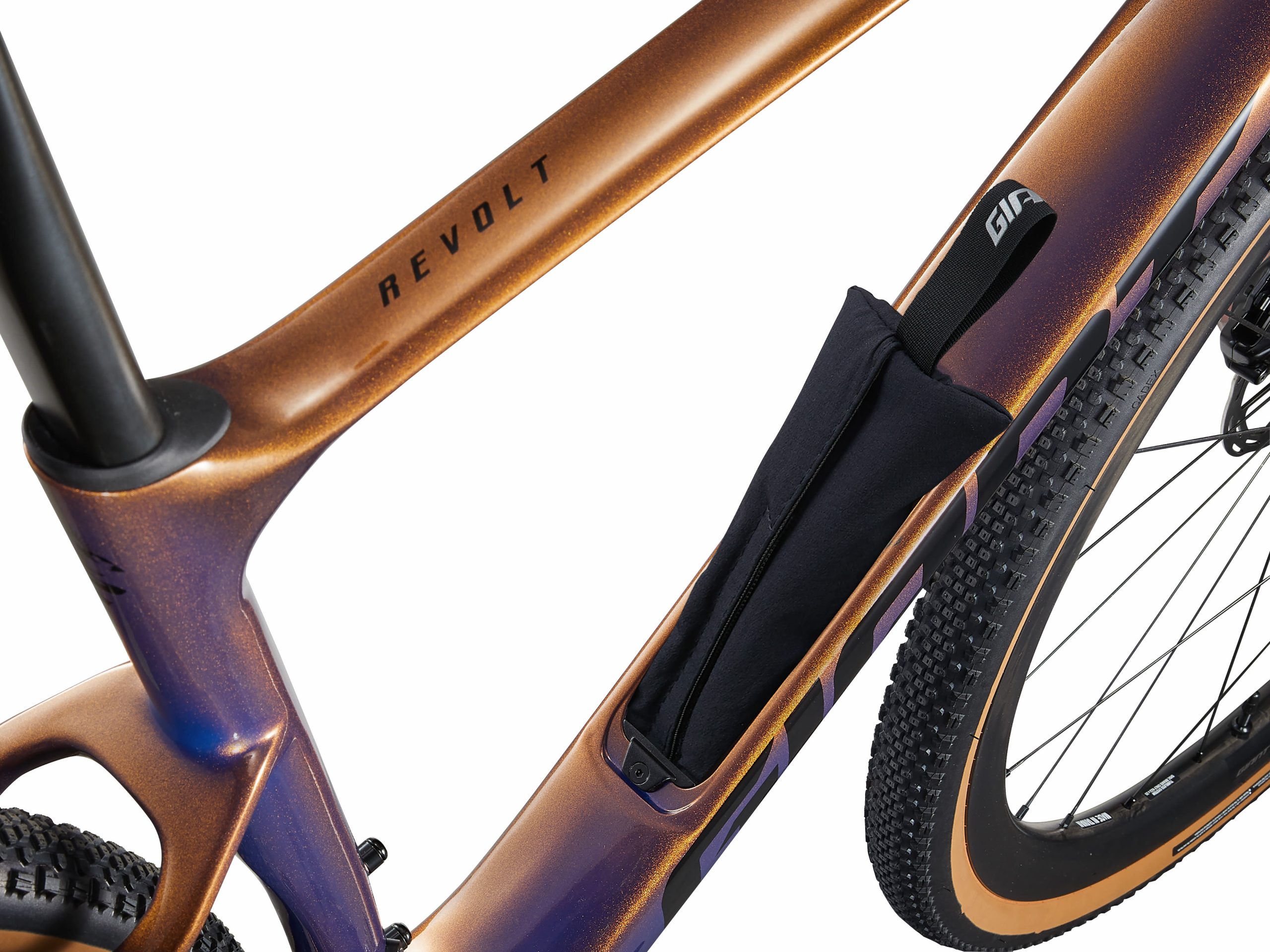

Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, molded, chainstay and down tube protection help defend the frame against impacts and quell noise.
| Sizes | S, M, M/L, L, XL |
|---|---|
| Colours | Gloss Meteor Storm |
| Frame | Advanced-grade composite |
| Fork | Advanced SL-grade composite, |
| Handlebar | Giant Contact SLR XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
| Grips | Stratus Lite 3.0 |
| Stem | Giant Contact AeroLight, -10 degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
| Seatpost | Giant D-Fuse SLR, composite |
| Saddle | Giant Grit SL |
| Pedals | Not included |

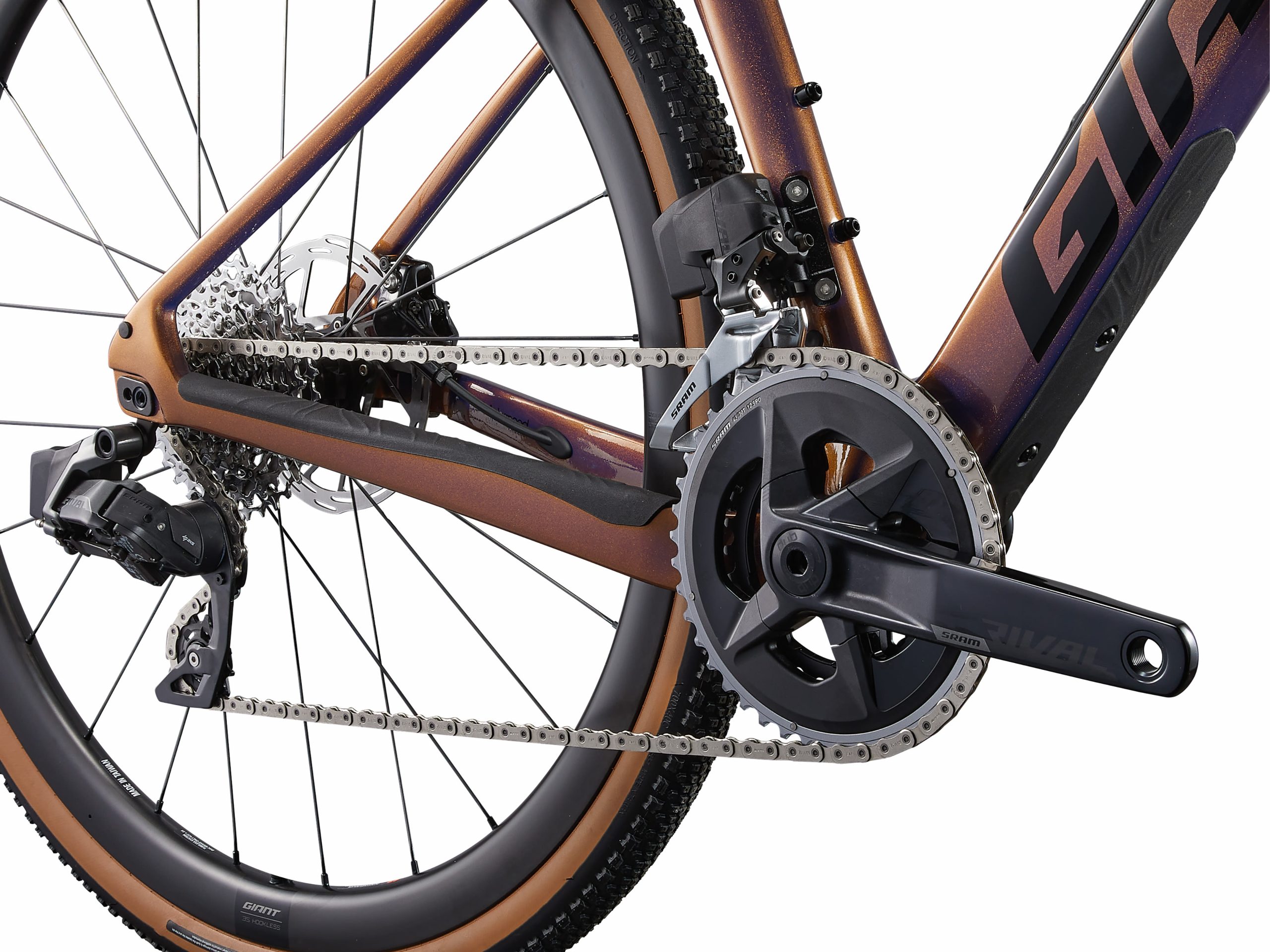

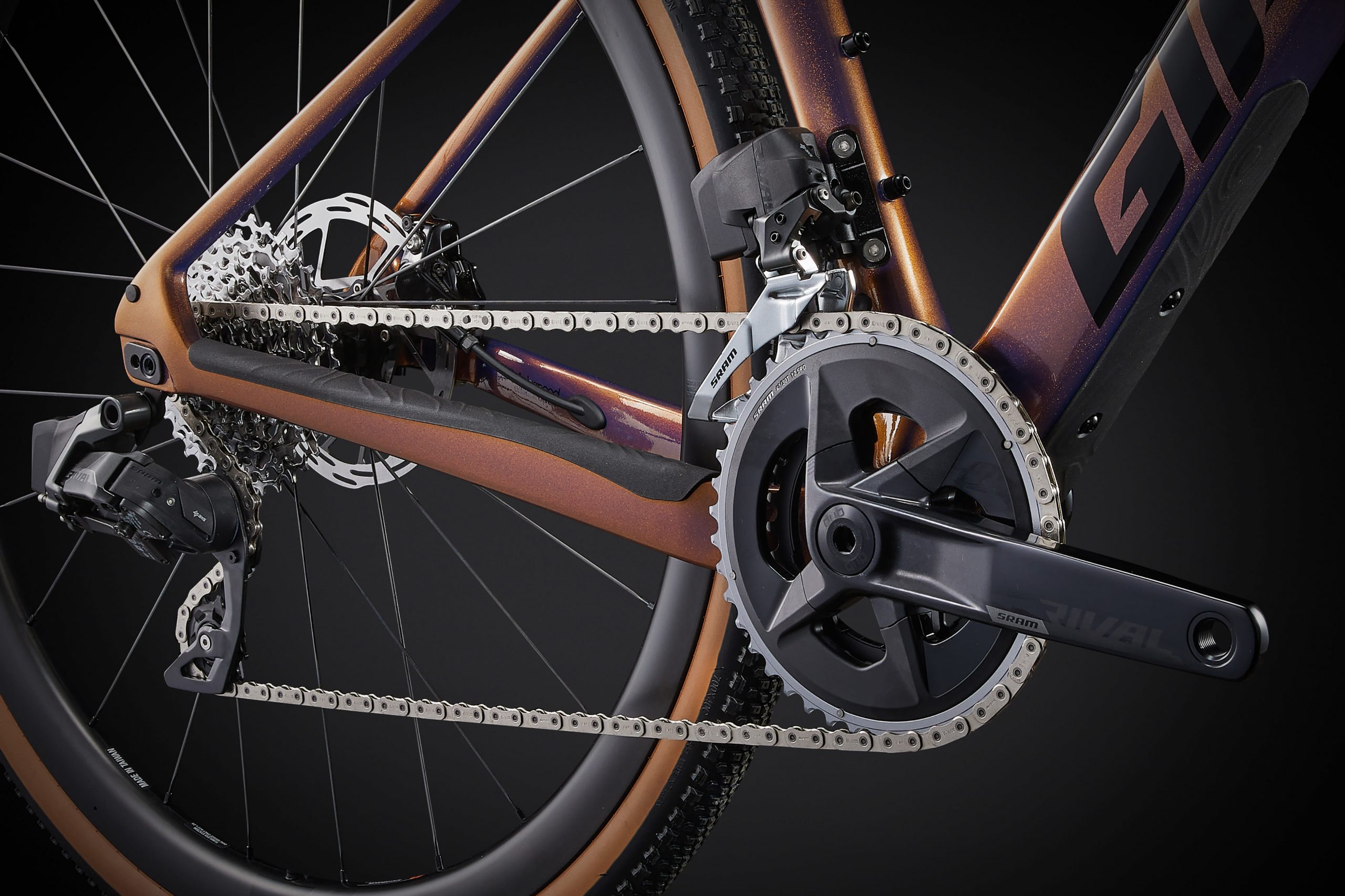

| Shifters | SRAM Rival eTap AXS, 2×12 |
| Front Derailleur | SRAM Rival eTap AXS |
| Rear Derailleur | SRAM Rival eTap AXS |
| Brakes | SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm |
| Brake Levers | SRAM Rival eTap AXS hydraulic |
| Cassette | SRAM Rival, 12-speed, 10×36 |
| Chain | SRAM Rival D1 |
| Crankset | SRAM Rival D1 DUB, 30/43 |
| Bottom Bracket | SRAM DUB, press fit |
| Rims | Giant CXR 1 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm |
| Hubs | [F] Giant AR alloy, CenterLock, 12mm thru-axle [R] Giant AR alloy, DT350 36t ratchet driver, CenterLock, 12mm thru-axle |
| Spokes | Sapim CX-Ray |
| Tyres | CADEX GX, 700x40c, tubeless |
| Extras | tubeless prepared, 53mm max tire size in “long” flip chip position, 45mm max tire size in “short” flip chip position, in-frame storage bag |
Geometry
| S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 450 | 470 | 490 | 510 | 530 |
| B | SEAT TUBE ANGLE | 73.5 | 73.5 | 73 | 73 | 73 |
| C | TOP TUBE LENGTH | 550 | 560 | 575 | 585 | 600 |
| D | HEAD TUBE LENGTH | 135 | 150 | 165 | 180 | 195 |
| E | HEAD TUBE ANGLE | 71 | 71.5 | 72 | 72 | 72 |
| F | FORK RAKE | 50 | 50 | 50 | 50 | 50 |
| G | TRAIL | 72 | 68 | 65 | 65 | 65 |
| H | WHEEL BASE | 1020 | 1026 | 1031 | 1041 | 1056 |
| I | CHAIN STAY LENGTH | 425 | 425 | 425 | 425 | 425 |
| J | BOTTOM BRACKET DROP | 80 | 80 | 80 | 80 | 80 |
| K | STACK | 570 | 586 | 602 | 616 | 630 |
| L | REACH | 381 | 387 | 391 | 397 | 407 |
| M | STAND OVER HEIGHT | 740 | 757 | 774 | 791 | 807 |
| N | HANDLERBAR WIDTH | 420 | 440 | 440 | 460 | 460 |
| O | STEM LENGTH | 60 | 70 | 80 | 80 | 90 |
| P | CRANK LENGTH DEC | 170 | 172.5 | 172.5 | 175 | 175 |
| Q | WHEEL SIZE ALT | 700c | 700c | 700c | 700c | 700c |
