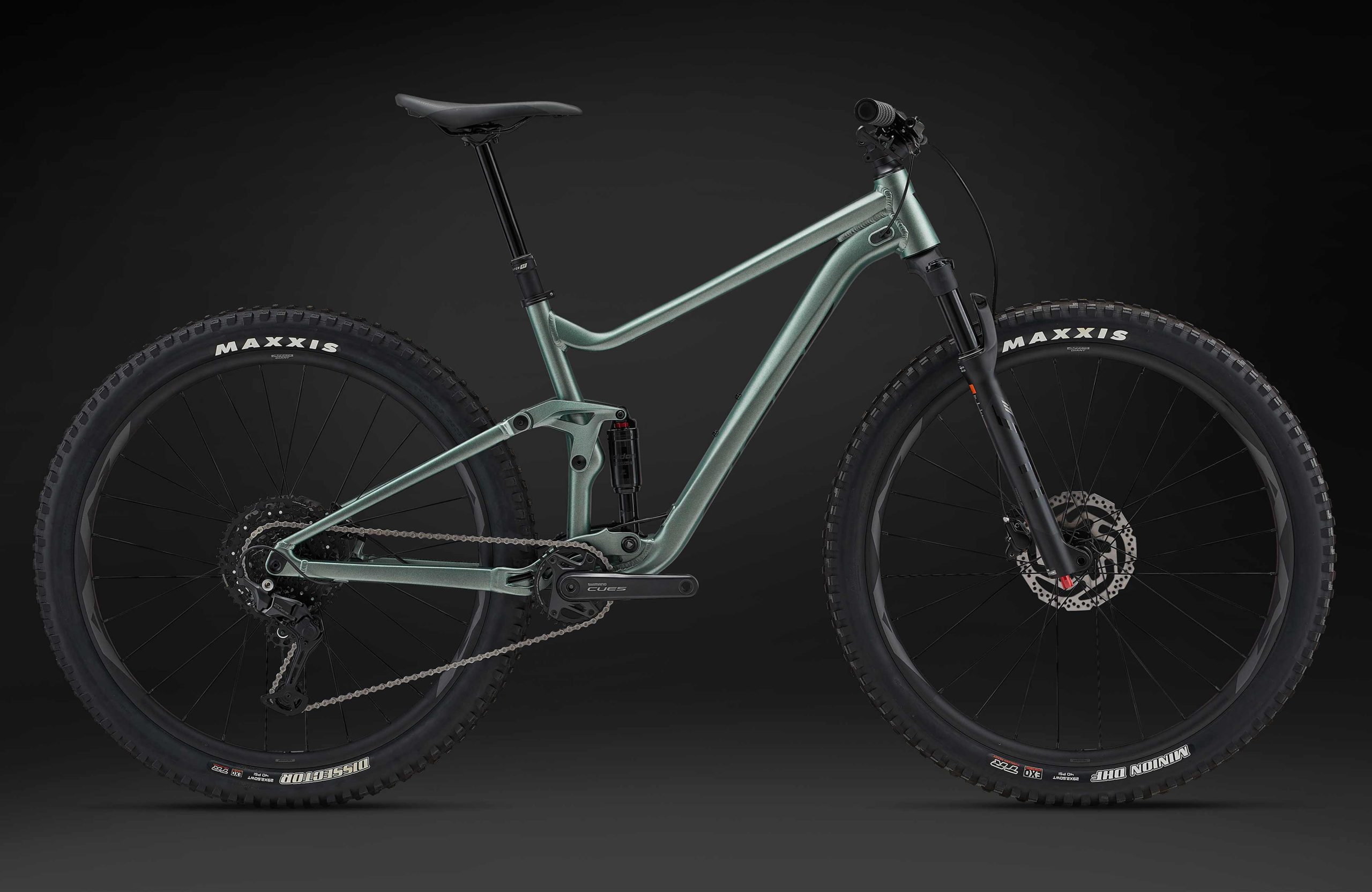

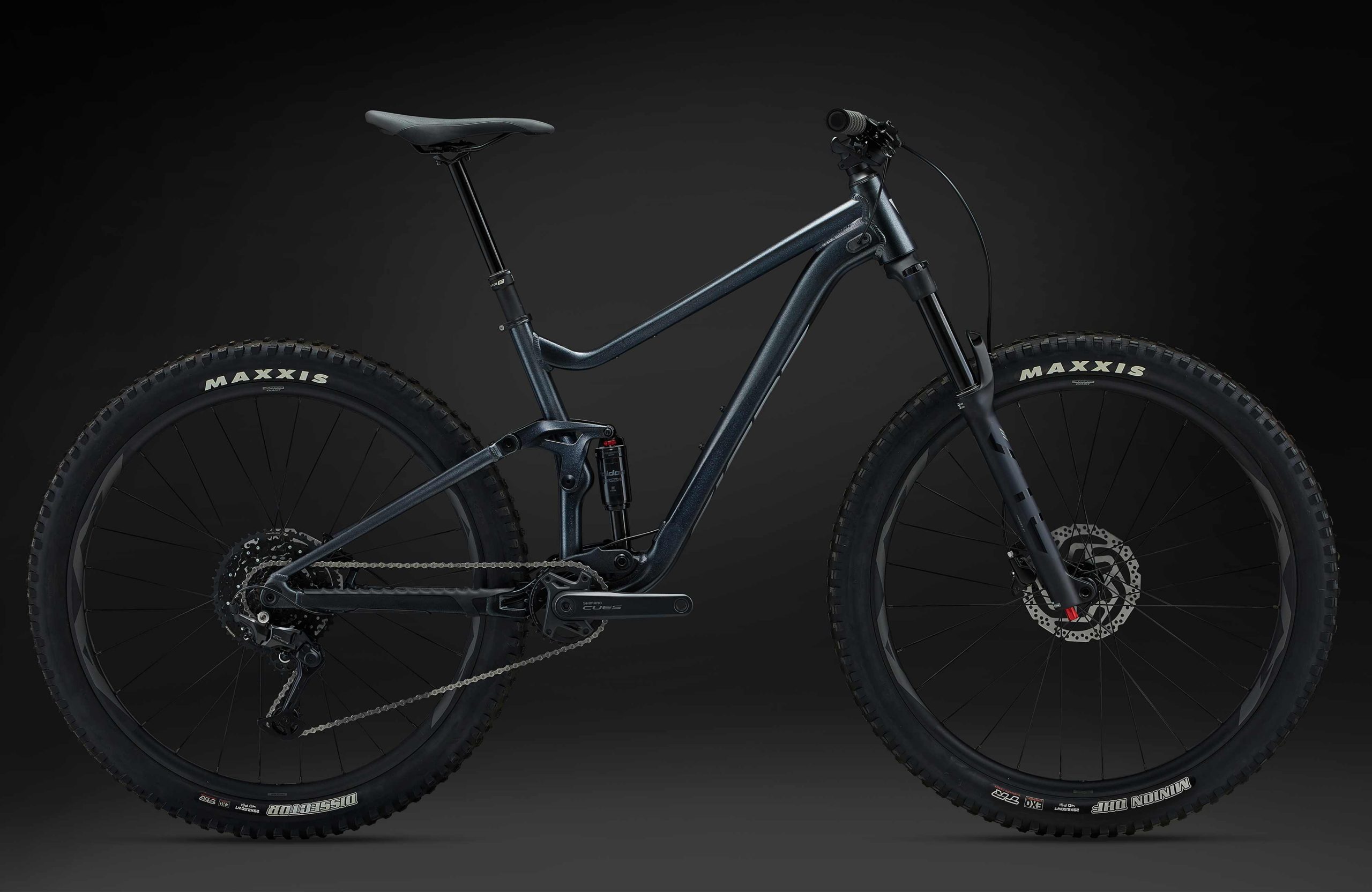

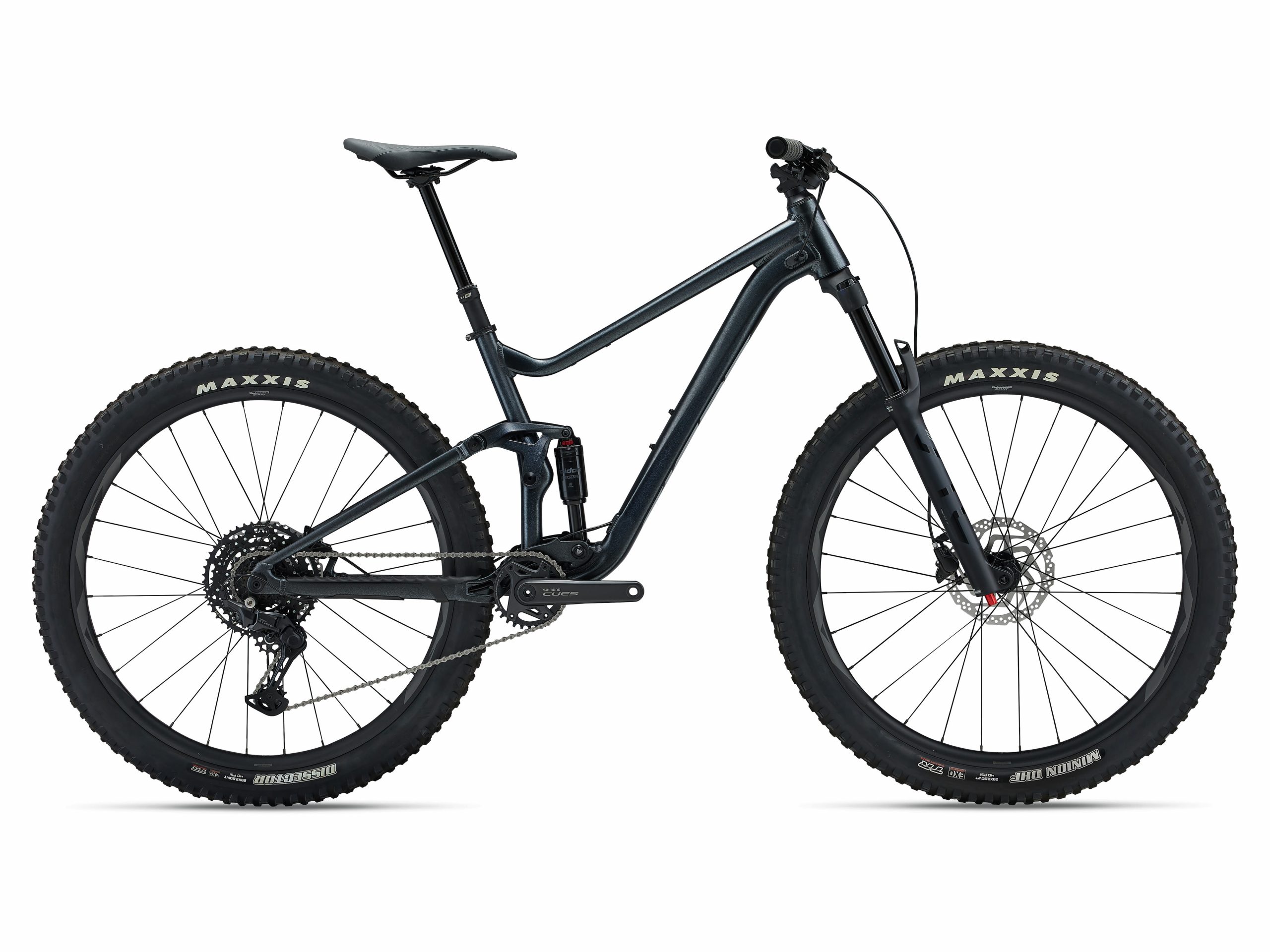

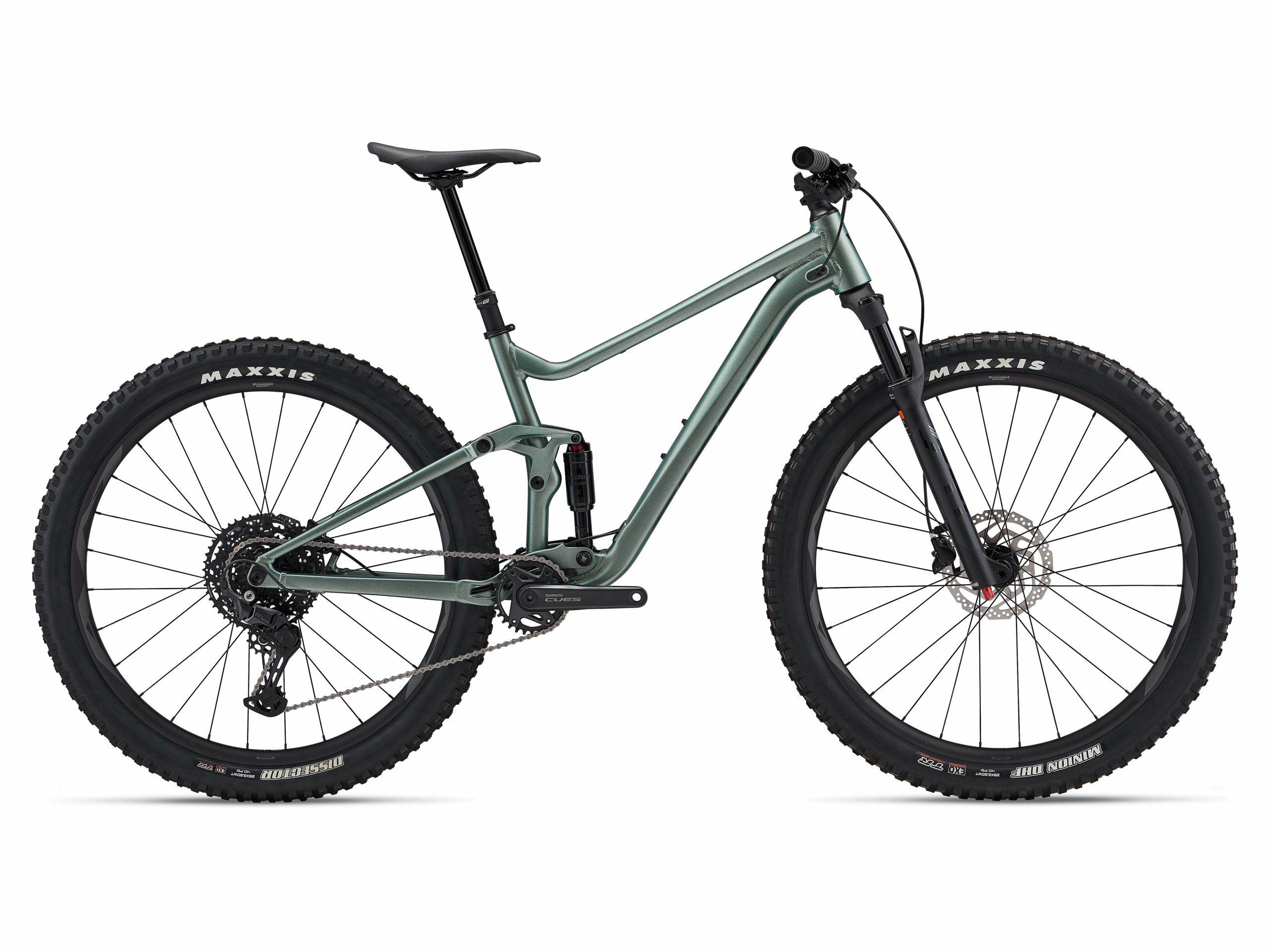

Stance 29 2 (2024) | bike
€2,299.00
Features:
Specifications
This all-new 29er dials up the fun with smooth suspension front and rear. From flow trails to chunky technical challenges, its balanced geometry and confident handling can help any rider step up their game.
Key Performance Factors
Attainable trail performance

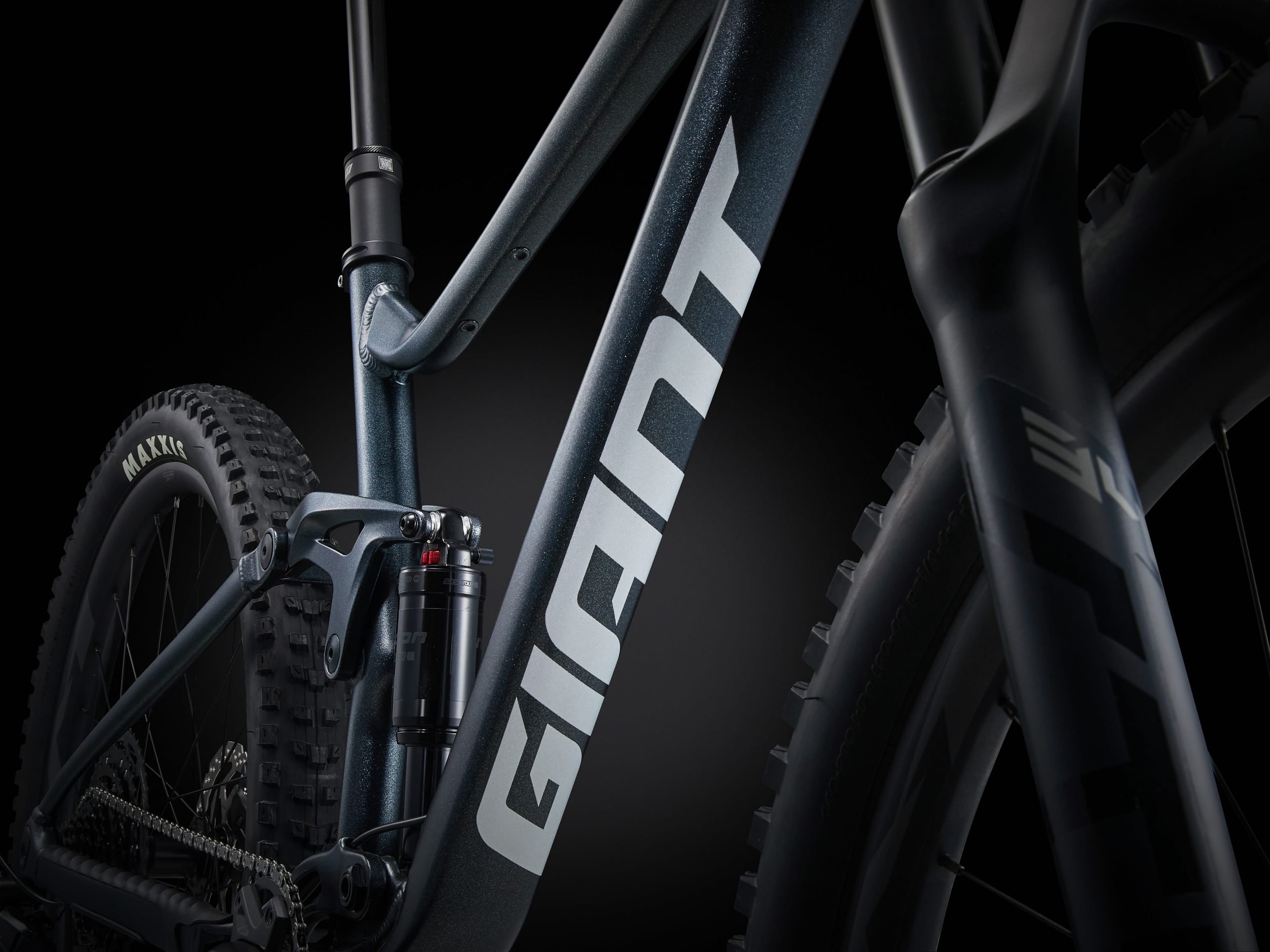

Handcrafted with lightweight, stiff and durable ALUXX aluminum, the new Stance 29 is an ideal entry to full-suspension MTB performance.

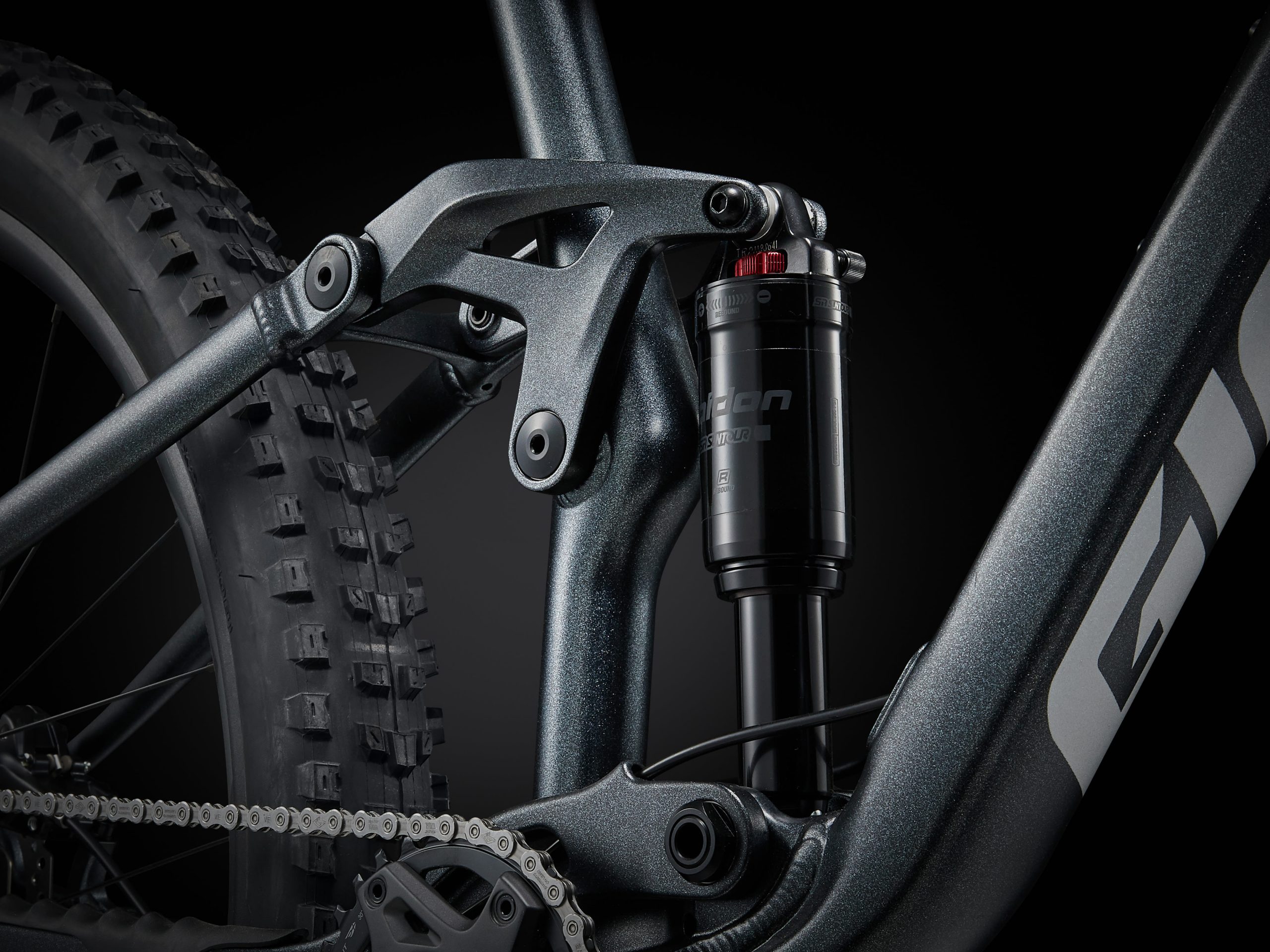

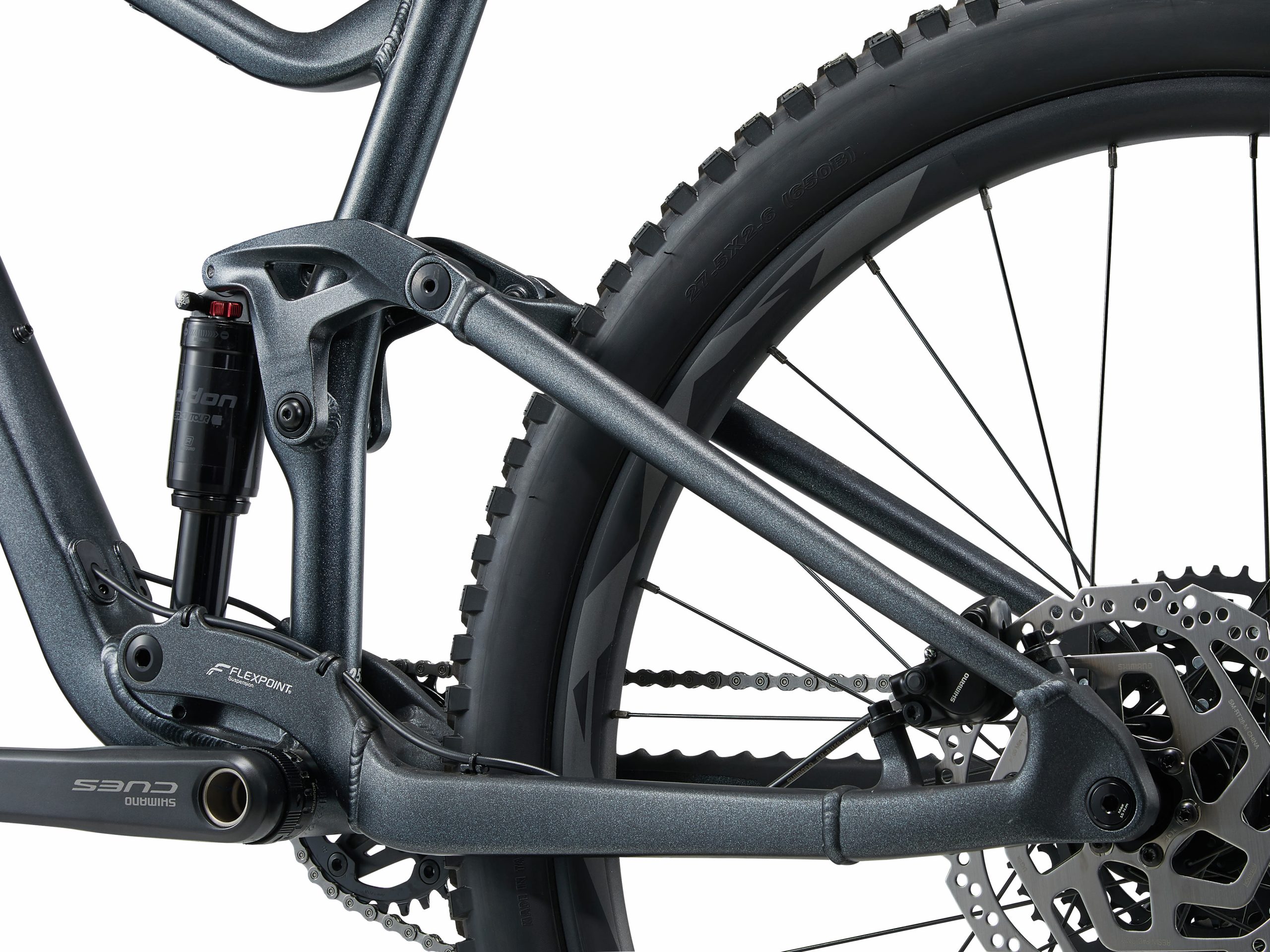

Smooth suspension

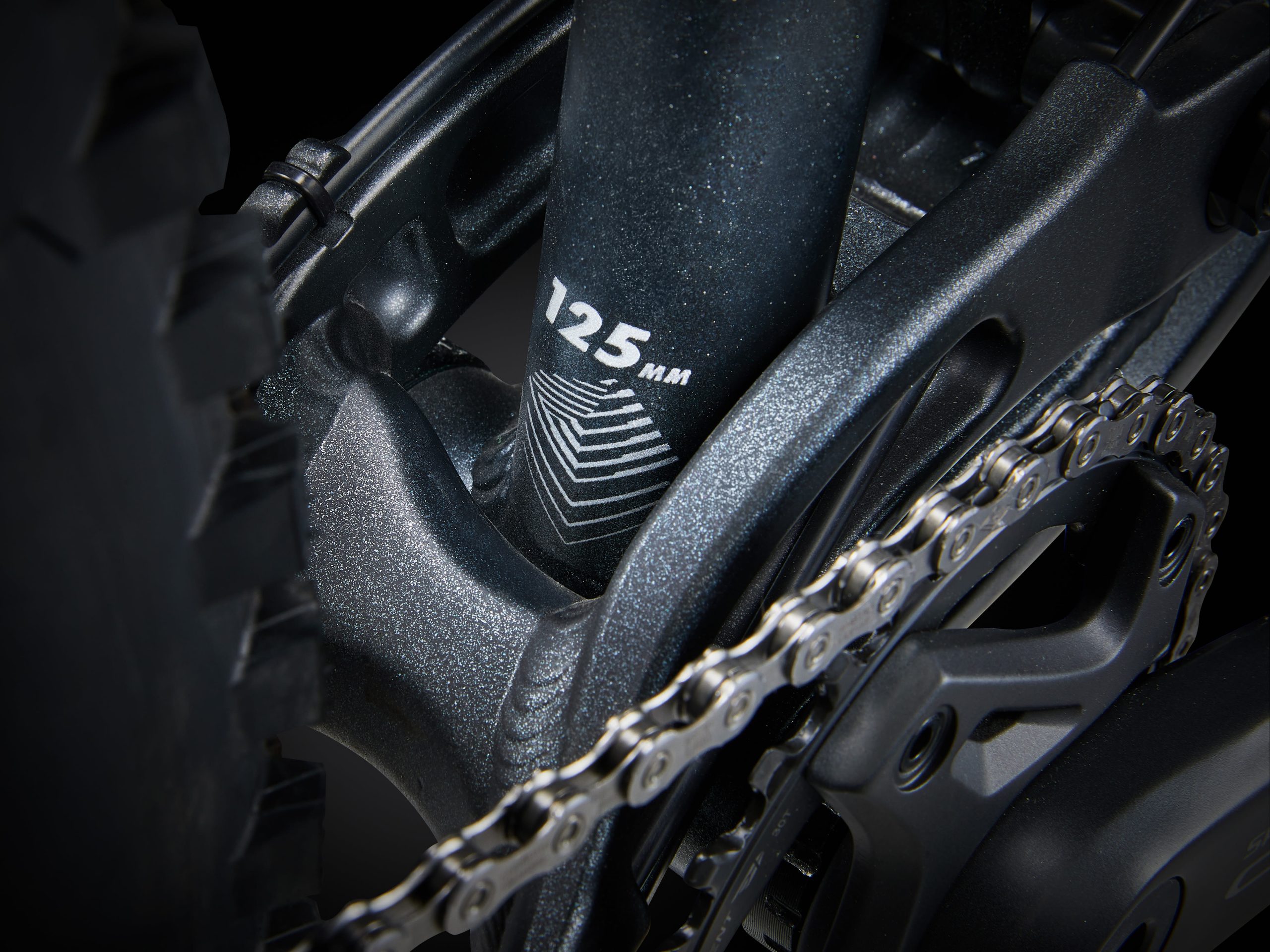

FlexPoint Suspension helps riders tackle challenging terrain and improve their trail riding capabilities. With 125mm of rear wheel travel and 140mm up front, it’s a versatile all-rounder for a variety of terrain.
29er confidence and control
Larger diameter wheels roll over rugged terrain with improved balance and stability. With frame geometry that’s optimized for 29-inch wheels, Stance 29 helps riders maintain momentum, carry speed, and tackle technical trails with greater ease.
| Sizes | S, M, L, XL |
|---|---|
| Colours | Satin Black Diamond |

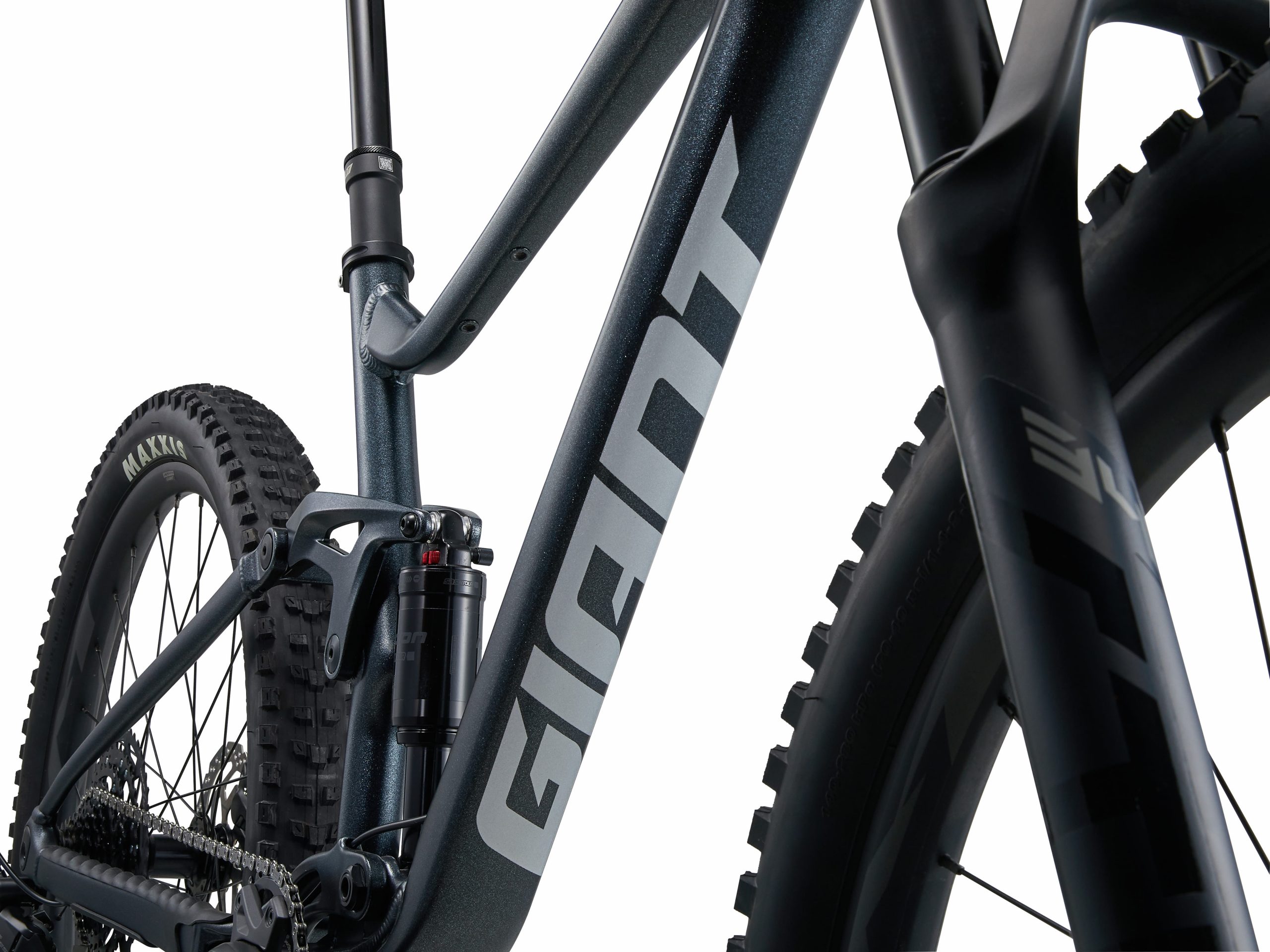

| Frame | ALUXX-grade aluminium, 125mm FlexPoint suspension, 12x148mm thru-axle |

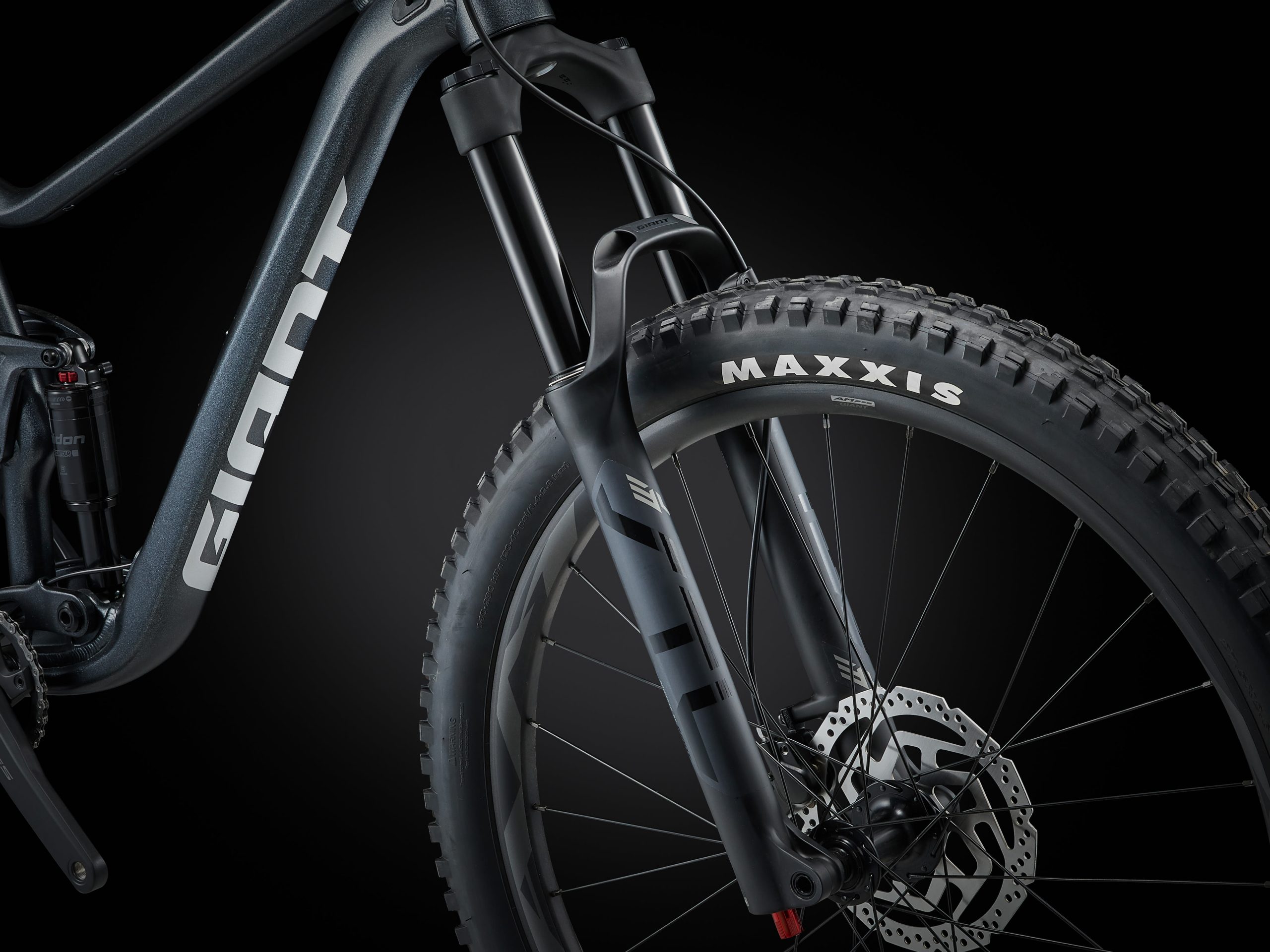

| Fork | Giant STL 34 RCL, 140mm, Boost 15×110 QR, custom tuned for Giant |

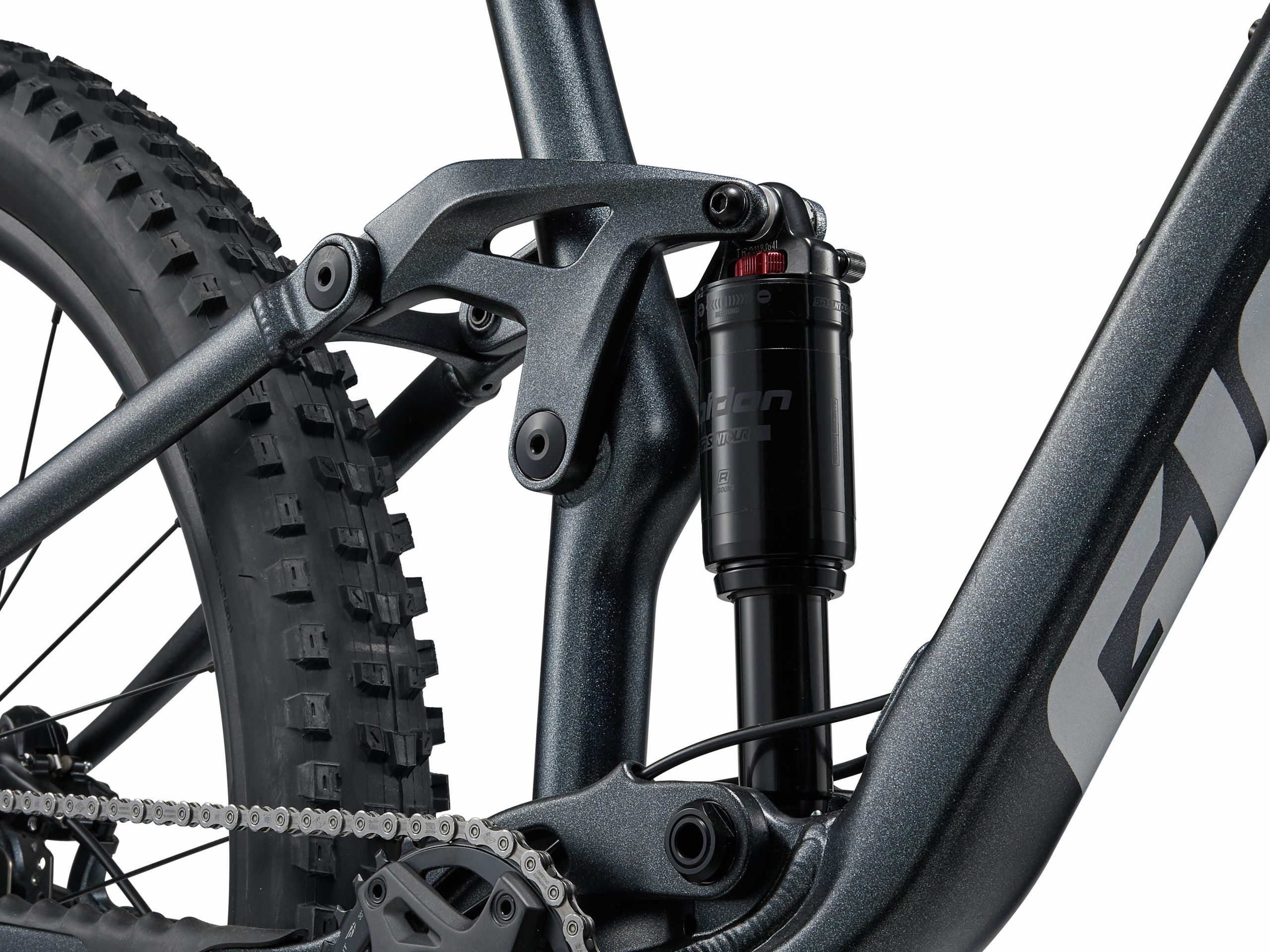

| Shock | Suntour Raidon R, 190×45 |
| Handlebar | Giant Contact SL TR35, 780x35mm |
| Grips | Giant Sole-O |
| Stem | Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm |
| Seatpost | Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 125mm travel / 30.9 x 395mm L: 150mm travel / 30.9 x 440mm XL: 170mm travel / 30.9 x 450mm |
| Saddle | Giant Romero |
| Pedals | PEDALS NOT SUPPLIED |

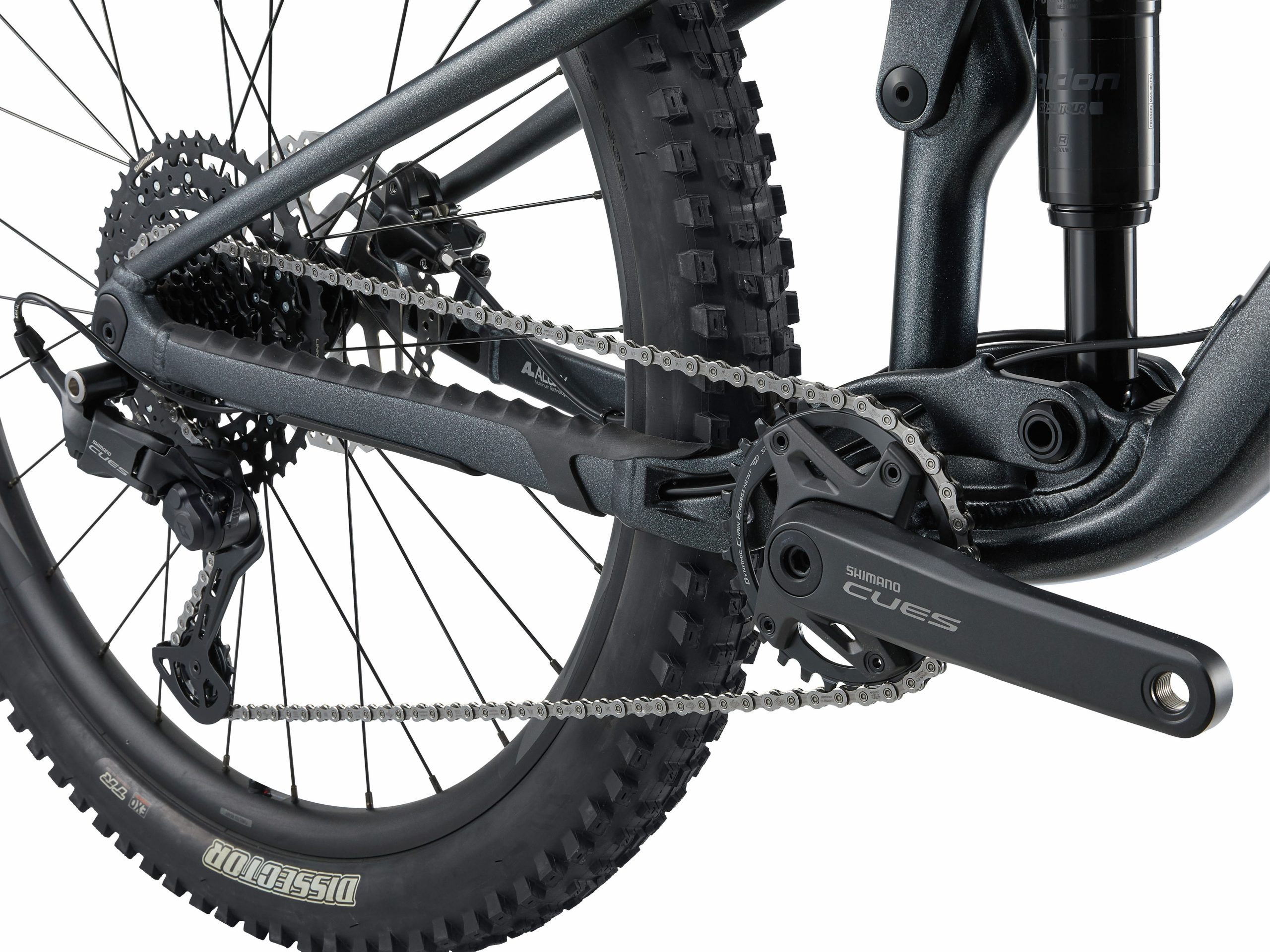

| Shifters | Shimano CUES SL-6000-10R, 1×10 |
| Front Derailleur | N/A |

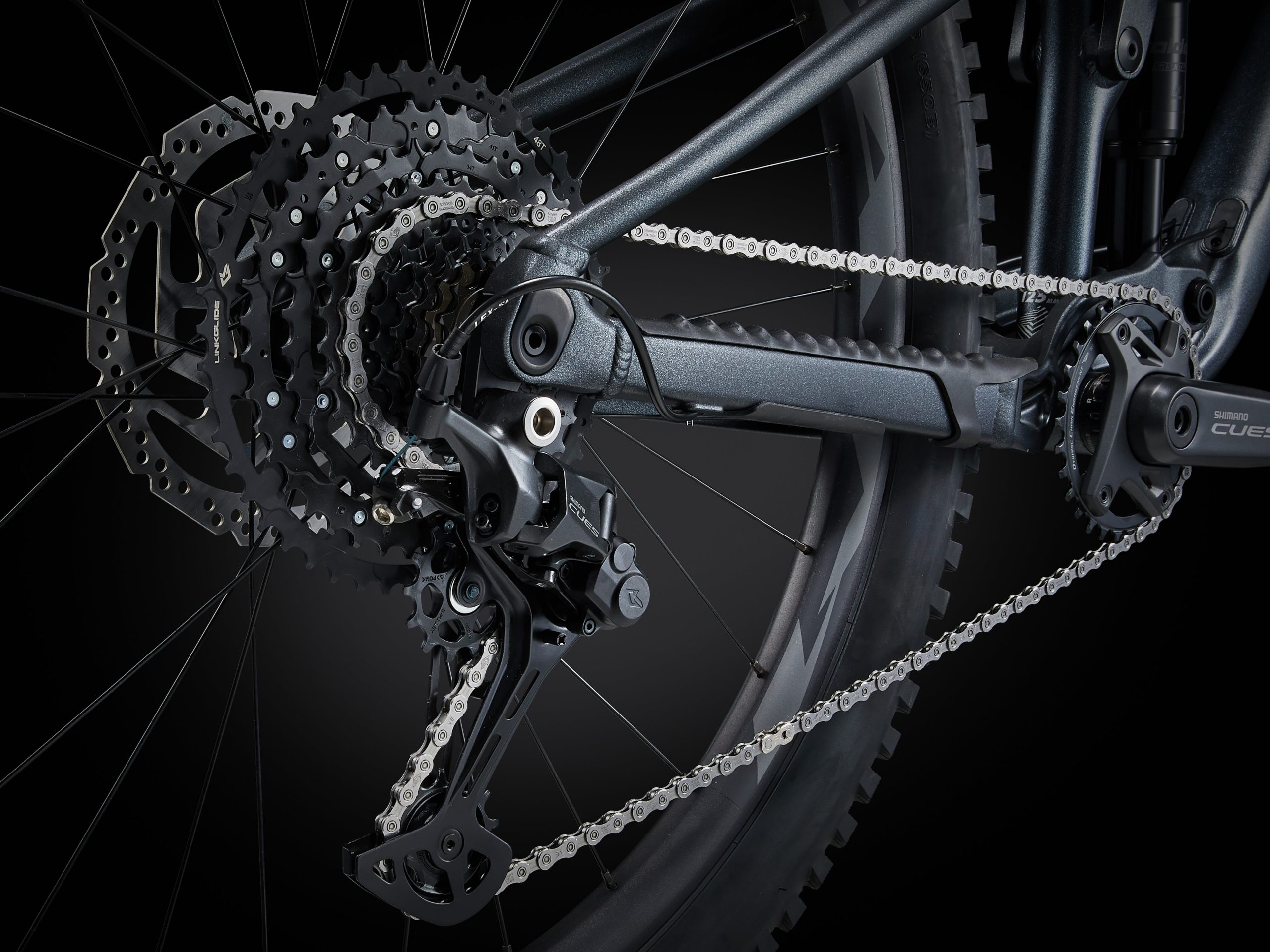

| Rear Derailleur | Shimano CUES RD-U6000 |
| Brakes | Shimano BR-MT200, hydraulic, Shimano RT-26 rotors [F]180mm, [R]180mm |
| Brake Levers | Shimano BL-MT201 |
| Cassette | Shimano CUES CS-LG300, 11×48 |
| Chain | Shimano CUESLG500 |
| Crankset | Shimano CUES FC-U6000-1, 30t S:170mm, M:170mm, L:170mm, XL:170mm |
| Bottom Bracket | Shimano, threaded |
| Rims | Giant AM 29 alloy, tubeless ready |
| Hubs | [F] Giant Tracker Performance Boost 15×110, sealed bearing [R] Giant Tracker Giant Sport 148×12 |
| Spokes | Sapim |
| Tyres | [F] Maxxis Minion DHF 29×2.5 WT, EXO, TR [R] Maxxis Dissector 29×2.4 WT, Dual, EXO, TR, tubeless |
| Extras | Factory tubeless set up, max tyre size 2.4″, max chainring size 32t |
Geometry
| S | L | XL | M | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 400 | 450 | 475 | 425 |
| B | SEAT TUBE ANGLE | 76.5 | 76.5 | 76.5 | 76.5 |
| C | TOP TUBE LENGTH | 563 | 622 | 654 | 595 |
| D | HEAD TUBE LENGTH | 100 | 120 | 125 | 110 |
| E | HEAD TUBE ANGLE | 65.5 | 65.5 | 65.5 | 65.5 |
| F | FORK RAKE | 44 | 44 | 44 | 44 |
| G | TRAIL | 124.4 | 124.4 | 124.4 | 124.4 |
| H | WHEEL BASE | 1164 | 1227 | 1260 | 1198 |
| I | CHAIN STAY LENGTH | 440 | 440 | 440 | 440 |
| J | BOTTOM BRACKET DROP | 40 | 40 | 40 | 40 |
| K | STACK | 614 | 632 | 636 | 623 |
| L | REACH | 415 | 470 | 500 | 445 |
| M | STAND OVER HEIGHT | 735 | 753 | 758 | 734 |
| N | HANDLERBAR WIDTH | 780 | 780 | 780 | 780 |
| O | STEM LENGTH | 40 | 50 | 50 | 40 |
| P | CRANK LENGTH DEC | 165 | 170 | 170 | 170 |
| Q | WHEEL SIZE ALT | [F] 29″ [R | [F] 29″ [R | [F] 29″ [R | [F] 29″ [R |
