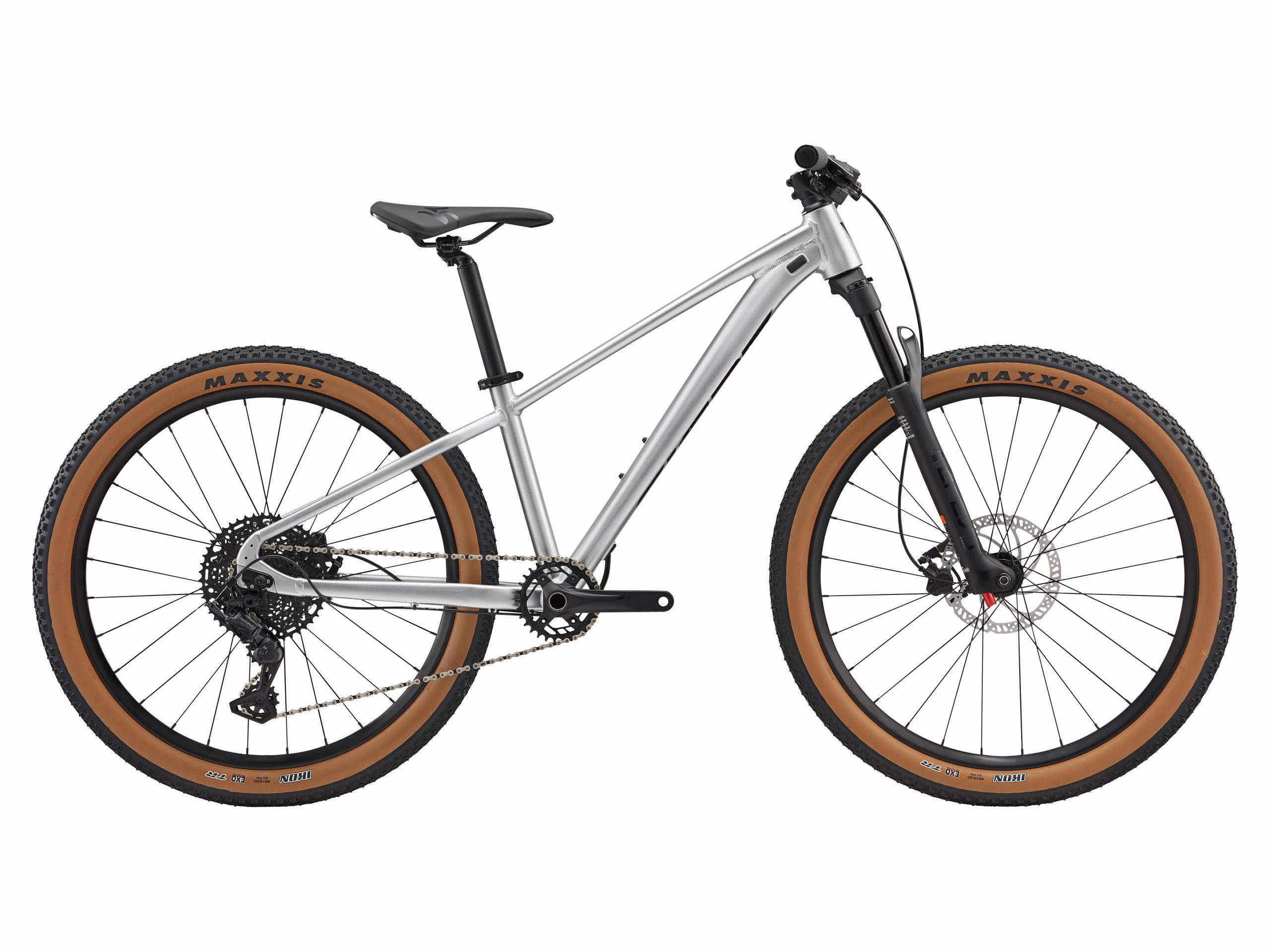

STP 26 (2025) | Trail bike
€1,149.00
Features:
Specifications
Make the world your playground with STP. A longtime favourite for dirt jumping, street shredding and whatever style you dream up, it’s powered by a lightweight, super-strong frame and responsive 26-inch wheels.
Key Performance Factors
Trail-inspired geometry
Lightweight, durable aluminium frameset with a longer top tube, tighter rear triangle and slacker head angle for agile handling on dirt jumps, trail or street sessions.
Quick and responsive
Frame geometry is designed for 26-inch wheels with a low saddle height and taller front end for quick, confident ride quality.
Maximum control
Powerful disc brakes and 120mm suspension fork with remote lockout put maximum control in the rider’s hands. Grippy, high-volume 26-inch tyres are optimal for streets, trail or park riding.
| Sizes | regular |
|---|---|
| Colours | Quicksilver |
| Frame | ALUXX-grade aluminium, horizontal dropouts, integrated chain tensioner |
| Fork | Giant CREST 34 Boost RCL, 15x110mm, 100mm |
| Shock | N/A |
| Handlebar | Giant Sport, alloy, 31.8mm |
| Grips | Giant Sole-O |
| Stem | forged alloy, 0-degree |
| Seatpost | Alloy, two-bolt, 30.9x300mm (regular) |
| Saddle | Giant Sport |
| Pedals | platform |
| Shifters | MicroSHIFT Advent X SL-M9605 1×10 |
| Front Derailleur | N/A |
| Rear Derailleur | MicroSHIFT Advent X RD-M6205 |
| Brakes | Tektro HD-M275, hydraulic [F]180mm, [R]160mm rotors |
| Brake Levers | Tektro HD-M275 |
| Cassette | MicroSHIFT Advent X CS-H104, 11×48 |
| Chain | KMC X10 |
| Crankset | Prowheel Charm, 30t, 155mm (regular) |
| Bottom Bracket | Sealed cartridge |
| Rims | Giant 26″, alloy, 28mm inner width |
| Hubs | Giant Disc, 28h, 100×15 thru-axle, alloy, disc |
| Spokes | Stainless steel, 14g |
| Tyres | Maxxis Ikon, 26×2.2″ |
Geometry
| Regular | ||
|---|---|---|
| A | SEAT TUBE LENGTH | 340 |
| B | SEAT TUBE ANGLE | 73.5 |
| C | TOP TUBE LENGTH | 545 |
| D | HEAD TUBE LENGTH | 100 |
| E | HEAD TUBE ANGLE | 67 |
| F | FORK RAKE | 42 |
| G | TRAIL | 98.7 |
| H | WHEEL BASE | 1086 |
| I | CHAIN STAY LENGTH | 435 |
| J | BOTTOM BRACKET DROP | 30 |
| K | STACK | 579 |
| L | REACH | 374 |
| M | STAND OVER HEIGHT | 679.5 |
| N | HANDLERBAR WIDTH | 720 |
| O | STEM LENGTH | 50 |
| P | CRANK LENGTH DEC | 155 |
| Q | WHEEL SIZE ALT | 26″ |
