Additional information
| Colour | |
|---|---|
| Size |

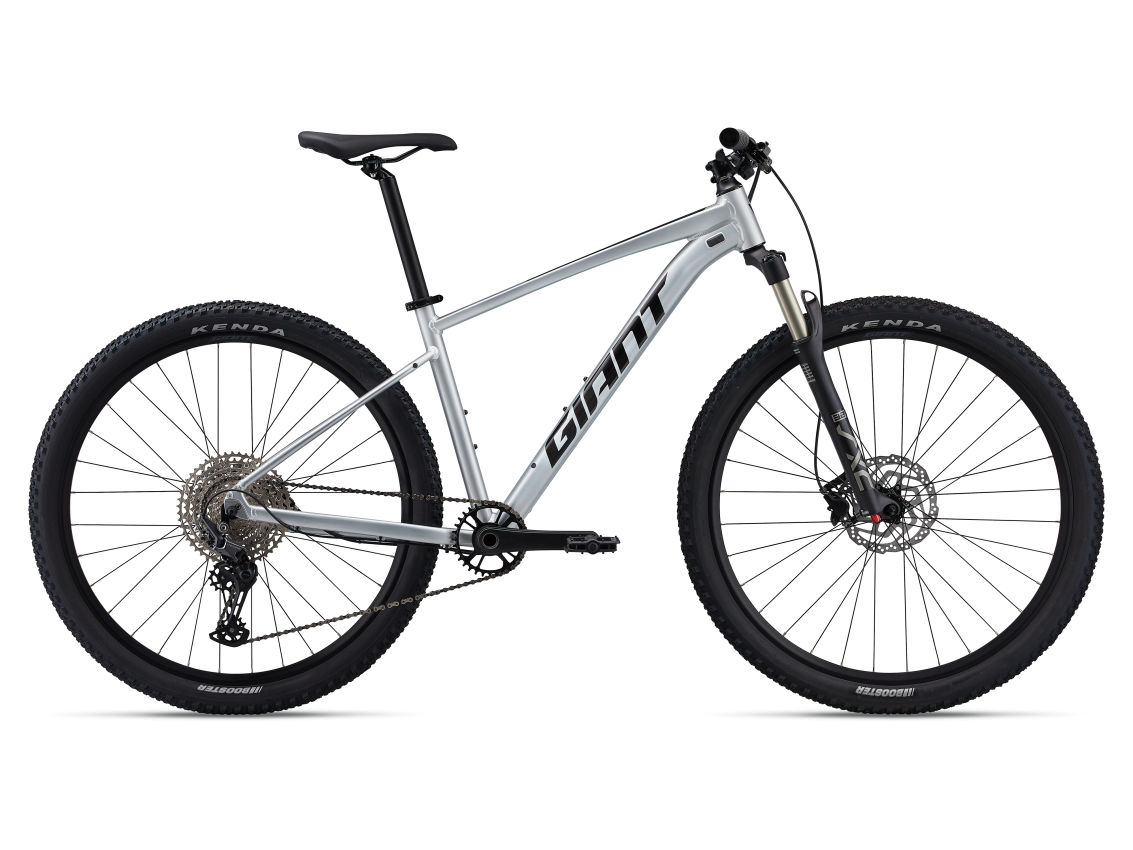

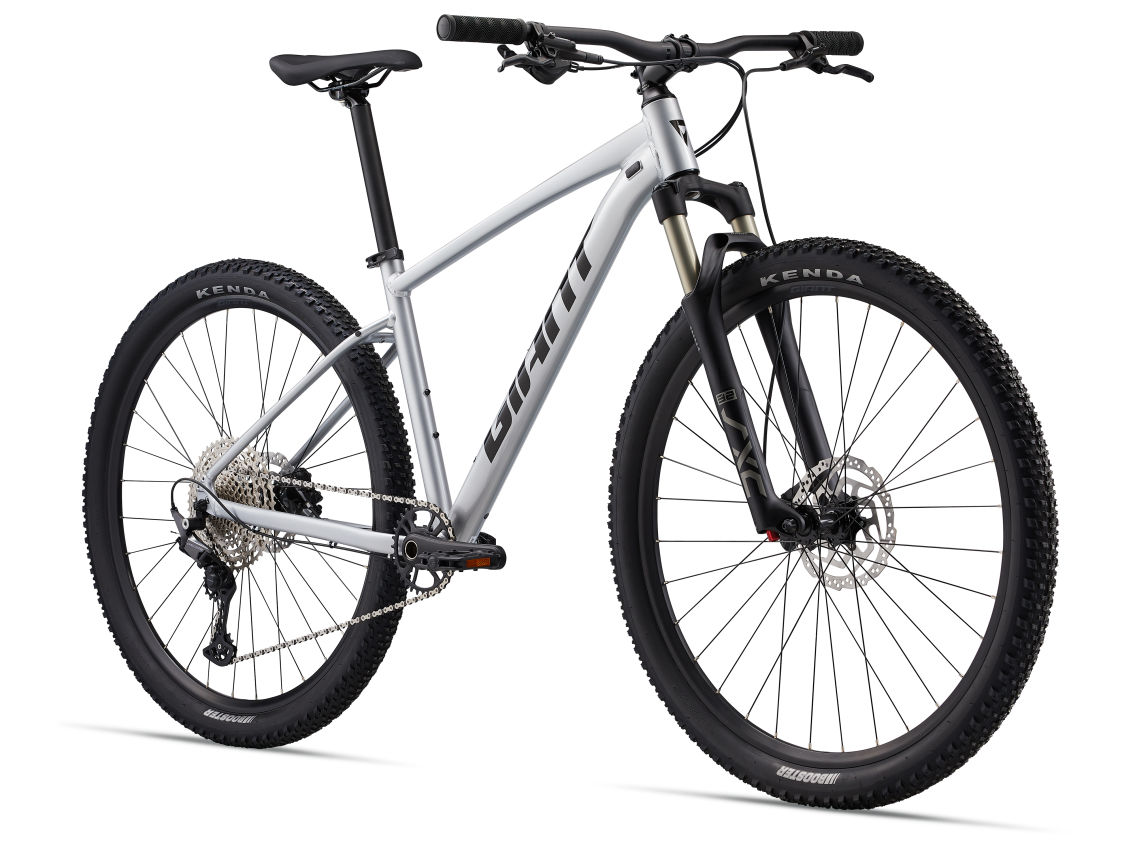

Talon 0 (2024) | bike
€1,049.00
Features:
Specifications
Push the pace on climbs, let loose on descents. This aluminum hardtail with a plush suspension fork delivers balanced, confident handling on the trail.
Key Performance Factors
Proven alloy performance
ALUXX aluminum frameset is hand-built in-house by the world leader in aluminum engineering.
Balance and stability
Frame geometry is designed to optimize the balance and roll-over capabilities of 29-inch wheels or the liveliness of 27.5-inch wheels (depending on frame size).
XC control
Suspension fork offers either 80mm or 100mm of smooth travel for added control on XC terrain.
| Sizes | 29: S,M,L,XL |
|---|---|
| Colours | Gloss Quicksillver/Panther |
| Frame | ALUXX-grade aluminium, disc |
| Fork | SXC32-2 RL 29, air spring, hydraulic lock out, QR, alloy steerer 100mm travel |
| Shock | N/A |
| Handlebar | Giant Connect Trail, 31.8mm 780mm |
| Grips | Giant Sole-O |
| Stem | Giant Sport, 7-degree |
| Seatpost | Giant Sport, 30.9mm x 375mm |
| Saddle | Giant custom |
| Pedals | MTB caged |
| Shifters | Shimano Deore M6100, 1×12 |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Deore M6100 |
| Brakes | Shimano Deore BR-MT200, hydraulic, Shimano RT-10 rotors [F]180mm, [R]160mm |
| Brake Levers | Shimano Deore BL-MT200 |
| Cassette | Shimano Deore M6100, 10×51 |
| Chain | KMC X12 |
| Crankset | ProWheel MPX, 32t |
| Bottom Bracket | cartridge |
| Rims | Giant GX03V, alloy, double wall, 21mm inner width |
| Hubs | Shimano, sealed bearing |
| Spokes | Stainless steel, 14g |
| Tyres | Kenda Booster 29×2.4″, wire bead |
| Extras | 2.4″ max tyre size |
Geometry
| M (29″) | S (29″) | XL (29″) | L (29″) | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 440 | 390 | 535 | 490 |
| B | SEAT TUBE ANGLE | 74 | 74 | 74 | 74 |
| C | TOP TUBE LENGTH | 599 | 577 | 639 | 620 |
| D | HEAD TUBE LENGTH | 105 | 95 | 140 | 125 |
| E | HEAD TUBE ANGLE | 68.5 | 68.5 | 68.5 | 68.5 |
| F | FORK RAKE | 51 | 51 | 51 | 51 |
| G | TRAIL | 94 | 94 | 94 | 94 |
| H | WHEEL BASE | 1150 | 1126 | 1192 | 1172 |
| I | CHAIN STAY LENGTH | 455 | 455 | 455 | 455 |
| J | BOTTOM BRACKET DROP | 55 | 55 | 55 | 55 |
| K | STACK | 611 | 602 | 644 | 630 |
| L | REACH | 424 | 404 | 454 | 439 |
| M | STAND OVER HEIGHT | 766 | 732 | 839 | 805 |
| N | HANDLERBAR WIDTH | 780 | 780 | 780 | 780 |
| O | STEM LENGTH | 60 | 50 | 80 | 70 |
| P | CRANK LENGTH DEC | 175 | 170 | 175 | 175 |
| Q | WHEEL SIZE ALT | 29″ | 29″ | 29″ | 29″ |
Technology and Features
