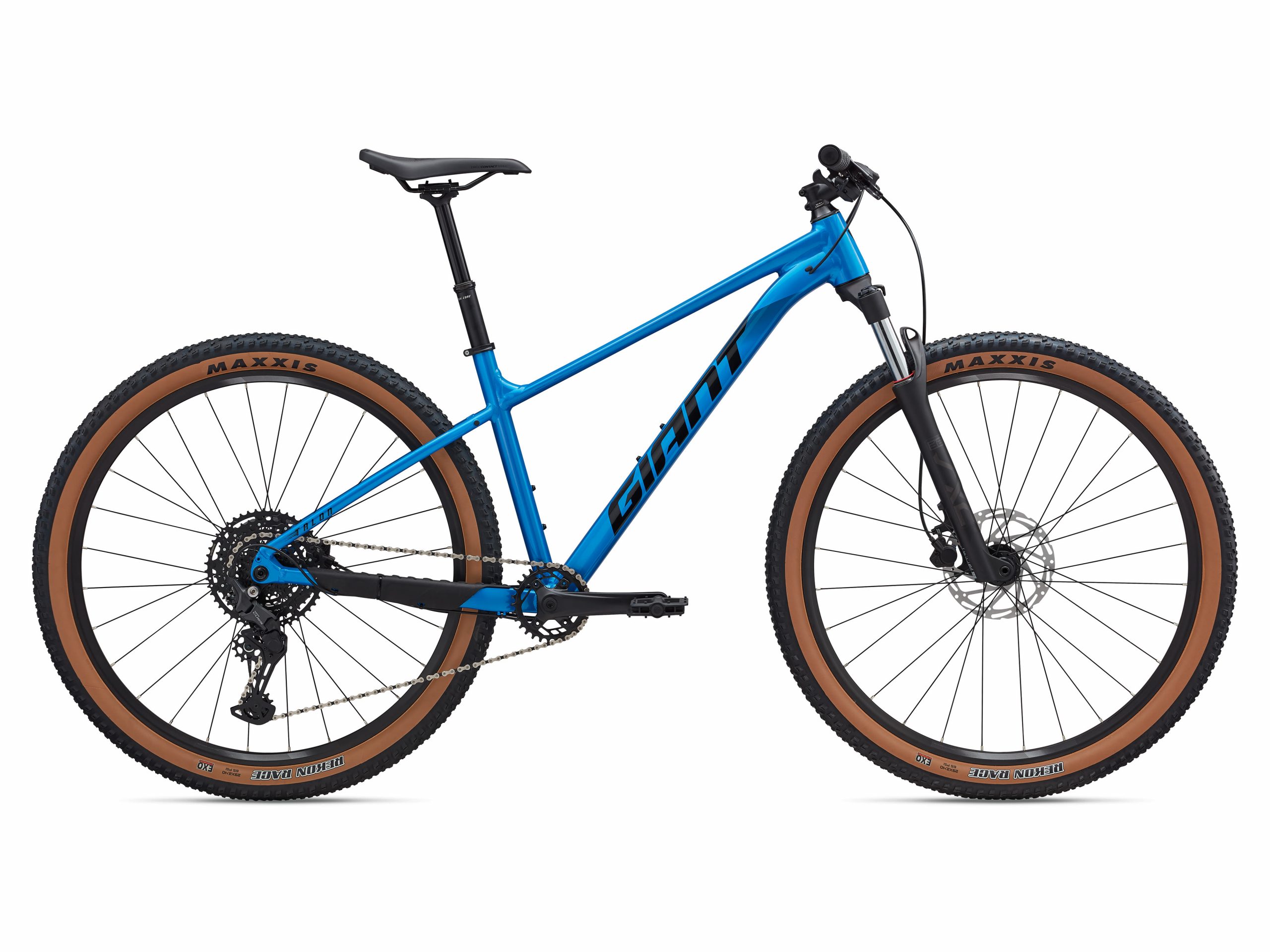

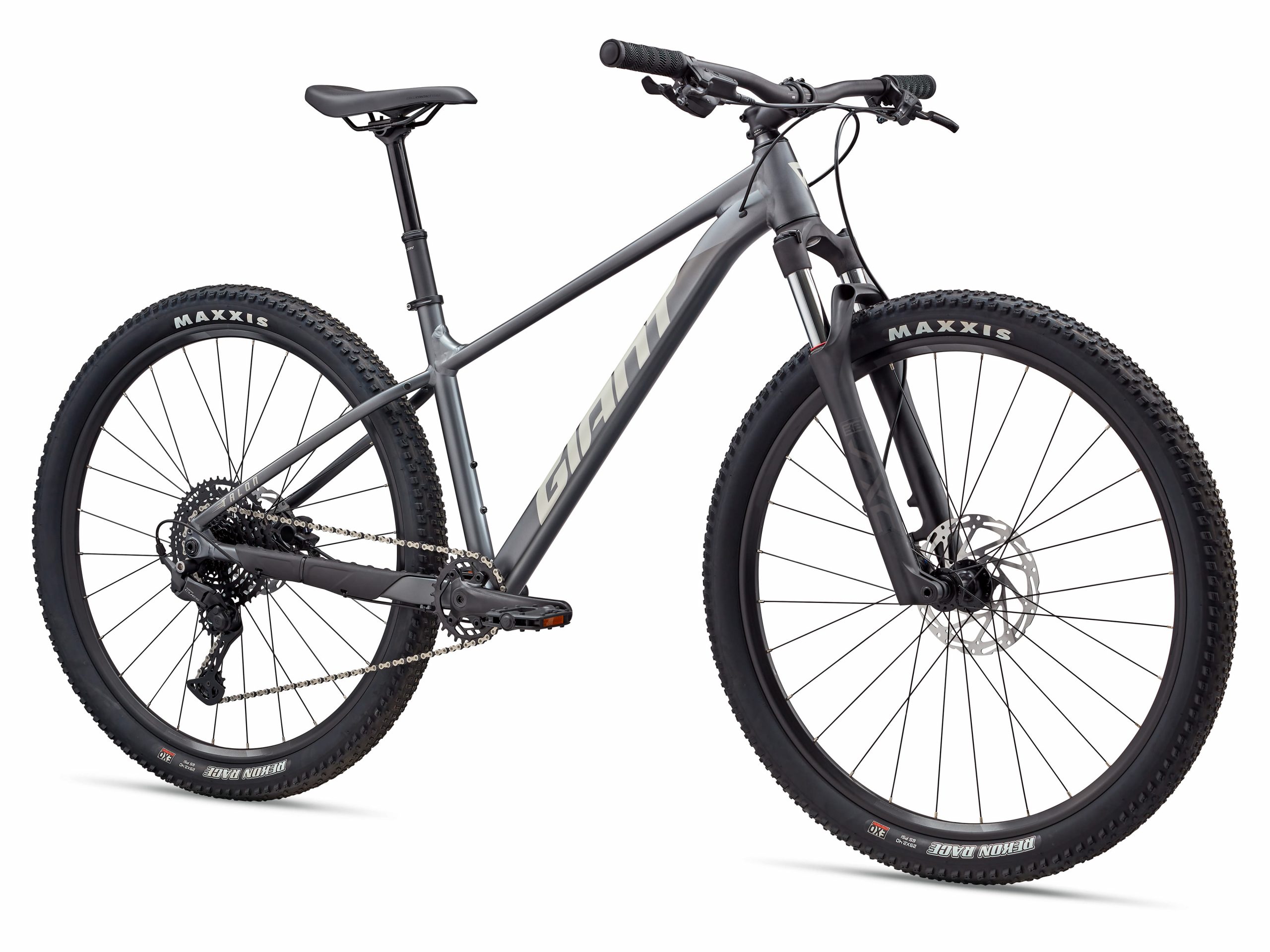

Talon 1 (2025) | XC bike
€1,049.00
Features:
Specifications

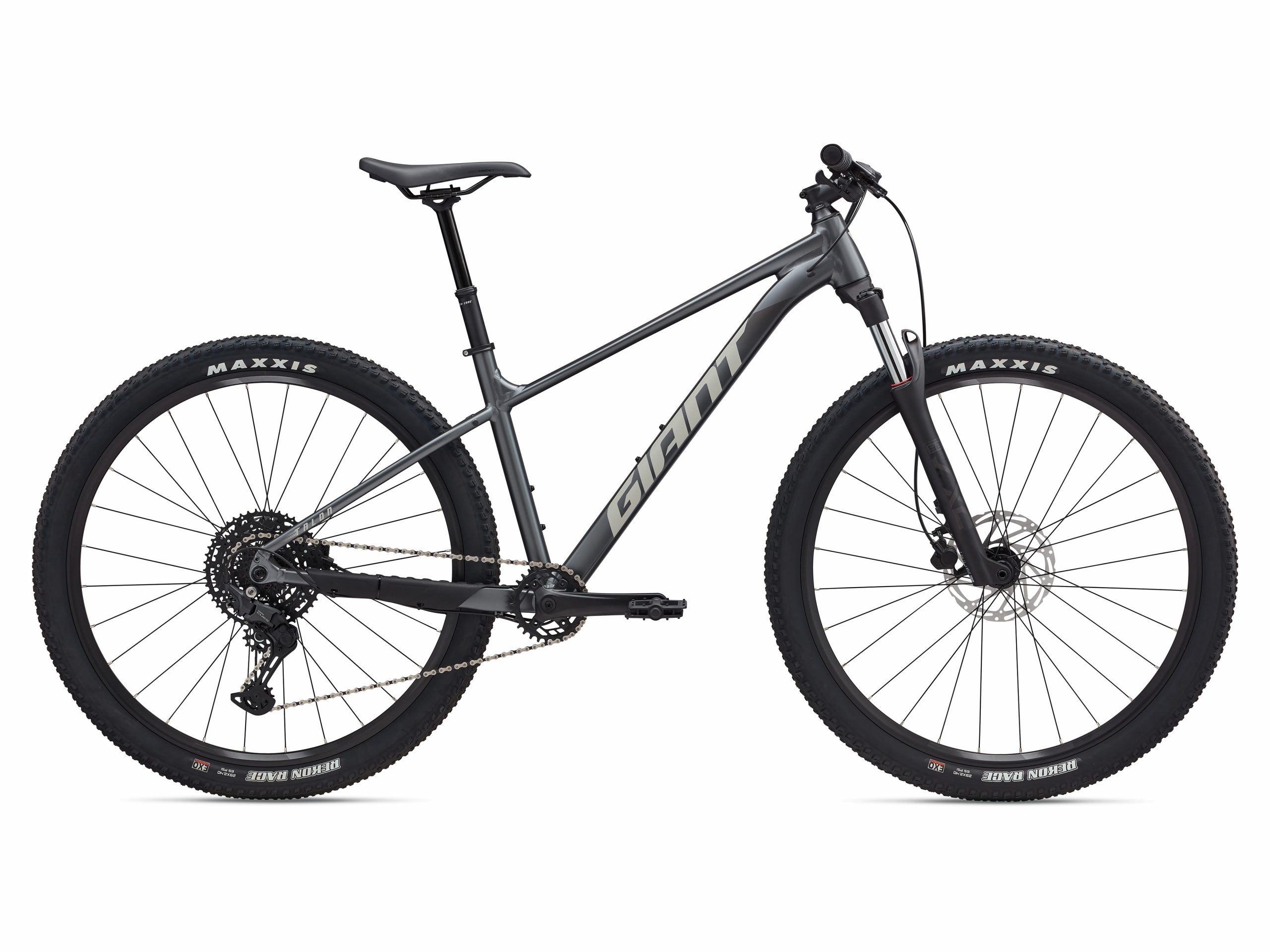

The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminum hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models
Key Performance Factors
Modern MTB Design

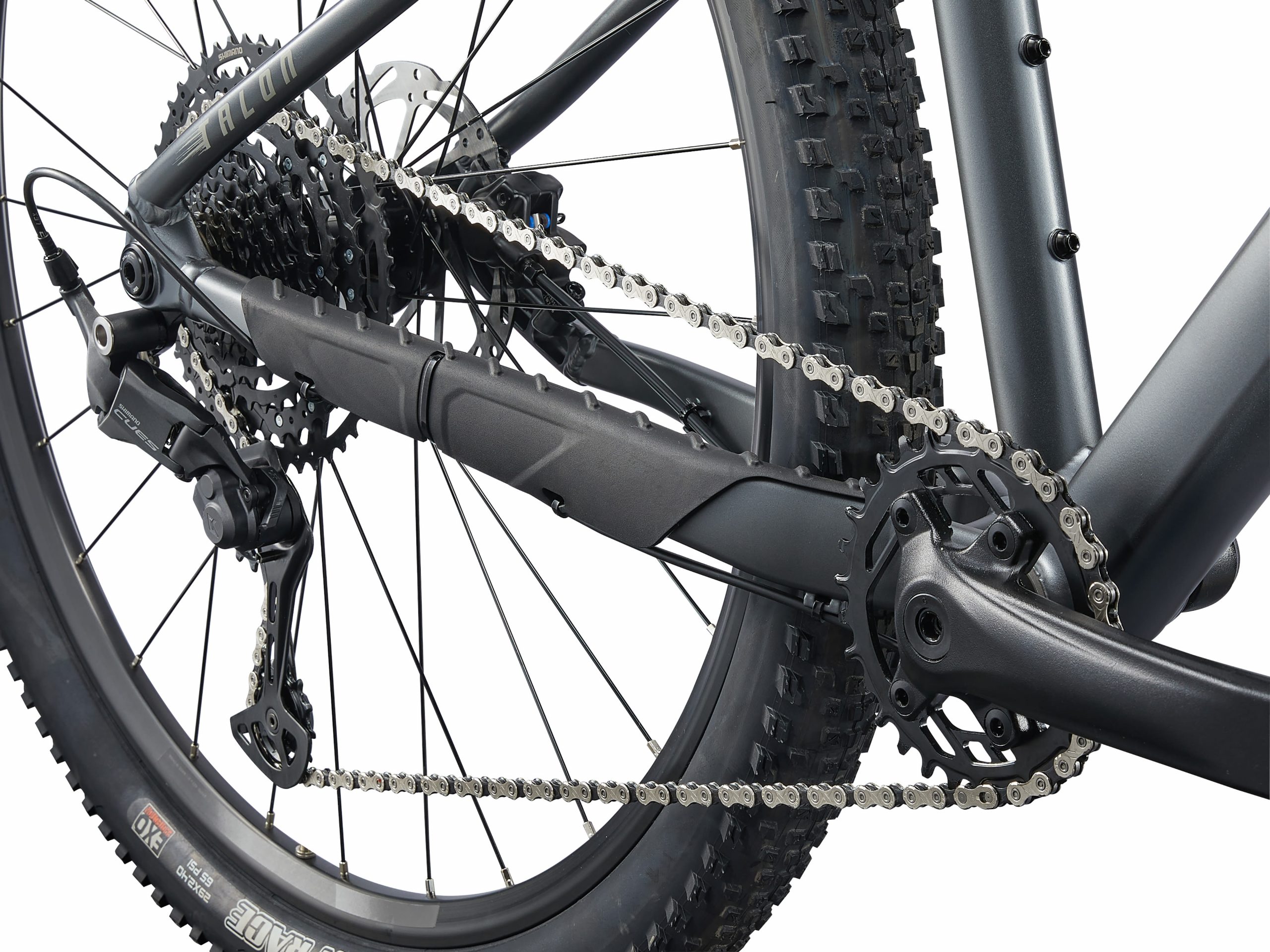

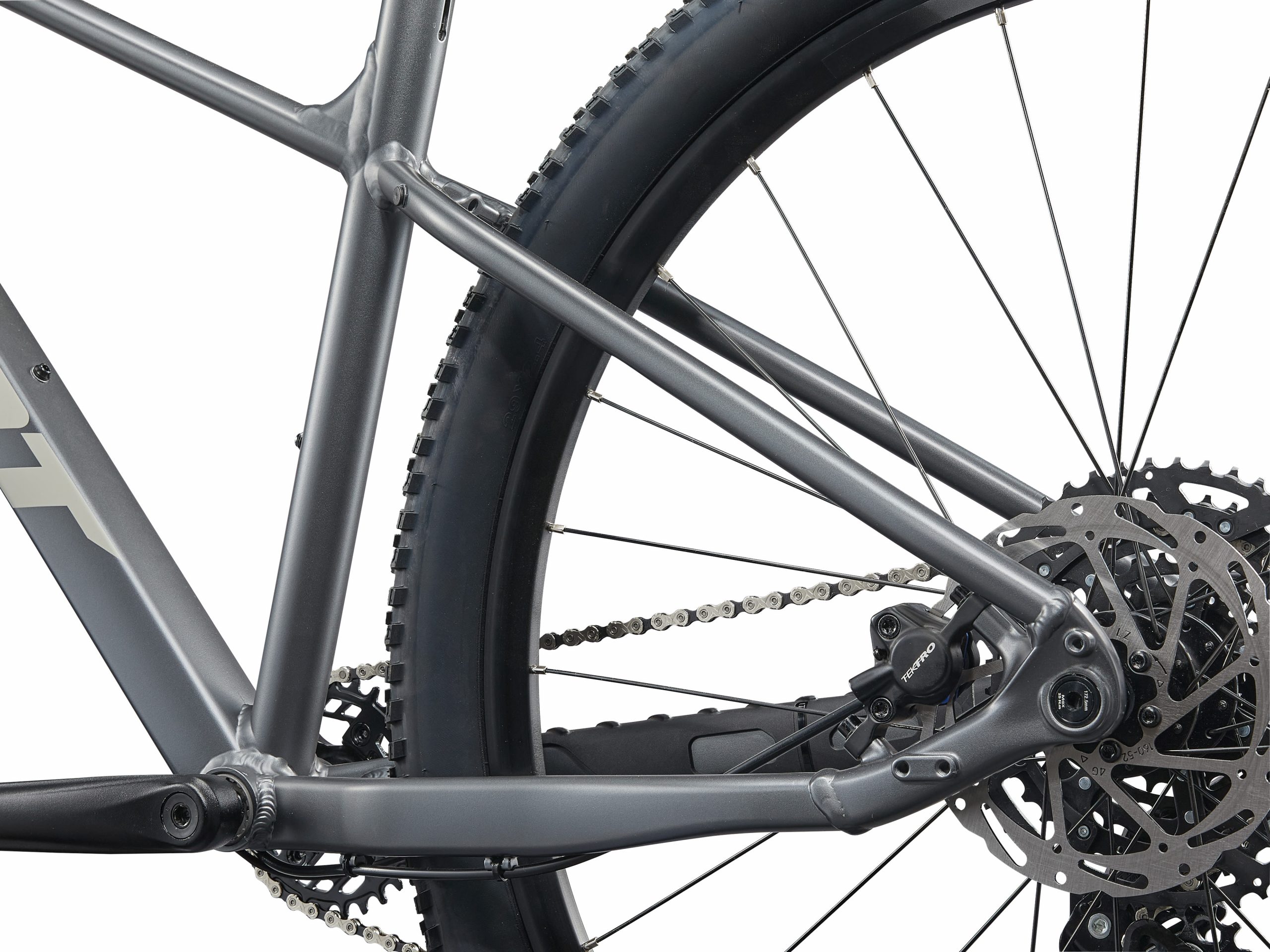

Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow.
*on select models
Off-Road Control

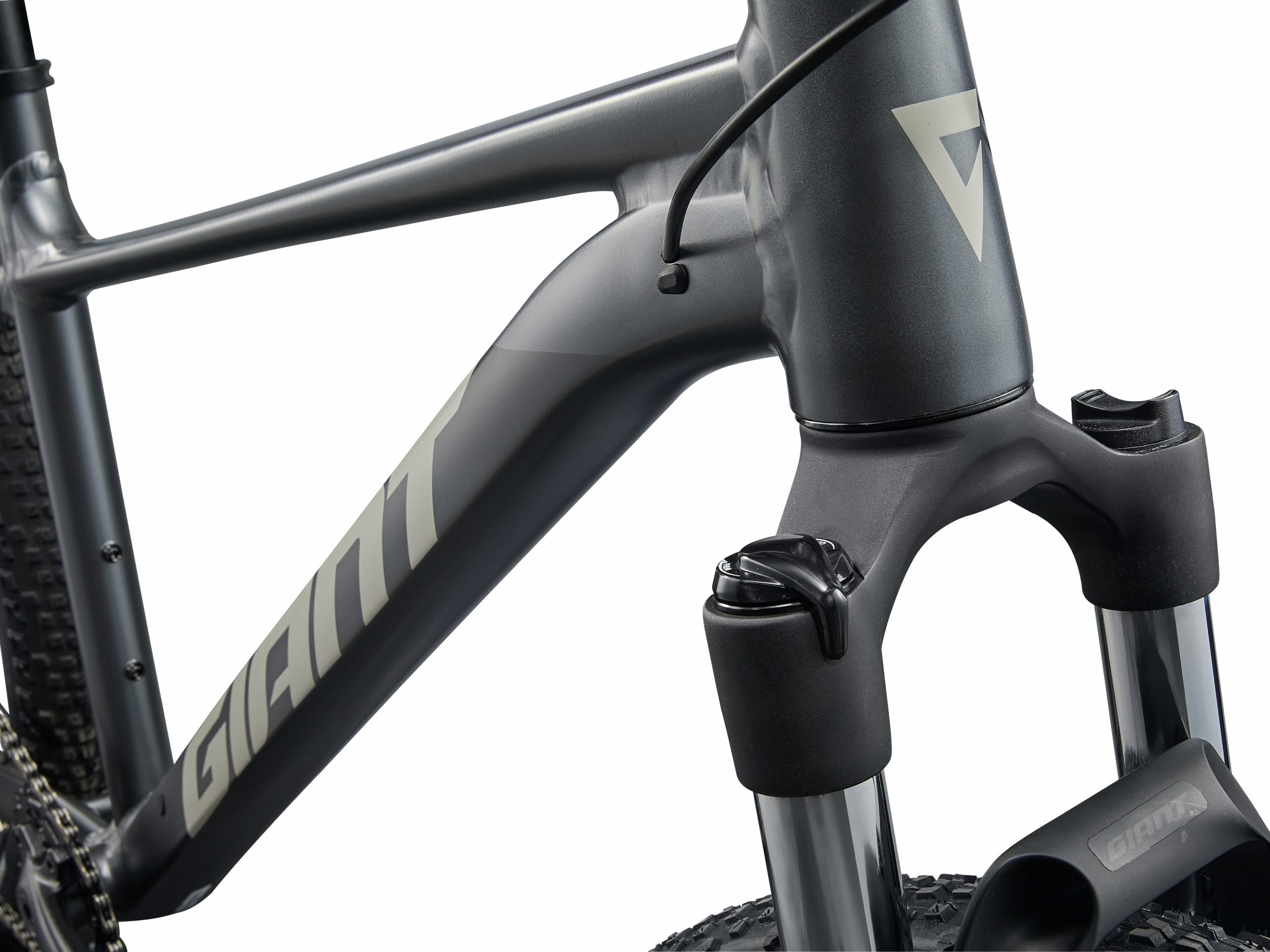

New geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain.
Light and Durable
All-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.
| Sizes | 27.5: XS,S 29: M,L,XL,XXL |
|---|---|
| Colours | Gloss Metallic Blue, Satin Charcoal |
| Frame | ALUXX-grade aluminium, disc |
| Fork | SXC32-3 RCL, coil sprung, hydraulic lockout, tapered aluminium steerer, 15×110 thru axle XS&S: 80mm travel (27.5) M-XXL:100mm travel (29) |
| Shock | N/A |

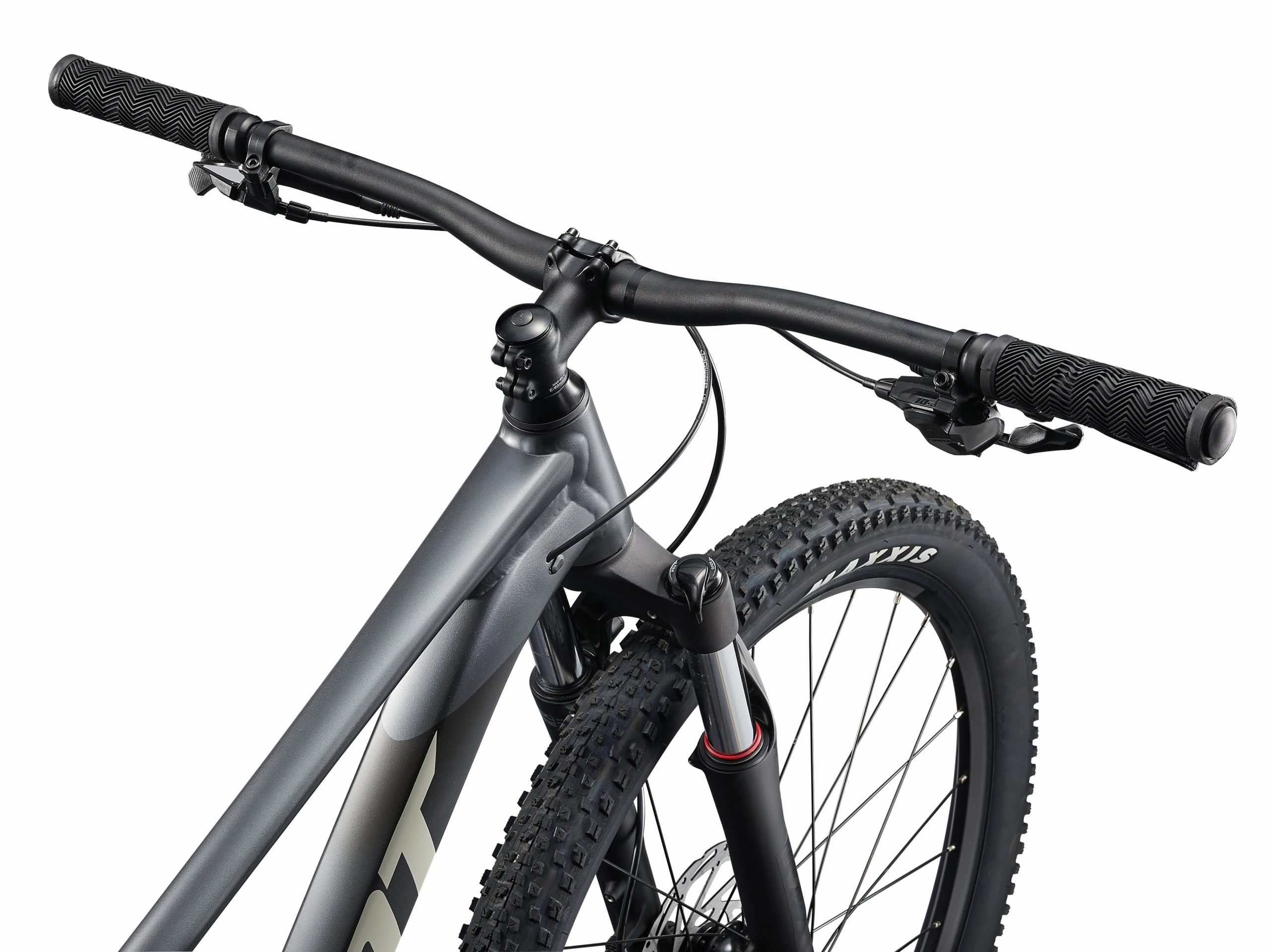

| Handlebar | Giant Connect Trail, 31.8mm XS&S: 690mm (27.5) M-XXL: 780mm (29) |
| Grips | Giant Sole-O |
| Stem | Giant Sport, 7-degree rise |

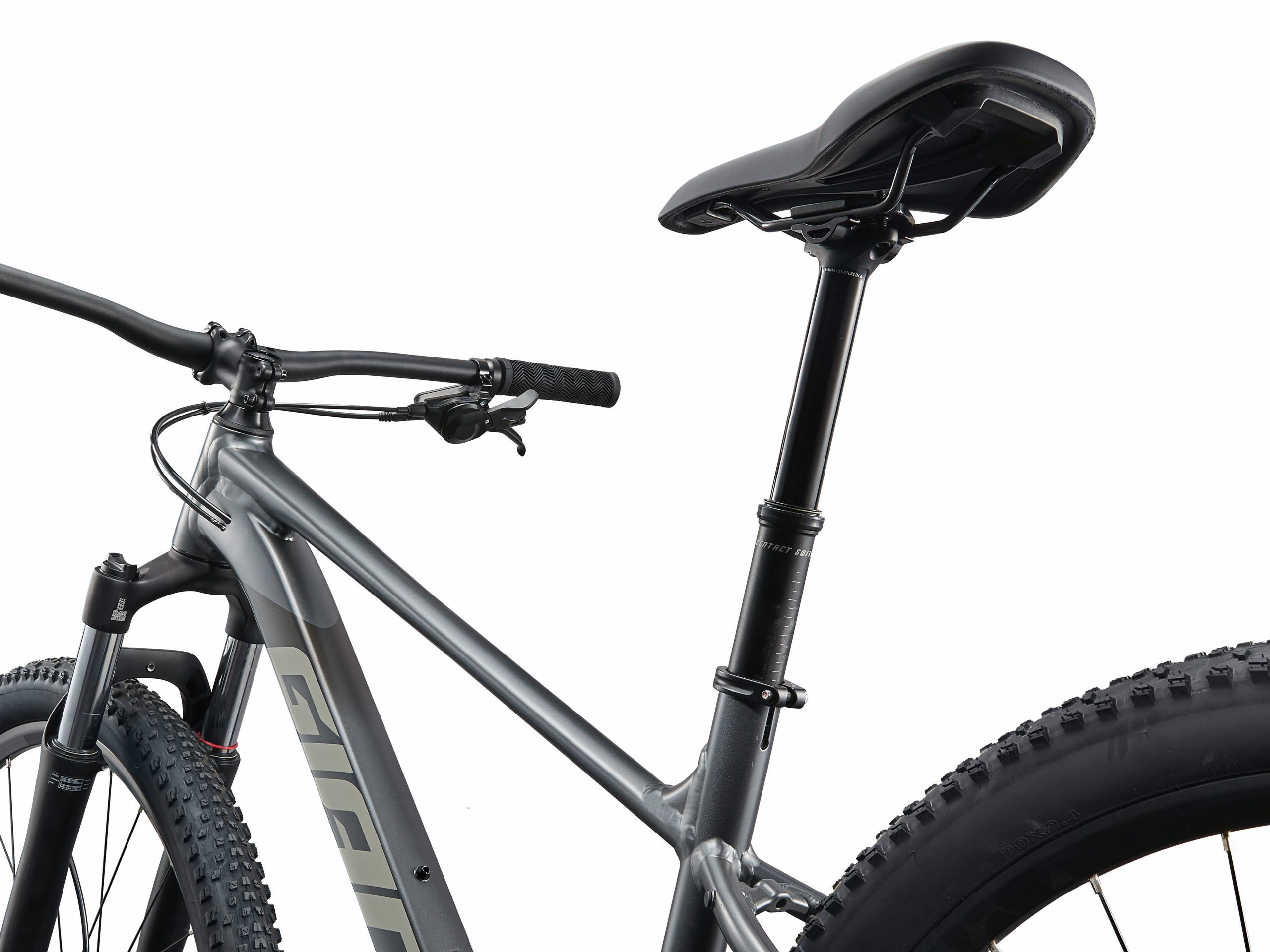

| Seatpost | Giant Contact Switch Core 2 position dropper post, 30.9mm XS&S: 100mm drop x 350mm (27.5) M-XXL: 120mm drop x 400mm (29) |

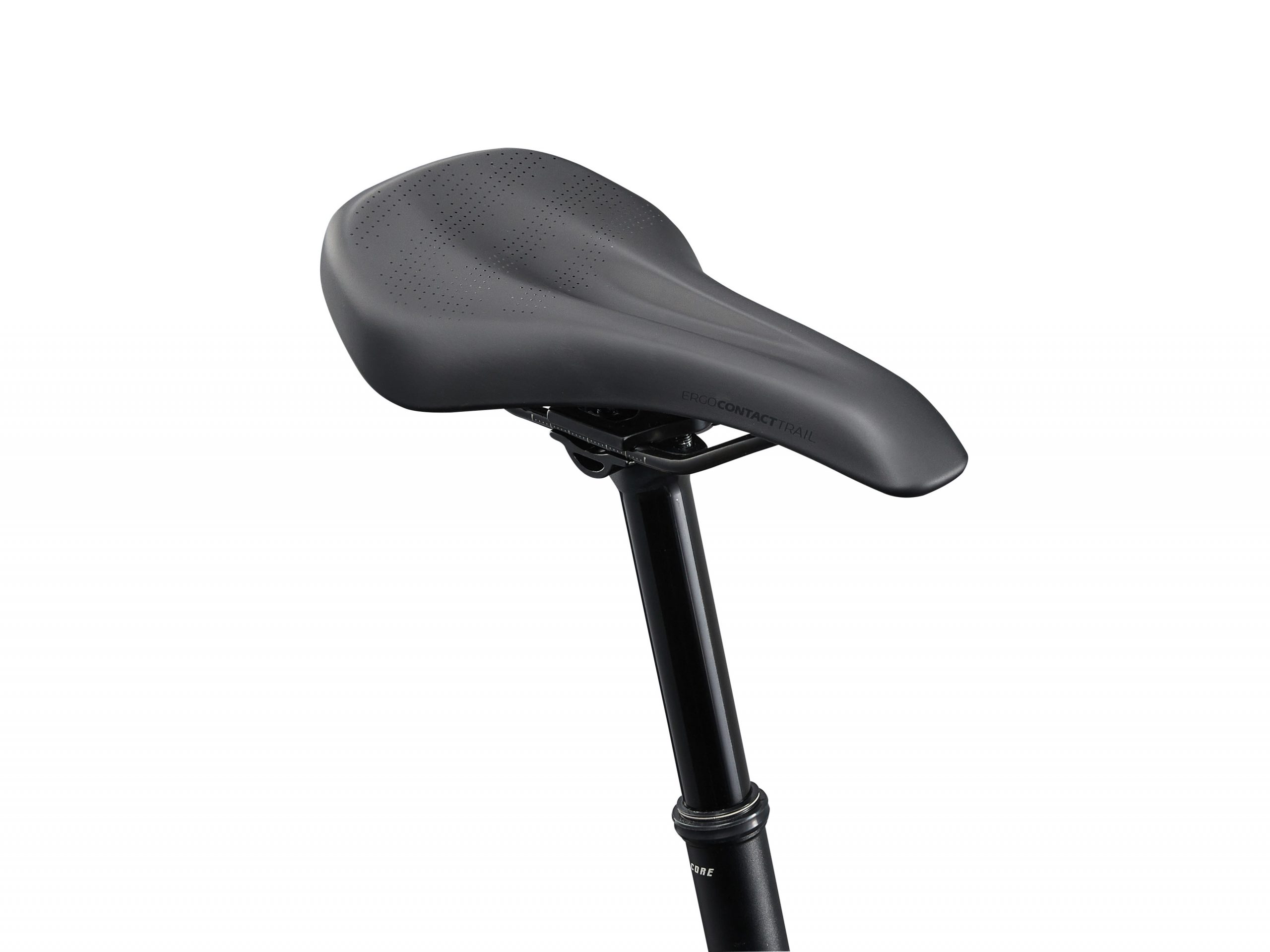

| Saddle | Giant ErgoContact Trail |
| Pedals | MTB caged |
| Shifters | Shimano CUES SL-6000, 1×10 |
| Front Derailleur | N/A |

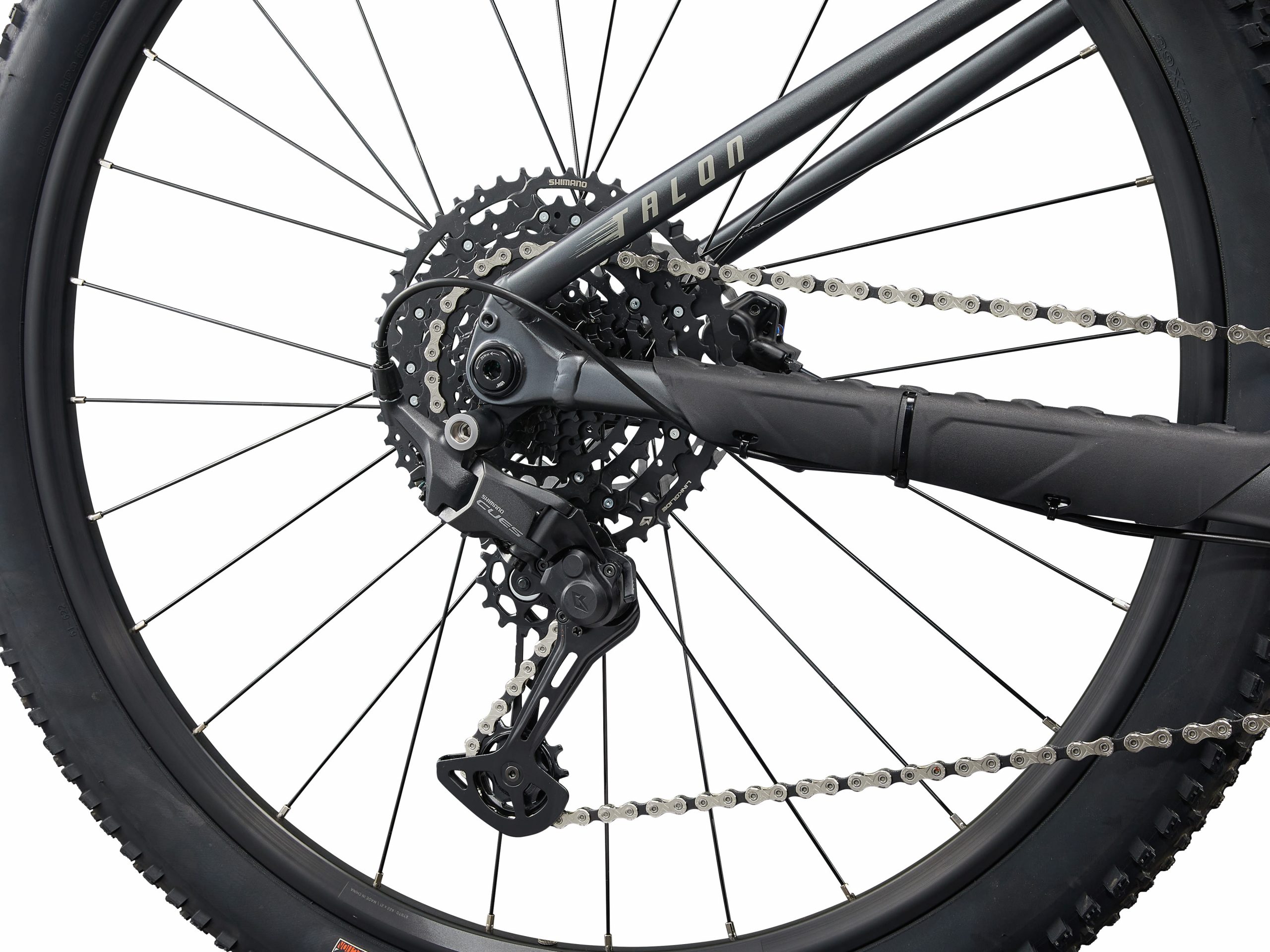

| Rear Derailleur | Shimano CUES RD-U6000 |

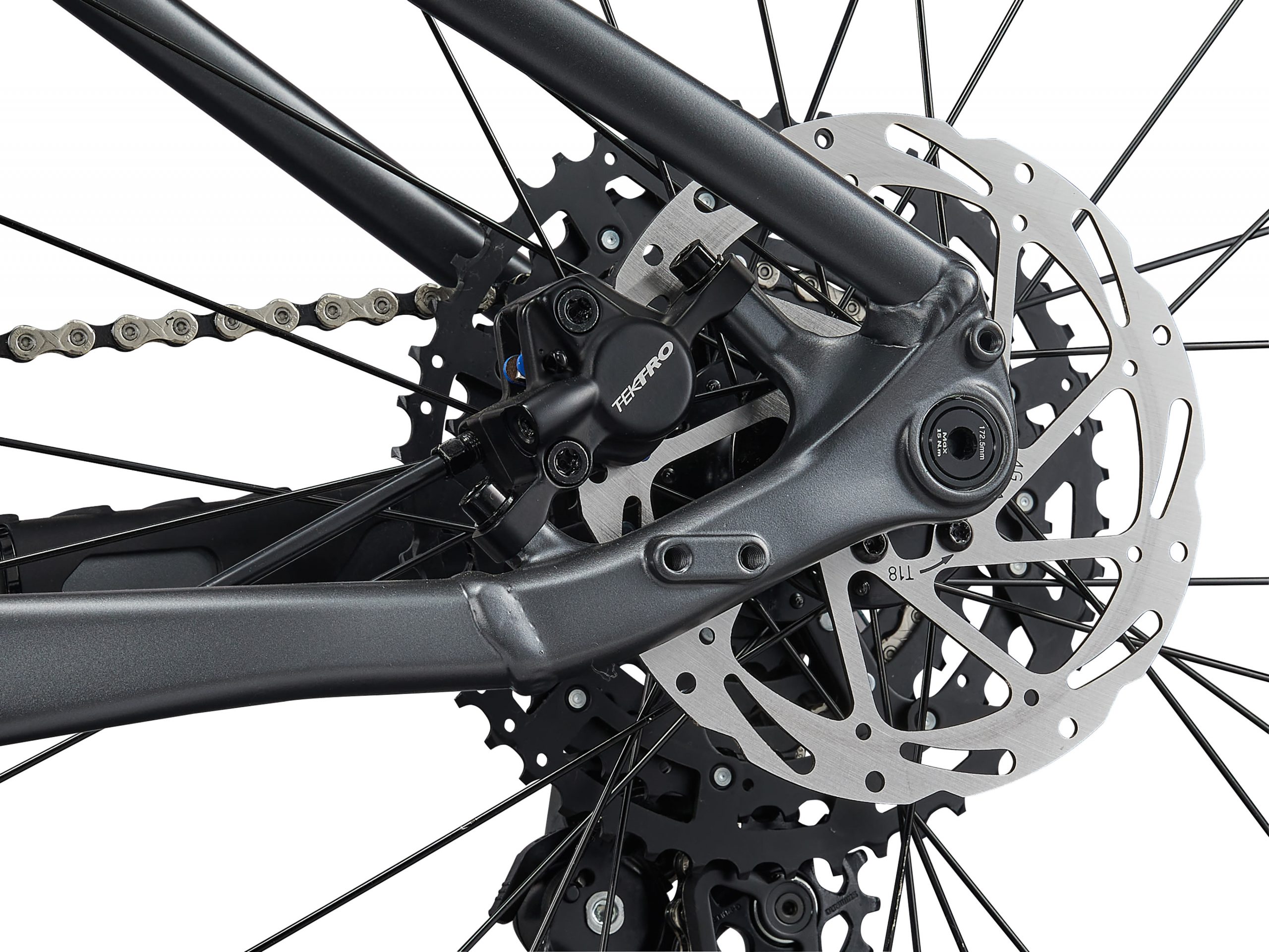

| Brakes | Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm |
| Brake Levers | Tektro HDC M275 |
| Cassette | Shimano CUES, CS-LG300, 11×48 |
| Chain | KMC X-11 |
| Crankset | ProWheel Charm, 32t (27.5) or 30t (29) |
| Bottom Bracket | cartridge |
| Rims | Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width |
| Hubs | alloy, sealed bearing, [F] 15×110 thru axle, [R] 12×142 thru-axle |
| Spokes | stainless, 14g |

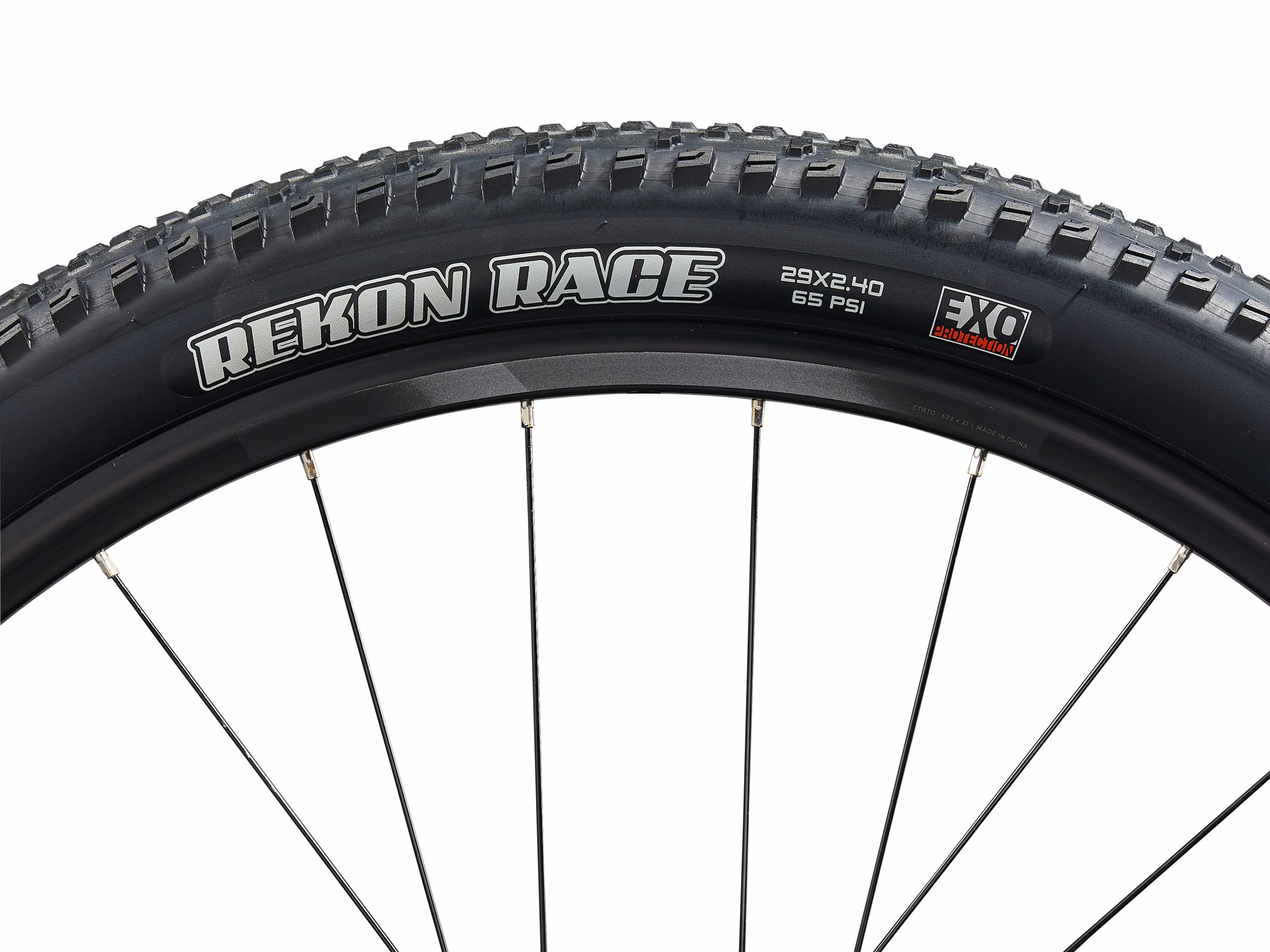

| Tyres | Maxxis Rekon 27.5×2.4″ or Maxxis Rekon Race 29×2.4″, wire bead |
| Extras | 2.4″ max tyre size |
Geometry
| XS (27.5″) | S (27.5″) | M (29″) | L (29″) | XL (29″) | XXL (29″) | ||
|---|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 345 | 375 | 420 | 450 | 480 | 500 |
| B | SEAT TUBE ANGLE | 74 | 74 | 74.5 | 74.5 | 74.5 | 74.5 |
| C | TOP TUBE LENGTH | 542 | 562 | 604 | 629 | 653 | 676 |
| D | HEAD TUBE LENGTH | 90 | 90 | 105 | 125 | 140 | 155 |
| E | HEAD TUBE ANGLE | 67 | 67 | 67.5 | 67.5 | 67.5 | 67.5 |
| F | FORK RAKE | 44 | 44 | 44 | 44 | 44 | 44 |
| G | TRAIL | 105.2 | 105.2 | 108.9 | 108.9 | 108.9 | 108.9 |
| H | WHEEL BASE | 1084 | 1104 | 1164 | 1191 | 1217 | 1242 |
| I | CHAIN STAY LENGTH | 440 | 440 | 455 | 455 | 455 | 455 |
| J | BOTTOM BRACKET DROP | 45 | 45 | 55 | 55 | 55 | 55 |
| K | STACK | 548 | 548 | 606 | 625 | 639 | 653 |
| L | REACH | 385 | 405 | 436 | 456 | 476 | 495 |
| M | STAND OVER HEIGHT | 684 | 684 | 709 | 709 | 710 | 707 |
| N | HANDLERBAR WIDTH | 690 | 690 | 690 | 690 | 690 | 690 |
| O | STEM LENGTH | 40 | 50 | 60 | 70 | 80 | 90 |
| P | CRANK LENGTH DEC | 165 | 165 | 170 | 170 | 175 | 175 |
| Q | WHEEL SIZE ALT | 27.5″ | 27.5″ | 29″ | 29″ | 29″ | 29″ |
