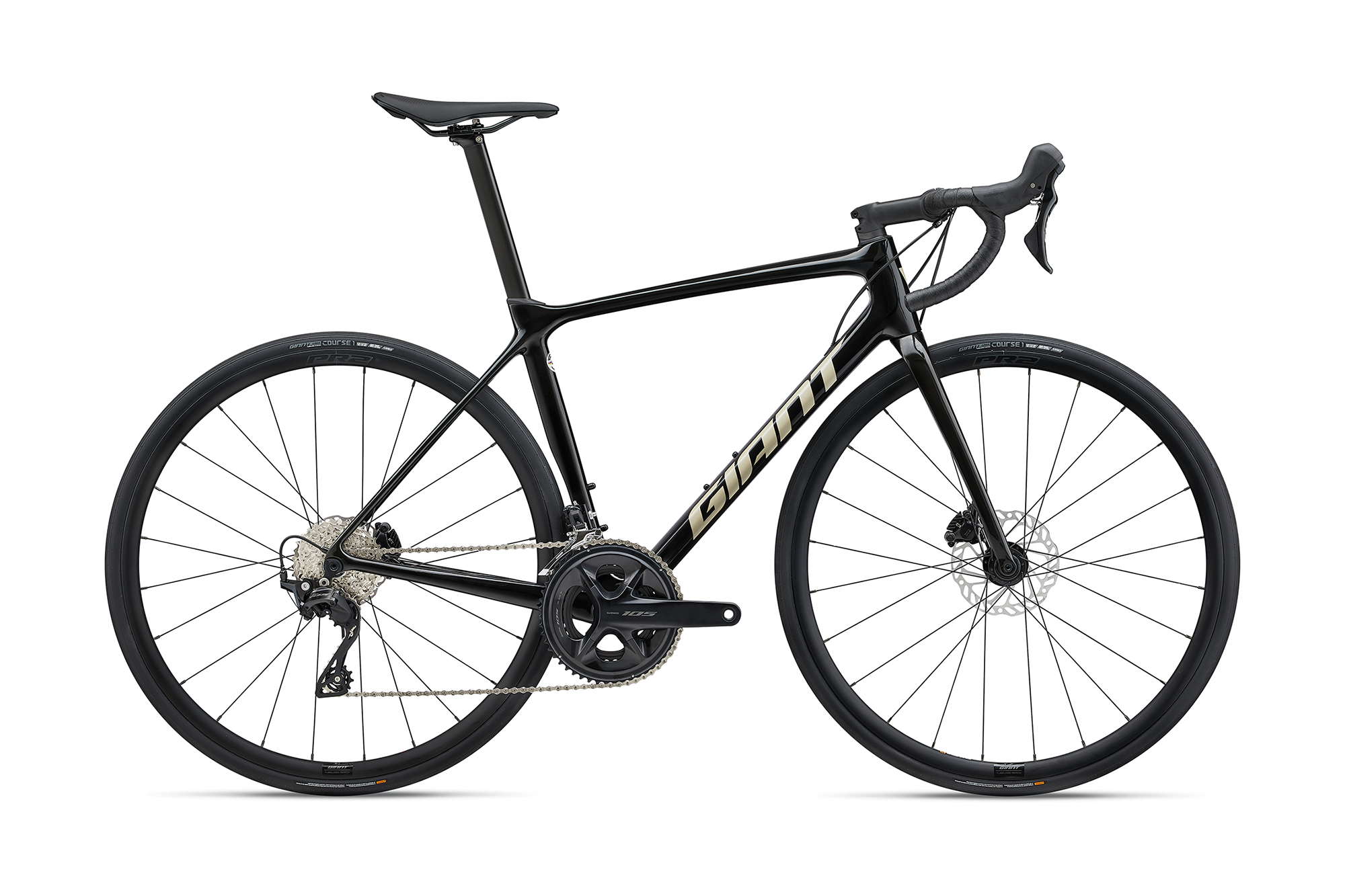

TCR Advanced Disc 2 Pro Compact (2024) | bike
€2,899.00
Specifications
Gunning for the race win or digging deep for a PR, this lightweight composite road bike gives you the speed, efficiency and control to push it to the limit, and then a little bit more.
Key Performance Factors
Class-leading efficiency
Combining best-in-class stiffness-to-weight with strategically placed aero tube shaping, this frameset is engineered for faster climbing, explosive acceleration and unyielding pedaling stiffness for race-winning performance.
Advanced aerodynamics
This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
Total control
Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allo
| Sizes | XS, S, M, M/L, L, XL |
|---|---|
| Colours | Gloss Panther/Shoreline |
| Frame | Advanced-grade composite, disc |
| Fork | Advanced-grade composite, full-composite OverDrive steerer, disc |
| Shock | N/A |
| Handlebar | Giant Contact XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm |
| Grips | Stratus Lite 2.0 |
| Stem | Giant Contact XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm |
| Seatpost | Giant Variant, composite, -5/+15mm offset |
| Saddle | Giant Approach |
| Pedals | PEDALS NOT SUPPLIED |
| Shifters | Shimano 105 2×12 |
| Front Derailleur | Shimano 105 |
| Rear Derailleur | Shimano 105 |
| Brakes | Shimano 105 hydraulic, Giant MPH rotors [F]160mm, [R]140mm |
| Brake Levers | Shimano 105 hydraulic |
| Cassette | Shimano 105, 12-speed, 11×34 |
| Chain | KMC X12L-1 |
| Crankset | Shimano 105, 36/52 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant P-R2 Disc wheelset, alloy |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | Sapim |
| Tyres | Giant Course 1, tubeless, 700x25c (28mm), folding |
| Extras | factory tubeless set up, 32mm max tyre size |
Geometry
| M | L | S | XL | ML | XS | ||
|---|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 470 | 530 | 445 | 560 | 500 | 425 |
| B | SEAT TUBE ANGLE | 73.5 | 73 | 74 | 72.5 | 73 | 74.5 |
| C | TOP TUBE LENGTH | 550 | 580 | 535 | 600 | 565 | 520 |
| D | HEAD TUBE LENGTH | 145 | 185 | 130 | 200 | 165 | 120 |
| E | HEAD TUBE ANGLE | 73 | 73 | 72.3 | 73 | 73 | 71 |
| F | FORK RAKE | 45 | 45 | 45 | 45 | 45 | 45 |
| G | TRAIL | 59.2 | 59.2 | 64 | 59.2 | 59.2 | 72.1 |
| H | WHEEL BASE | 980 | 1006 | 977 | 1020 | 991 | 976 |
| I | CHAIN STAY LENGTH | 405 | 405 | 405 | 405 | 405 | 405 |
| J | BOTTOM BRACKET DROP | 70 | 67 | 70 | 67 | 67 | 72 |
| K | STACK | 545 | 581 | 528 | 596 | 562 | 517 |
| L | REACH | 388 | 402 | 383 | 412 | 393 | 376 |
| M | STAND OVER HEIGHT | 747 | 800 | 725 | 816 | 773 | 706 |
| N | HANDLERBAR WIDTH | 420 | 440 | 400 | 440 | 420 | 400 |
| O | STEM LENGTH | 100 | 110 | 90 | 120 | 110 | 80 |
| P | CRANK LENGTH DEC | 172.5 | 175 | 170 | 175 | 172.5 | 170 |
| Q | WHEEL SIZE ALT | 700C | 700C | 700C | 700C | 700C | 700C |
