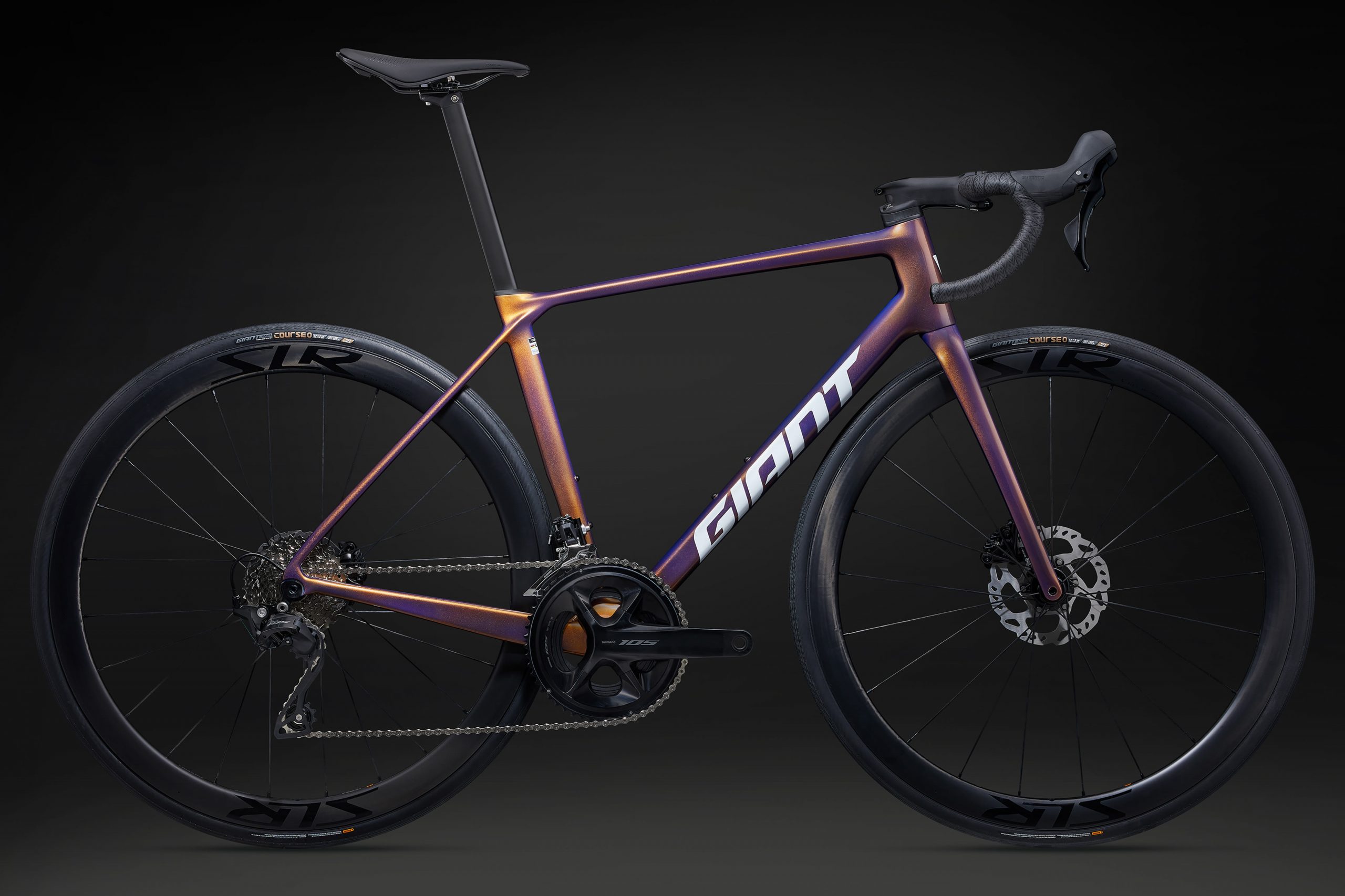

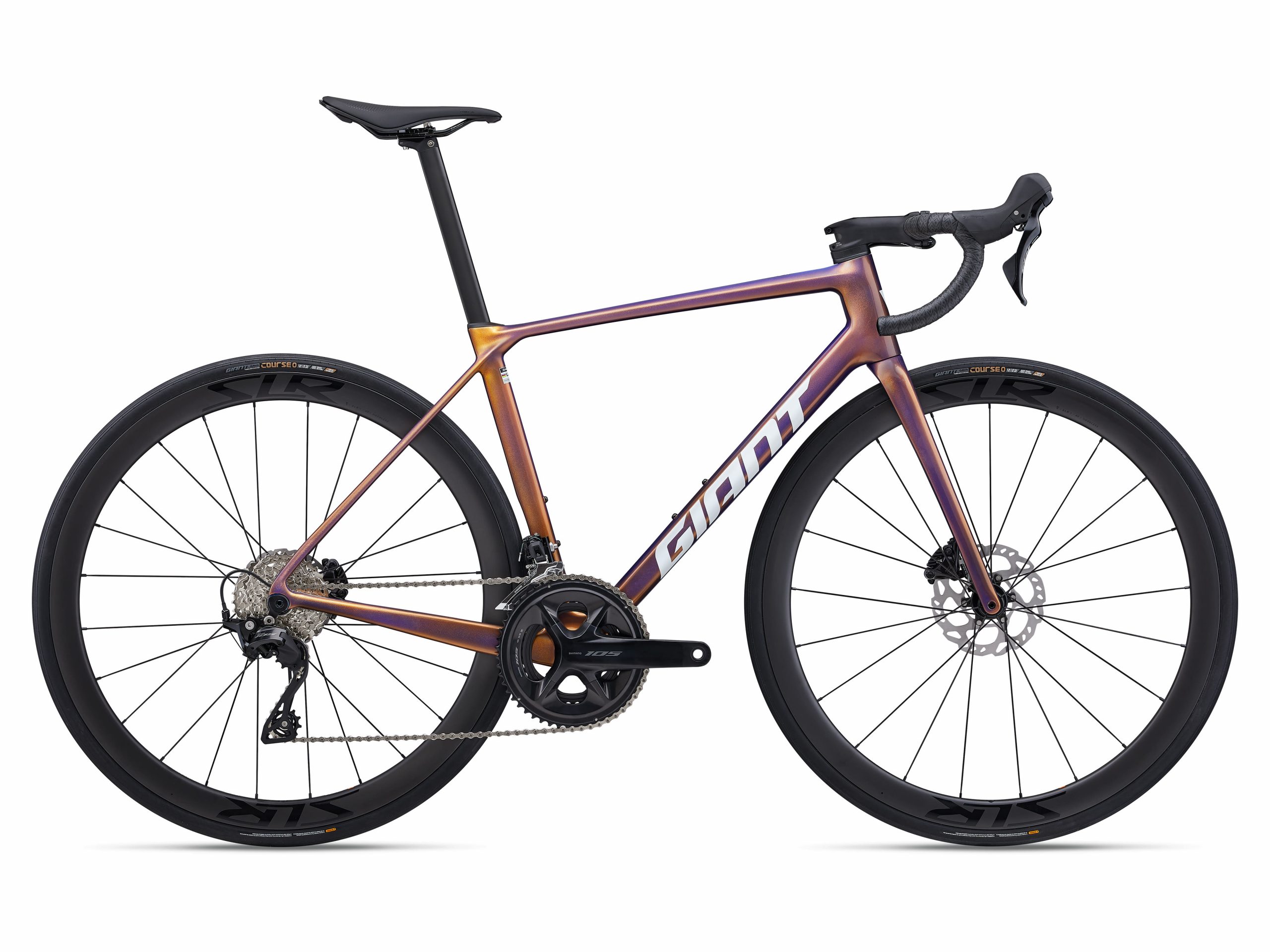

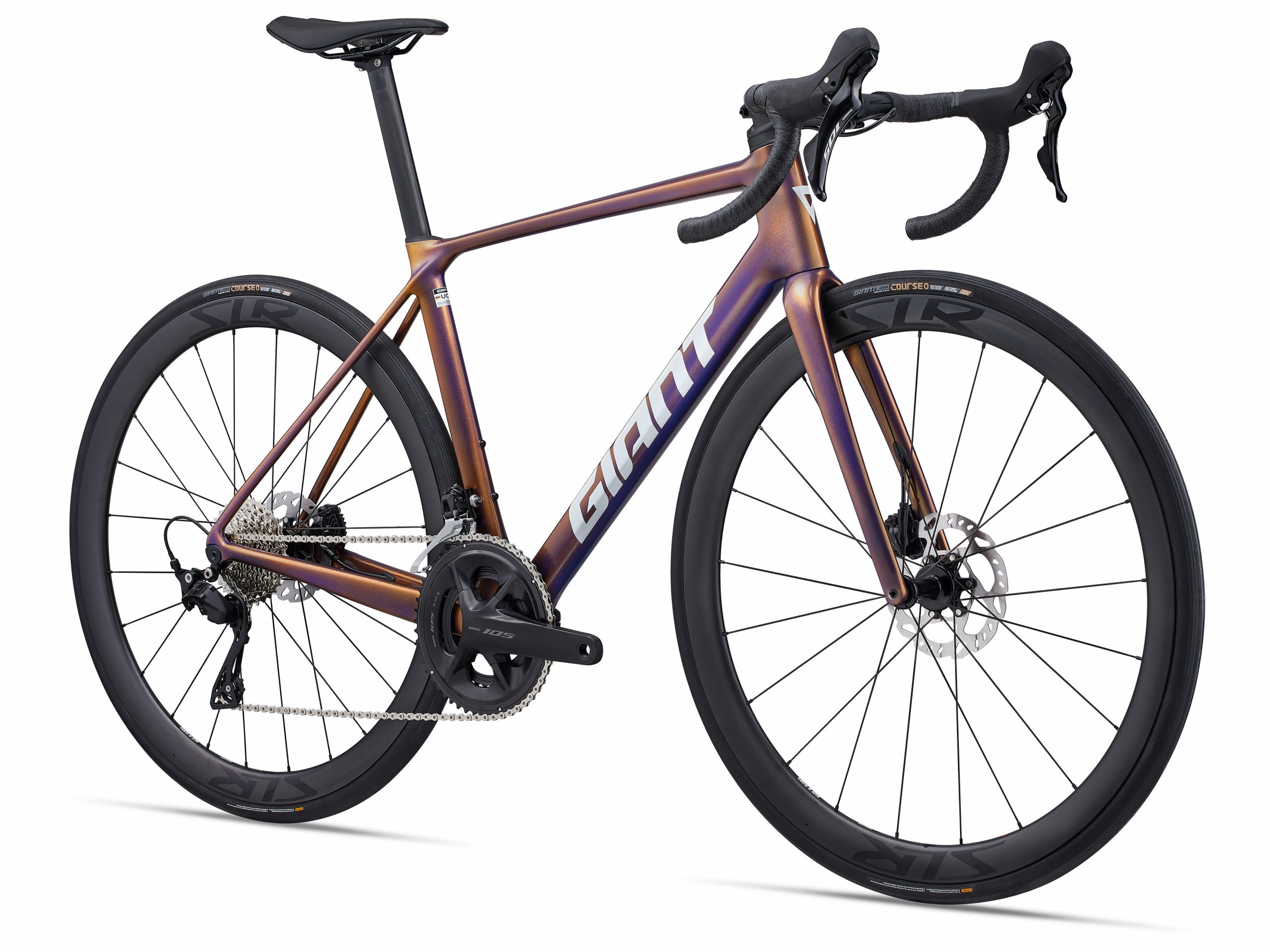

TCR Advanced Pro 2 (2025) | Race bike
€4,599.00
Features:
Specifications
Superlight, ultra-efficient and rides like a dream. This well-rounded race bike blends industry-leading composite frame engineering with fully integrated components to help you climb, corner and descend with astonishing speed and sublime road handling.
Key Performance Factors
SYSTEM OPTIMIZATION

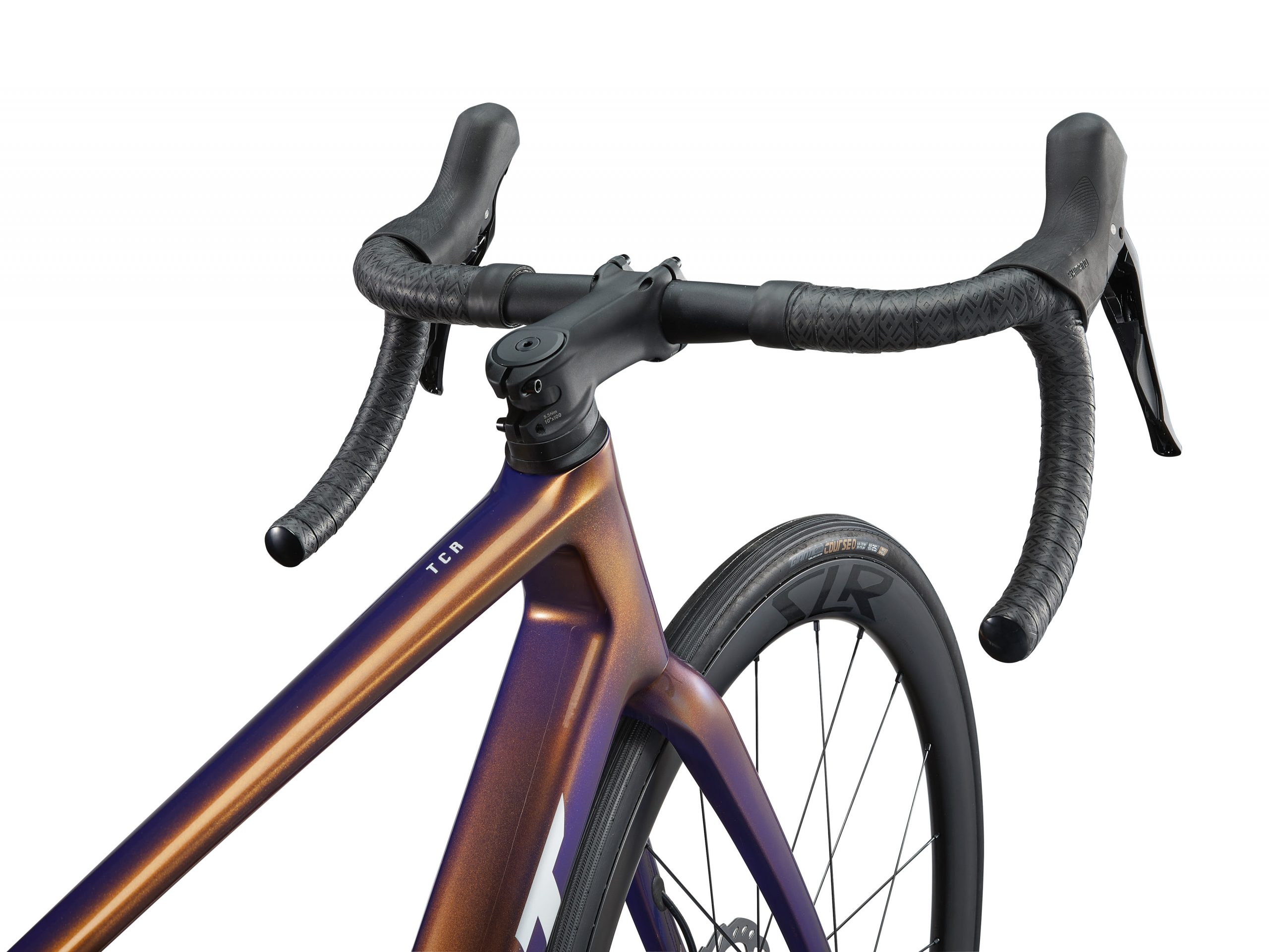

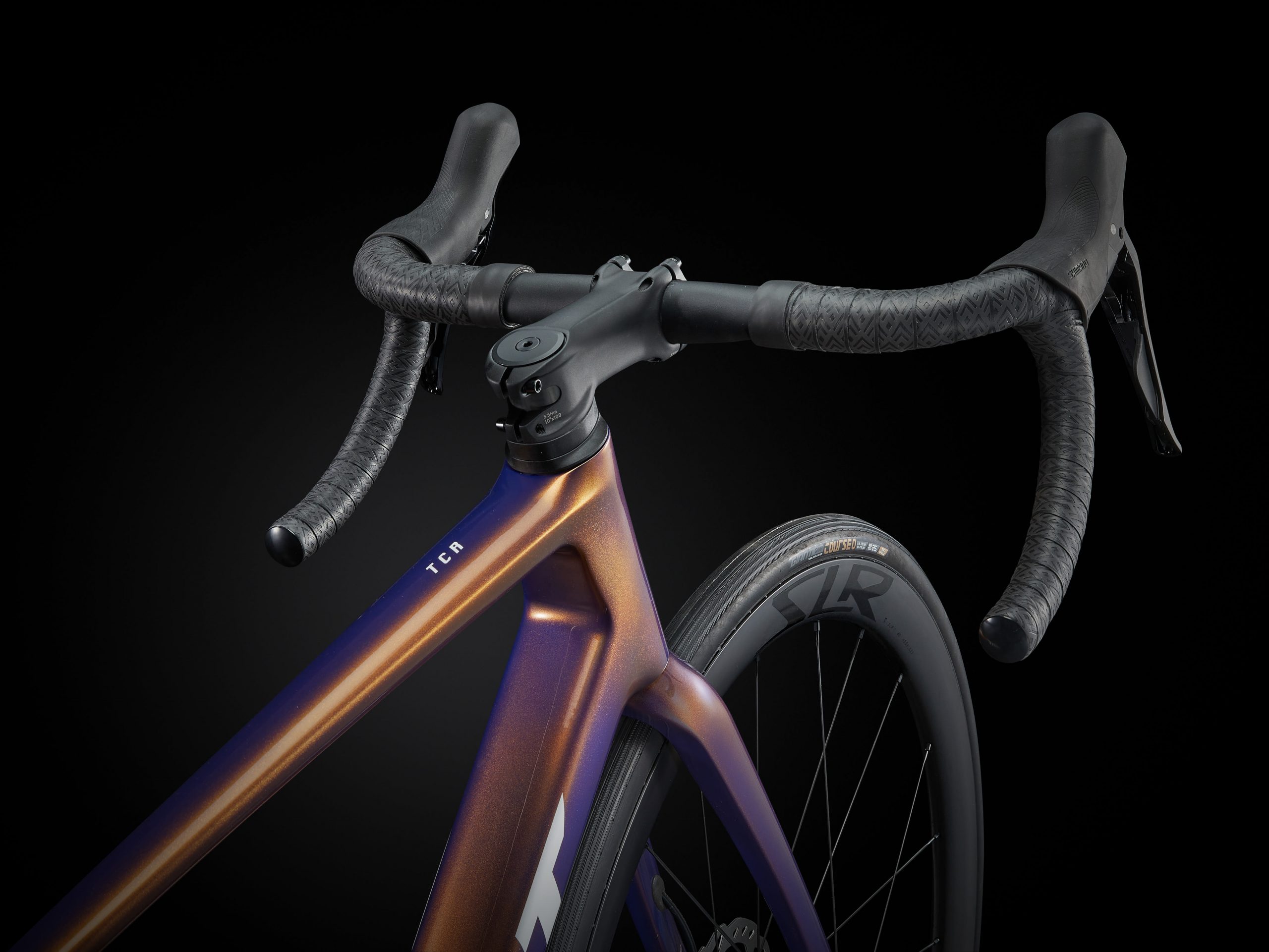

The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SL AeroLight stem and Contact SL handlebar to incorporate internal cable routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup.
WINNING EFFICIENCY
Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.
INTEGRATED AERODYNAMICS
All tube shapes are engineered and developed using Computational Fluid Dynamics (CFD) modeling and wind-tunnel testing. From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous generation.
| Sizes | S, M, ML, L, XL |
|---|---|
| Colours | Gloss Meteor Storm/White. |
| Frame | Advanced-Grade Composite 12x142mm thru-axle, Disc |

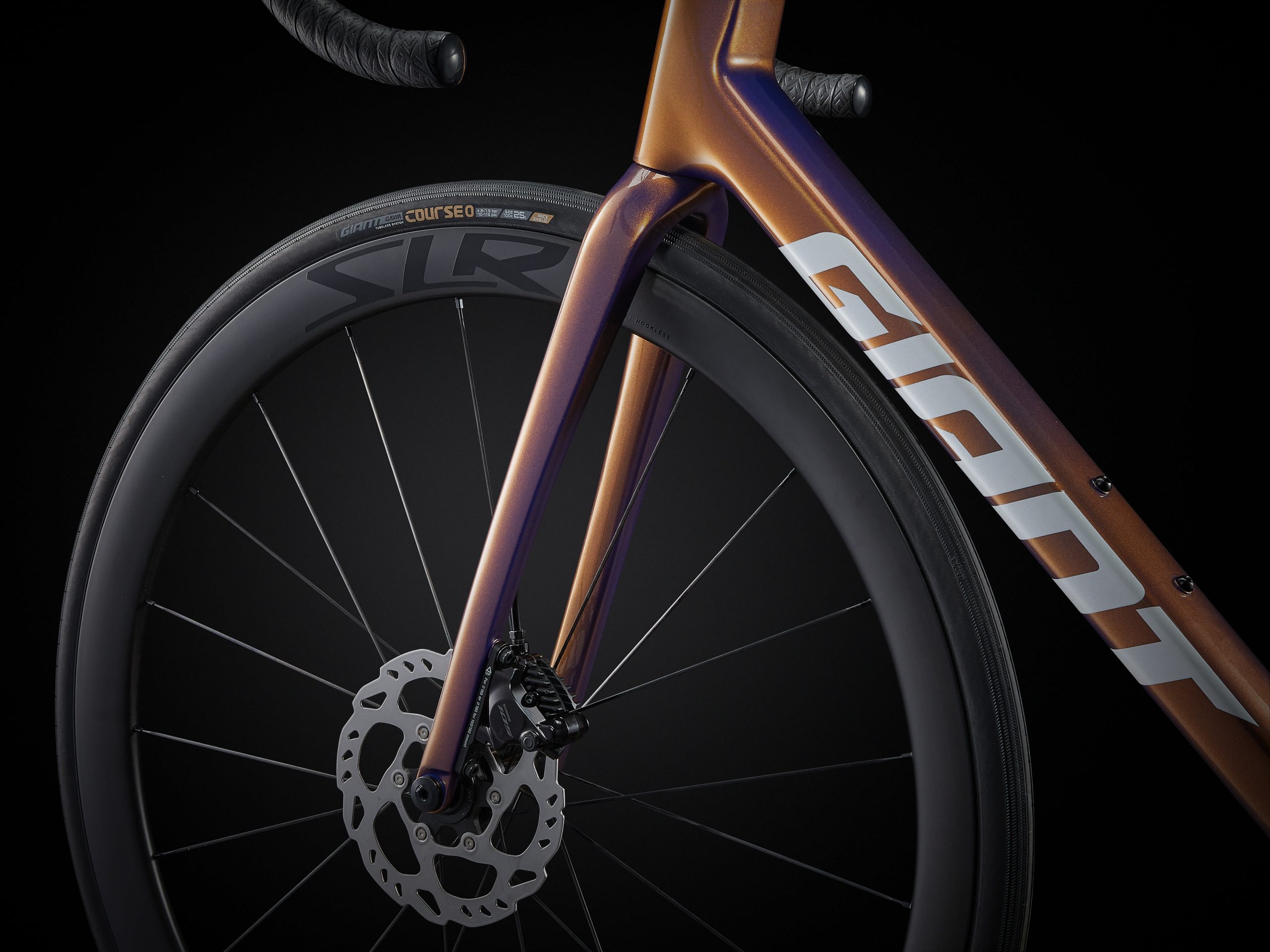

| Fork | Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc |
| Handlebar | Giant Contact SL, 10.5 degree flare |
| Grips | Giant Stratus Lite 2.0 with gel |
| Stem | Giant Contact SL Aerolight |
| Seatpost | Giant Variant, composite, -5/+15mm offset |
| Saddle | Giant Fleet SL 7mm SST Rail With Giant ParticleFlow technology |
| Pedals | PEDALS NOT SUPPLIED |
| Shifters | Shimano 105 2×12 |
| Front Derailleur | Shimano 105 |
| Rear Derailleur | Shimano 105 |
| Brakes | Shimano 105 hydraulic disc, RT70 160/140mm rotors |
| Brake Levers | Shimano 105 hydraulic disc |
| Cassette | Shimano 105, 11×34 |
| Chain | KMC X12L-1 |

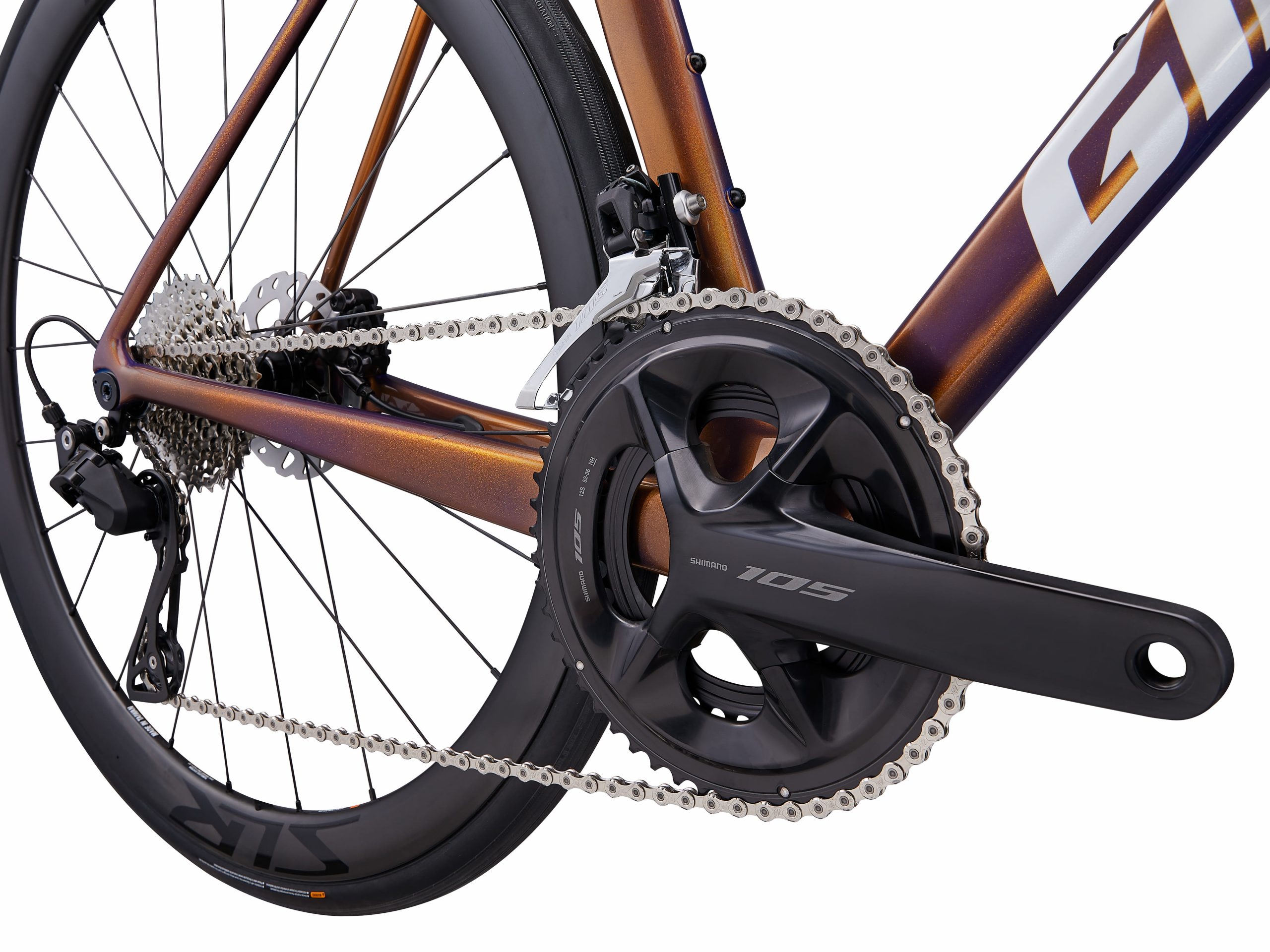

| Crankset | Shimano 105, 36/52 with Giant Power Pro power meter |
| Bottom Bracket | Shimano, PressFit 71 |
| Rims | New Giant SLR 1 40 Carbon Disc Wheel System with GIANT patented DBL (Dynamic Balanced Lacing) technology |
| Hubs | [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle |
| Spokes | Sapim CX-Ray |
| Tyres | Giant Gavia COURSE 0 Tubeless, 700x25C(28mm effective), 170 TPI , Folding |
| Extras | Factory tubeless set up, out front computer mount, 33mm max tyre size |
Geometry
| S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 445 | 470 | 500 | 530 | 560 |
| B | SEAT TUBE ANGLE | 74 | 73.5 | 73 | 73 | 72.5 |
| C | TOP TUBE LENGTH | 535 | 550 | 565 | 580 | 600 |
| D | HEAD TUBE LENGTH | 130 | 145 | 165 | 185 | 200 |
| E | HEAD TUBE ANGLE | 72.3 | 73.5 | 73 | 73 | 72.5 |
| F | FORK RAKE | 45 | 45 | 45 | 45 | 45 |
| G | TRAIL | 64 | 59 | 59 | 59 | 59 |
| H | WHEEL BASE | 977 | 980 | 991 | 1006 | 1020 |
| I | CHAIN STAY LENGTH | 405 | 405 | 405 | 405 | 405 |
| J | BOTTOM BRACKET DROP | 69.5 | 69.5 | 67 | 67 | 67 |
| K | STACK | 528 | 545 | 562 | 581 | 596 |
| L | REACH | 383 | 388 | 393 | 402 | 412 |
| M | STAND OVER HEIGHT | 722 | 743 | 771 | 798 | 822 |
| N | HANDLERBAR WIDTH | 400 | 420 | 420 | 440 | 440 |
| O | STEM LENGTH | 90 | 100 | 110 | 110 | 120 |
| P | CRANK LENGTH DEC | 170 | 172.5 | 172.5 | 175 | 175 |
| Q | WHEEL SIZE ALT | 700C | 700C | 700C | 700C | 700C |
