TCR Advanced Pro Disc 0 Di2 (2024) | bike
€6,699.00
Features:
Specifications
Climb, corner and descend with greater speed, more control and maximum efficiency. From the mountains to the flats, in all conditions, this lightweight composite road racer takes you to the next level.
Key Performance Factors
Class-leading efficiency
Combining best-in-class stiffness-to-weight with strategically placed aero tube shaping, this frameset is engineered for faster climbing, explosive acceleration and unyielding pedaling stiffness for race-winning performance.
Advanced aerodynamics
This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
Total control
Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mount brakes and thru-axles boost stiffness and improve overall handling, while added frame and fork clearance al
| Sizes | S, M, M/L, L, XL |
|---|---|
| Colours | Gloss Blue Dragonfly/Chrome, Carbon |
| Frame | Advanced-grade composite, disc |
| Fork | Advanced-grade composite, full-composite OverDrive 2 steerer, disc |
| Shock | N/A |
| Handlebar | Giant Contact SLR S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm |
| Grips | Stratus Lite 2.0 |
| Stem | Giant Contact SL S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm |
| Seatpost | Giant Variant, composite, -5/+15mm offset |
| Saddle | Giant Fleet SL |
| Pedals | PEDALS NOT SUPPLIED |

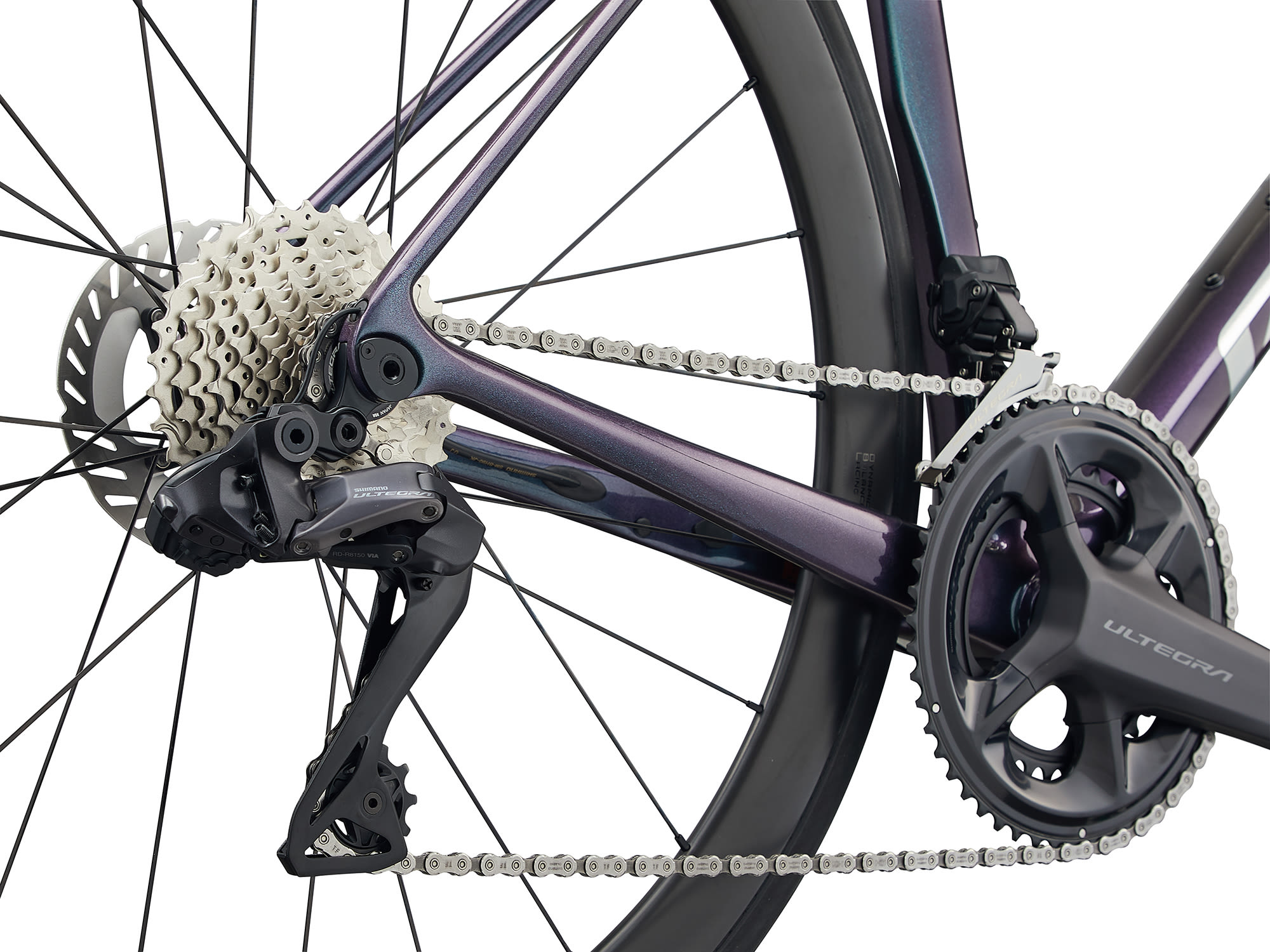

| Shifters | Shimano Ultegra Di2 ST-R8170 2×12 |
| Front Derailleur | Shimano Ultegra Di2 FD-R8150 |
| Rear Derailleur | Shimano Ultegra Di2 RD-R8150 |
| Brakes | Shimano Ultegra Di2 hydraulic, Shimano RT-CL800 rotors [F]160mm, [R]140mm |
| Brake Levers | Shimano Ultegra Di2 hydraulic |
| Cassette | Shimano Ultegra, 12-speed, 11×34 |
| Chain | Shimano Ultegra |
| Crankset | Shimano Ultegra, 36/52 with Giant Power Pro power meter S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant SLR 1 36 Carbon Disc WheelSystem, [F] 36mm, [R] 36mm |
| Hubs | [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle |
| Spokes | Sapim CX-Ray |
| Tyres | CADEX Race, tubeless, 700x25c (26.5mm), folding |
| Extras | computer mount, factory tubeless set up, 32mm max tyre size |
Geometry
| S | ML | XL | M | L | ||
|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 445 | 500 | 560 | 470 | 530 |
| B | SEAT TUBE ANGLE | 74 | 73 | 72.5 | 73.5 | 73 |
| C | TOP TUBE LENGTH | 535 | 565 | 600 | 550 | 580 |
| D | HEAD TUBE LENGTH | 130 | 165 | 200 | 145 | 185 |
| E | HEAD TUBE ANGLE | 72.3 | 73 | 73 | 73 | 73 |
| F | FORK RAKE | 45 | 45 | 45 | 45 | 45 |
| G | TRAIL | 64 | 59.2 | 59.2 | 59.2 | 59.2 |
| H | WHEEL BASE | 977 | 991 | 1020 | 980 | 1006 |
| I | CHAIN STAY LENGTH | 405 | 405 | 405 | 405 | 405 |
| J | BOTTOM BRACKET DROP | 70 | 67 | 67 | 70 | 67 |
| K | STACK | 528 | 562 | 596 | 545 | 581 |
| L | REACH | 383 | 393 | 412 | 388 | 402 |
| M | STAND OVER HEIGHT | 725 | 773 | 816 | 747 | 800 |
| N | HANDLERBAR WIDTH | 400 | 420 | 440 | 420 | 440 |
| O | STEM LENGTH | 90 | 110 | 120 | 100 | 110 |
| P | CRANK LENGTH DEC | 170 | 172.5 | 175 | 172.5 | 175 |
| Q | WHEEL SIZE ALT | 700C | 700C | 700C | 700C | 700C |
