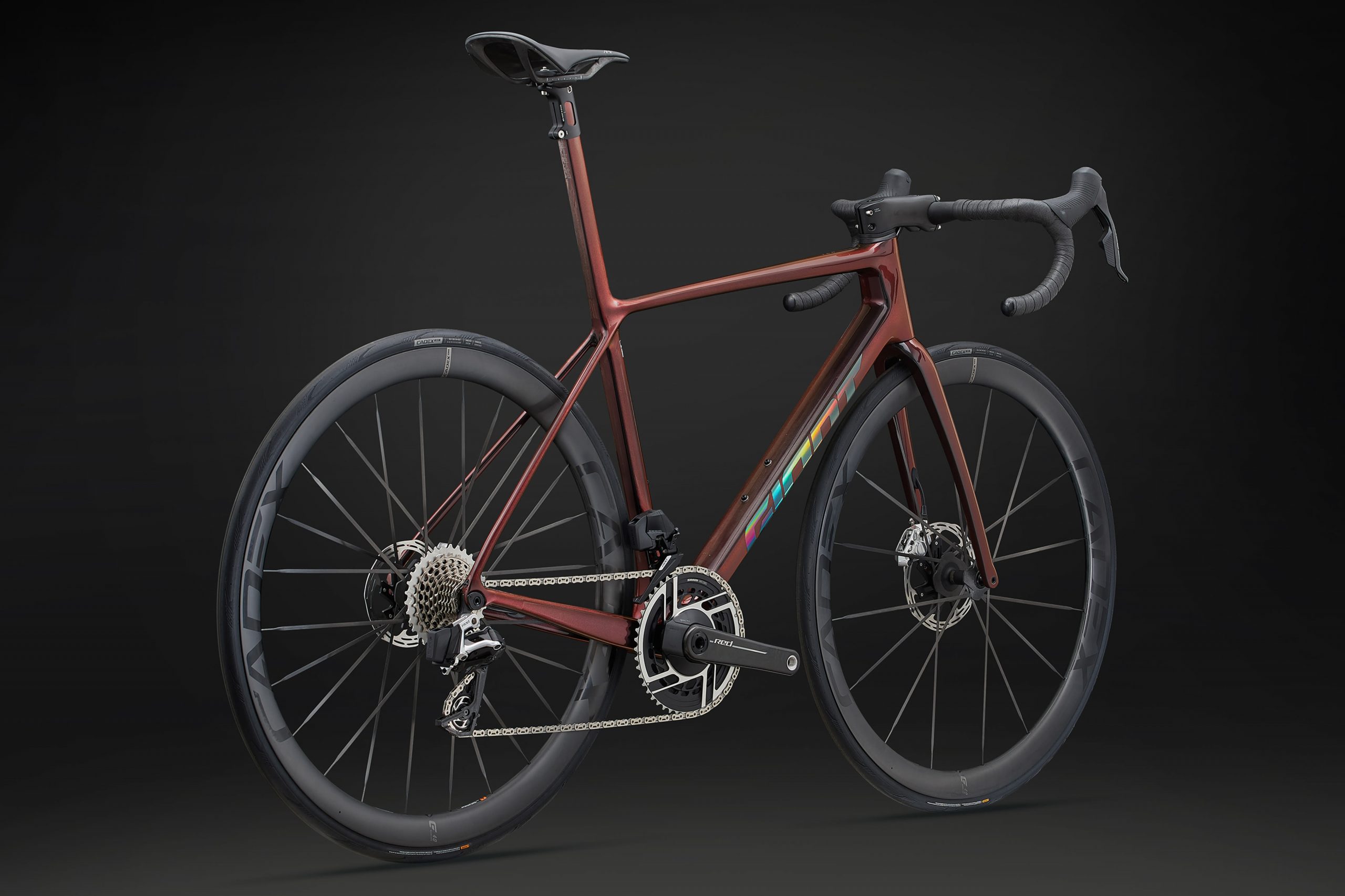

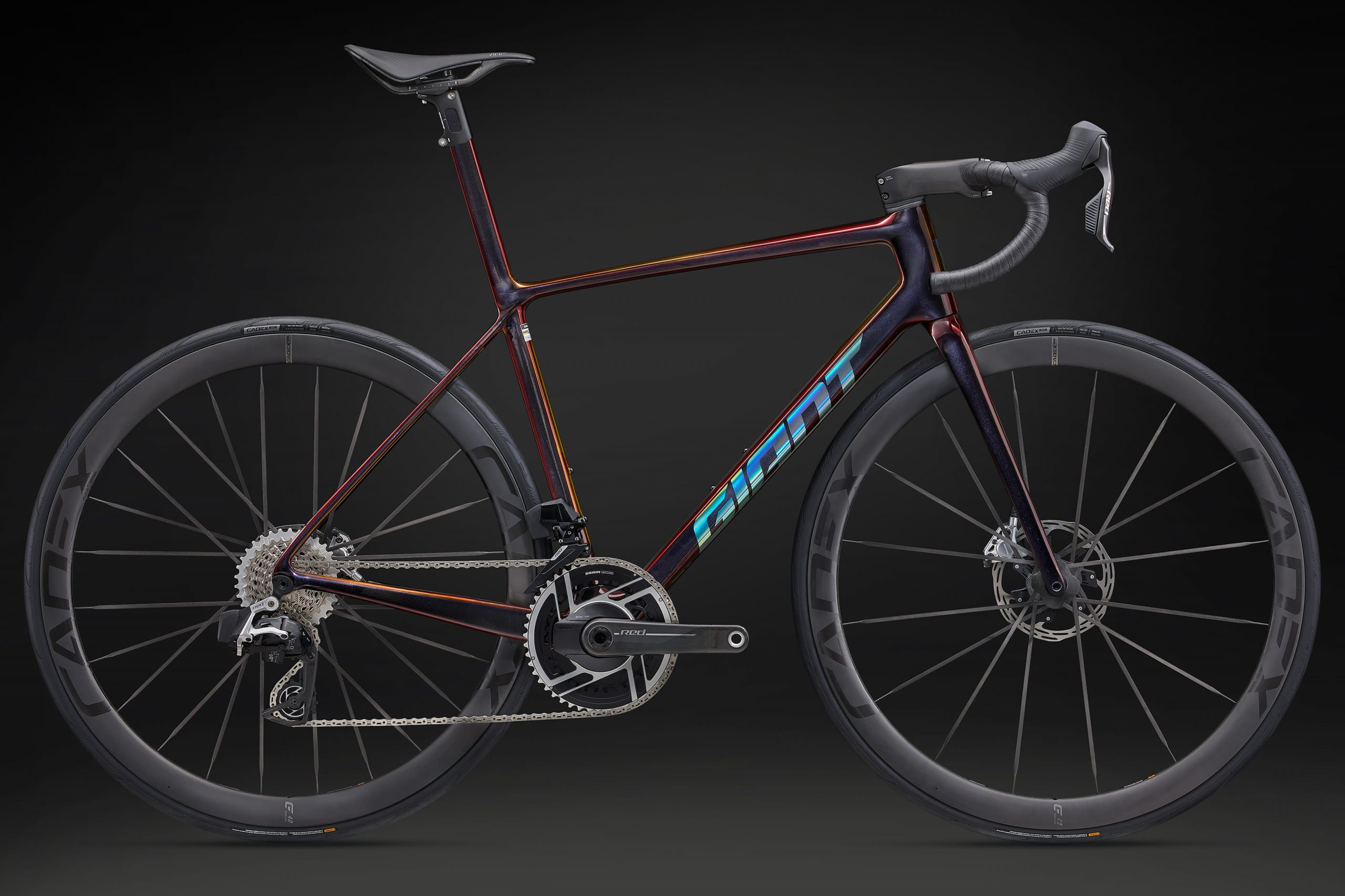

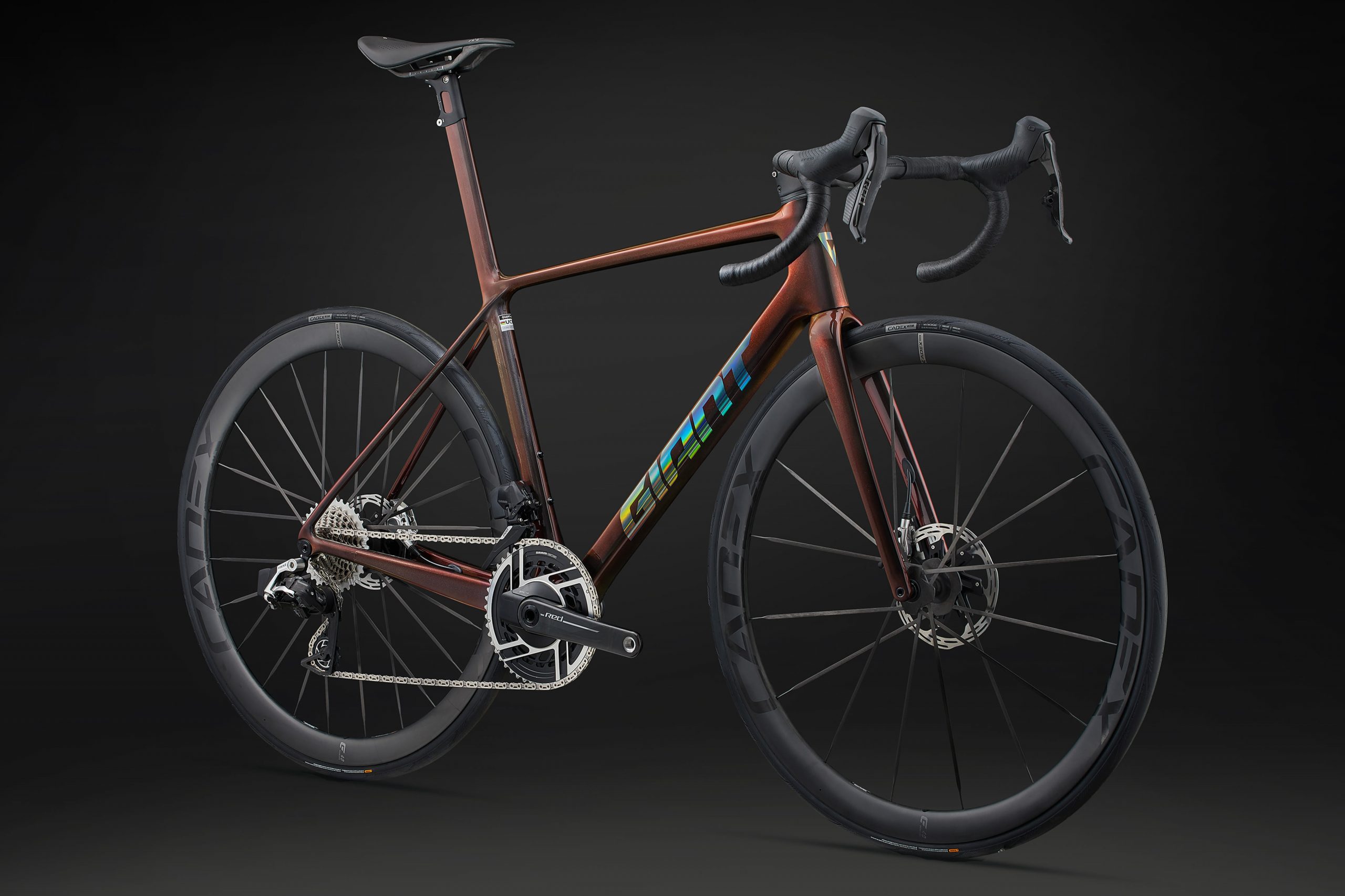

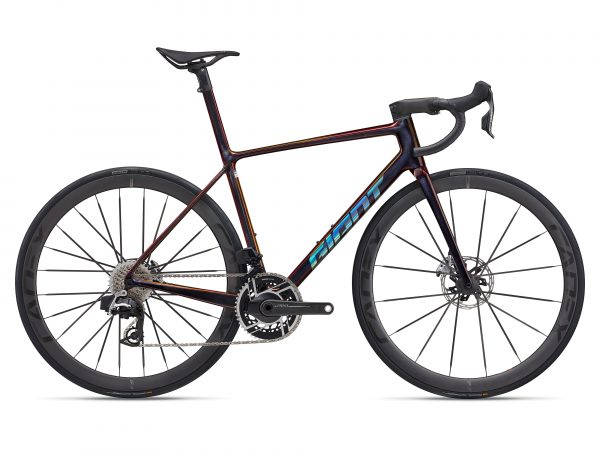

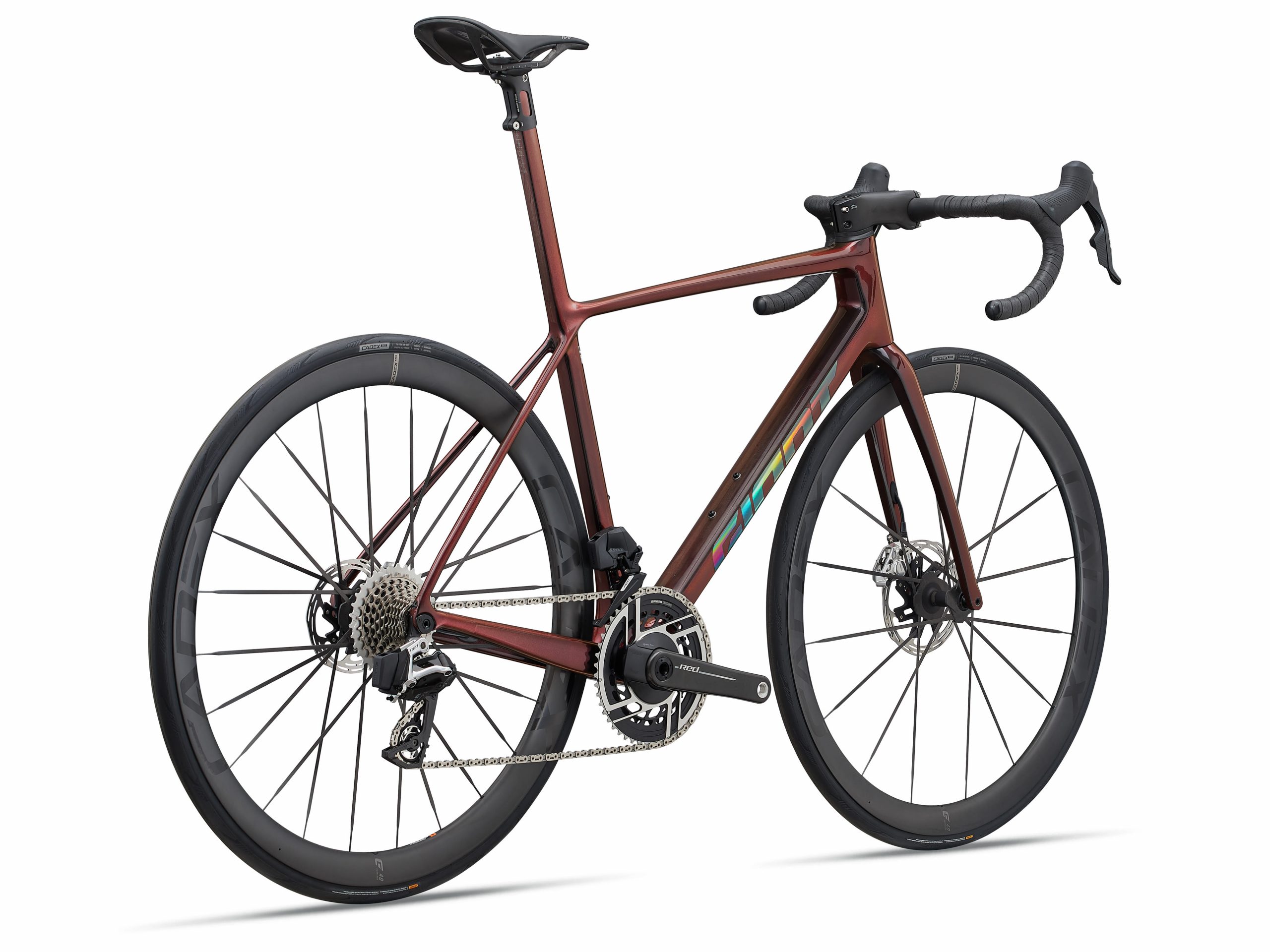

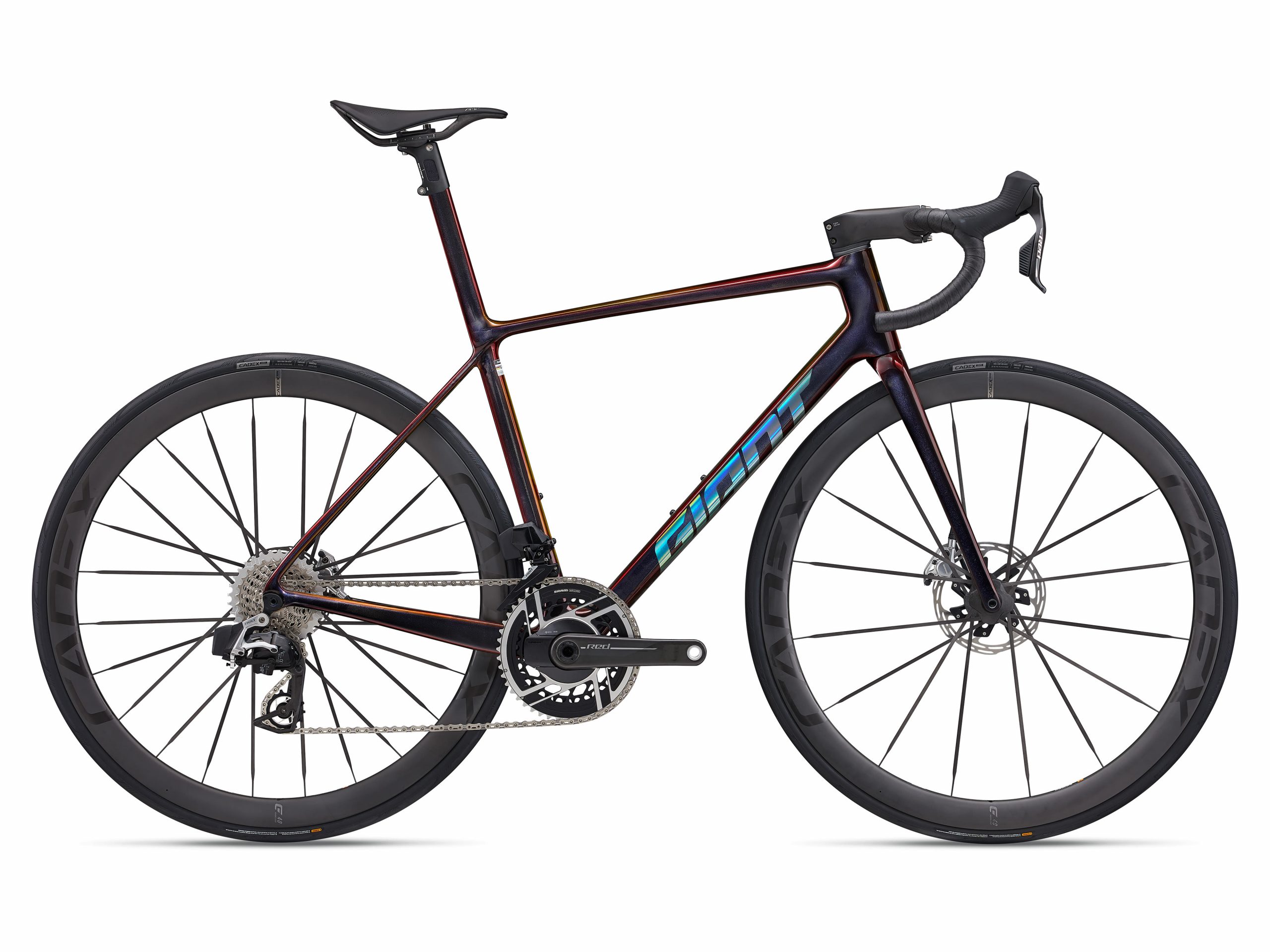

TCR Advanced SL 0 Red (2025) | Race bike
€13,799.00
Features:
Specifications
From hors categorie climbs to rollers and flats, this WorldTour level race bike is the pro’s choice for all-rounder performance. The all-new flagship TCR uses system integration and innovative construction methods to deliver a clear advantage on the road.
Key Performance Factors
SYSTEM OPTIMIZATION

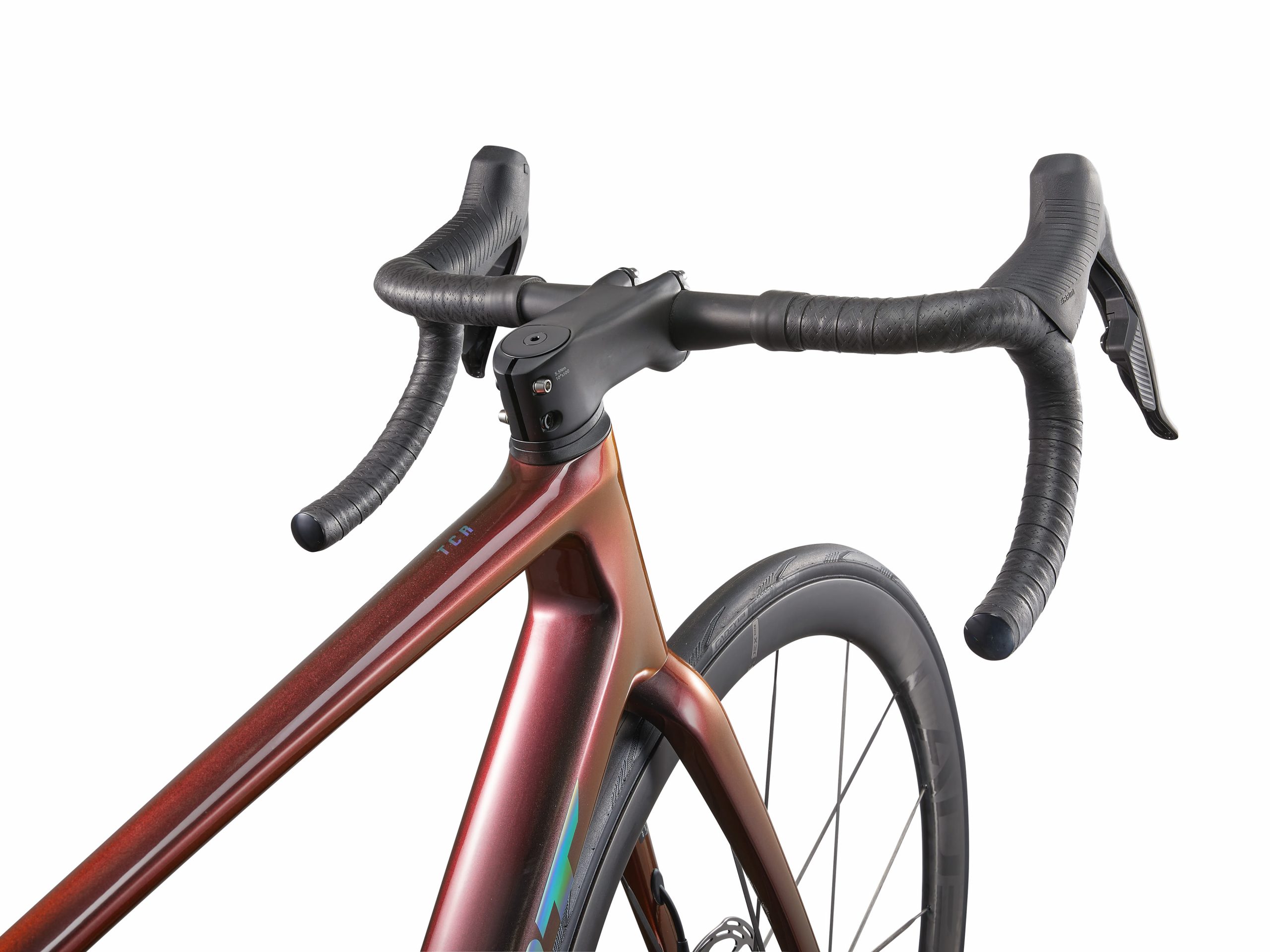

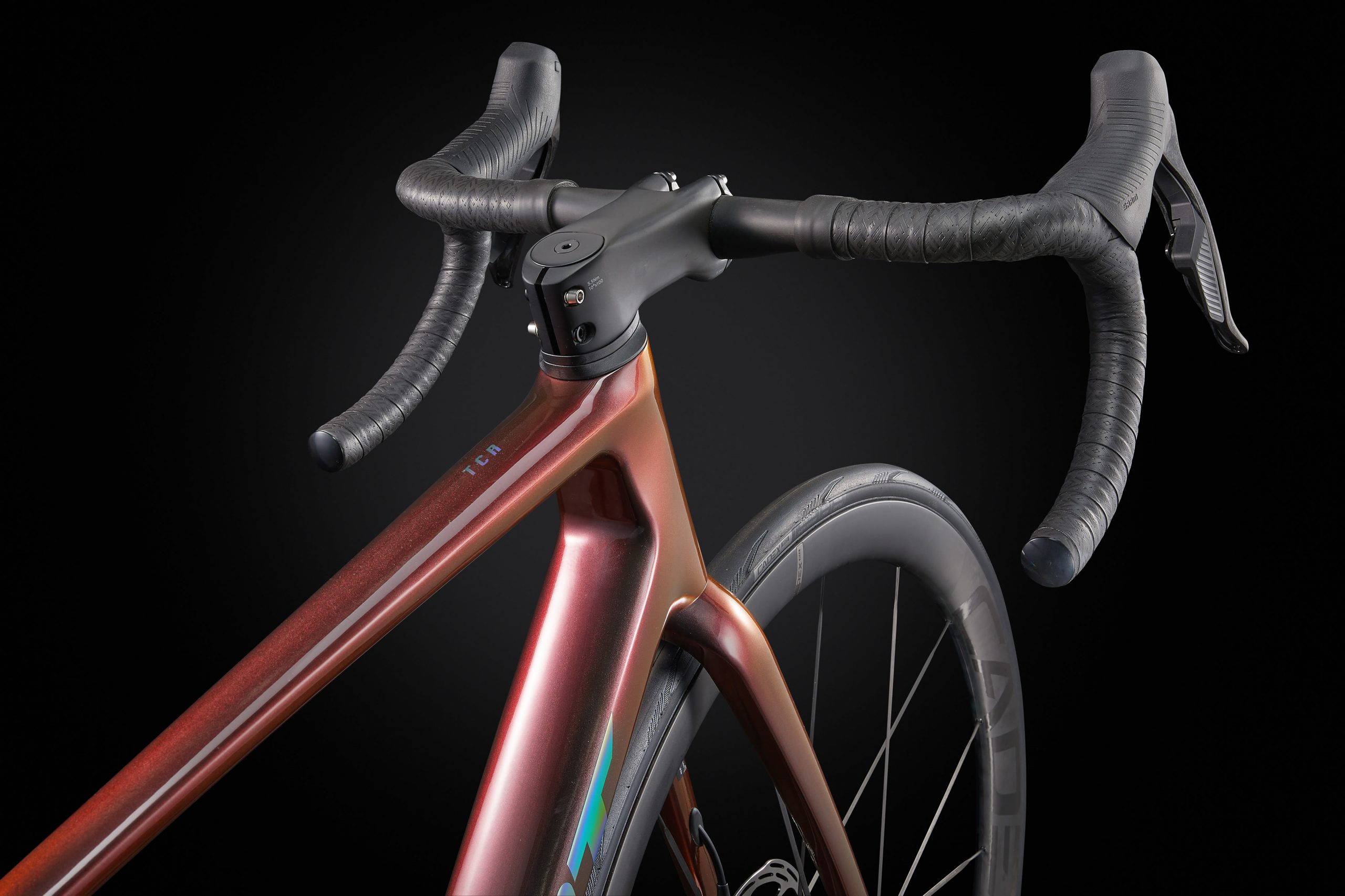

The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform best as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SLR AeroLight stem and Contact SLR handlebar to incorporate internal cable routing that also integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup
WINNING EFFICIENCY
Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.
INTEGRATED AERODYNAMICS

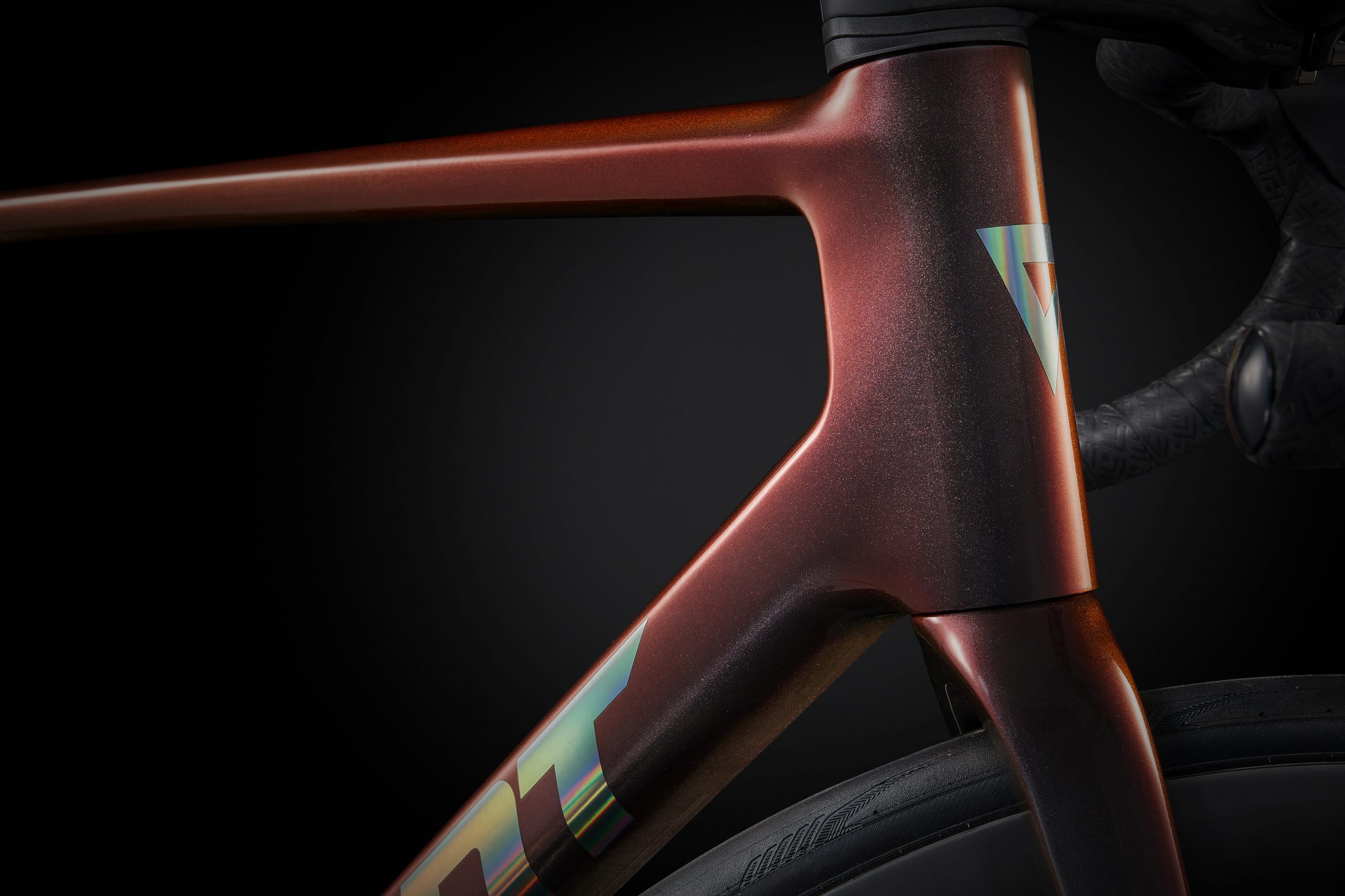

From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that helps give the flagship TCR Advanced SL 0 model a 4.19-watt advantage over the previous generation.
| Sizes | S, M, ML, L |
|---|---|
| Colours | Gloss Black Lava/Iris |

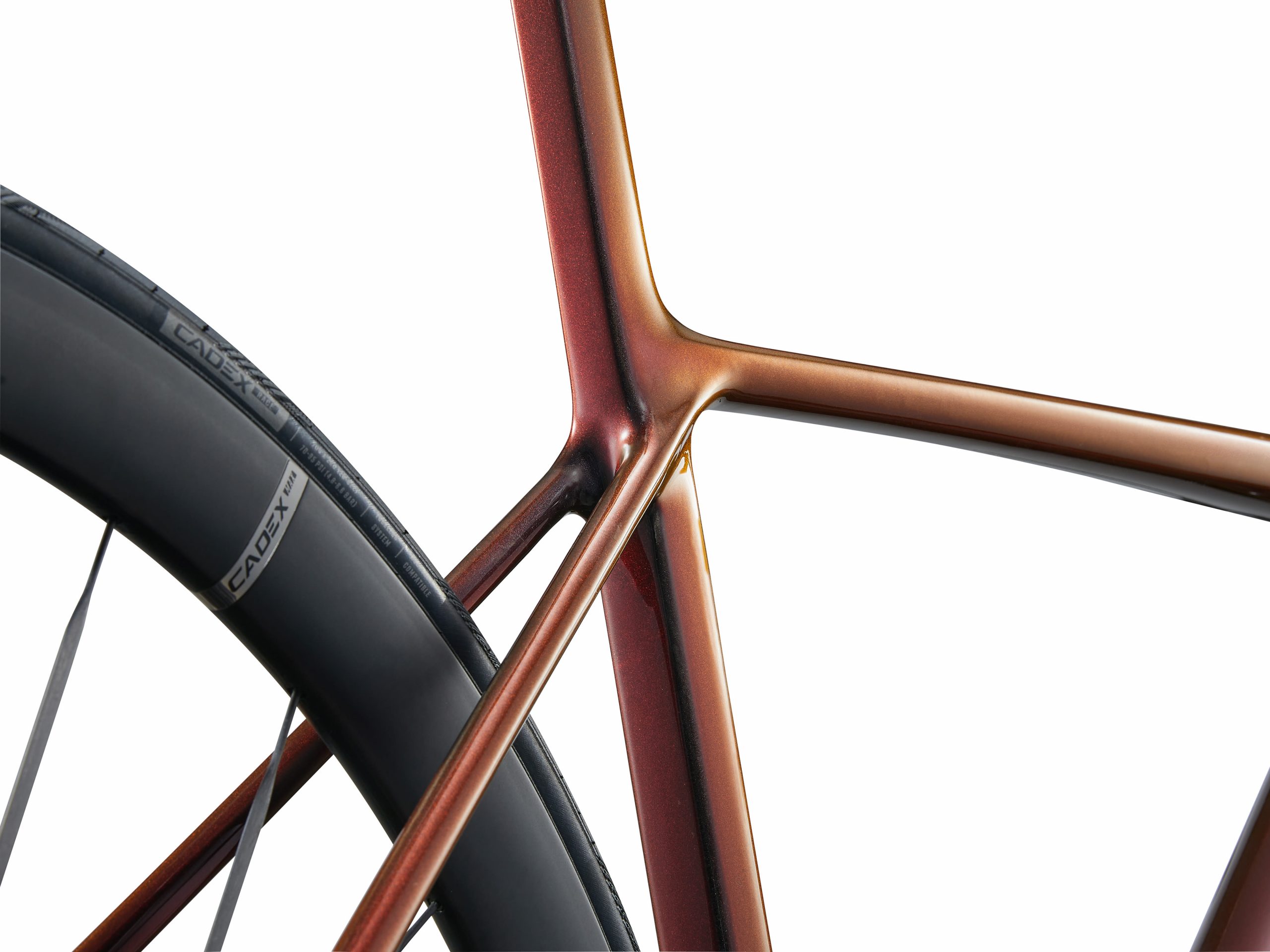

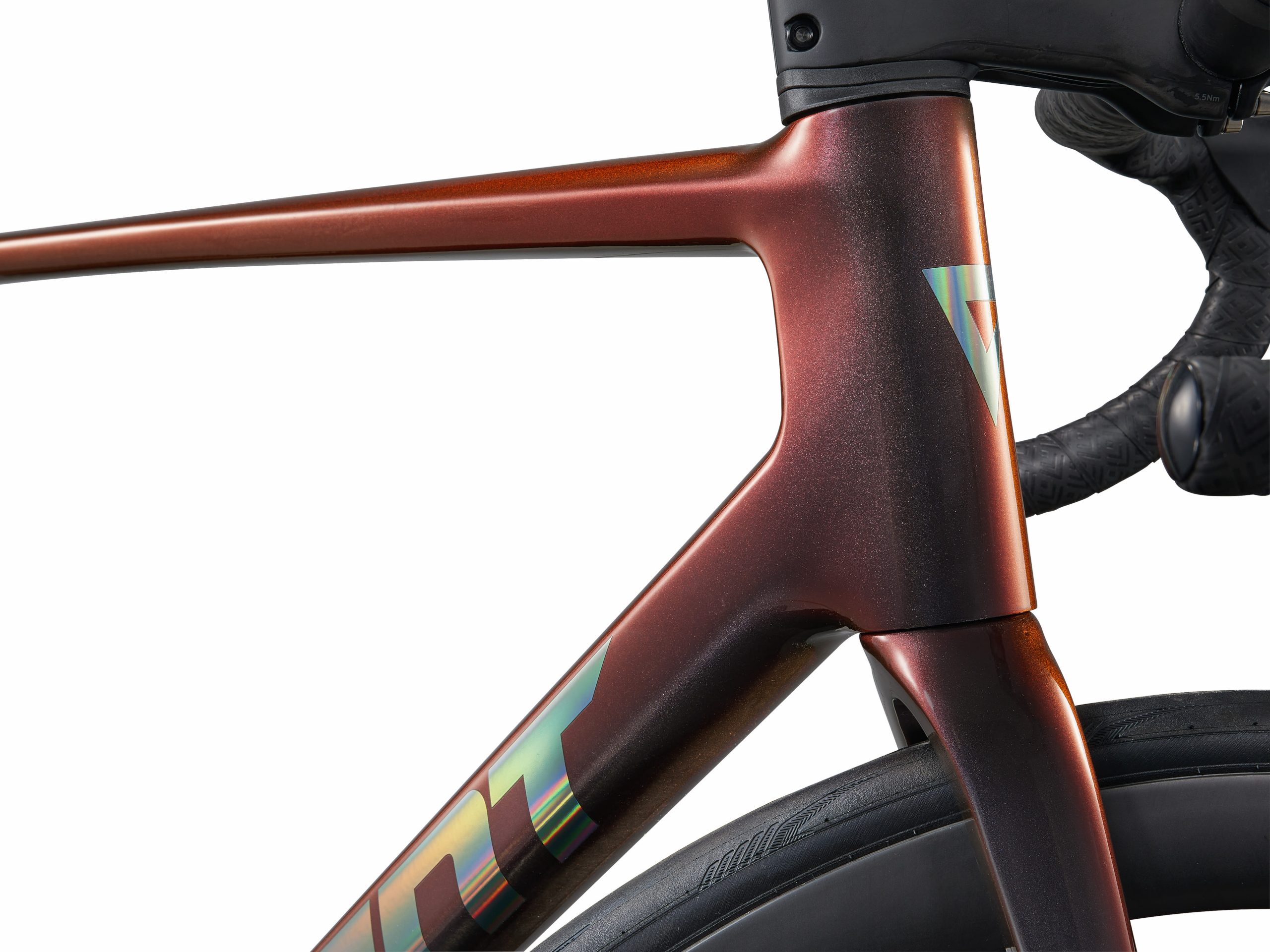

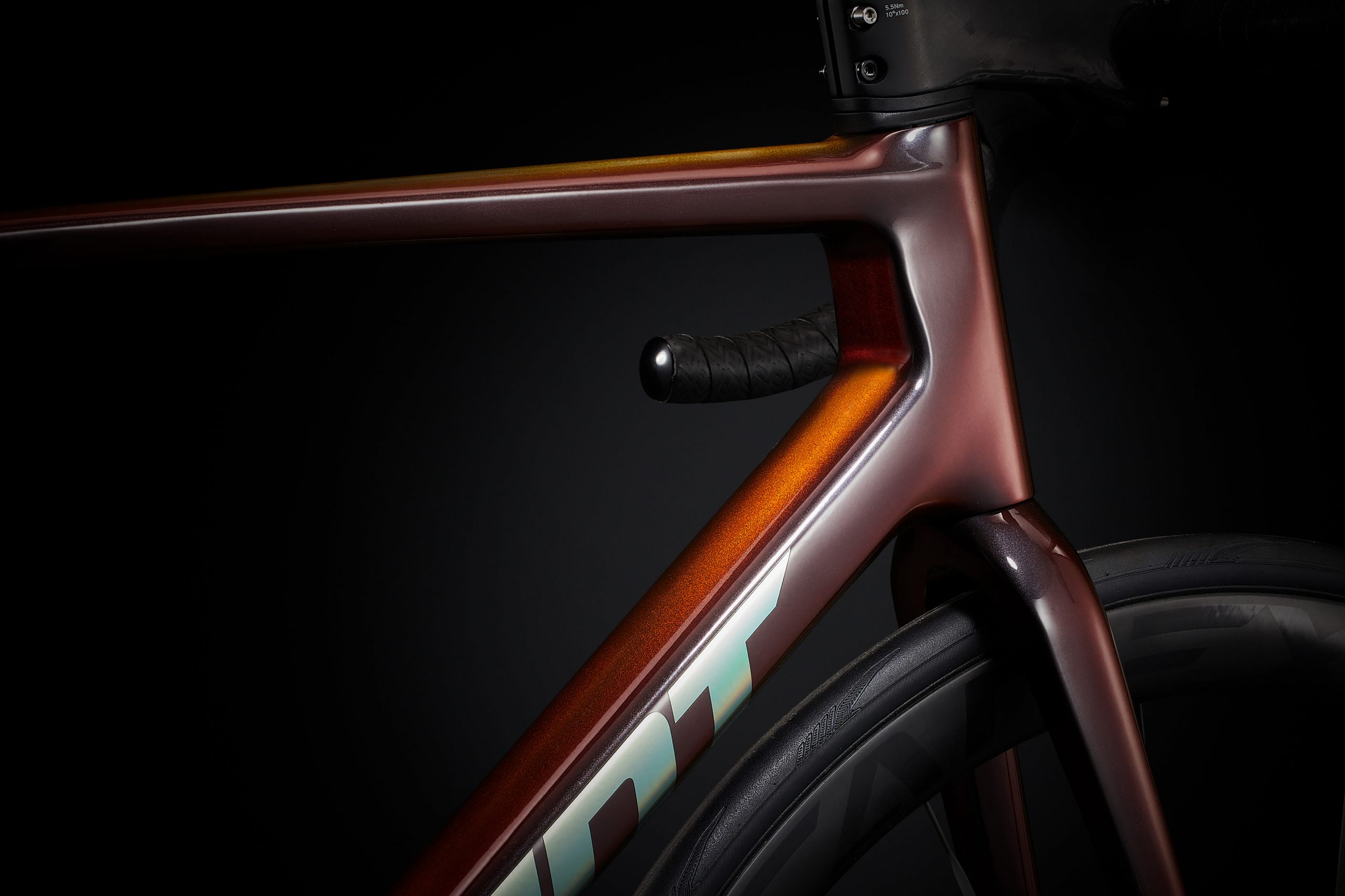

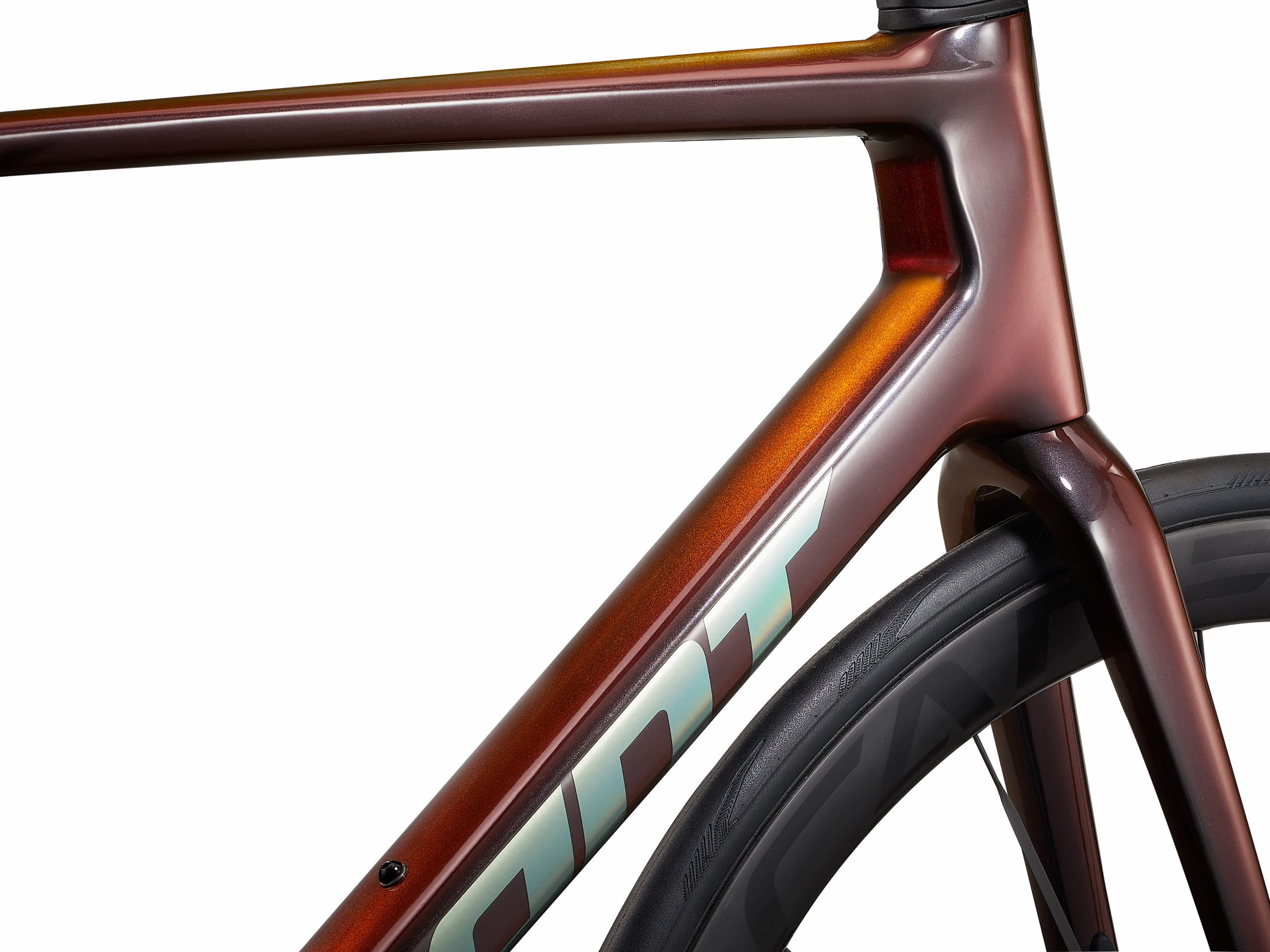

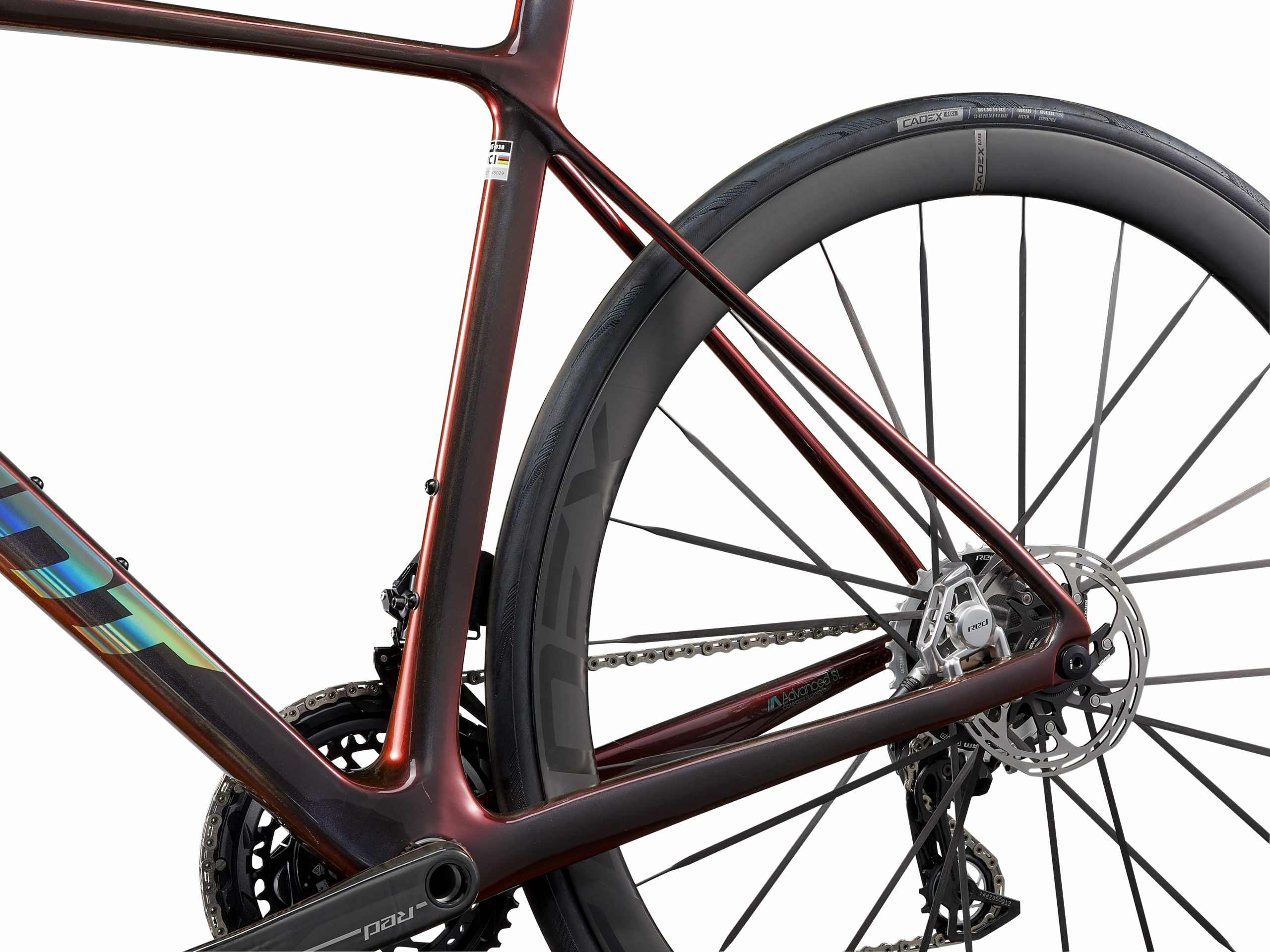

| Frame | Advanced SL-Grade Composite, 12x142mm thru-axle, Integrated Seatpost, Disc |

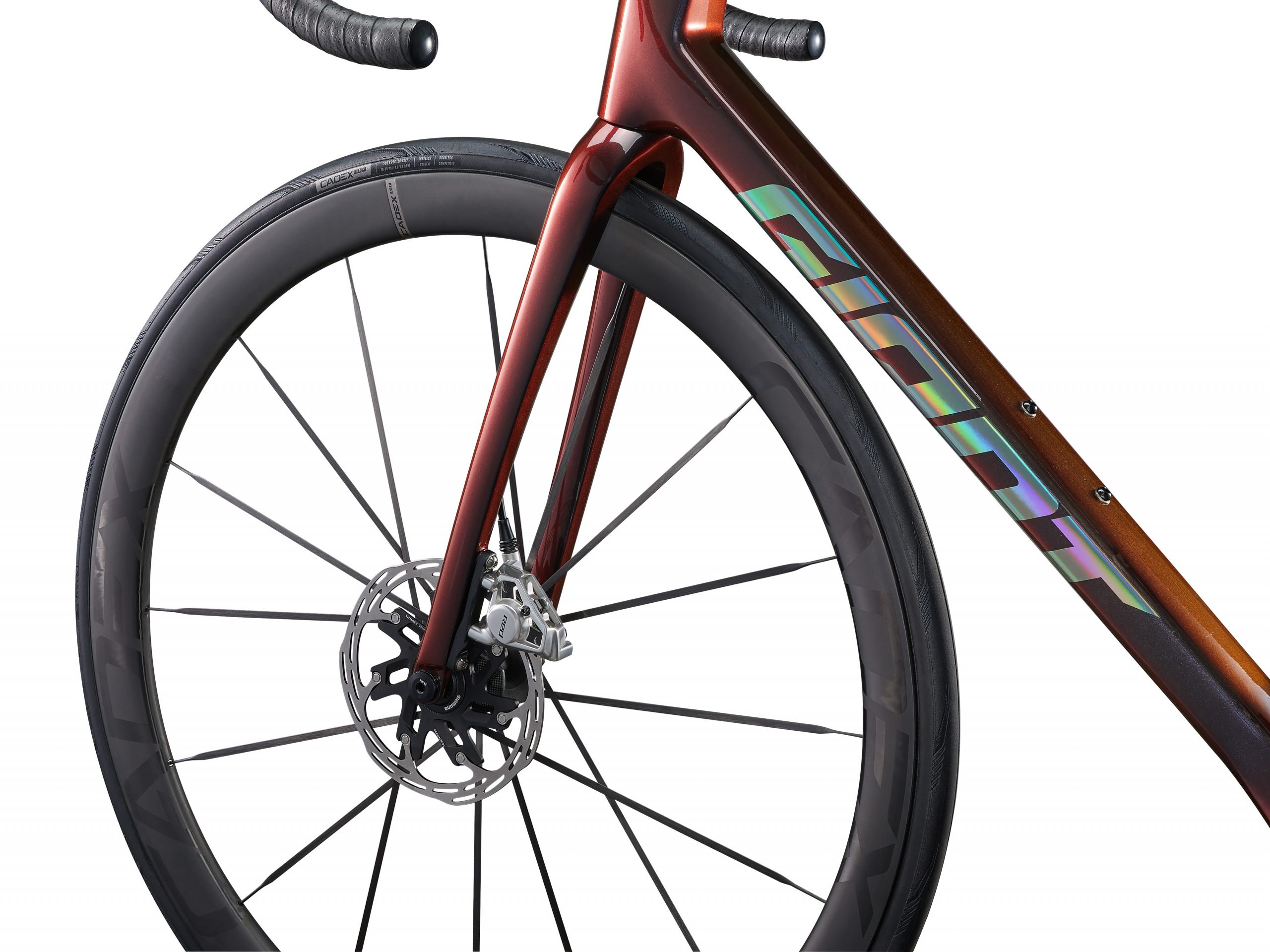

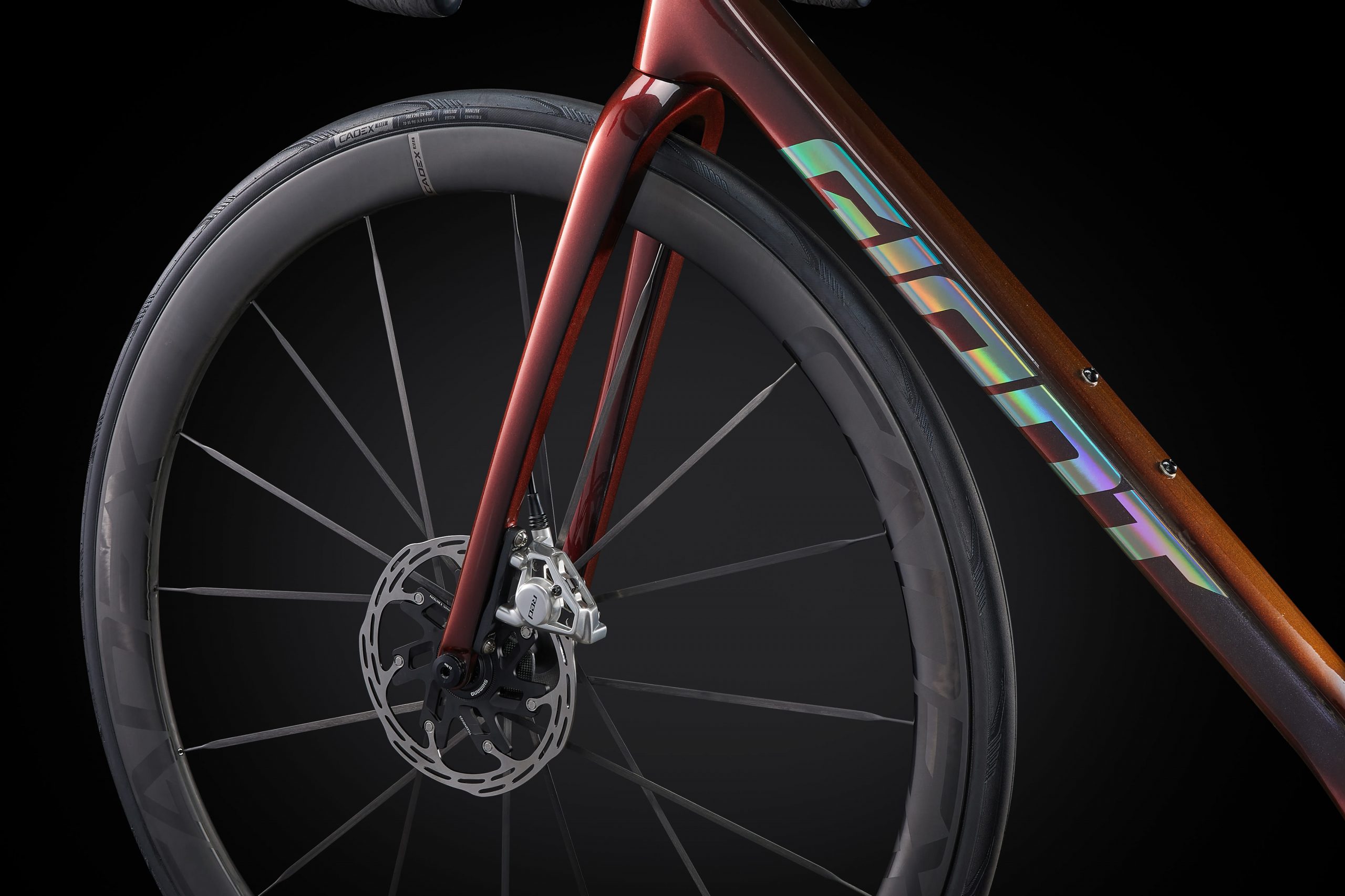

| Fork | Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc |
| Shock | N/A |

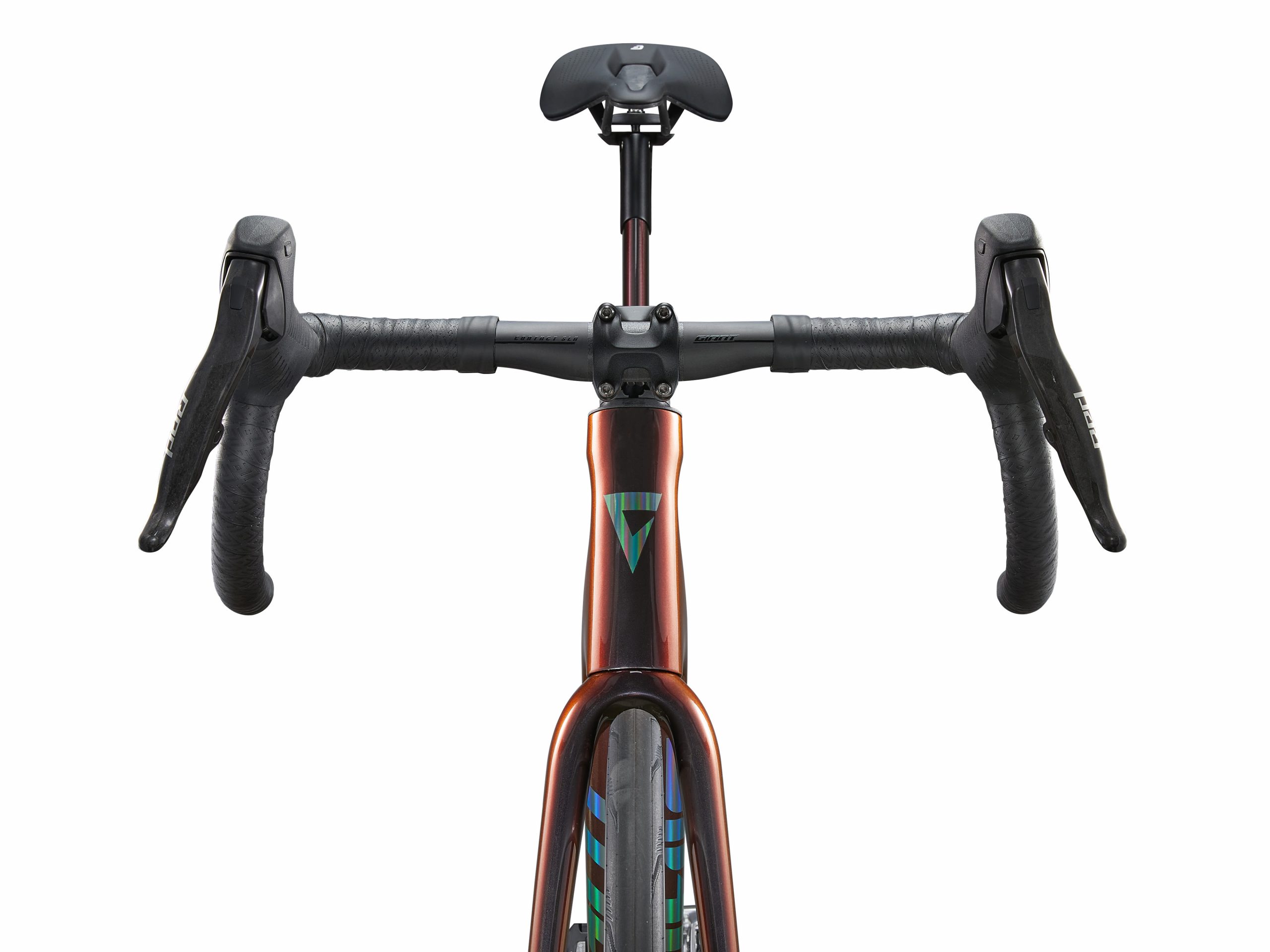

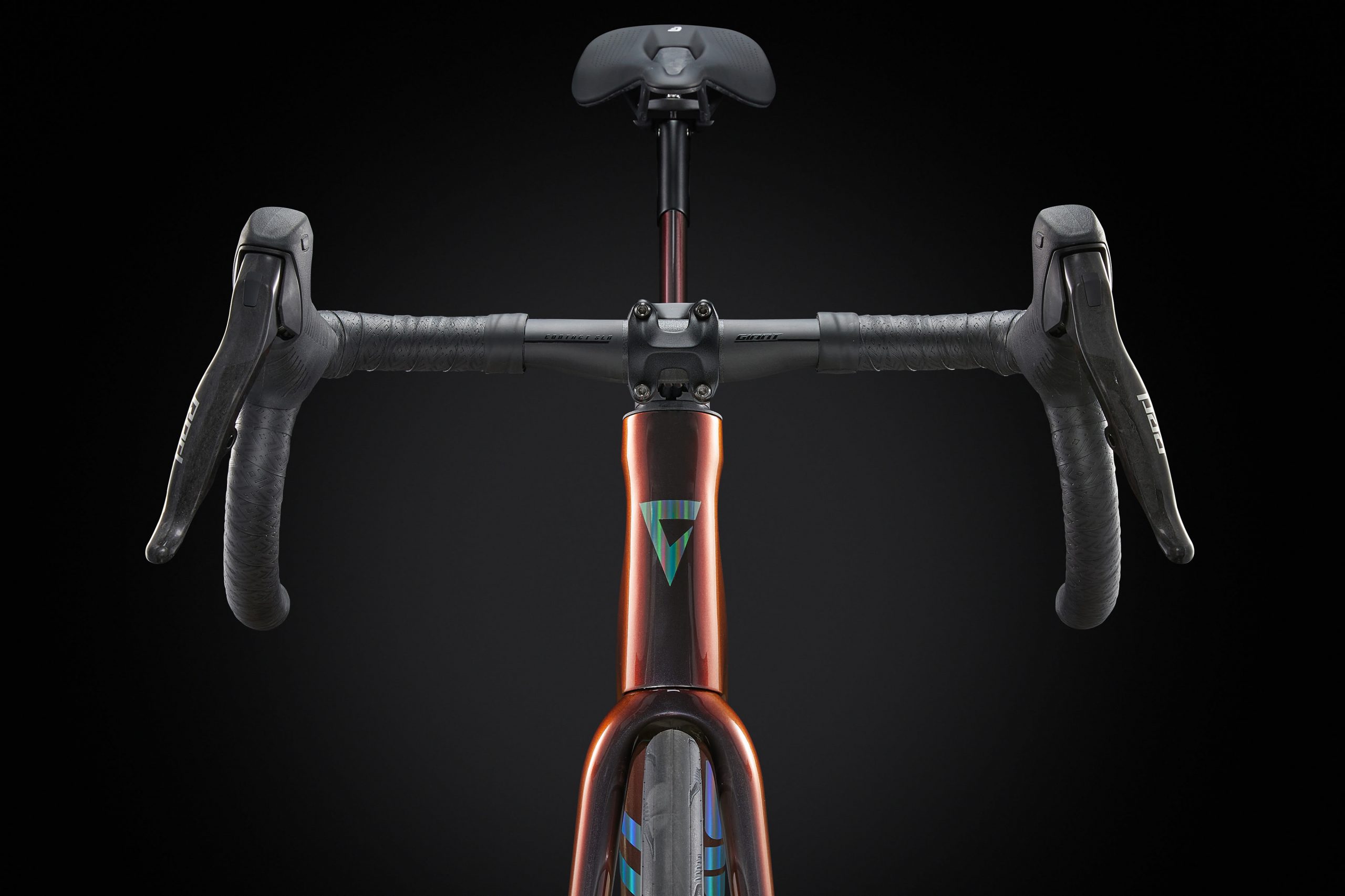

| Handlebar | Giant Contact SLR, 10.5 degree flare |
| Grips | Giant Stratus Lite 2.0 with gel |
| Stem | Giant Contact SLR Aerolight |
| Seatpost | Advanced SL-Grade Composite, Integrated Design, ISP Clamps: Standard (25mm) and Long version (45mm) Offset -5/+15mm |
| Saddle | CADEX Amp With One-piece SMC Base / 9mm Carbon Rail / ParticleFlow technology |
| Pedals | PEDALS NOT SUPPLIED |

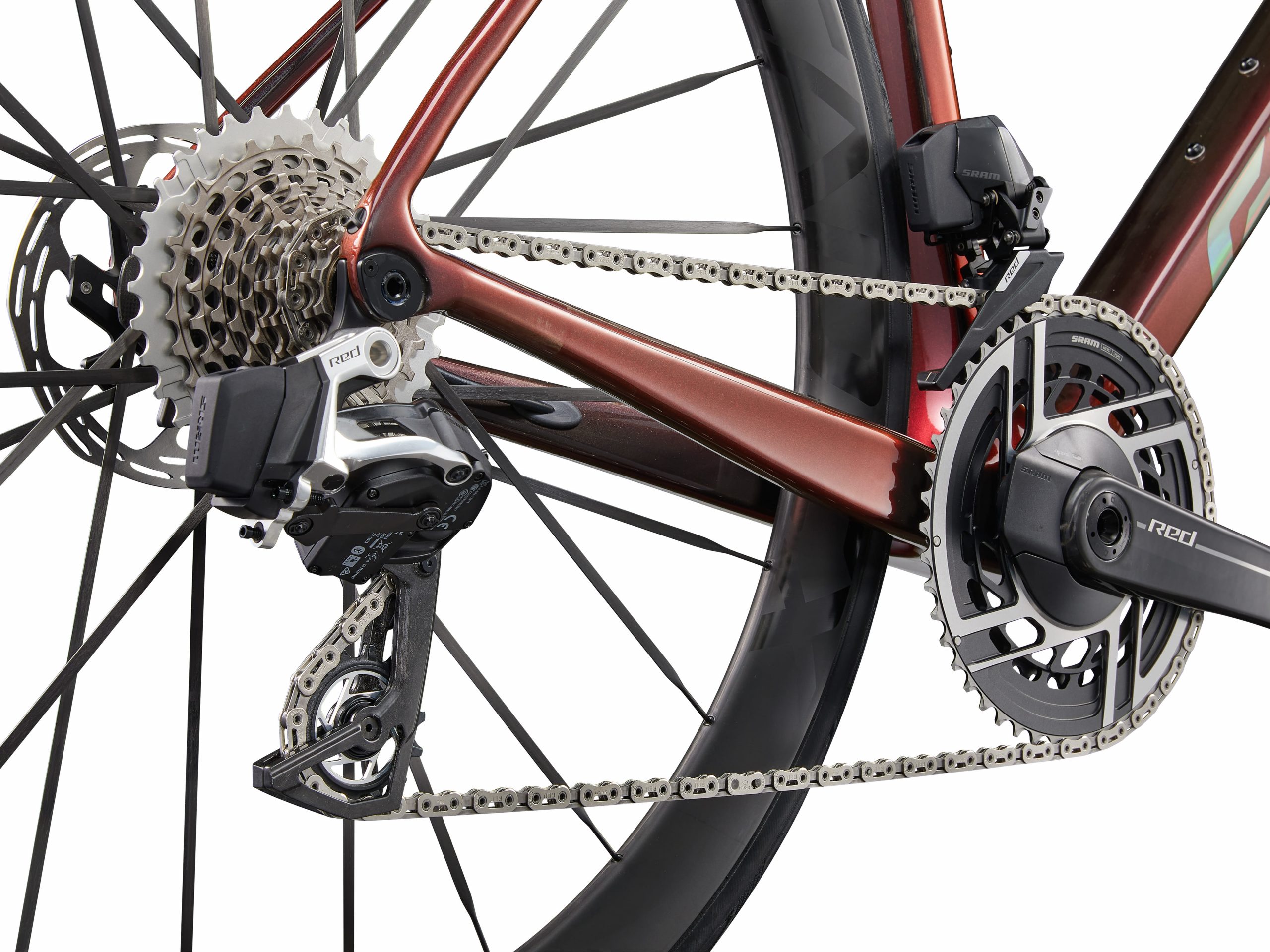

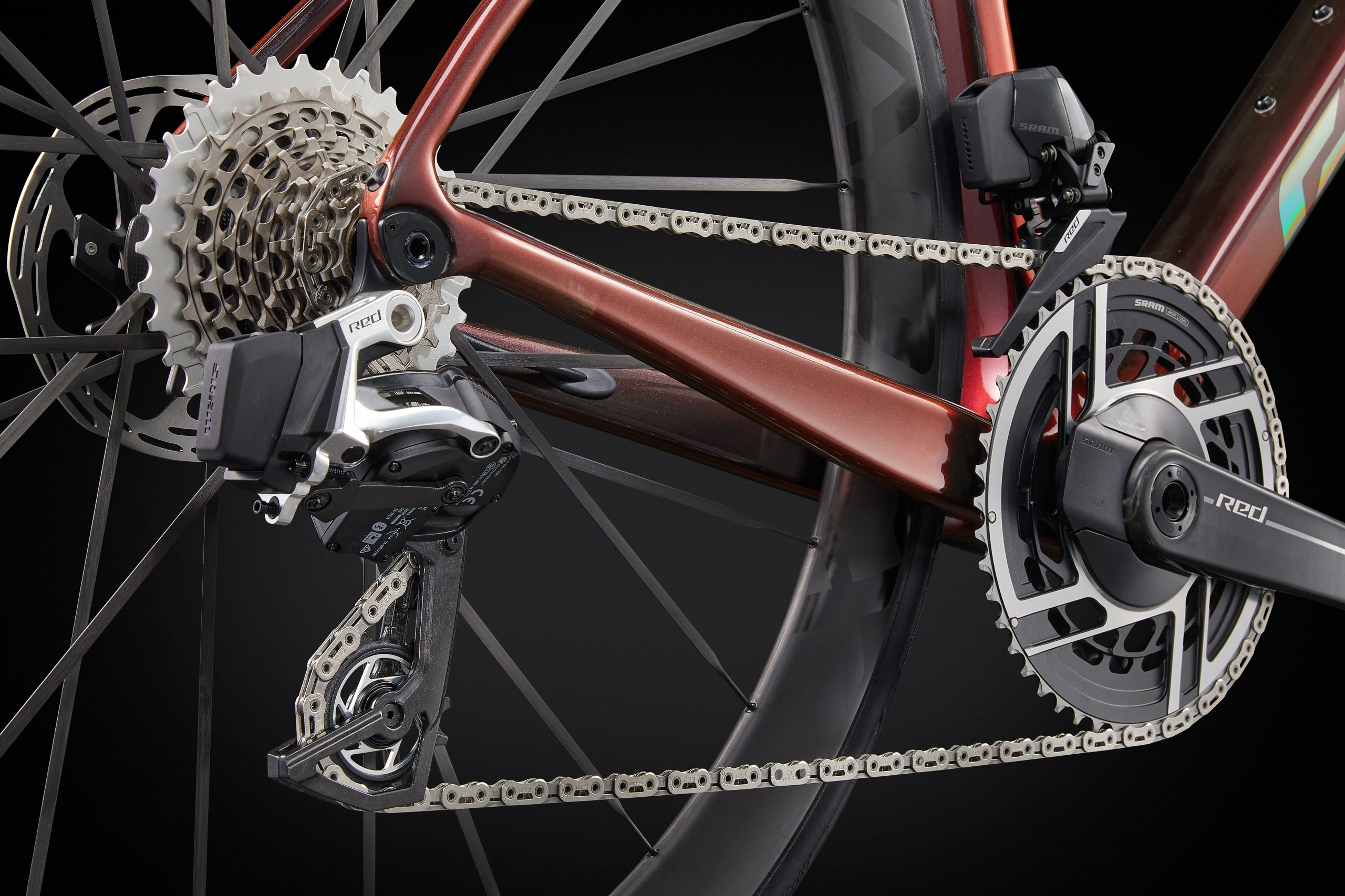

| Shifters | New SRAM Red AXS 2×12 |
| Front Derailleur | New SRAM Red AXS |
| Rear Derailleur | New SRAM Red AXS |
| Brakes | New SRAM Red AXS HRD, PaceLine 160/140mm rotors |
| Brake Levers | New SRAM Red AXS HRD |
| Cassette | New SRAM Red XG-1290, 10×33 |
| Chain | New SRAM Red |

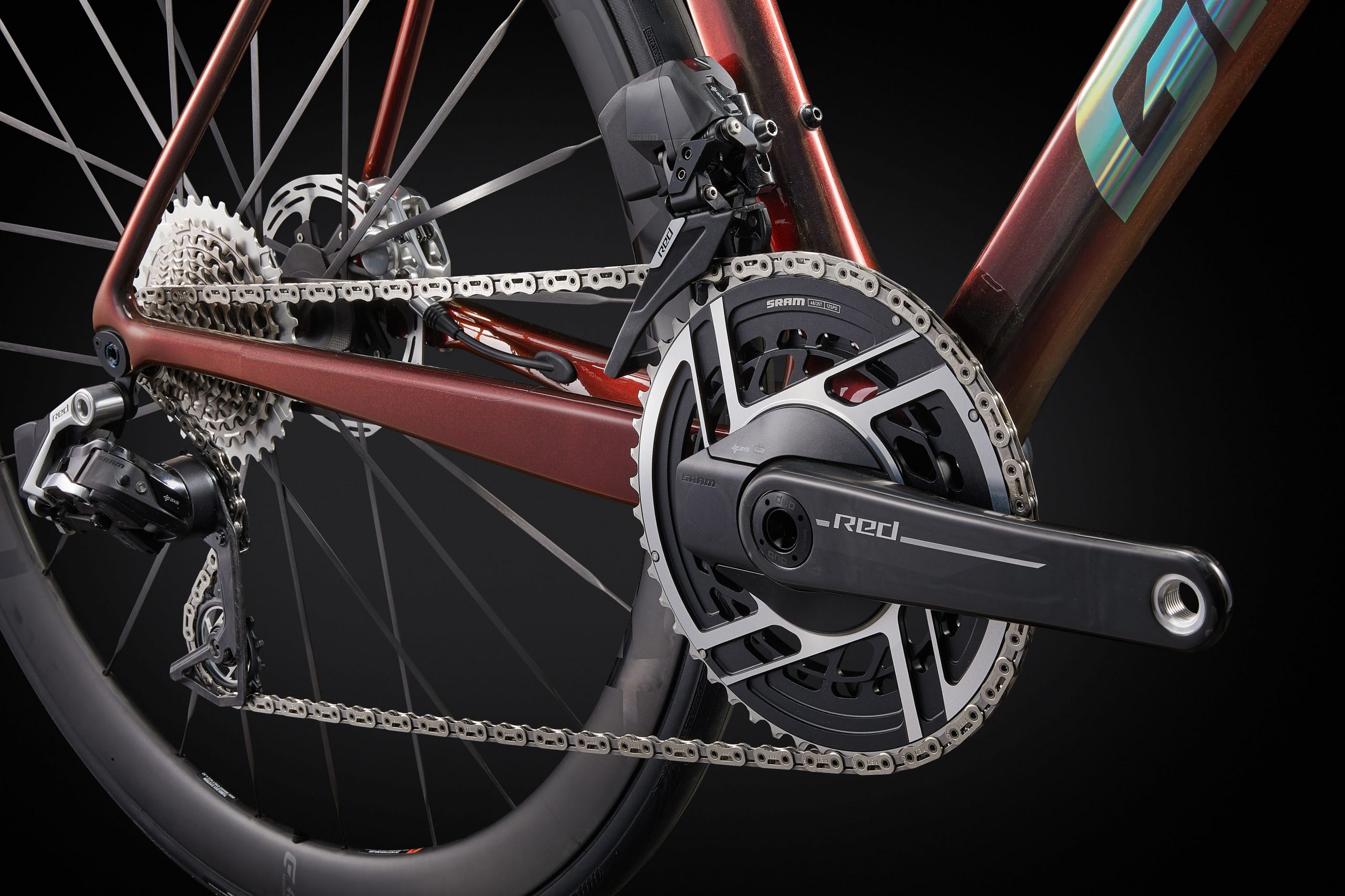

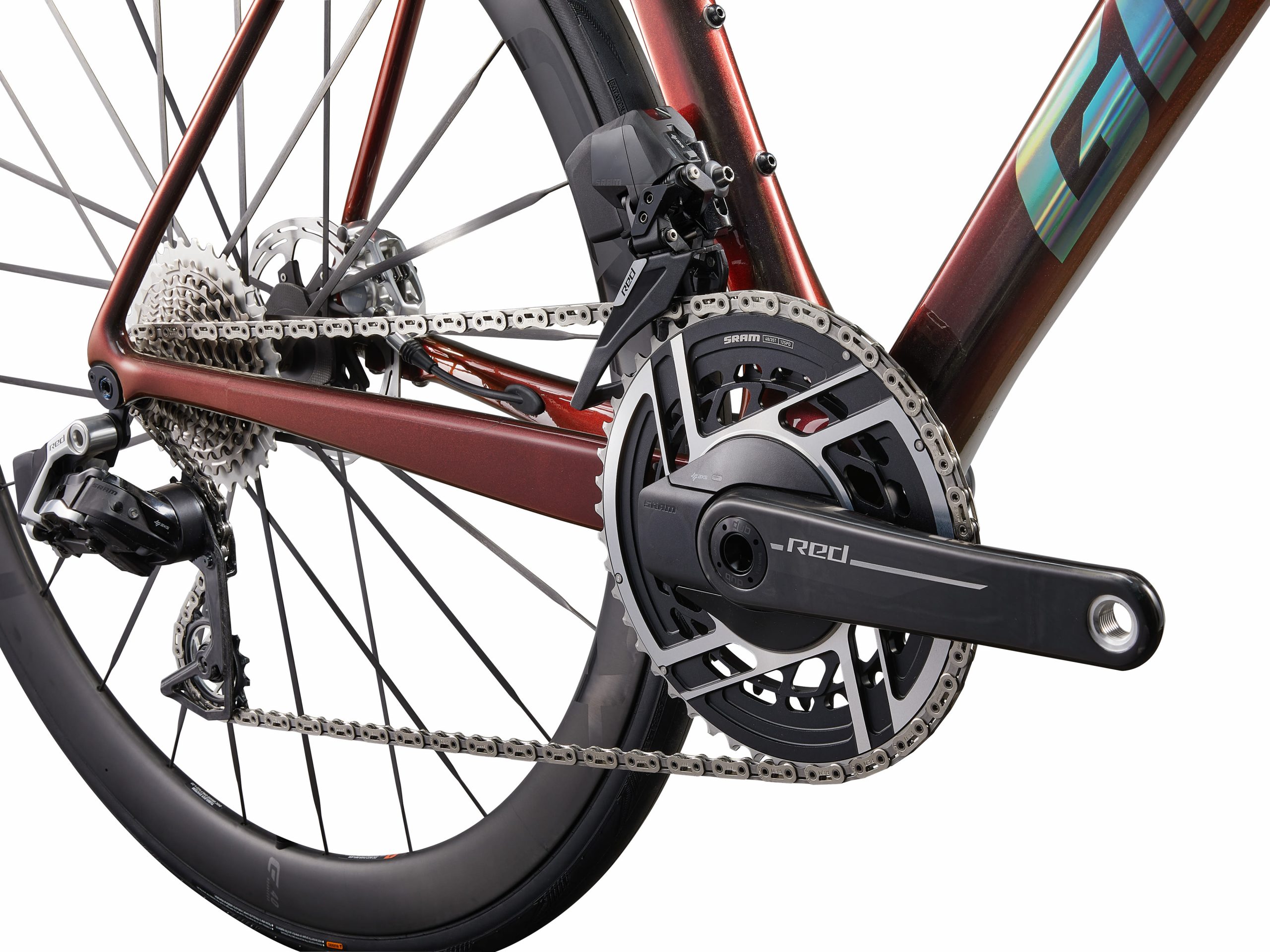

| Crankset | New SRAM Red DUB 35/48 with Quarq power meter |
| Bottom Bracket | SRAM DUB, Press Fit |
| Rims | New CADEX 40 Max Disc Wheel System Hookless + Carbon spoke with GIANT patented DBL (Dynamic Balanced Lacing) technology |
| Hubs | [F] CADEX R3 Hub, CenterLock, 12mm thru-axle [R] CADEX R3-C48 Aero Hub, 48t ratchet driver, CenterLock, 12mm thru-axle |
| Spokes | CADEX Aero Carbon Spoke |
| Tyres | New CADEX Race GC Tubeless 700x28mm effecitve 170 TPI, Folding |
| Extras | Factory tubeless set up, out front computer mount, 33mm max tyre size |
Geometry
| S | M | ML | L | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 710 | 740 | 770 | 800 |
| B | SEAT TUBE ANGLE | 74 | 73.5 | 73 | 73 |
| C | TOP TUBE LENGTH | 535 | 550 | 565 | 580 |
| D | HEAD TUBE LENGTH | 130 | 145 | 165 | 185 |
| E | HEAD TUBE ANGLE | 72.3 | 73 | 73 | 73 |
| F | FORK RAKE | 45 | 45 | 45 | 45 |
| G | TRAIL | 64 | 59 | 59 | 59 |
| H | WHEEL BASE | 977 | 980 | 991 | 1006 |
| I | CHAIN STAY LENGTH | 405 | 405 | 405 | 405 |
| J | BOTTOM BRACKET DROP | 69.5 | 69.5 | 67 | 67 |
| K | STACK | 528 | 545 | 562 | 581 |
| L | REACH | 383 | 388 | 393 | 402 |
| M | STAND OVER HEIGHT | 722 | 743 | 771 | 798 |
| N | HANDLERBAR WIDTH | 400 | 420 | 420 | 440 |
| O | STEM LENGTH | 90 | 100 | 110 | 110 |
| P | CRANK LENGTH DEC | 170 | 172.5 | 172.5 | 175 |
| Q | WHEEL SIZE ALT | 700C | 700C | 700C | 700C |
