€599.00 – €669.00
Features:
Colour | |
---|---|
Size |

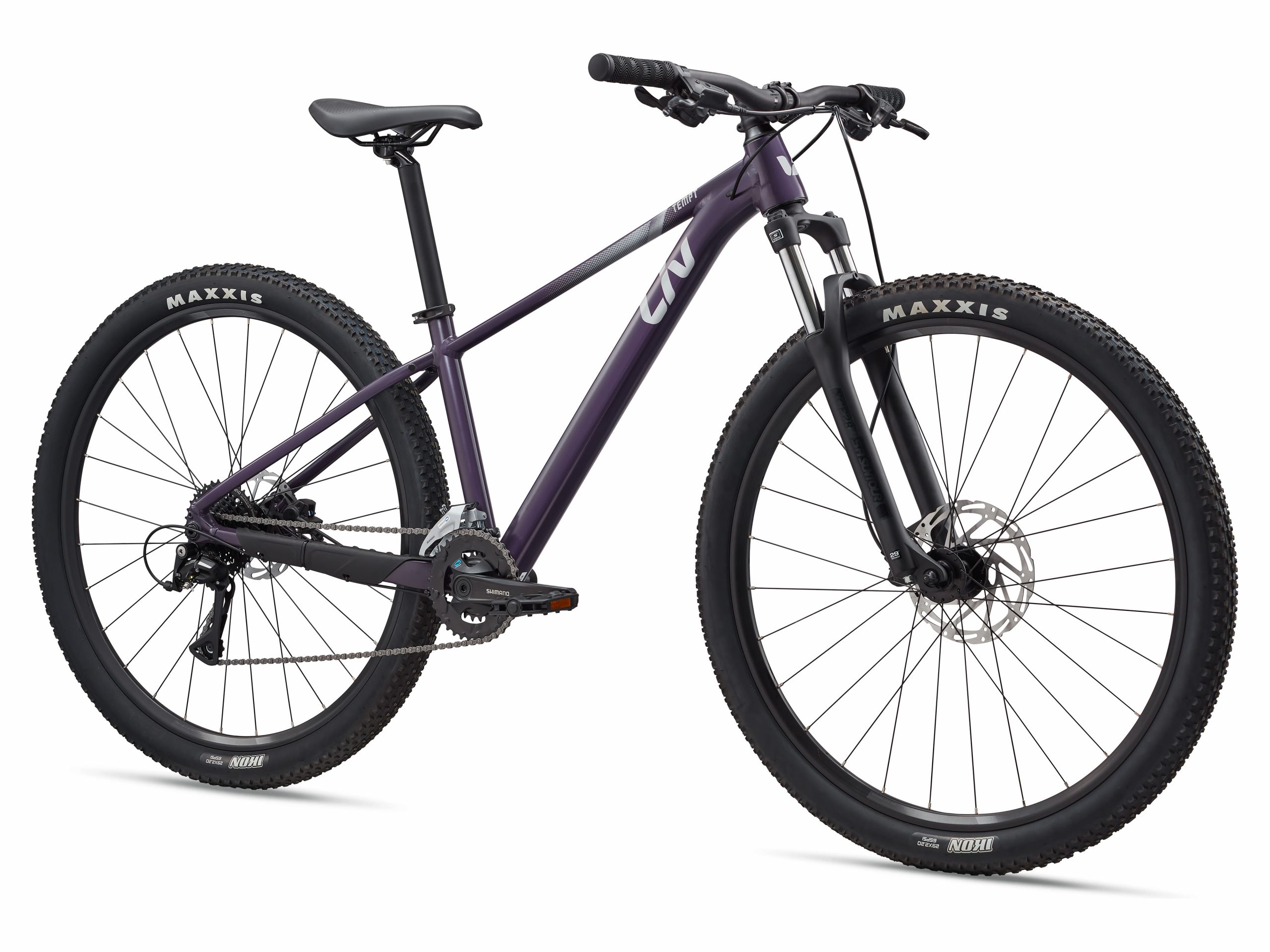

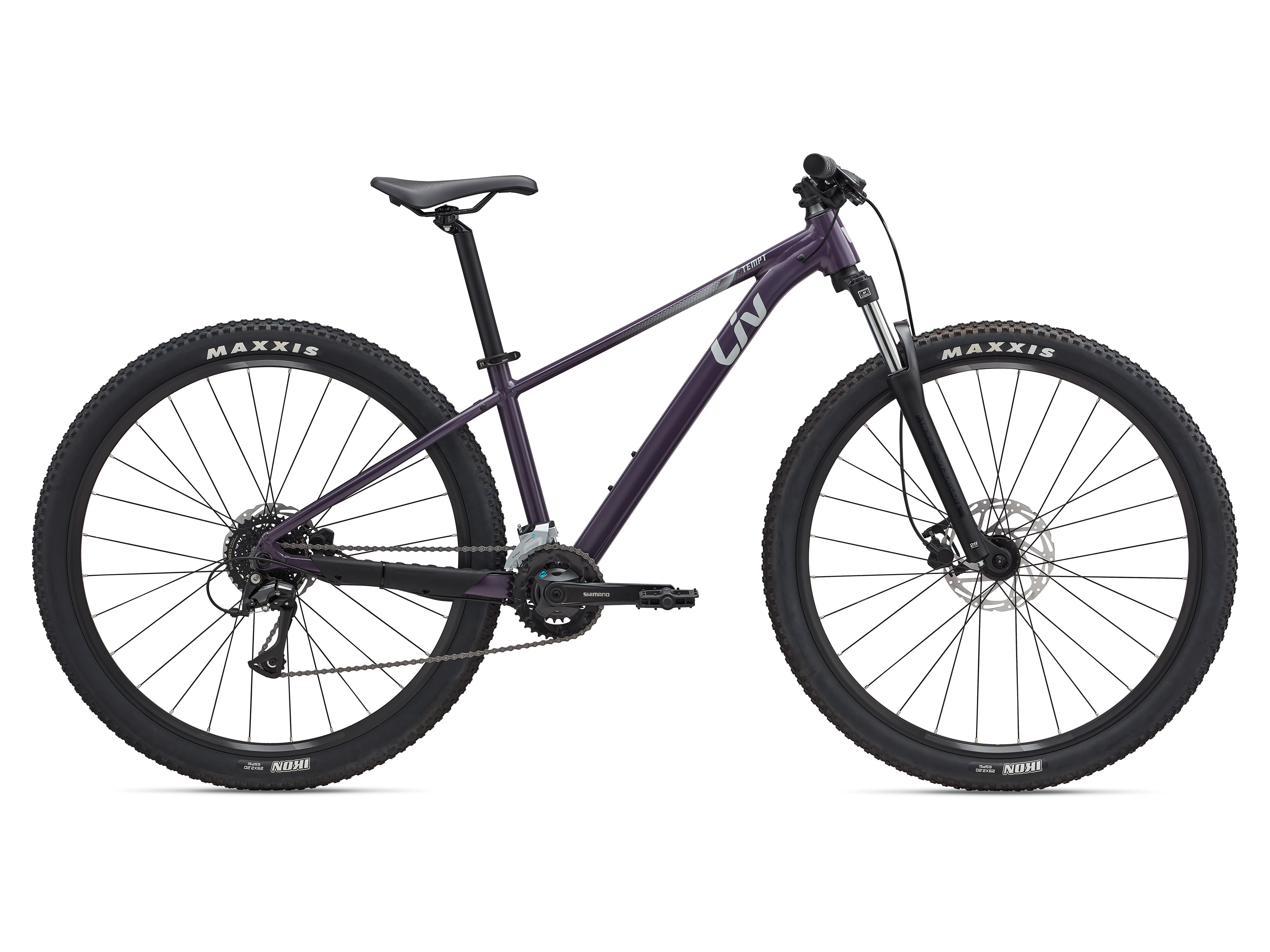

The Liv Tempt opens the door to mountain biking, inviting you to explore rugged trails and experience the outdoors like never before. But it doesn’t stop there — this versatile bike is just as comfortable on city streets, ready to take you wherever your journey leads.
Modern MTB Design
Tapered fork steerer tubes*, quality components like a 1x drivetrain* with a clutch-equipped rear derailleur, thru-axle hubs*, internal cable routing (including dropper post compatibility), and integrated chainstay protection provide everything you need to build confidence and skills on the trails. (*select models)
Off-Road Control
The new geometry is optimized for confident trail riding, with two wheel size options (27.5- or 29-inch) based on frame size. It’s also designed to match front suspension travel with either an 80mm or 100mm fork. All models have clearance for high-volume tires (up to 2.4 inches) for traction and grip on technical terrain.
Light and Durable

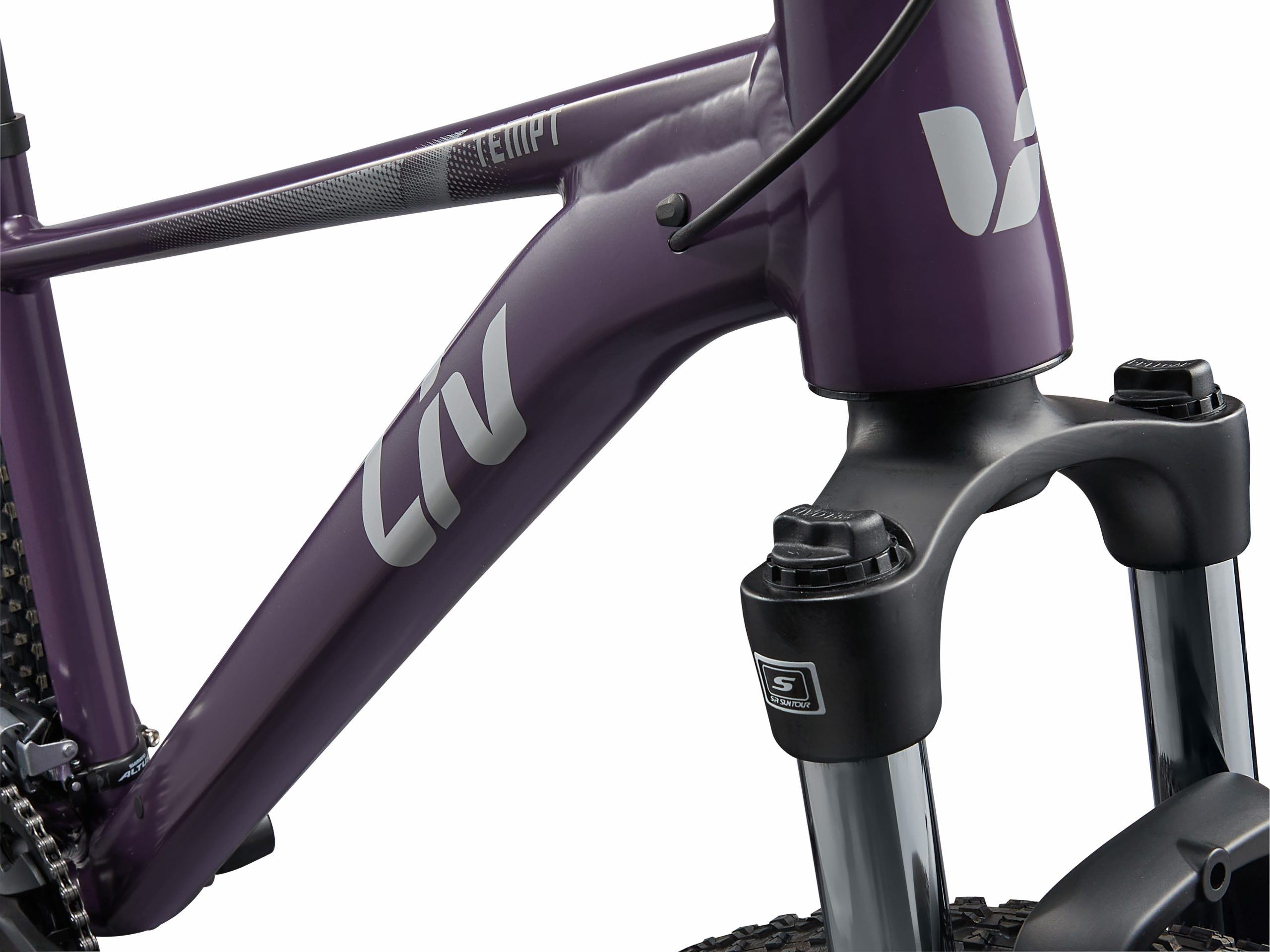

The all-new ALUXX aluminum frame features updated tube shaping and a lighter overall weight for improved performance on off-road terrain.
Sizes | 27.5: XS, S 29 S, M, L |
---|---|

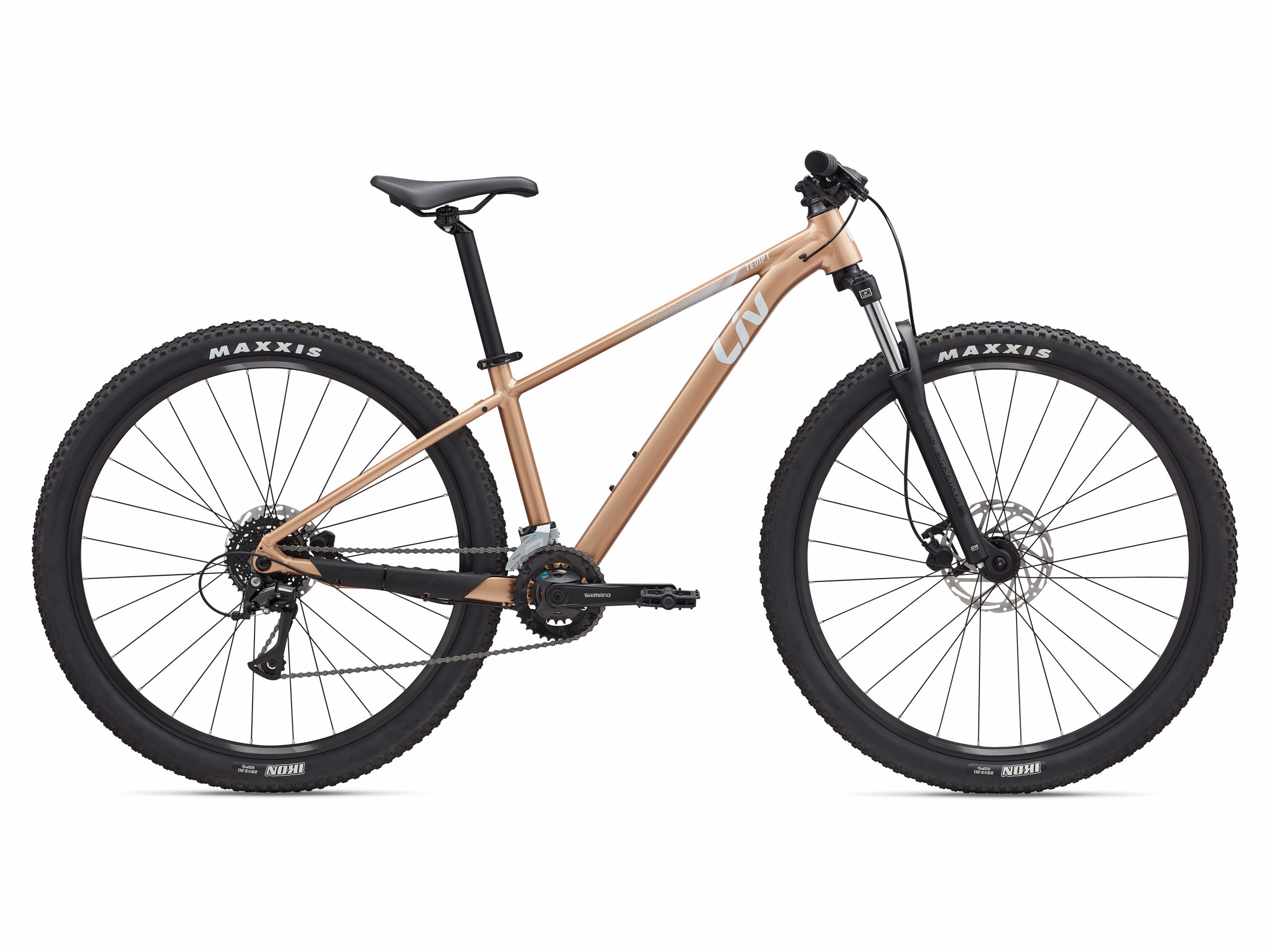

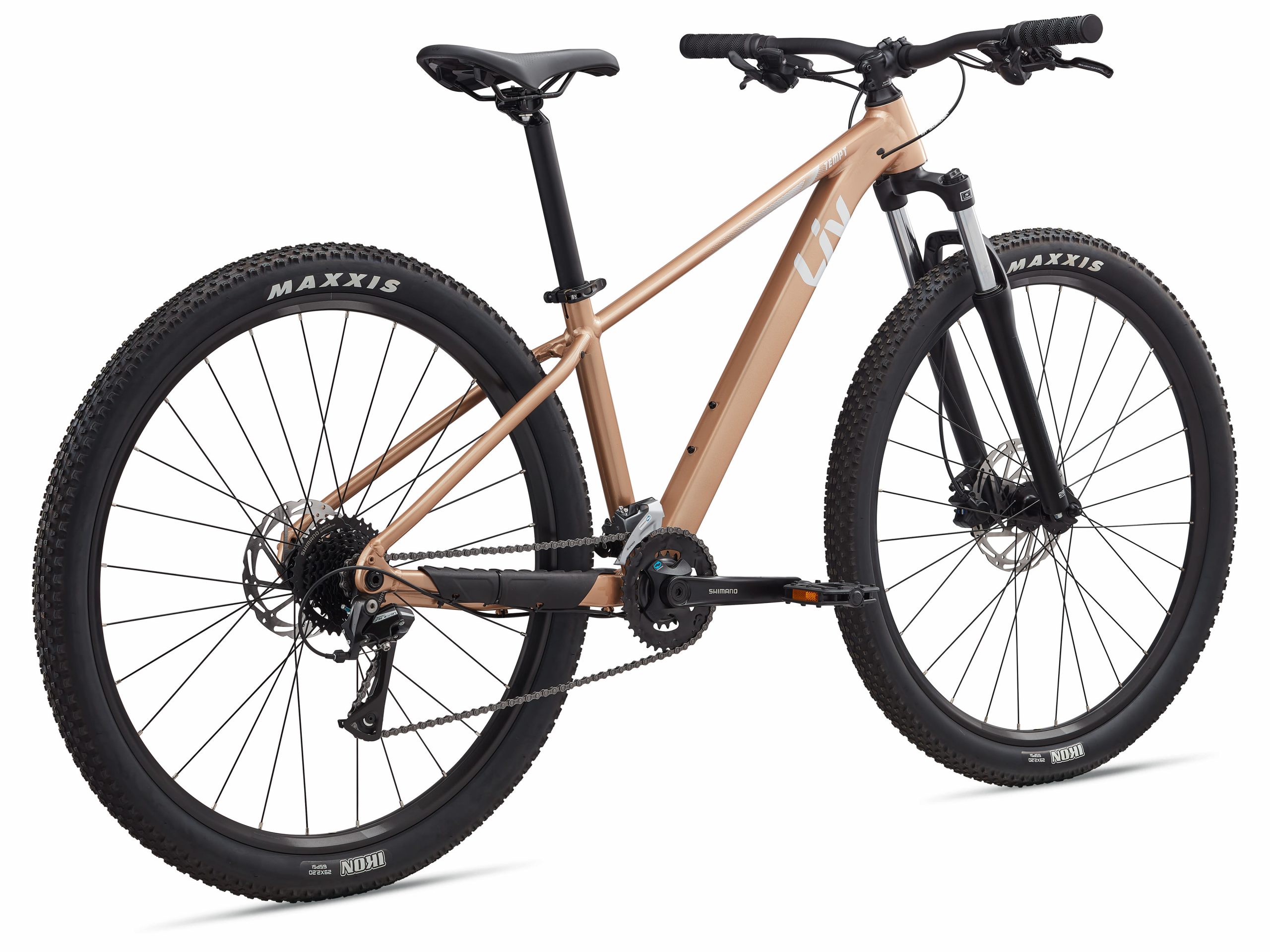

Colours | Satin Tyrian Purple/Good Grey, Gloss Golden Wheat |
Frame | ALUXX-grade aluminium, disc |

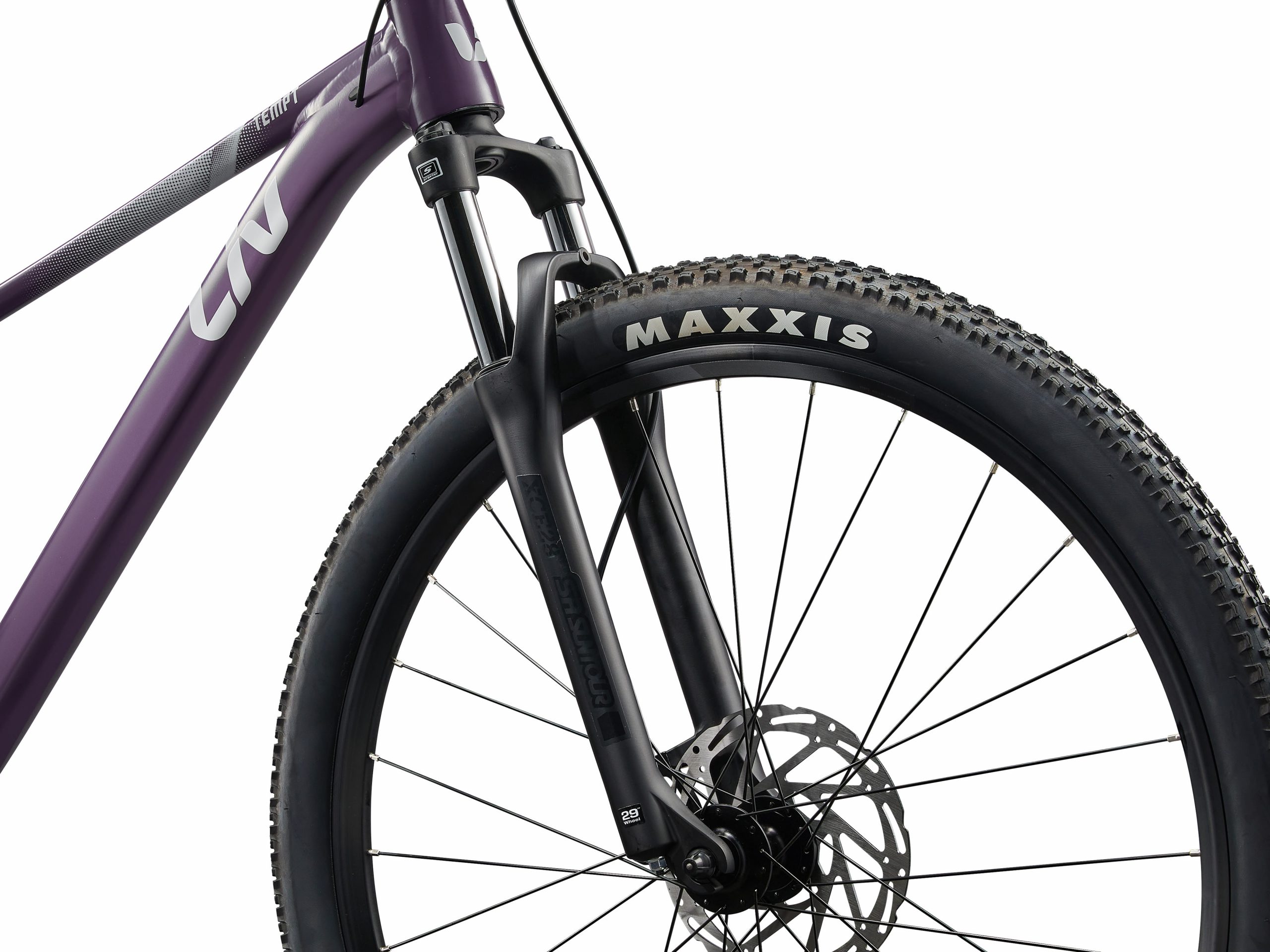

Fork | SR Suntour XCE, QR, steel steerer XS&S: 80mm travel (27.5) S-L:100mm travel (29) |
Shock | N/A |

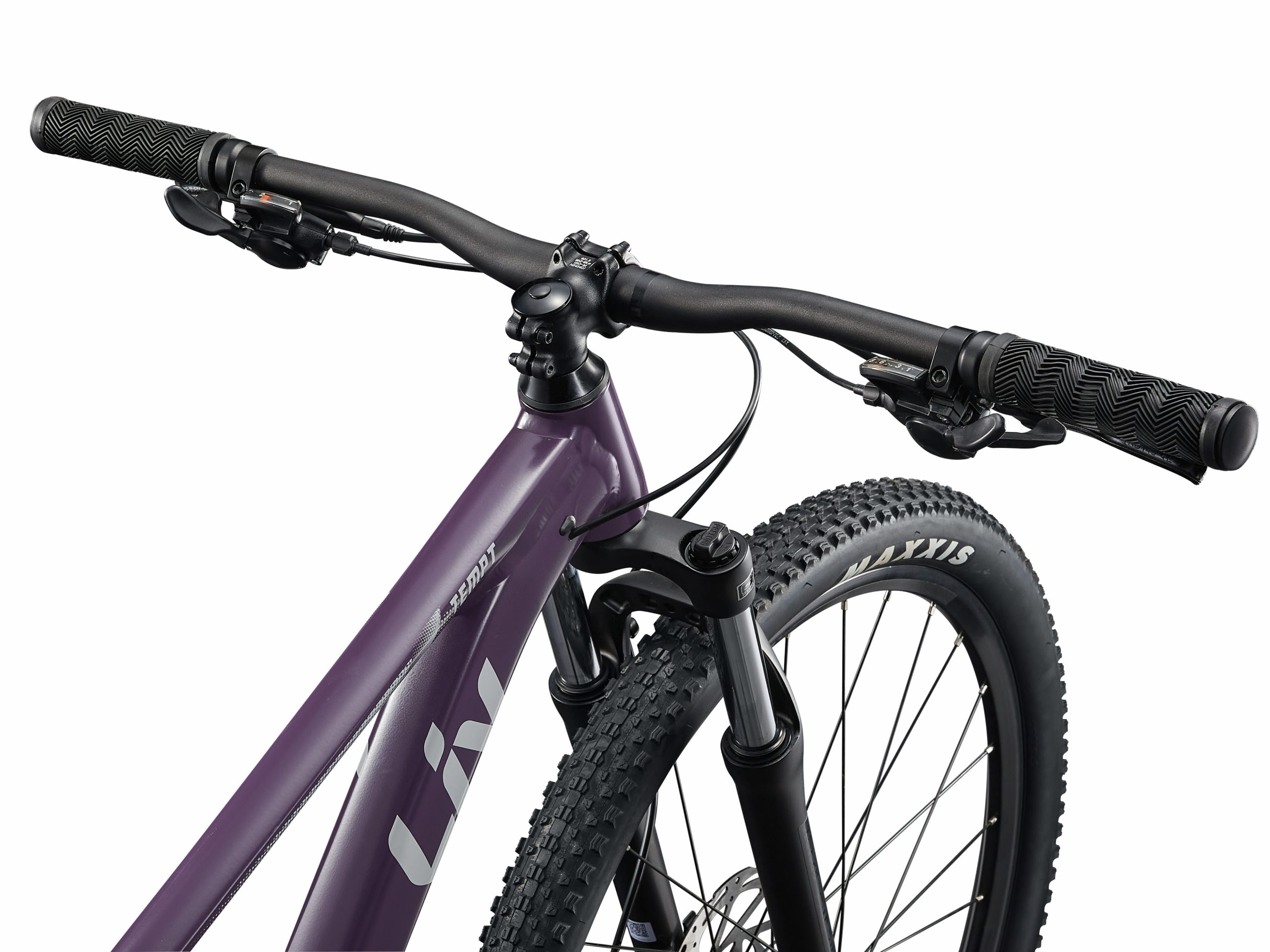

Handlebar | Giant Connect Trail, 31.8mm XS&S: 690mm (27.5) S-L: 750mm (29) |
Grips | Giant Sole-O |
Stem | Giant Sport, 7-degree rise |
Seatpost | Giant Sport, 30.9mm |

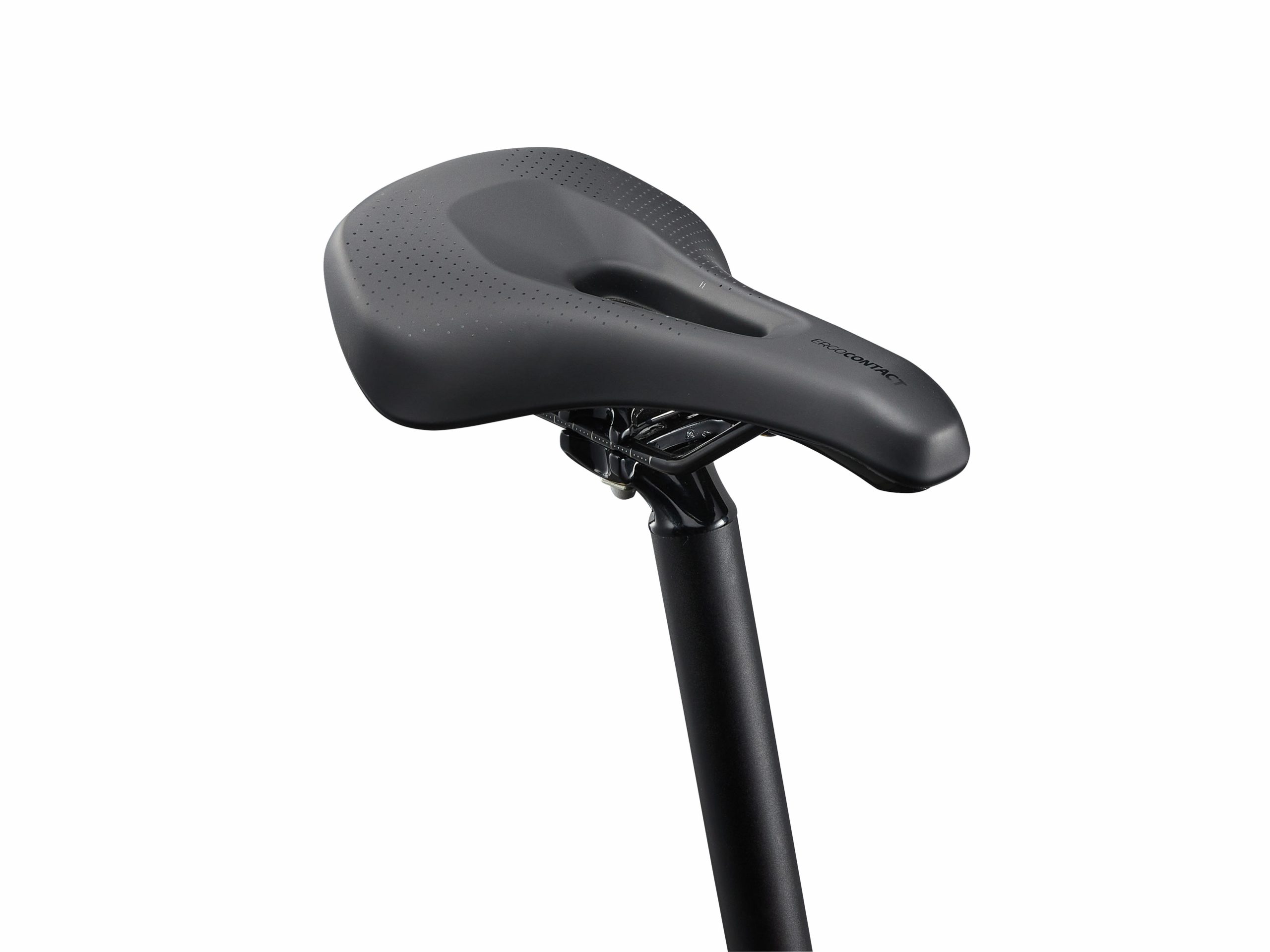

Saddle | Liv ErgoContact Trail |
Pedals | MTB caged |

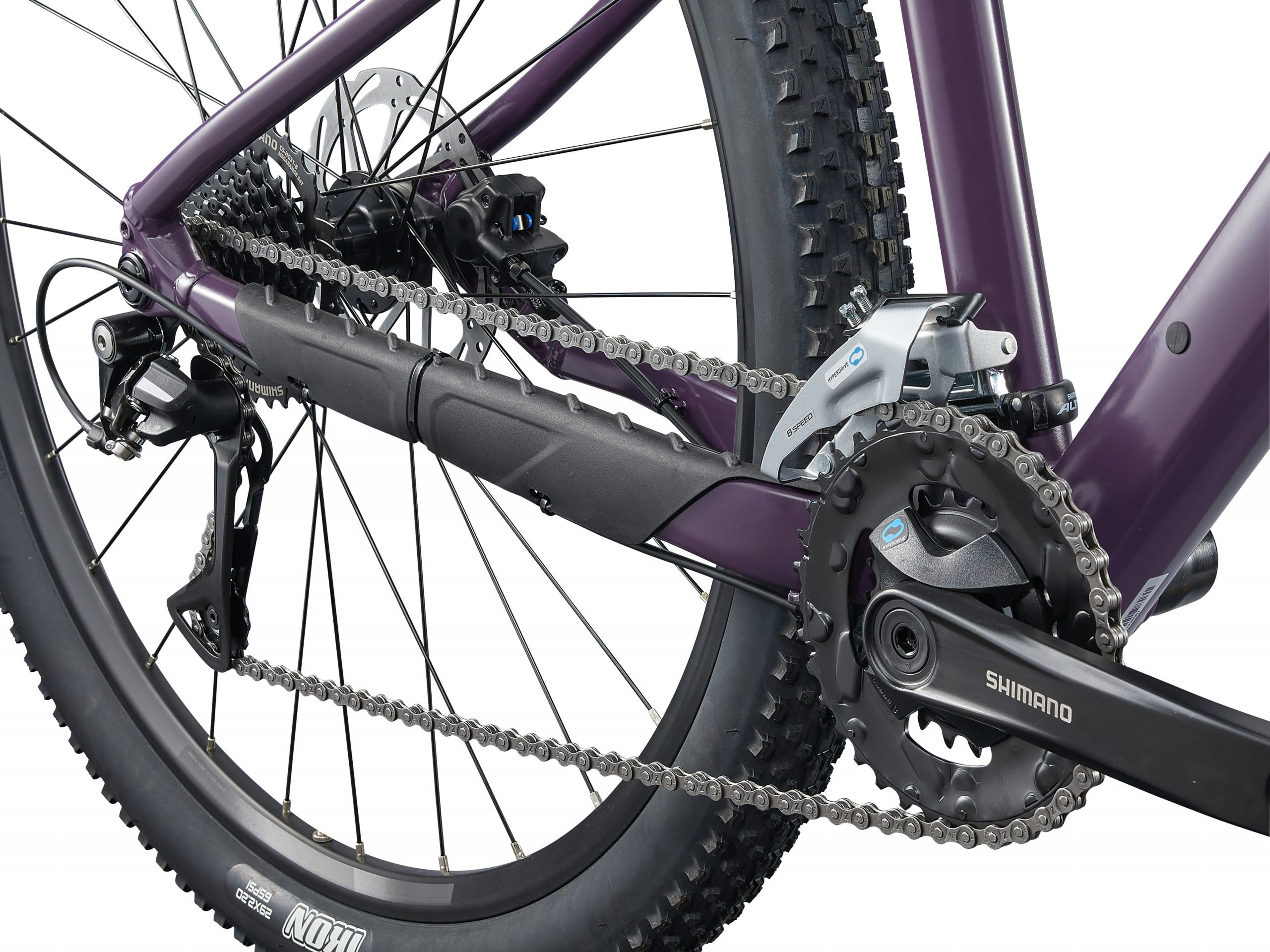

Shifters | Shimano Acera, 2×8 |
Front Derailleur | Shimano Acera |
Rear Derailleur | Shimano Acera |
Brakes | Tektro HDC TKD 149, hydraulic, Tektro rotors [F]180mm, [R]160mm |
Brake Levers | Tektro TKD 149, for small hands |
Cassette | Shimano, Acera, CS-HG31-8, 11-34 |
Chain | Shimano Acera HG200, 11×34 |
Crankset | Shimano Acera FC-M315, 22/36 |
Bottom Bracket | cartridge |
Rims | Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width |
Hubs | Alloy, sealed bearing, [F] 9×100 QR, [R] 12×142 thru-axle |
Spokes | stainless, 14g |
Tyres | Maxxis Ikon 27.5×2.2 or Maxxis Ikon 29×2.2, wire bead |
Extras | 2.4″ max tyre size |
XS (27.5″) | S (27.5″) | S (29″) | M (29″) | L (29″) | XS (27.5″) | S (27.5″) | S (29″) | M (29″) | L (29″) | ||
---|---|---|---|---|---|---|---|---|---|---|---|
A | SEAT TUBE LENGTH | 330 | 365 | 380 | 410 | 450 | 330 | 365 | 380 | 410 | 450 |
B | SEAT TUBE ANGLE | 74 | 74 | 74.5 | 74.5 | 74 | 74 | 74 | 74.5 | 74.5 | 74 |
C | TOP TUBE LENGTH | 538 | 558 | 571 | 599 | 610 | 538 | 558 | 571 | 599 | 610 |
D | HEAD TUBE LENGTH | 90 | 95 | 90 | 100 | 105 | 90 | 95 | 90 | 100 | 105 |
E | HEAD TUBE ANGLE | 67 | 67 | 67.5 | 67.5 | 68.5 | 67 | 67 | 67.5 | 67.5 | 68.5 |
F | FORK RAKE | 44 | 44 | 44 | 44 | 51 | 44 | 44 | 44 | 44 | 51 |
G | TRAIL | 105.2 | 105.2 | 108.9 | 108.9 | 94.3 | 105.2 | 105.2 | 108.9 | 108.9 | 94.3 |
H | WHEEL BASE | 1080 | 1101 | 1129 | 1158 | 1160 | 1080 | 1101 | 1129 | 1158 | 1160 |
I | CHAIN STAY LENGTH | 440 | 440 | 455 | 455 | 455 | 440 | 440 | 455 | 455 | 455 |
J | BOTTOM BRACKET DROP | 45 | 45 | 55 | 55 | 55 | 45 | 45 | 55 | 55 | 55 |
K | STACK | 548 | 553 | 593 | 602 | 610 | 548 | 553 | 593 | 602 | 610 |
L | REACH | 381 | 400 | 407 | 432 | 435 | 381 | 400 | 407 | 432 | 435 |
M | STAND OVER HEIGHT | 680 | 689 | 689 | 708 | 757 | 680 | 689 | 689 | 708 | 757 |
N | HANDLERBAR WIDTH | 690 | 690 | 690 | 690 | 750 | 690 | 690 | 690 | 690 | 750 |
O | STEM LENGTH | 40 | 40 | 40 | 50 | 50 | 40 | 40 | 40 | 50 | 50 |
P | CRANK LENGTH DEC | 165 | 165 | 170 | 170 | 175 | 165 | 165 | 170 | 170 | 175 |
Q | WHEEL SIZE ALT | 27.5″ | 27.5″ | 29″ | 29″ | 29″ | 27.5″ | 27.5″ | 29″ | 29″ | 29″ |
