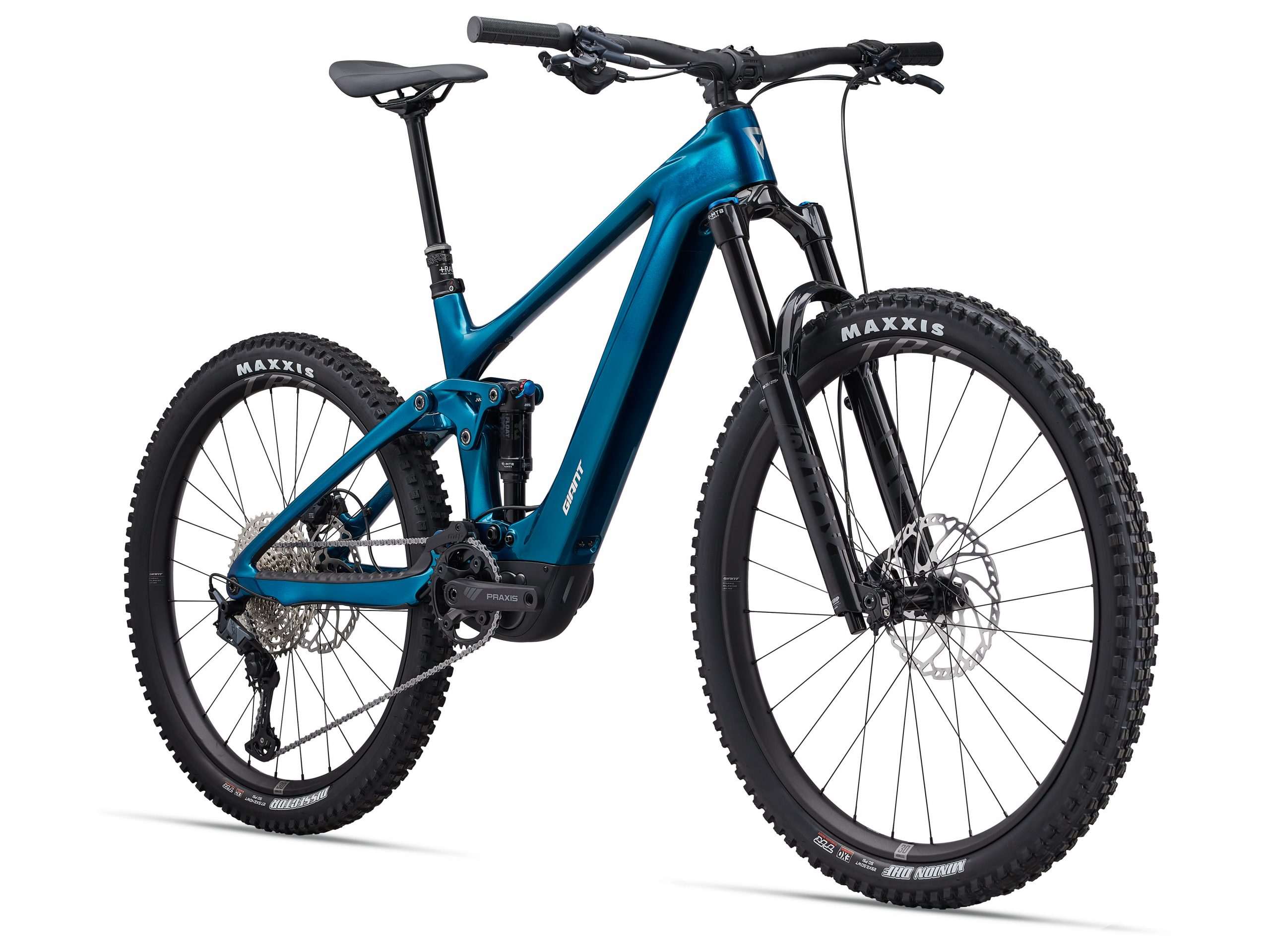

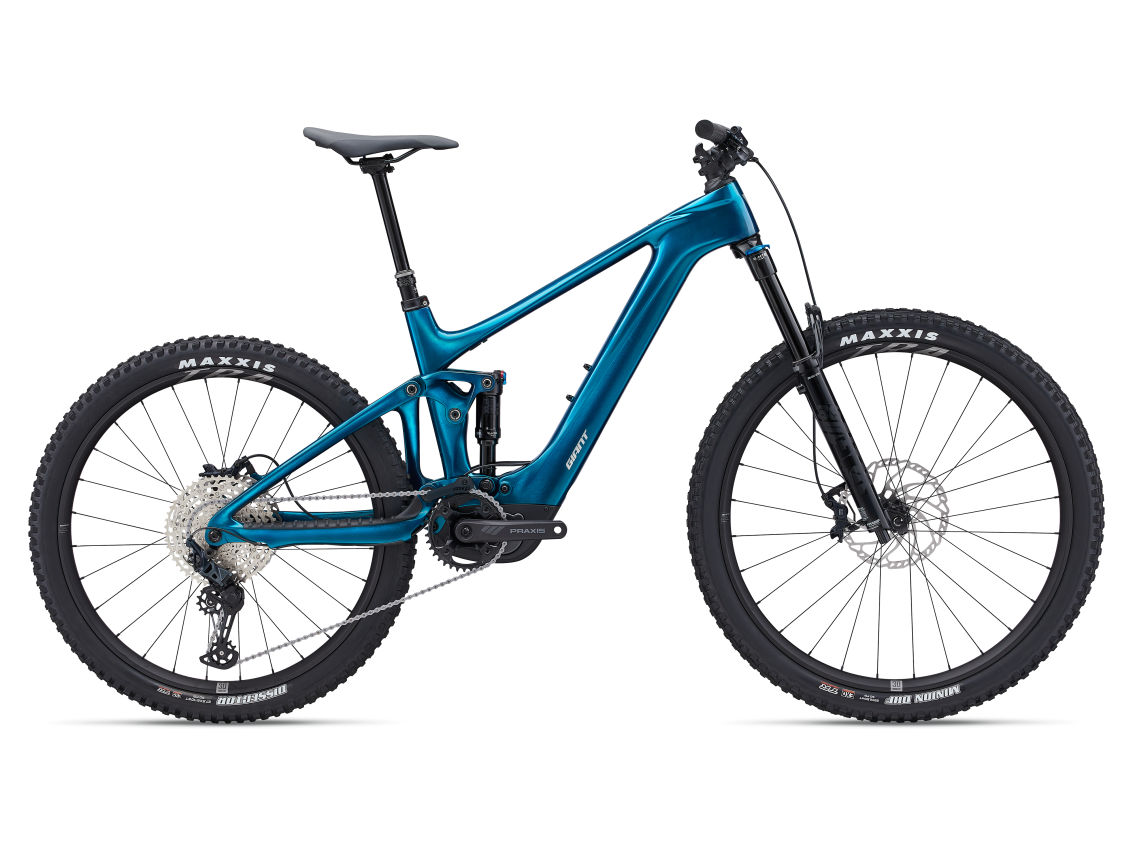

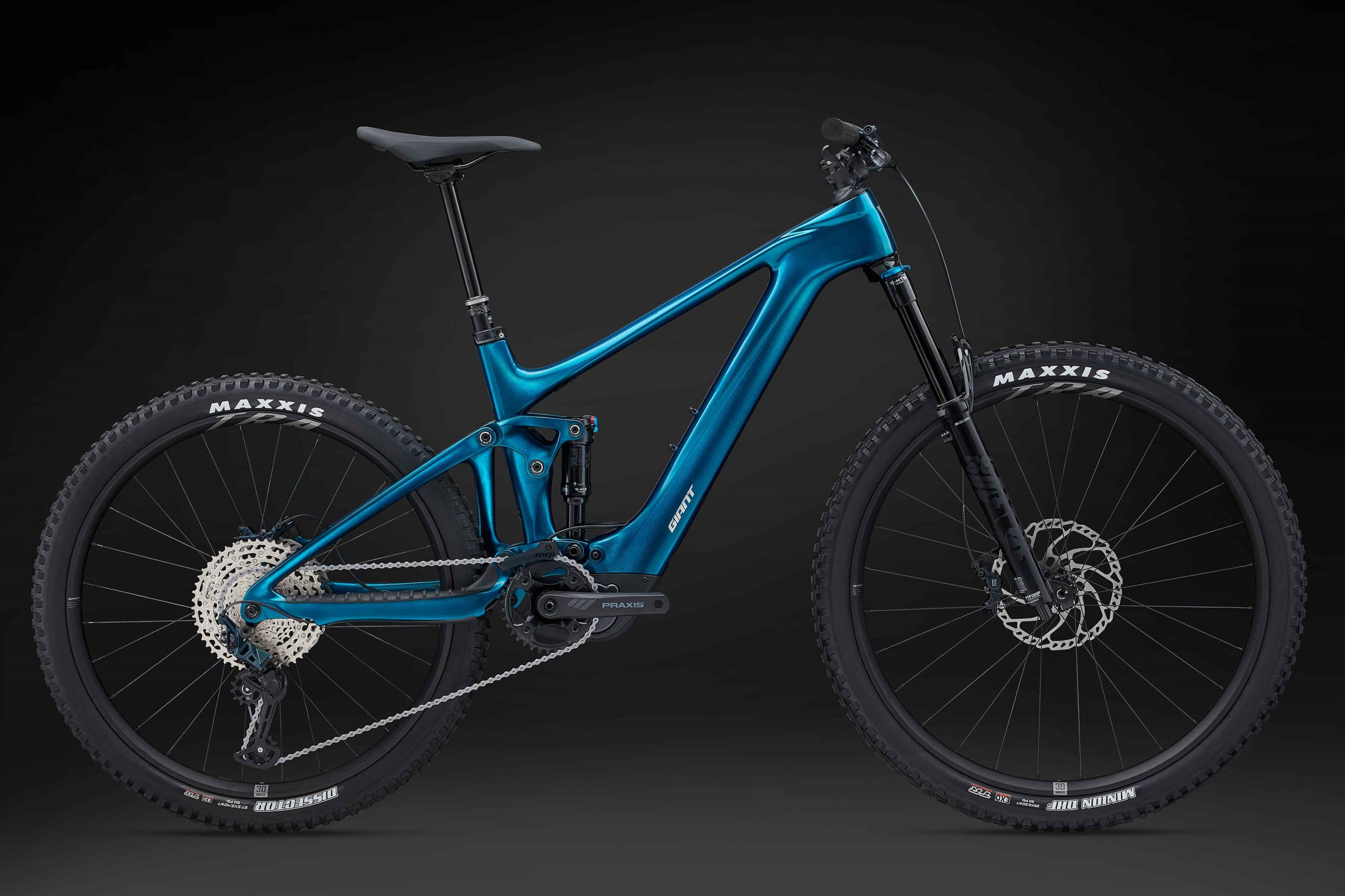

Trance X Advanced E+ Elite 2 (2024) | bike
€7,299.00
Features:
Specifications
Accelerate up climbs, float through rock gardens, and experience more power, agility and control with this lightweight, full-suspension E-MTB. The ultra-slim battery minimizes weight so you can ride technical trails the way you always dreamed of.
Key Performance Factors
Lighter weight
EnergyPak 400 battery system is ultra slim, delivering all the power you need, but in a smaller package that’s cleanly integrated into the lightweight composite frameset.

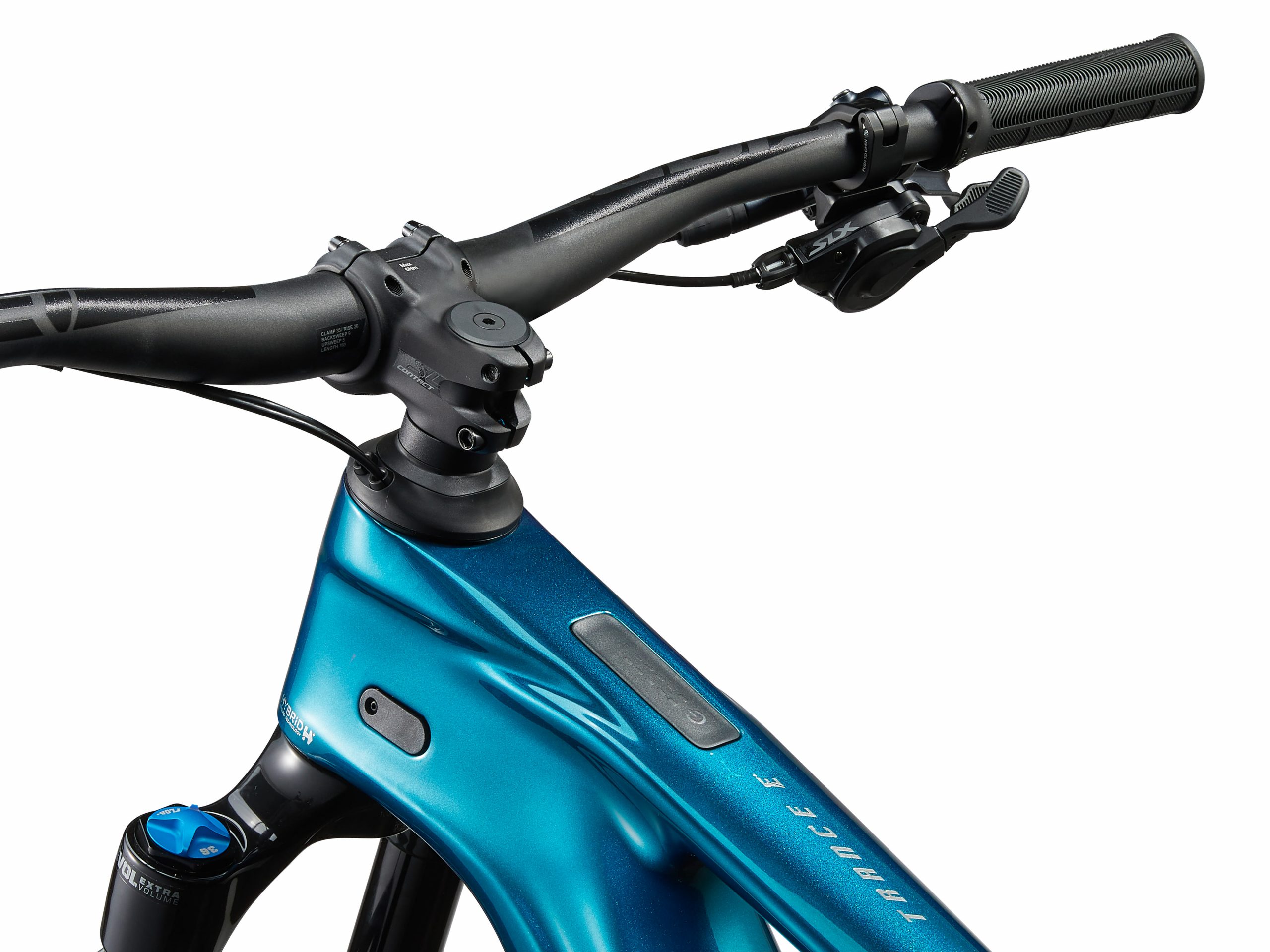

Advanced cockpit control
RideControl Ergo 3 remote attaches to the composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customize your controls for a clean, uncluttered cockpit.
More power
New SyncDrive Pro Magnesium motor features a magnesium casing that reduces weight by 50g. It weighs just 2.5kg and delivers 85Nm of torque while retaining the instant engagement that characterizes SyncDrive Pro motors. It’s also engineered for a reduced noise level and quiet performance.
| Motor | Giant SyncDrive Pro2 Magnesium 85Nm, PedalPlus 6-Sensor technology |
|---|---|
| Controller | Giant RideControl App enabled ANT+ wireless display signal with e-bike profile |

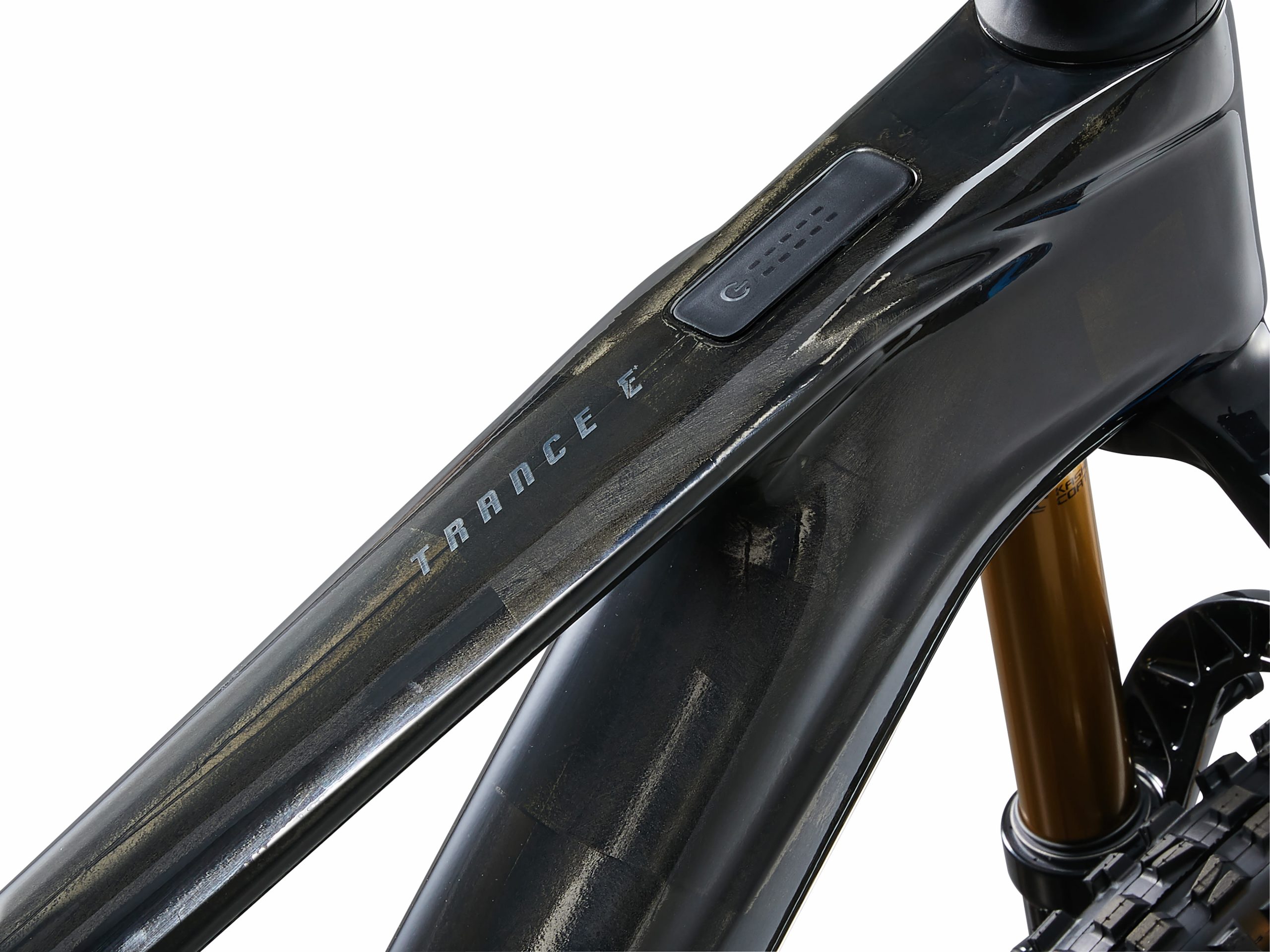

| Display | Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display |
| Battery | Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible |
| Charger | Giant EnergyPak 4A smart charger, 60% in 1:45 |
| Sizes | S, M, L, XL |
| Colours | Gloss Sea Sparkle |

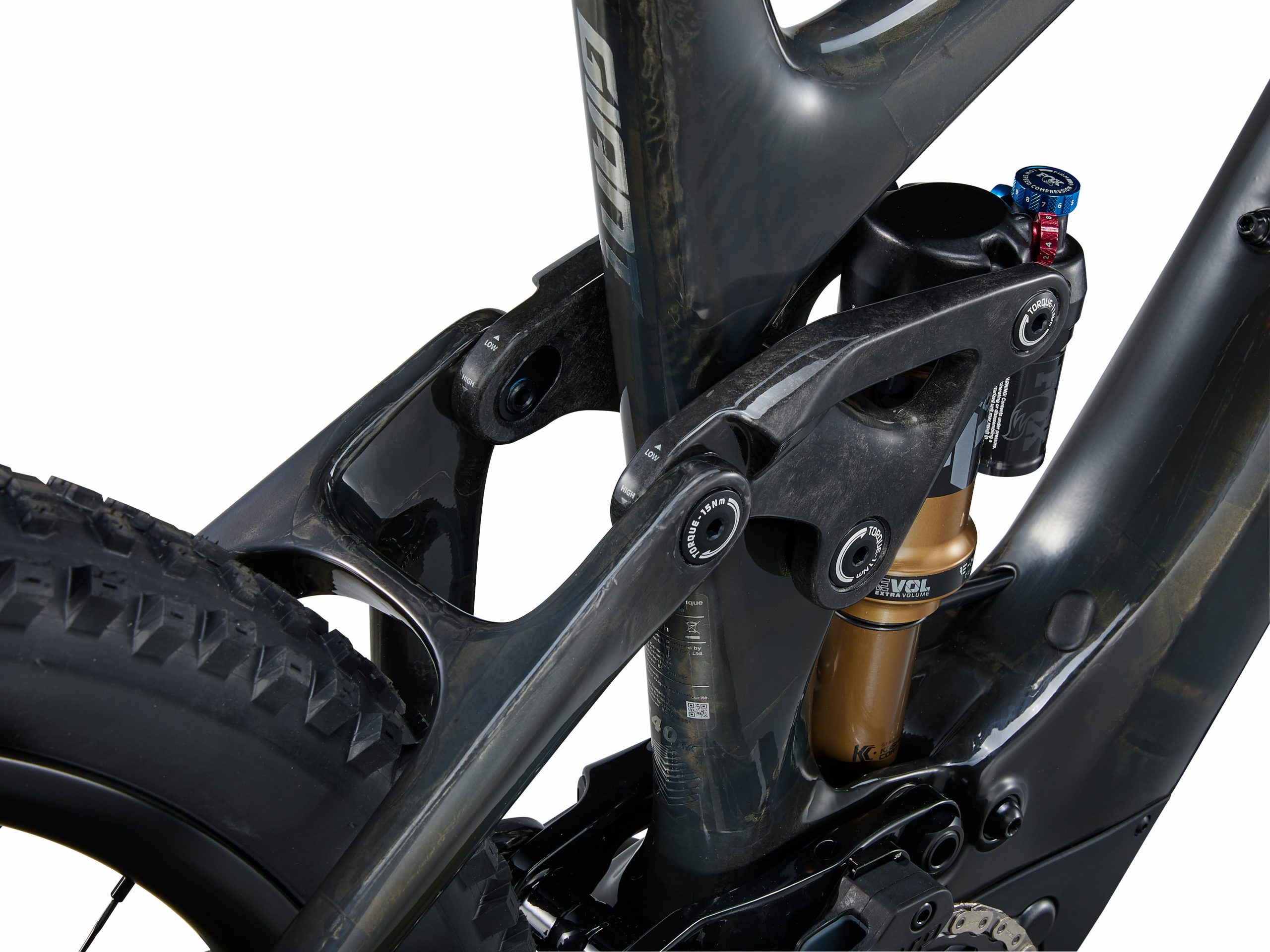

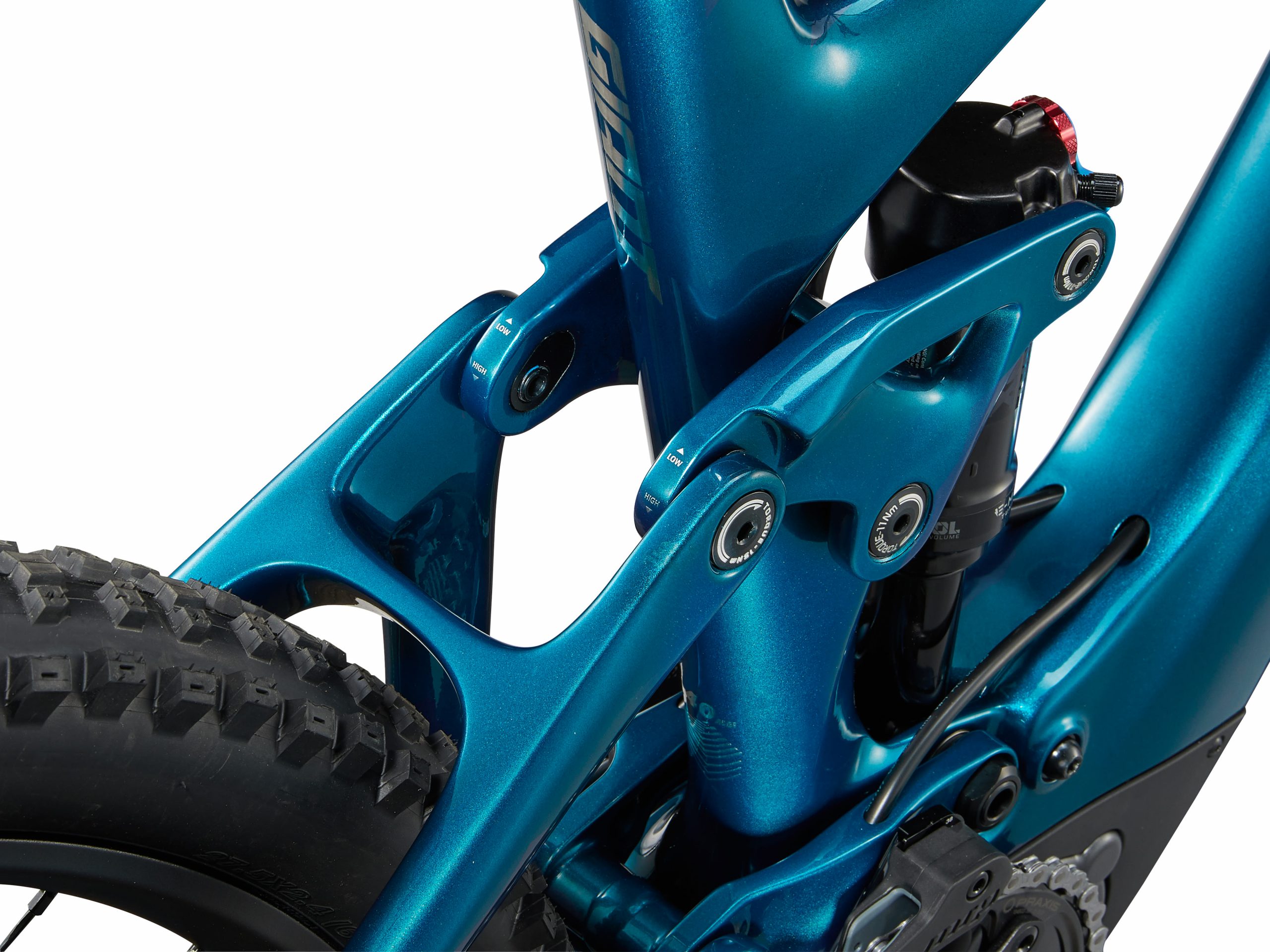

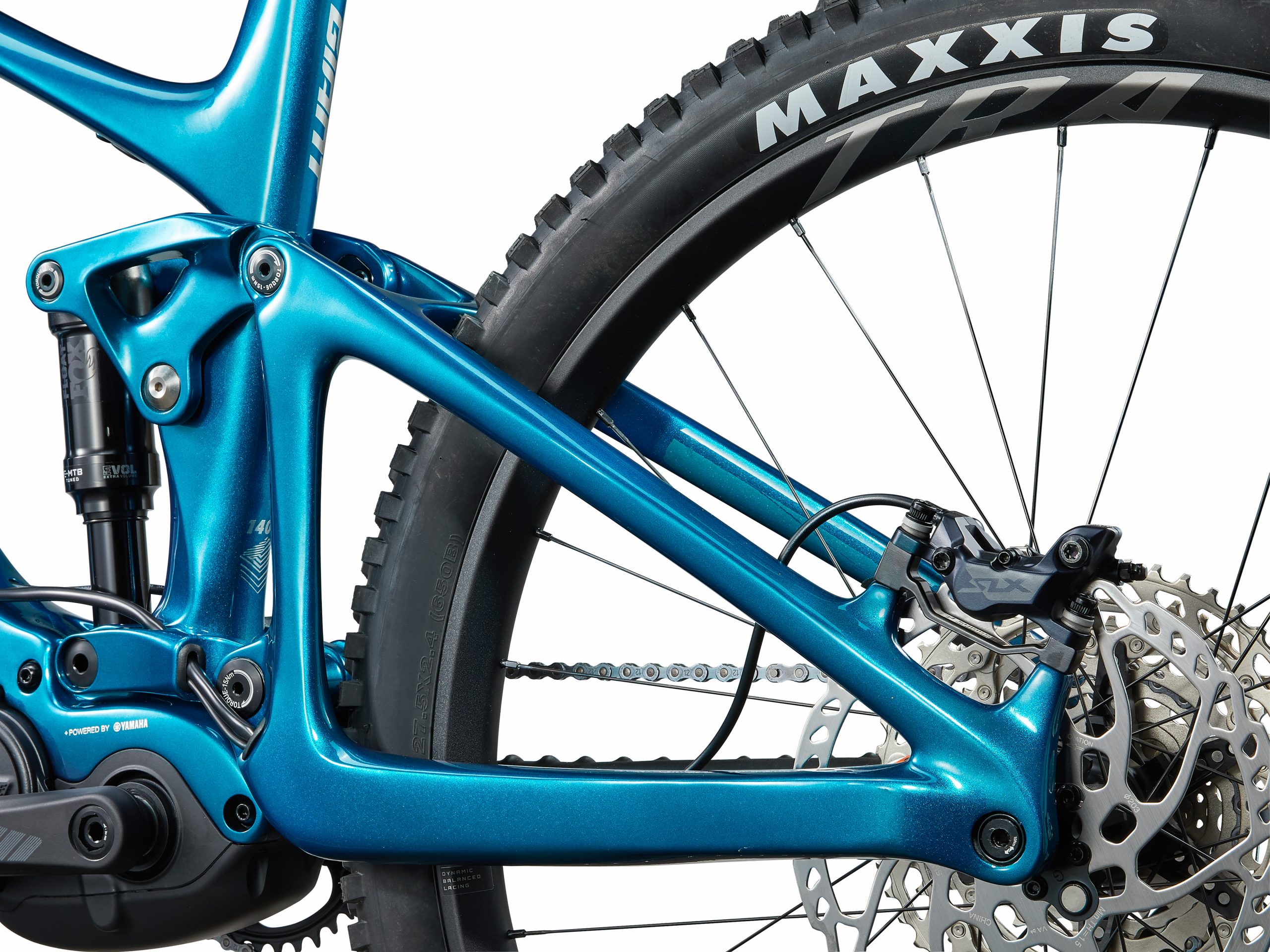

| Frame | Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system |
| Fork | Fox 36 Float Performance E-Tuned, 29er, 150mm travel, 44mm offset, Grip Damper, Kabolt-X 110 |
| Shock | Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185×52.5mm Trunnion mount, custom tuned |
| Handlebar | Giant Contact SL 35 Trail, 35x780mm |
| Grips | Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL) |
| Stem | Giant Contact SL 35 |
| Seatpost | Tranz-X Rad+ 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm) |
| Saddle | Giant Romero, Neutral |
| Pedals | PEDALS NOT SUPPLIED |
| Shifters | Shimano SLX 1×12 |
| Front Derailleur | MRP HD2 co-moulded chain guide |
| Rear Derailleur | Shimano SLX |
| Brakes | Shimano SLX, BR-M7120, 4-piston, hydraulic disc, 203mm [F/R] |
| Brake Levers | Shimano SLX, I-spec EV |
| Cassette | Shimano, CS-M6100, 10-51T, 12-speed |
| Chain | KMC e.12 Turbo, EcoProteq, e-bike optimised |
| Crankset | Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-Cranks (Q-factor=168, S:160, M/L:165, XL:170) |
| Bottom Bracket | n/a |
| Rims | E-TRA Hookless Tubeless ready Alloy 29 [F] / 27.5 [R] 30mm inner width |
| Hubs | E-TRA MTB Alloy Hub, 6 Bolt, 110×15 [F] / 148×12 Shimano Micro-Spline Drive Body Pawl Driver (Pawl 36×2 T) Thru-axle [R] |
| Spokes | Sapim E-Lite [R] Race [F], e-bike optimised |
| Tyres | Maxxis Minion DHF 29X2.50″” Foldable, TLR, EXO [F] Maxxis Dissector 27.5×2.4″” Foldable, TLR, EXO [R] |
| Extras | Tubeless kit (liquid, valves, levers, manual, tool) Inner tube supplied |
| Lighting | Optional:- Giant Recon series e-bike lights available and direct connectable |

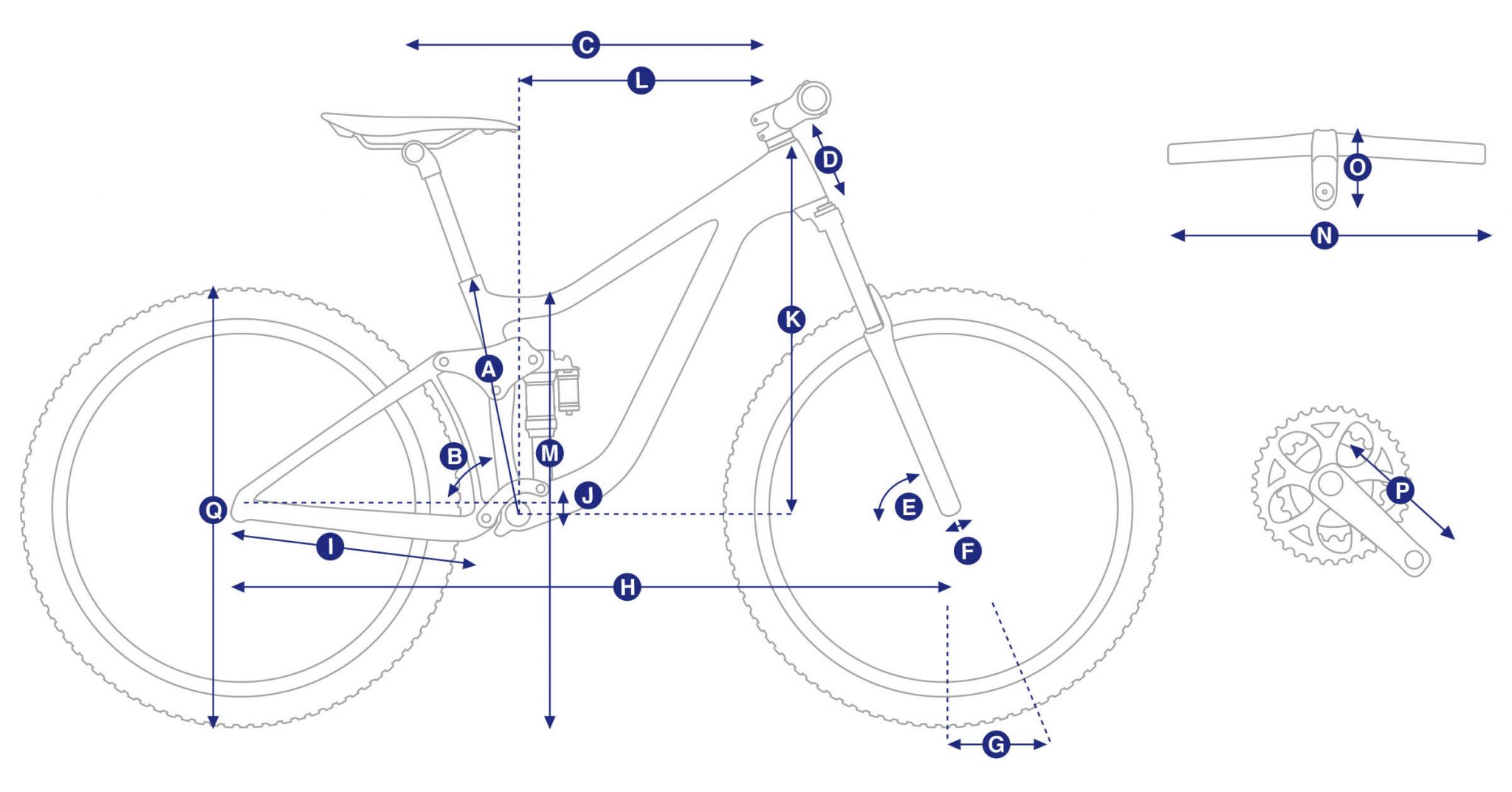

Geometry
| XL | S | M | L | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH | 475 | 400 | 425 | 450 |
| B | SEAT TUBE ANGLE | 76 | 77.2 | 76 | 76 |
| C | TOP TUBE LENGTH | 665 | 577 | 607 | 636 |
| D | HEAD TUBE LENGTH | 130 | 95 | 100 | 115 |
| E | HEAD TUBE ANGLE | 65.8 | 65.7 | 65.8 | 65.8 |
| F | FORK RAKE | 44 | 44 | 44 | 44 |
| G | TRAIL | 113.1 | 113.1 | 113.1 | 113.1 |
| H | WHEEL BASE | 1275 | 1194 | 1215 | 1244 |
| I | CHAIN STAY LENGTH | 447 | 447 | 447 | 447 |
| J | BOTTOM BRACKET DROP | 10 | 10 | 10 | 10 |
| K | STACK | 639 | 607 | 611 | 625 |
| L | REACH | 505 | 439 | 457 | 480 |
| M | STAND OVER HEIGHT | 741 | 726 | 733 | 732 |
| N | HANDLERBAR WIDTH | 780 | 780 | 780 | 780 |
| O | STEM LENGTH | 50 | 40 | 40 | 50 |
| P | CRANK LENGTH DEC | 170 | 160 | 165 | 165 |
| Q | WHEEL SIZE ALT | 29″ [F] 27.5″ [R] | 29″ [F] 27.5″ [R] | 29″ [F] 27.5″ [R] | 29″ [F] 27.5″ [R] |
